Jūrinis laivas akumuliatoriaus įkroviklis Victron, 24V, 12A, IP67, atsparus vandeniui

Trumpai apie prekę

Prekė: Jūrinis laivas akumuliatoriaus įkroviklis Victron, 24V, 12A, IP67, atsparus vandeniui. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Victron energy
• Modelis: IP67

➡ THE LATEST VERSION OF THE RECTIFIER FROM THE RENOWNED COMPANY VICTRON ENERGY

⚠ WHAT'S NEW IN THE LATEST VERSION

• MORE MODERN PROCESSOR
• THE ABILITY TO DISPLAY THE CHARGING HISTORY IN THE SMARTPHONE APPLICATION
• CHARGING SYSTEM WITH REGENERATION FUNCTION OF DEEPLY DISCHARGED BATTERIES RECONDITION

ONLY ORIGINAL FULL-VALUE VICTRON ENERGY PRODUCTS HAVE A FULL MANUFACTURER'S WARRANTY!

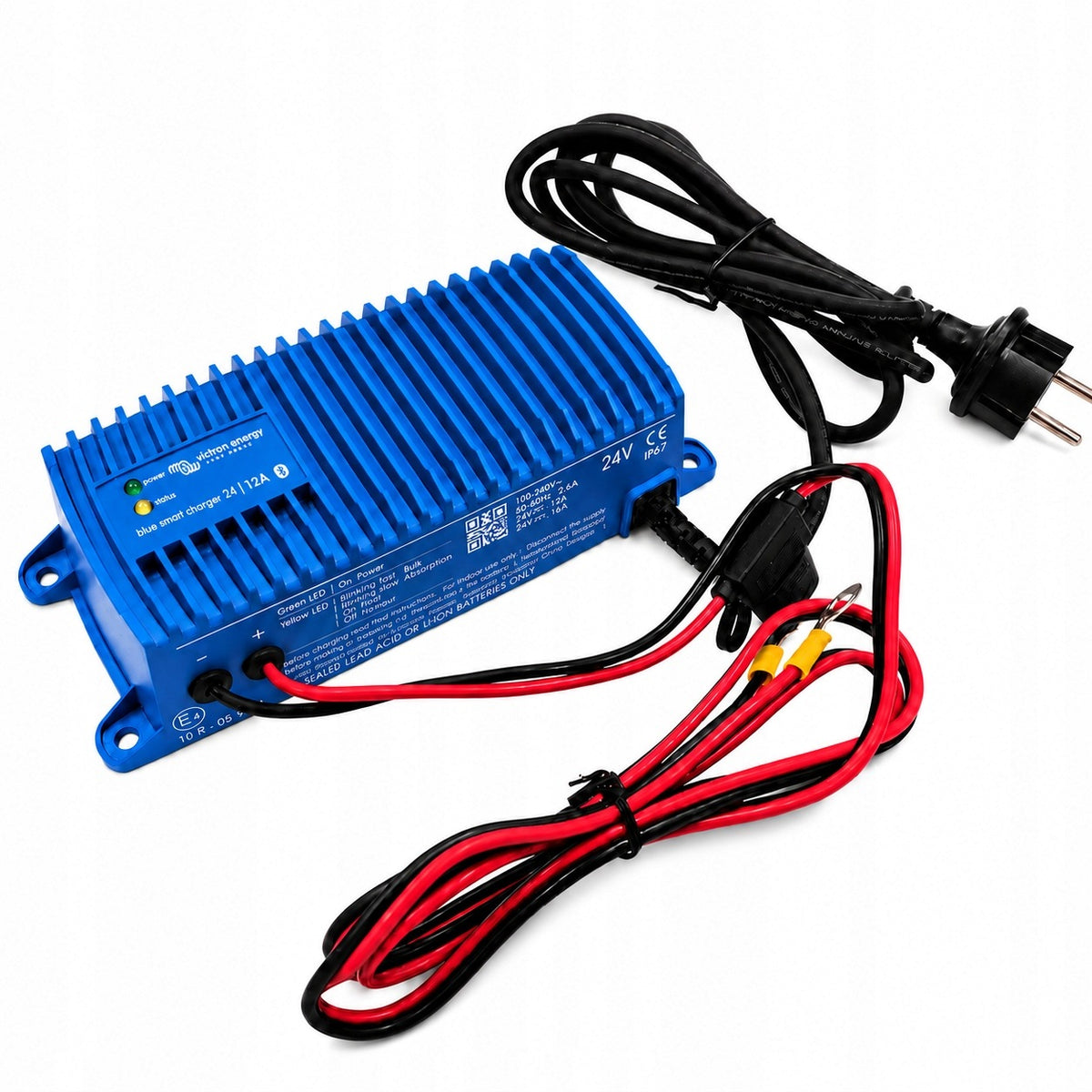

BlueSmart IP67 Waterproof Charger is a new professional battery charger that supports Bluetooth technology. BlueSmart IP67 waterproof chargers can be used for equipment used in workshops and motor vehicles, such as classic cars, motorcycles, motorhomes or boats.

The Victron Blue Smart IP67 charger is completely closed waterproof, shockproof, dustproof. The charger is resistant to damage due to water, oil or contaminants. The housing was made of cast aluminum, and electronic systems were embedded in resin.

➡ What IP67 means

means that we have complete protection against dust. Our equipment can also fall into a bathtub, shallow pool or lake – up to 1 meter deep. The charger can also be used without any worries in the rain. The duration of the device in these conditions is also important – it should not be more than half an hour.

➡ Victron is a four-step adaptive loading algorithm

With an efficiency of up to 92%, Blue Power chargers emit four times less heat compared to competing devices. Additionally, when the battery is charged, power consumption drops due to a power drop of up to 0,5W, which is five to ten times better than competing devices.

➡ Two LEDs indicating charging status and charger status

• LED yellow (fast flashing): charging in BULK phase
• LED yellow (slow flashing): charging in the absorption phase.
• LED yellow (fixed): charging in FLOAT phase.
• LED green: charger on

➡ Protection against overheating

When the temperature reaches 60 °C, the output current is reduced while maintaining proper operation and thus protects the charger from damage.

• Model: Blue Smart IP67 24/12
• Product type: battery charger / rectifier
• Battery voltage: 24V
• Maximum charging current: 12A
• Low mode charging current: 4A
• Power supply voltage: 220 to 240 VAC nominally | 180 to 265 VAC min./max.
• Power frequency: 50 to 60 Hz nominally | 45 to 65 Hz min./max.
• Power factor: > 0,6
• Power consumption in standby mode: 0,5 W
• Maximum efficiency: 96%
• Charging voltage – Normal mode: absorption 28,8V | maintenance 27,6V | storage 26,4V
• Charging voltage – High mode: absorption 29,4V | maintenance 27,6V | storage 26,4V
• Charging voltage – Li-ion mode: absorption 28,4V | maintenance nd. | storage 27,0V
• Temperature compensation: -32 mV/°C, not applicable for lithium-ion batteries
• Charging algorithm: 6-stage adaptive, 3-stage for Li-ion
• Maximum battery capacity: 120 Ah
• Minimum lead-acid battery capacity: 40 Ah at maximum mode | 13 Ah at low mode
• Minimum Lithium-Ion Battery Capacity: 24 Ah at Maximum Mode | 8 Ah at Low Mode
• Communication: Bluetooth via VictronConnect
• Bluetooth power and bandwidth: +4 dBm | 2402 – 2480 MHz
• Cooling: convection, without fan
• Security: reverse polarity, short-circuit output, excessive temperature
• Working temperature range: from -20°C to +60°C, full capacity up to +40°C
• Maximum humidity: 100%
• Protection rating: IP67
• Housing: aluminium, colour blue RAL 5012
• AC power cable: 1,5 m with CEE 7/7, BS 1363 or AS/NZS 3112 plug
• Battery connection: red-black 1,5 m cable with M8 ring terminals
• DC cable cross-section: 9 AWG / 6 mm²
• Internal output fuse: 30A
• Fuse on cable: 25A
• Mass: 2,4 kg
• Dimensions: 99 × 219 × 65 mm
• Safety standards: EN 60335-1, EN 60335-2-29
• Electromagnetic compatibility: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, ETSI EN 300 328 V2.2.2
• Automotive standard: ECE R10
• Manufacturer: Victron Energy

⌛ Interruption of start-up

Models marked with the prefix (1+Si) include a second output with a current limitation, which is powered whenever the input voltage is connected. This function is useful for e.g. prevent the vehicle from starting before disconnecting the charger.

➡ Reduction of battery consumption with reduced operation: Storage mode

Storage mode is activated whenever the battery is not used for 24 hours. In this mode, the voltage is reduced to minimize gassing and corrosion at the positive poles. Once a week, the voltage is raised to the absorption voltage to recharge the battery. This prevents electrolyte delamination and sulfurization - the main causes of premature battery consumption.

➡ Intelligent battery charging up to the ideal level

The seven-stage charging algorithm allows you to get the best battery performance. The charger provides the battery with the necessary power, keeps it in good condition, improves its performance and extends its service life.

➡ Regeneration of fully discharged (disabled) batteries

Unlike other brands of devices, the BlueSmart IP67 waterproof charger attempts to charge a deeply discharged battery by forcing it to be powered by low-intensity current. Once the voltage between the poles is sufficient, normal charging is restored.

➡ Remote battery status check

The BlueSmart IP67 waterproof charger supports Bluetooth technology, so you can check the status of your charger and battery using your smartphone, tablet or laptop. All charger settings can be configured using the VictronConnect app.

✅ Victron products are characterized by several features that make them unique on the market:

• safe for humans: easy to install, resistant to sparking and short circuit and reverse polarity, no need to remove the battery for charging.
• safe for vehicles: regulate charging parameters, so they do not pose a risk of damage to the vehicle's electrical and electronic equipment
• fully automatic: the microcomputer controls the entire charging process, so that the user does not have to supervise anything or be an expert on batteries
• good for the battery: equipped with a unique desulphurisation function that allows you to restore the life of discharged batteries. The charging voltage and current are computer stabilized, which allows you to extend the battery life (the fluctuations in charging parameters are less than 2%, while in traditional rectifiers they reach up to 400%).
• efficient: the control system can charge the battery 100%, so there is no effect of gradual loss of capacity by the battery
• durable: suitable for outdoor use (IP65), operate at temperatures of -20 to +40 degrees Celsius.
• High-quality products: devices that work reliably for many years.
