Jutiklinis skydelis Grenton SMART PANEL 4B, juodas

Trumpai apie prekę

Prekė: Jutiklinis skydelis Grenton SMART PANEL 4B, juodas. Kategorija: Išoriniai moduliai.

• Gamintojas: Grenton
• Modelis: SPS-204-T-01

22510

• Model: SPS-204-T-01

GRENTON - SMART PANEL 4B, OLED, TF-Bus, BLACK

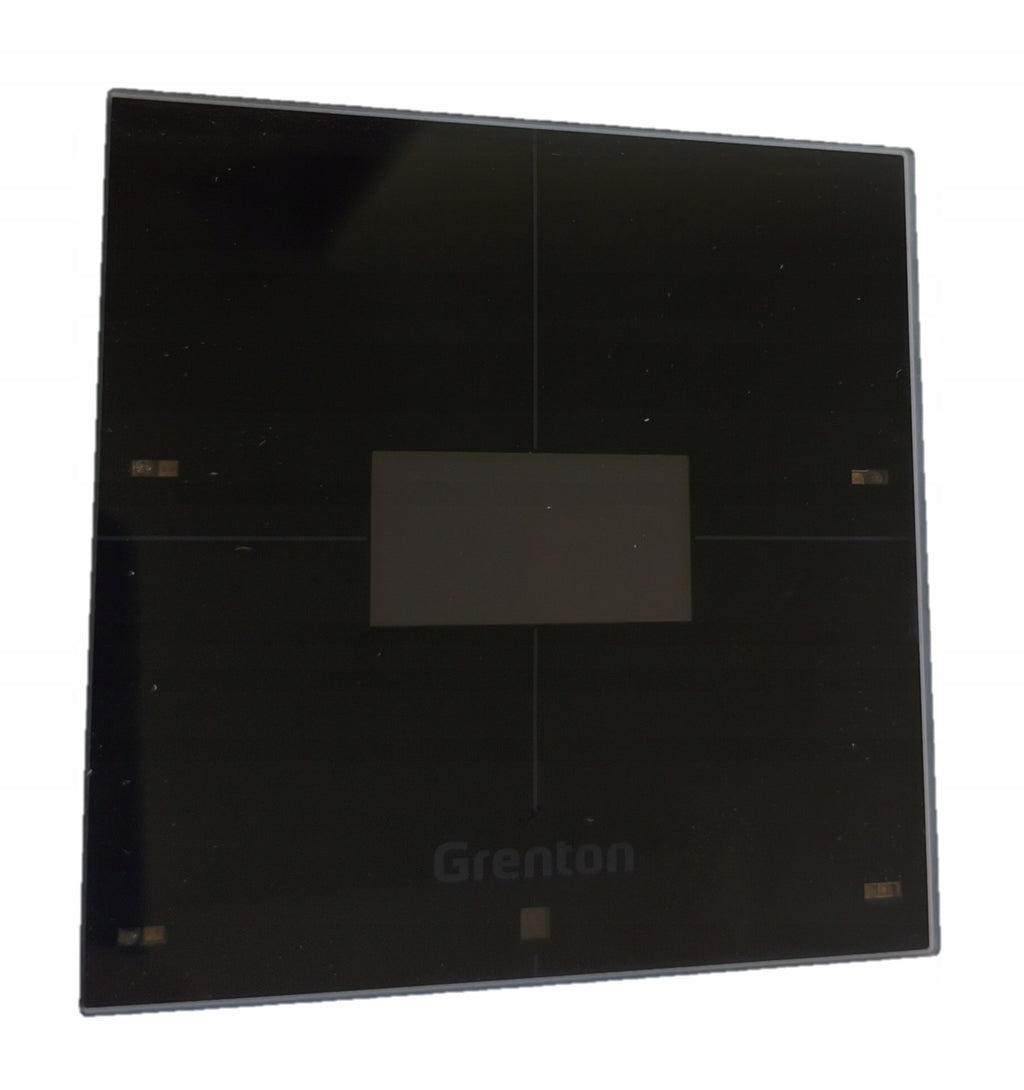

FOUR-BUTTON TOUCH WALL PANEL, EQUIPPED WITH AN OLED DISPLAY AND THE ABILITY TO CONTROL WITH HAND GESTURES.

BY REPLACING TRADITIONAL WALL SWITCHES, THE SMART PANEL ALLOWS YOU TO CONTROL NOT ONLY LIGHTING BUT ALSO ANY DEVICE CONNECTED TO THE SMART HOME SYSTEM.

IT ALSO PROVIDES USER-CRITICAL INFORMATION FROM SENSORS, SYSTEM PARAMETERS, OR DATA ON THE FUNCTIONING OF THE HOUSE. THE VERSATILE CONTROL INTERFACE ALLOWS YOU TO EASILY AND QUICKLY CONTROL AND CALL THE FUNCTIONALITIES AVAILABLE IN IT.

Properties

• 4 touch buttons, each of which can perform 4 independent functions
• Detects hand gestures
• LEDs indicating the correctness of the action or errors
• It has a built-in temperature sensor
• It has a built-in lighting sensor
• Features a powerful OLED display
• It has a proximity sensor "proximity"
• Emits sounds
• Unlimited functionality thanks to programmability

Technical data

• DC bus power supply: 5-24 V
• maximum current consumption (@5V): 80 mA
• average standby current consumption (for 5V): 20 mA
• Weight: 120 g
• dimensions (H) /lat. /voice ): 80/80/10 mm
• operating temperature range: 0 – 45 °C
