Kablio modulis 13 kontaktų su sija SMART CONNECT MH-13/8s LEXLINE

Trumpai apie prekę

Prekė: Kablio modulis 13 kontaktų su sija SMART CONNECT MH-13/8s LEXLINE. Kategorija: Laidai ir lizdai.

• Gamintojas: no brand

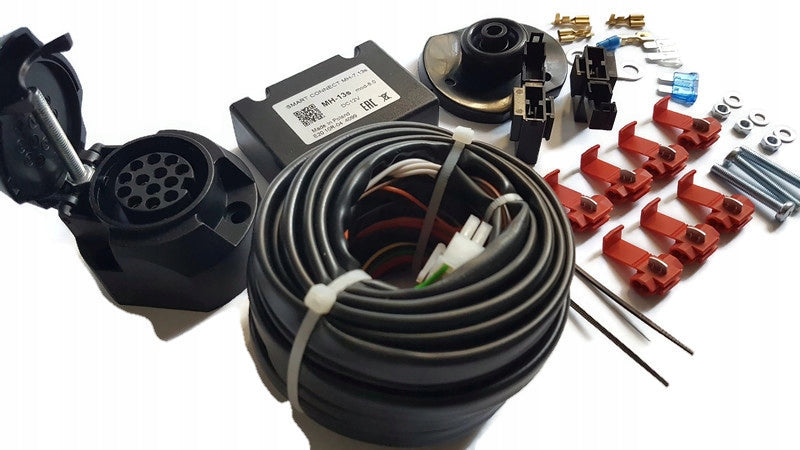

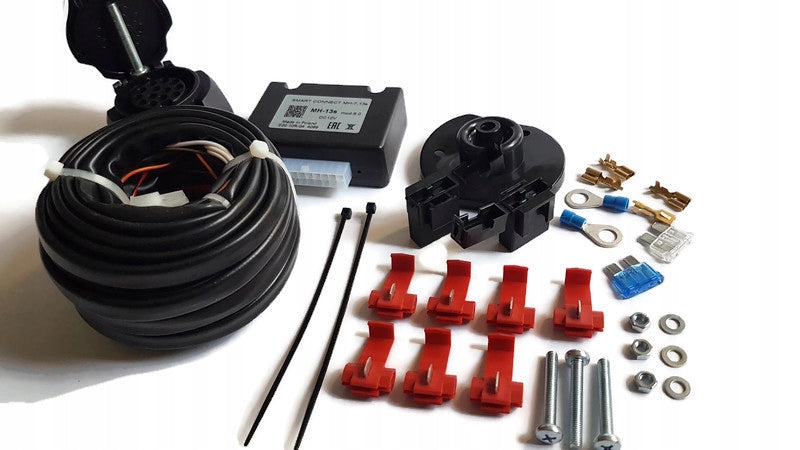

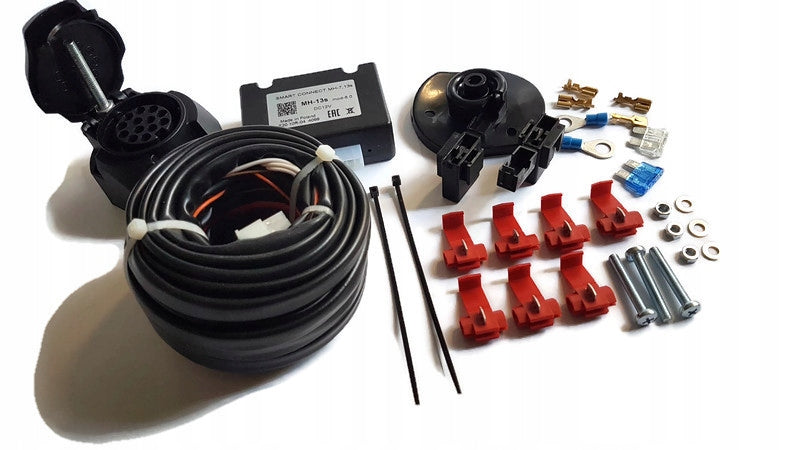

UNIVERSAL HOOK ELECTRICAL MODULE WITH 13/8PIN BEAM

COMPLETE FOR ASSEMBLY

Companies

• PLASTIC SOCKET 13 pin

• RUBBER SEAL UNDER THE SOCKET

• WIRING DIVIDED INTO RIGHT AND LEFT

• QUICK CONNECTORS

• FUSE HOLDER

• CLAMP BANDS

• SCREWS AND NUTS TO ATTACH THE SOCKET

• CONNECTION INSTRUCTIONS

• UNIVERSALITY FOR ANY CAR WITH A VOLTAGE OF 12V

The module is designed for lighting control carriage trailers and luggage platform bicycle.

It acts as an additional protection against possible short circuits from the side of the trailer’s electrical system.

The module can cooperate with installations in which some car lighting circuits (e.g. position/stop, position/fog) are realized on a jone-fiber bulb.

Our module also supports the new generation flasher so-called dynamic (sequential, linear) and LED lamps.

WHAT THE HOOK MODULE GIVES US

• cooperation with CAN BUS
• controls trailer/truck lighting, also LED
• test of correct connection of the trailer
• cooperation with vehicle and trailer LED lights
• supports lights with one-fiber, two-fiber bulbs
• possibility of switching off the fog lamp
• no coding/programming required
• AUTOALARM - additional function

TECHNICAL DATA:

• Manufacturer: SMART CONNECT
• Catalog number: MH8S
• Socket: 13-pin
• Cooperation with Can Bus: YES
• Reverse light support: YES
• Support LED lights: YES
• Operation of position lights: YES
• STOP light support: YES
• Parking sensor support: YES (added only)
• Operation of direction indicator lamps: YES
• Cooperation with LED and single-fiber car lighting: YES
• Current load of inputs below: 2mA
• Output load capacity: 1A
• Intelligent charging of trailer battery: NOT (model MH13S)

*Applies only to non-factory (added) sensors

The module senses the connection of the trailer to the vehicle and conducts a test lighting turning on the lights in the trailer sequentially. 3 times repeats each light in order: turn signal, position, stop, fog, reversing. Thanks to this, we are able to quickly and without the help of another person to verify the efficiency of the lights in the trailer or platform.

ALARM FUNCTION

The module has the ALARM INFO function, which gives us protection of the trailer or bicycle rack against theft. The module gives a signal to the car alarm system.

LENGTH OF WIRES

• power supply 5,5 m
• bundles for socket 1,8 m
• signals per side L=1,2 / P=3,0 m
