Āķis ar 7 kontaktu moduli un vadiem VW Caddy (2004–2020), 1650 kg

Trumpai apie prekę

Prekė: Kablys su 7 kontaktų moduliu ir laidais VW Caddy (2004–2020), 1650 kg. Kategorija: Pilnas vilkimo kablys (sija + rutulys).

• Gamintojas: Imioła Hak-Pol

Towing Hooks sold by us are approved e20, E20 as well as polish certificates,

Complete set of towing hook for Volkswagen Caddy (from 02/2004). It allows you to safely tow the trailer and mount the bicycle rack on the hook, and the entire set is matched for installation according to the manufacturer's instructions. Parameters: bollard 1650 kg, pressure 80 kg, approval e20.

The most important benefits

• Fits to: Volkswagen Caddy from 02/2004 to 2020
• Drawing: 1650 kg — a real stock for most everyday applications (within the limits of the car’s DMC).
• Ball pressure: 80 kg — a more stable set when working with a trailer (loading, tools, materials) or bicycle rack.
• D-value: 9,40 kN — the parameter required for approval confirms the hitch class.
• Approval: e2094/200235*00 — legal installation and use.
• Spinning according to the torque table (8.8) — secure hold and safety after installation.
• Module does not require programming

TOW HITCH FITS THE FOLLOWING VEHICLES:

Volkswagen Caddy (2004–2020)

• ✅ Fits models from the following years: 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 (from 02/2004)

Also fits 4x4 versions. If you are purchasing the tow hitch for a 4x4 model, please leave a message for the seller after purchase indicating that it is a 4x4 (ideally also include the year or VIN) — we will confirm compatibility before shipping.

Towing Hook Specification for VW Caddy

• Model / catalogue no.: W/027
• Producer: Imioła Hak-Pol
• Vehicle: Volkswagen Caddy from 02/2004
• Drawstring (max. ): 1650 kg
• Vertical pressure (S): 80 kg
• D-value: 9,40 kN
• Approval type: e2094/200235*00

Pressure on the ball: 80 kg

80 kg of vertical pressure is a very good result if Caddy is to do “work” with you: a trailer with tools, material, equipment for the company or trips with a load.

In practice, this means stable towing and less nerve when the trailer is actually loaded — especially on bumps and ruts.

It’s also just easier to set the load: you have a larger margin to distribute the weight well on the drawbar, without the effect of “sitting too hard on the back” or getting unstable.

Drawing capacity: 1650 kg

1650 kg of bollard gives you real freedom in everyday applications: you can easily handle most of the things for which Caddy is most often used – a cargo trailer, transport of materials, construction equipment, garden or company routes with cargo (within the limits of DMC inscribed in the car ID card).

This is a parameter that makes a difference in practice: more confident starting, more peace of mind on the driveways and the feeling that you have a spare, and you are not going “to the contact”.

If you are towing regularly, 1650 kg is the safe margin for a variety of scenarios – without combining or “doing it” this time.

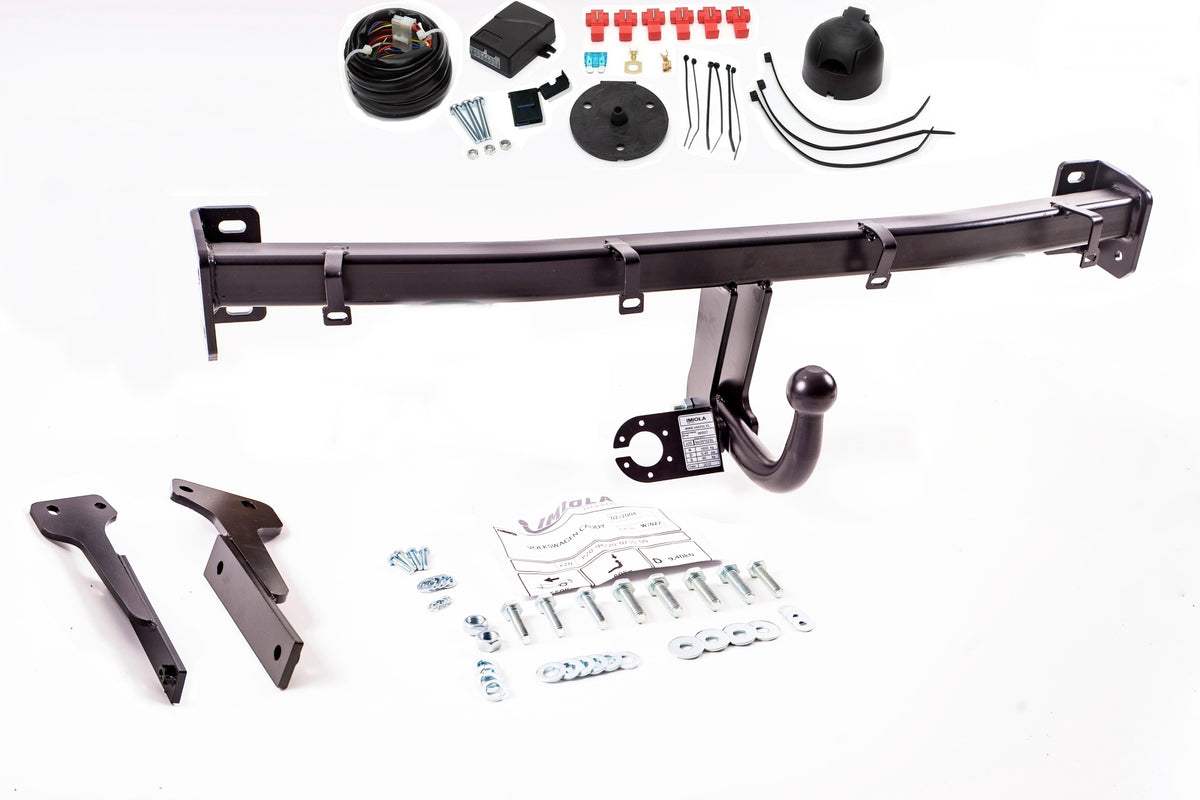

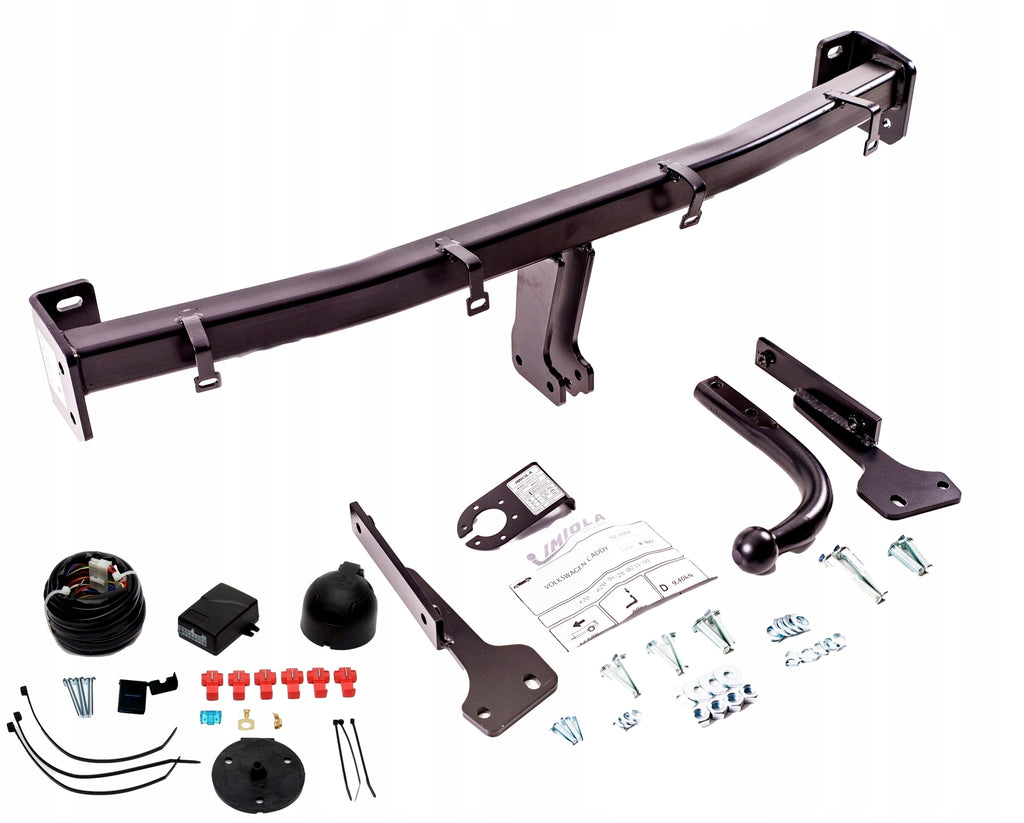

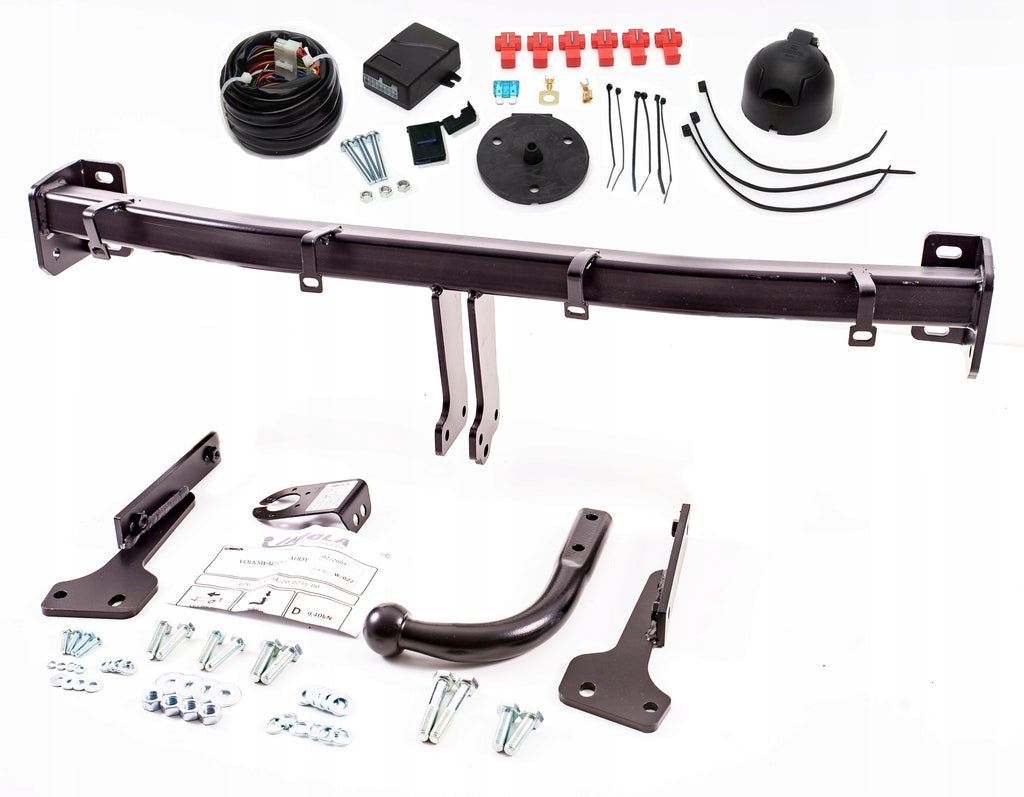

Towing Hook + Module 7 Pin Kit for Volkswagen Caddy from 2004 Includes

Towing hook (assembly kit) + mounting hardware.

Electric set 7 PIN:

• module (12VDC control panel),
• 7-pole socket + gasket / gasket under the socket,
• bundle with fuse,
• connectors + mounting accessories (screws, nuts, bands),
• instruction PL.
• Certificate of Approval/Compliance E/20

7-Pin Wiring Kit with Module + Wiring Harness + Module Accessories

The module kit includes:

• Connectors
• Fuse
• Screws
• Nuts
• Cable ties
• Instructions

Specification

• Compatible with CAN-Bus systems;
• Compatible with LED and single-filament lighting;
• For connecting a 7-PIN socket;
• Trailer connection detection;
• E20 Homologation

MODULE CONTROL UNIT FUNCTIONS

1. Fog lights - YES
2. Reversing lights - NO
3. STOP brake lights - YES
4. Position lights - YES
5. Turn signals - YES
6. Trailer module - YES
7. LED light support - YES
8. CAN BUS - YES
9. Parking sensor compatibility - NO (we have modules that support parking/reversing sensors in a separate listing)
10. Trailer light operation monitoring - NO
11. Homologation - YES, E20
12. Parking sensors - The module does not disconnect parking sensors, but we have modules that disconnect the sensors in a separate listing.

Contents of the 7-pin module kit:

• Electronic module - 12VDC control unit,
• 7-pin socket with seal,
• Wiring harness with fuse,
• Accessories needed for assembly,
• Instructions in Polish,
• SOCKET SEAL

We know how important safety and security are to you – that’s why our hooks have the required approvals and certificates.

This allows you to install a compliant product and can tow legally and without stress during inspection or inspection.

Approval E20 is peace of mind for you: you assemble a product approved for use and use the legally hook — without stress when inspecting or reviewing.

It is also a signal that the hook meets the strength requirements and has been assessed in accordance with the applicable standards.

• Towing Hook with Unscrewable Ball
• All screws, washers and bushings needed for installation
• Nameplate with stamped approval number (thanks to this plate you can easily register the hook)
• INSTRUCTIONS FOR INSTALLING THE TOWBAR

Specifications
