Kablys su LED moduliu, 13 kontaktų, WH3Q-CS-G13-DIGITAL kemperiams

Trumpai apie prekę

Prekė: Kablys su LED moduliu, 13 kontaktų, WH3Q-CS-G13-DIGITAL kemperiams. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

The latest generation WH3Q-CS digital module, complete with a 13-pin socket (G13) and "full" wiring (including a "constant positive" connection and a trailer battery charging circuit). This kit includes all necessary accessories (including a relay to activate the trailer battery charging circuit) for installing the module into the vehicle's electrical system. The socket is pre-connected to the main wiring harness, reducing installation time.

New to the "CS" series module is an integrated control system for the trailer battery charging circuit – meaning a separate ICM module is no longer required.

✅ The module has standard functionalities, i.e. in addition to basic functions, it enables m.in.:

• sound signalling of the detection of the connected trailer;
• the possibility of switching off the parking sensor control unit (PDC);
• Sequential control of the fog lamp (54G) in the car leaving it attached to the trailer;
• signalling of faulty direction indicator lamps of the trailer (Blink Control) with an audible signal from the buzzer;
• switching on the charging circuit of the trailer battery only during the operation of the car engine when the trailer is connected.

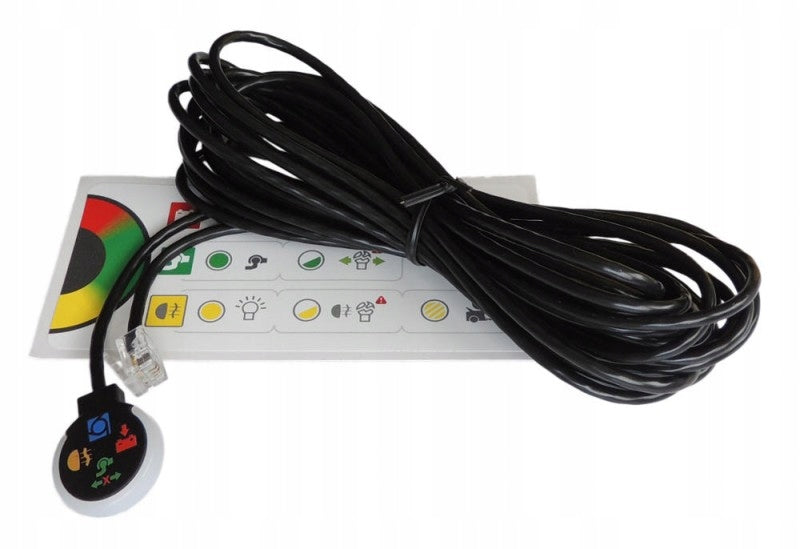

✅ The LED-RGY-500 is also equipped with a 3-color information light that signals:

• connection of the trailer;
• burning out the direction indicator lamps of the trailer;
• switching on the trailer fog lamp;
• charging status of the caravan battery.

✅ Basic functions of the module

• Input current load: ≤2 mA
• Cooperation with LED and single-fiber car lighting ✔
• Support for automotive installation with variable lamp supply voltage (PWM)(digital) ✔
• Cooperation with LED lighting and incandescent trailer ✔
• Detection of trailer connection with incandescent lighting ✔
• Detection of trailer connection with LED lighting ✔
• Possibility to control the operation of the car parking sensor module ✔
• Detection of damage to the trailer direction indicator lamp ✔
• Trailer reverse light control ✔
• Constant power supply on the trailer socket ✔
• Trailer battery charging circuit ✔
• Intelligent charging of trailer battery ✔

✅ Diagnosis and signalling

• Trailer connection signal: beep; LED-RGY-500 ✔
• Indication of failure of trailer direction indicators: beep; LED-RGY-500 ✔
• Indication of switching on the trailer fog lamp: beep; LED-RGY-500 ✔
• Indication of switching on the trailer battery charge: LED-RGY-500 ✔

✅ How to operate the rear fog lamps of the car:

• Trailer fog light control method: Sequential
• Sequential method for controlling a trailer fog lamp
• Complete shutdown of the rear fog lamp of the car

✅ Features of the electrical harness

• Installed hook socket on the beam ✔ (this reduces the assembly time)
• Power beam length: 5,0 m
• Beam length to socket: 1,7 m
• Input signal beam length: Left=1,0 Right=3,0 m

✅ Technical data

• Supply Voltage: 10-18 V
• Maximum output load of position lamps: (each side) 3 x 5 W
• Maximum load output of stop lights: 3 x 21 W
• Maximum output load of direction indicator lamps: (each side) 21+10 W
• Maximum fog light output load: 21 W
• Maximum load output of reversing lights: 21 W
• Maximum output current of trailer battery charging: 10 A
• Car reversing sensor control output load capacity: 0,5 A

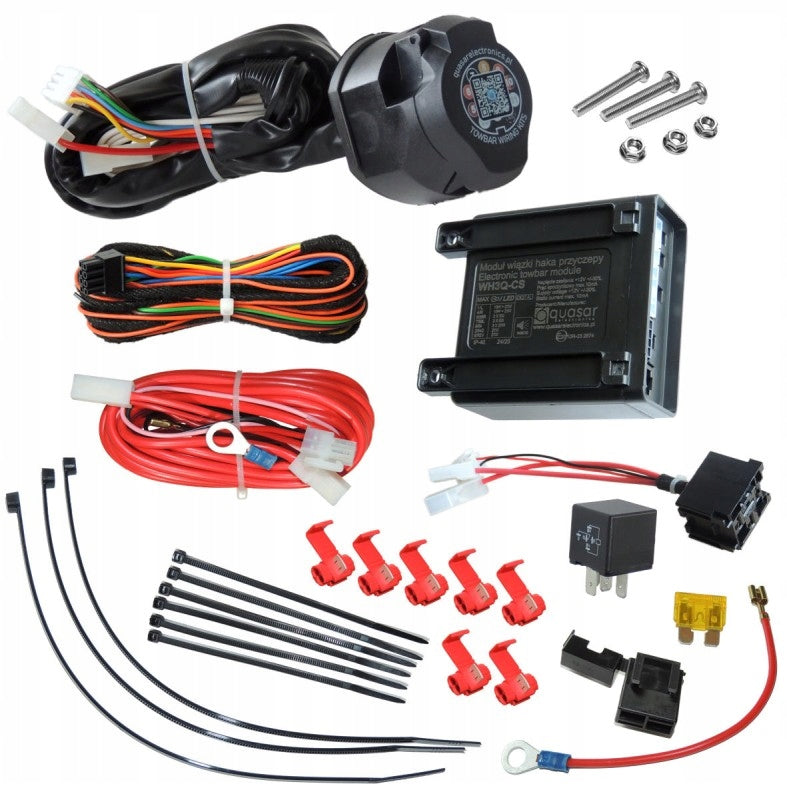

✅ Elements of the set:

• Control module (control panel)
• Trailer battery charging module
• LED Information Light (3-Color)

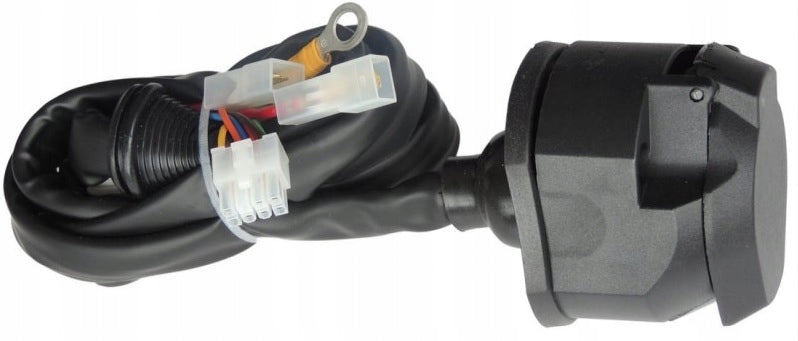

• Main harness with 13-pin socket
• Signal beam
• Power beam
• Mounting kit
• Screw set
• Assembly instructions

Below is a shortened assembly diagram. Full installation instructions available in the appendix below.
