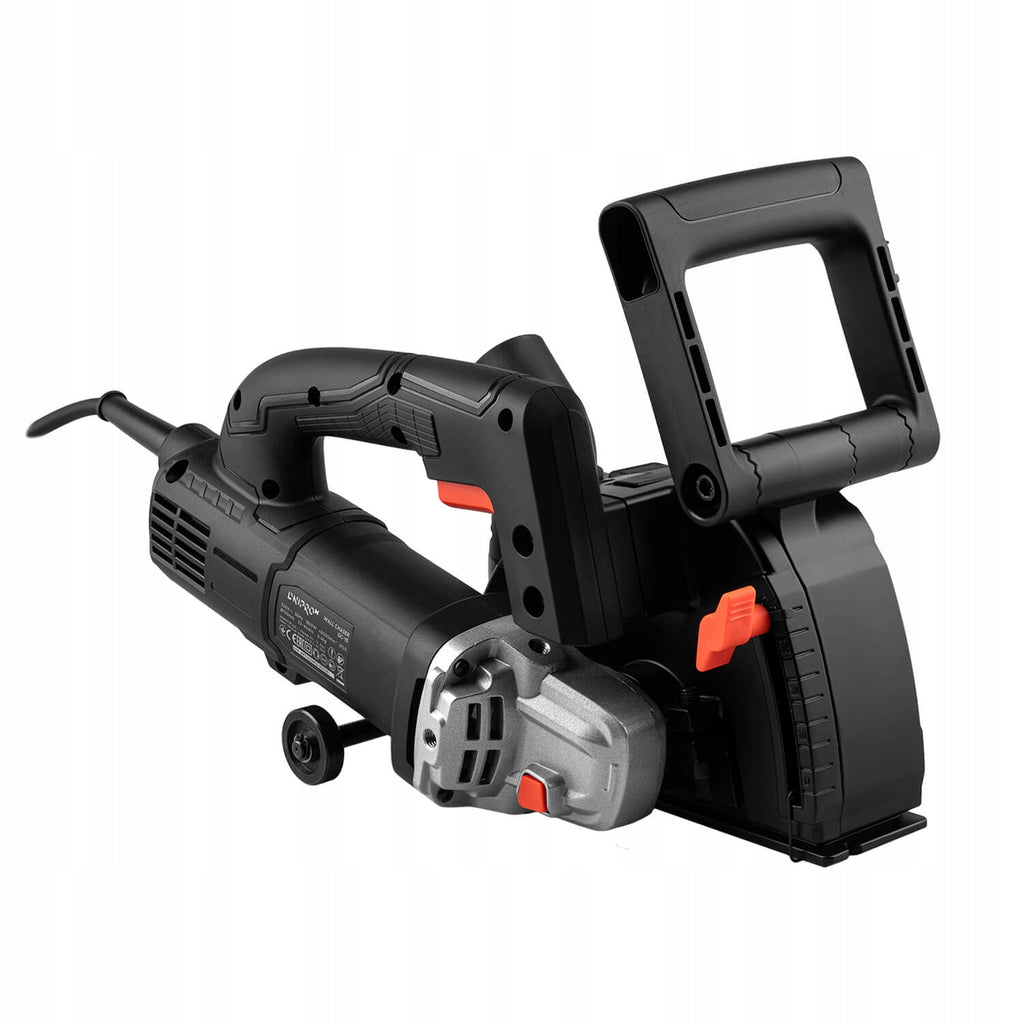

Kampinis šlifuoklis Dnipro-M GC-15, 1800 W, 150 mm

Trumpai apie prekę

Prekė: Kampinis šlifuoklis Dnipro-M GC-15, 1800 W, 150 mm. Kategorija: Sienų frezos.

• Gamintojas: Dnipro-M
• Modelis: 83665000

Dnipro-M GC-15

Dnipro-M GC-15 is a network furrow for making installation grooves in concrete, reinforced concrete, brick and other building materials. It will work well when laying electrical wires, pipes, technical installations and during renovation and construction works.

Power 1800 W, discs 150 mm and speed 8000 rpm /min allow you to effectively work with dense materials, including reinforced concrete. The tool allows you to adjust the cutting depth up to 40 mm and the width of the furrow up to 31 mm.

Why choose Dnipro-M GC-15?

• Power 1800 W — effective work in concrete, brick and reinforced concrete.
• Cutting depth up to 40 mm and furrow width up to 31 mm — fitting the groove to wires, pipes and other installation elements.
• Ability to work with up to 5 discs — faster execution of wider furrows in one pass.
• Tool-free attachment and setting of the disc – quick replacement or adjustment without additional tools.
• Electronic speed control – more stable operation in difficult places and better protection of the engine against overheating.
• Spring shielding system — reduces the amount of dust on the first and last contact of the shield with the material.
• Depression limiter — facilitates precise execution of shallow furrows, e.g. under electrical wires.
• Overload protection and soft start – greater safety and protection of the motor.
• Rotating nozzle for dust extraction and additional dust cover – more convenient connection of the vacuum cleaner and more effective dust extraction.
• Dust protection for motor, bearings and buttons — longer tool life in high dust conditions.
• Metal support roller and marking on sole – greater precision in handling according to the markings.

Technical data:

• Make / model: Dnipro-M GC-15
• Tool Type: Furrow
• Power Supply: Mains
• Rated Power: 1800 W
• Engine Type: Brush
• Disc diameter: 150 mm
• Disc hole diameter: 22,2 mm
• Idle speed: 8000 rpm /min
• Electronic speed control: yes
• Maximum cutting depth: 40 mm
• Maximum cutting width: 31 mm
• Minimum cutting width: 1 mm
• Number of working discs: up to 5
• Tool-free disc mounting/setting: yes
• Cutting depth adjustment: yes
• Depression limiter: yes
• Dust extraction system: yes
• Rotating nozzle for dust extraction: yes
• Additional dust cover: yes
• Spring-loaded cover system: yes
• Smooth start: yes

• Overload protection: yes
• Rotating auxiliary handle: yes
• Marking on sole: yes
• Metal support roller: yes
• Dust protection for engine, bearings and buttons: yes
• Wet cutting function: no
• Power cord length: 4 m
• Sound Pressure Level: 98 dB(A)
• Sound power level: 106 dB(A)
• Vibration level: 5,59 m/s²
• Product weight: 4,4 kg
• Certificate of conformity: CE
• Set: Dnipro-M GC-15 furrow, cover, additional dust cover, vacuum cleaner adapter, key, user manual, packaging
• Application: making furrows for pipes, pipes, pellets and installations in concrete, reinforced concrete, brick and building materials

Precise furrow for a specific installation

The GC-15 allows you to adjust the depth and width of the furrow to the type of installation. The shallower groove will work well with electrical wires, and the wider furrow can be used for pellets, tubes or other installation elements.

The recess limiter helps to make precise, controlled incisions, especially with shallow furrows under electrical wires. Marking on the sole makes it easier to guide the tool according to the designated line, and the use of a laser level can further speed up work and help maintain an even direction of the furrow.

The ability to work with up to 5 discs allows you to get a wider groove faster without repeatedly guiding the tool along the same line.

Less dust, more durability and more convenient operation

Spring shielding system reduces the amount of dust during the first and last contact of the shield with the material. The rotating dust extraction nozzle allows you to adjust the position of the vacuum cleaner hose to your work direction, while the additional dust cover improves suction efficiency.

The dust protection of the motor, bearings and buttons helps to maintain stable operation of the tool in conditions of high dustiness. Overload protection protects the motor, and a gentle start increases control at start-up.

The rotating handle and comfortable button position provide a more secure grip, while the all-metal support roller increases durability and precision.

You buy in the official store of the manufacturer Dnipro-M - you can be sure of the original product, consistent with the manufacturer's data and intended for real work.
