Kasetinis oro kondicionierius AUX 5,28 kW AUX-C-18CAC, montuojamas lubose

Trumpai apie prekę

Prekė: Kasetinis oro kondicionierius AUX 5,28 kW AUX-C-18CAC, montuojamas lubose. Kategorija: Oro kondicionieriai.

• Gamintojas: AUX
• Modelis: AUX-C-18CAC

Model 2026

The latest model from the manufacturer's catalog.

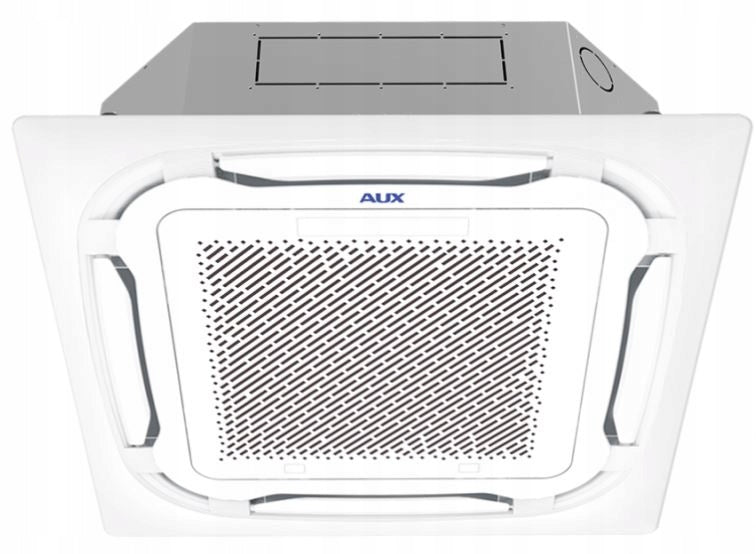

Quiet and efficient AUX cassette units are perfect for commercial interiors with suspended ceilings – offices, conference rooms, restaurants and commercial premises. Thanks to the 360° perimeter airflow technology and the fast cooling/heating function, they can provide comfortable conditions in every corner of the air-conditioned room. Sufficient power up to about 60m2.

One of several operating modes to choose from: cooling ❄ , heating☀ , dehumidification , ventilation of the room.

Ability to configure any length of refrigeration system.

The device is loaded with a factor by the manufacturer.

Possibility of mounting the purchased device by our company.

BASIC FEATURES AND FUNCTIONS:

• BUILT-IN CONDENSATE PUMP - The coffered unit has been equipped as standard with a condensate pump, thanks to which it is possible to drain water condensate to a height of up to 120 cm above the level of the condensate tray.

• WIDE RANGE OF WORK - AUX commercial air conditioning systems are characterized by reliable, stable operation even at extreme ambient temperatures. Thanks to the use of modern technologies and high-quality components, AUX devices can operate in a wide range of external temperatures, i.e. -15°C to 52°C in cooling mode and -22°C to 24°C in heating mode, ensuring a high level of comfort.

• ANTI-COLD AIR FUNCTION - after switching on the heating mode, the fan of the indoor unit begins to work at the lowest speed to avoid cold air supply. The airflow speed is automatically increased as the evaporator temperature rises to the desired size.

• 360° CIRCUIT AIR SUPPLY - thanks to the specially designed design of the decorative panel, the AUX cassette air conditioner can cool every corner of the room and ensure maximum comfort for all users. Additional outlet holes in the corners of the panel allow air to be fed in all directions, eliminating the possibility of creating zones with uneven temperature distribution.

• WASHABLE FILTER ENTRUSTS - The indoor unit air filter can be easily disassembled and cleaned under running water, which allows you to maintain the high efficiency of the device and the quality of the supplied air.

• EXTERNAL UNIT DRIP TRAY HEATER - protects the heat exchanger of the outdoor unit from icing, enabling efficient operation of the device in heating mode even in severe frosts.

• NIGHT MODE – activating this function causes the device to raise the set temperature by 1°C per hour in cooling mode (in heating mode), while the fan operates at low revs during the first two hours. For the next 5 hours, it keeps the temperature at a constant level, after which the air conditioner turns off.

• IFEEL FUNCTION - gives you the ability to accurately adjust the air supply temperature to the conditions currently prevailing in the room, which allows you to get maximum comfort with low energy consumption.

• TURBO FUNCTION - allows you to cool/heat the room in a very short time, by maximizing the fan speed of the indoor unit (using the highest fan gear).

• INTELLIGENT DEFROSTING - enables almost uninterrupted operation of the air conditioner in heating mode. The defrost mode is activated only when necessary and only for the time required to defrost the exchanger.

• AUTOMATIC RESTART - in case of a power outage, the air conditioner remembers the last settings and automatically restores them when the power is resumed.

• REFRIGERANT R32 - The device works on the basis of the latest environmentally friendly refrigerant R32, which is characterized by higher efficiency and lower greenhouse effect coefficient, compared to refrigerant R410A. It also does not destroy the ozone layer.

• 24H TIME PROGRAMMER - The timer function allows the user to set the exact time of automatic switching on and off of the air conditioner.

• OPTIONAL WIRED CONTROLLER - The wired controller is installed on the wall in the room where the air conditioner is located.

• VERTICAL MOVEMENT OF THE BLINDS ENTRUSTS - thanks to the movements of the air blind in the vertical plane - up and down - the supply air is distributed evenly over the entire height of the room. Blinds can be set in several fixed positions or choose “vertical swing”, i.e. continuous up-down movement.

• FAST COOLING / HEATING - thanks to the use of inverter technology, the air conditioning system can achieve full efficiency shortly after take-off and ensure that the set temperature in the room is quickly received.

• AUTOMATIC MODE - in AUTO mode, the air conditioner selects the operating mode and the best fan gear itself, based on the current conditions in the room.

• LOW TEMPERATURE COOLING - top-class components such as a high-performance compressor and a good quality heat exchanger ensure reliable operation of the air conditioner in cooling mode even at very low outdoor temperatures, reaching up to -15°C (for commercial and multi units).

TECHNICAL PARAMETERS

✓ Cooling power average 5,28kW (min 1,53kW - max 5,6kW )

✓ Heating power average 5,6kW (min 1,4kW - max 6,2kW )

✓ Energy class at cooling A++, at heating A+

✓ Electrical power consumption during cooling medium - 1550W

✓ Electric power consumption during heating medium - 1510W

✓ Internal unit air flow - 580/650/760 m3/h

✓ Internal unit sound pressure level - 38/41/44 dB(A)

✓ External unit sound pressure level - 55 dB(A)

✓ Efficiency factor during EER cooling - 3,41

✓ Efficiency factor during heating COP - 3,71

✓ Operating temperature range from -22°C to +52°C

✓ Temperature setting range 16°C - 32°C

✓ Diameter of copper (freon) pipes - 1/4 inch (6,35mm) and 1/2 inch (12,70mm)

✓ Maximum length of freon installation - 30m

✓ Maximum level difference between units - 20m

✓ Power cord cross-section - 3 x 2,5 mm2

✓ Power supply 230V

✓ R32

✓ Factory amount of factor in the device 1003g

✓ Dimensions of the internal unit (mm) - width 570/ H 570/ D. 260

✓ Dimensions of outdoor unit (mm) - width 785/ H 555/ D. 300

✓ Weight of indoor unit 15,5kg/ outdoor unit 29kg

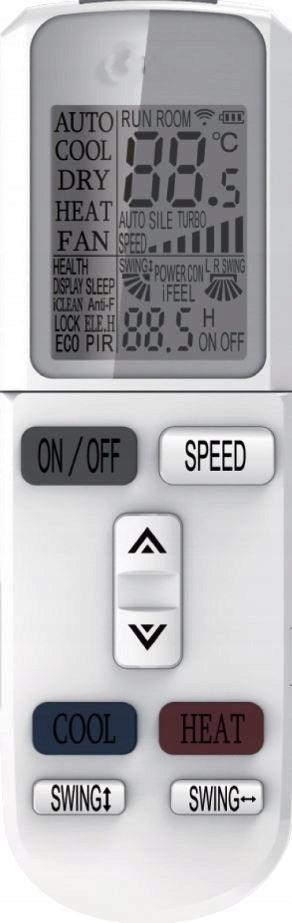

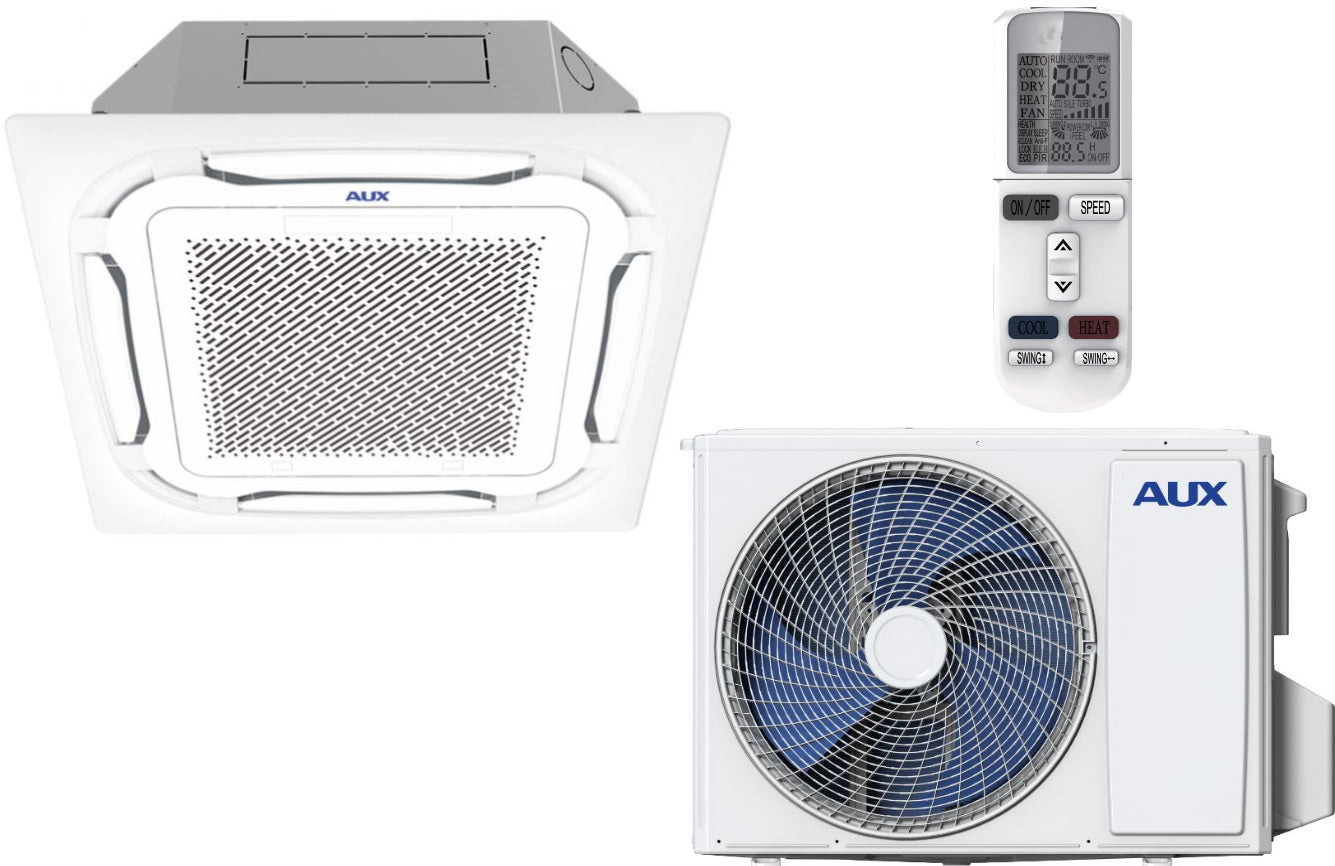

Set contents: indoor unit, outdoor unit, wireless remote control with display, warranty card.

In connection with the amendment to the Act Journal of Laws 2017 item. 1567 from 01.01.2018 one of the following conditions is required for the purchase of a device containing fluorinated greenhouse gases:

- in the case of purchase for the company, a statement that the device will be installed by a company with an F-Gas certificate or a resale clause as a commercial commodity

- in the case of a person, a statement that the device will be installed by a person holding an F-Gas certificate (company or personal)

You can also enter into such an agreement with our company.

Specifications
