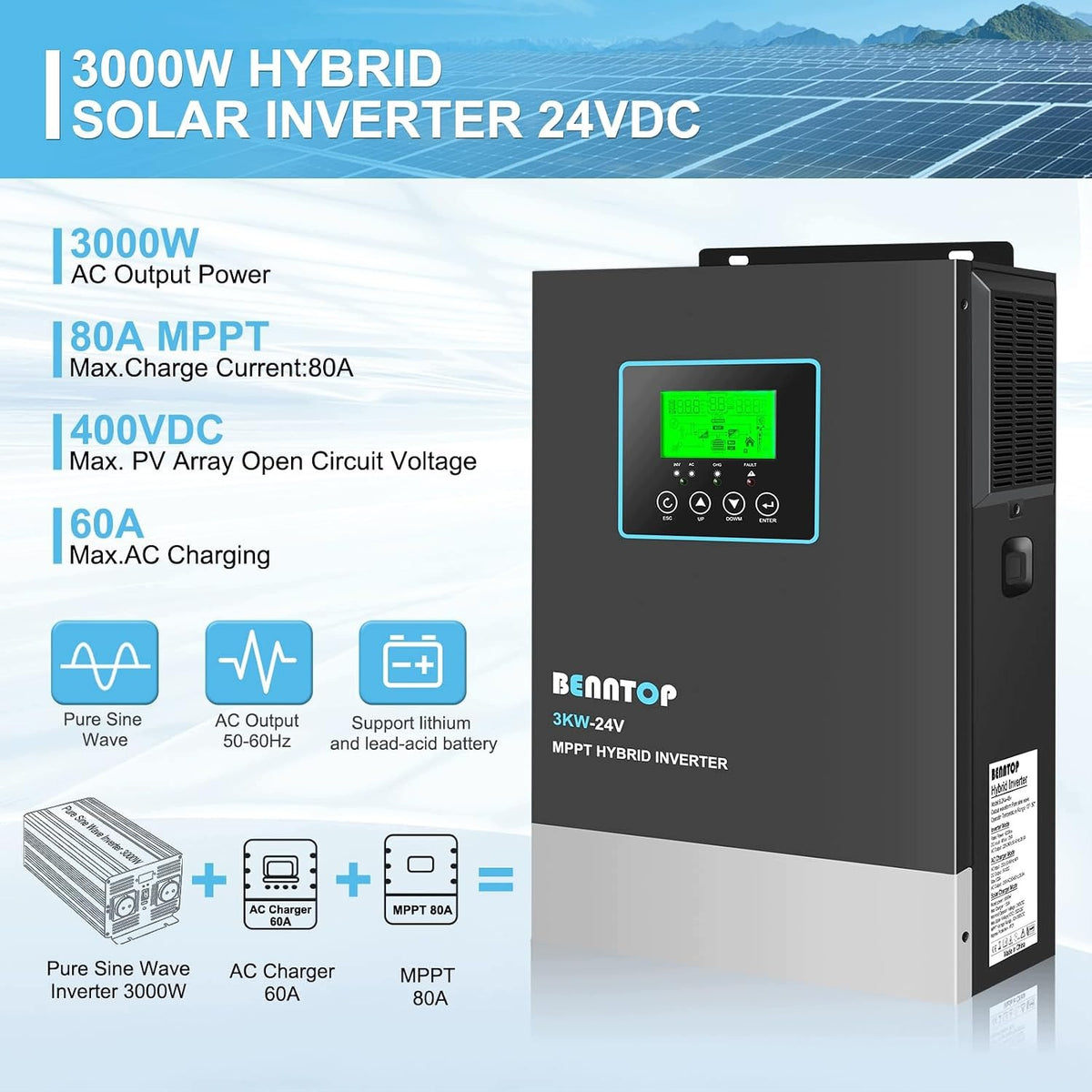

Keitiklis BENNTOP 3000W 24V į 230V, grynos sinusoidės, MPPT 80A 400V

Trumpai apie prekę

Prekė: Keitiklis BENNTOP 3000W 24V į 230V, grynos sinusoidės, MPPT 80A 400V. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

3000 W power, 24 V voltage, 230 V output, pure sine and built-in solar controller MPPT 80 A.

BENNTOP 3000W24V is a multifunctional hybrid converter designed for the construction of independent and emergency power systems.

The device converts 24 V DC constant voltage from batteries to 230 V AC and at the same time has a built-in solar MPPT controller, so it can cooperate with a photovoltaic installation.

This solution allows you to combine the functions of a converter, battery charger and solar controller in one device.

🔌 3000 IN POWER – 24 V → 230 V

BENNTOP offers a rated power of 3000 W and converts the voltage of 24 V DC to 230 V AC.

Thanks to this, it can power a wide range of electrical devices – of course, provided that their actual power consumption and inrush current are within the installation possibilities.

The converter can be used by m.in. at:

🏠 home emergency power supply

🏕 motorhomes and mobile installations

🔧 workshops

🏡 cottages

☀ off-grid installations

🔋 energy storage systems

🚐 vehicles and installations 24 V

🌊 PURE SINE – SAFE POWER SUPPLY FOR DEVICES

One of the most important features of the device is the pure sine wave at the output of 230 V.

It is similar to the voltage waveform available in the standard power grid.

This makes the converter suitable for powering even more demanding devices, such as:

✔ refrigerators

✔ TVs

✔ computers

✔ lighting

✔ power tools

✔ electronic devices

✔ other receivers requiring sine wave power

In the case of devices with high inrush current, their characteristics and capabilities of the entire system should be taken into account.

☀ BUILT-IN SOLAR CONTROLLER MPPT 80 A

BENNTOP has an integrated MPPT controller with a maximum current of 80 A.

MPPT technology allows you to effectively use the energy provided by photovoltaic panels and adjust the operating parameters of the PV system to the batteries.

This means that you do not need a separate solar regulator – its function has been integrated into the converter.

Maximum input voltage PV:

up to 400 V

Thanks to this, the device can be used in more extensive photovoltaic installations.

🔋 FOR 24 V BATTERIES

The converter is designed for 24 V battery systems.

Supports both batteries:

🔋 lead-acid

🔋 lithium

Thanks to this, the device can be used both in classic battery installations and modern energy storage systems.

Note: select the battery type and charging parameters according to its specification.

🖥 EASY TO READ LCD DISPLAY

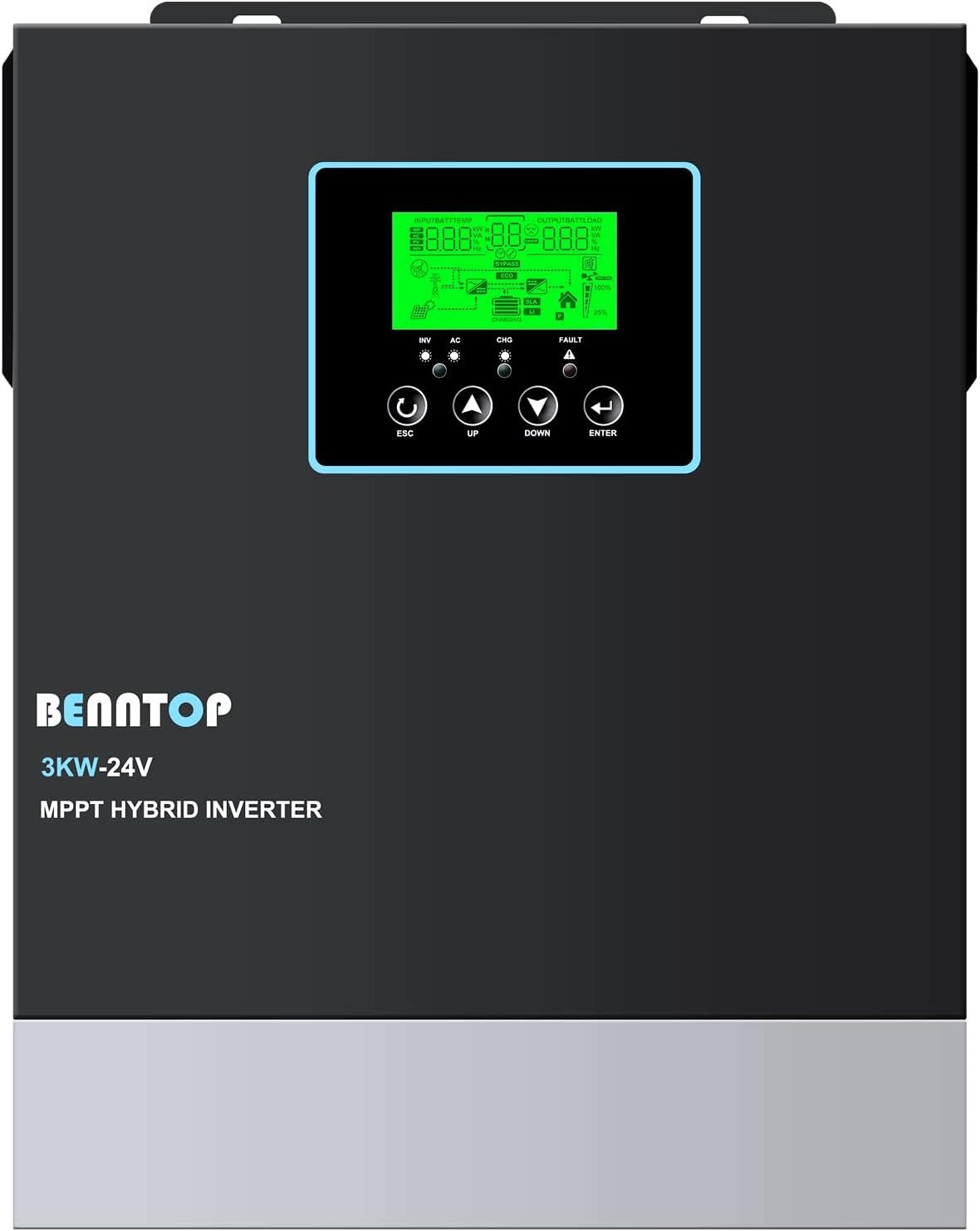

The device is equipped with an LCD display, which makes it easy to control the operating parameters of the system.

Thanks to this, the user can monitor the operation of the converter on an ongoing basis and more easily diagnose possible problems.

This is especially useful when building a standalone off-grid power system.

🔄 HYBRID WORK

BENNTOP was designed as a multifunction device.

In one device you get:

⚡ DC/AC converter – 24 V DC → 230 V AC

☀ solar regulator MPPT 80 A

🔋 battery charging

🖥 monitoring of parameters on the LCD

This allows you to limit the number of separate devices needed to create a complete installation.

🏡 IDEAL FOR OFF-GRID SYSTEMS

The converter can be used in places where there is no access to the power grid or where an independent power source is needed.

Examples of applications:

🏕 motorhome

🚐 caravan

🏡 cottage

🌲 plot

🔧 workshop

🏠 house

☀ photovoltaic installation

🔋 emergency power supply system

🛡 SAFEGUARDS

The device has a number of protective functions to protect the converter and connected receivers.

Among the declared safeguards are m.in.:

✔ overload protection

✔ protection against overheating

✔ short circuit protection

✔ overcurrent protection

✔ surge protection

✔ automatic restart

📐 COMPACT DESIGN

Despite the power of 3000 W, the device has a compact housing.

Dimensions: approximately 36 × 27 × 10 cm

Weight: about 6 kg

Thanks to this, it is relatively easy to plan its installation in a properly prepared installation site.

⭐ THE MOST IMPORTANT ADVANTAGES

✔ Rated Power 3000 W

✔ Battery system 24 V

✔ 230 V AC output

✔ Pure sine wave

✔ Built-in solar controller MPPT 80 A

✔ Maximum input voltage PV 400 V

✔ Support for lead-acid and lithium batteries

✔ LCD Display

✔ Battery charging functions

✔ Overload and overheating protection

✔ Short-circuit and overcurrent protection

✔ Automatic restart

✔ Compact design

✔ Ideal for off-grid installation and emergency power supply

📋 SPECIFICATION

Brand: BENNTOP

Model: 3000W24V

Type: hybrid solar converter

Power: 3000 W

Battery voltage: 24 V DC

Output voltage: 230 V AC

Type of mileage: pure sine

Solar regulator: MPPT

MPPT regulator current: 80 A

Maximum PV voltage: 400 V

Supported batteries: lead-acid / lithium

Display: LCD

Dimensions: approx. 36 × 27 × 10 cm

Mass: approx. 6 kg

ASIN: B0D5Y2QFZ9

⚠ VALID BEFORE INSTALLATION

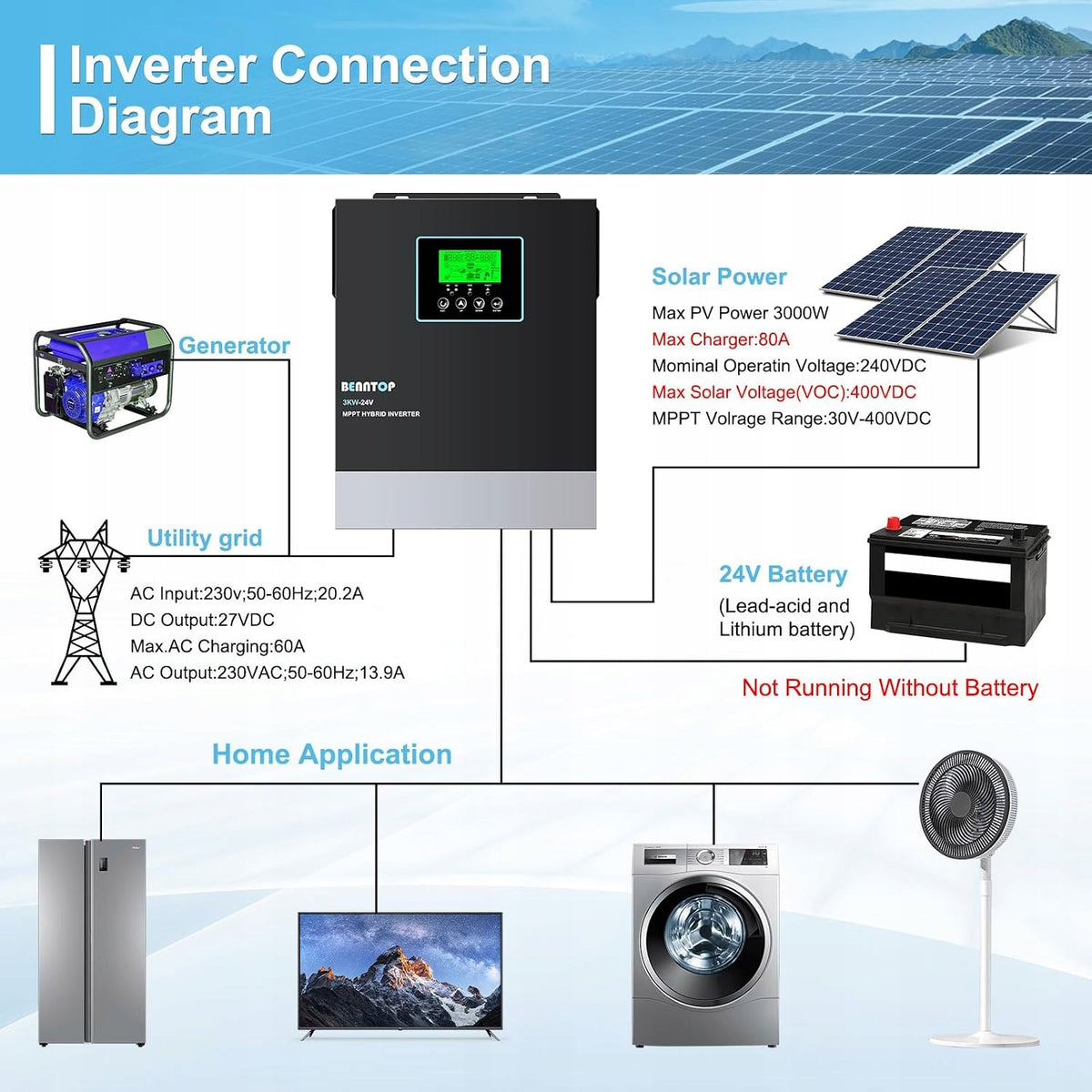

It is a device designed to work with installations with a voltage of 24 V and photovoltaic installations with a high input voltage.

Installation and configuration should be carried out in accordance with the manufacturer’s instructions and safety rules for electrical installations.

Particular attention should be paid to:

🔸 correct polarity

🔸 wire cross-sections

🔸 DC side security

🔸 battery voltage and configuration

🔸 maximum PV input voltage

🔸 adequate ventilation of the device

Do not exceed the declared input parameters of the device.

⚡ ONE DEVICE – COMPLETE POWER SUPPLY SYSTEM

BENNTOP 3000W24V is a solution for people who want to create an efficient power supply system independent of the power grid.

The combination of 3000 W of power, pure sine, 24 V system and solar regulator MPPT 80 A allows you to use the device as a central element of a photovoltaic installation with energy storage.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Effective power	3000 W
Parametry	Brand	no brand
Parametry	EAN (GTIN)	5056896074309
