Keitiklis Green Cell, grynos sinusoidės, 48V, 5000W/10000W, saulės elektrinėms

Trumpai apie prekę

Prekė: Keitiklis Green Cell, grynos sinusoidės, 48V, 5000W/10000W, saulės elektrinėms. Kategorija: Įtampos keitikliai.

• Gamintojas: Greencell

• Manufacturer: Green Cell
• Model: INVGC48P5000LCD
• Using power (continuous): 5000W
• Momentary power (pulse): 10000W
• Protection against overheating
• Overvoltage protection
• Deep discharge protection
• Protection against overcharging
• Display: color LCD
• Number of fuses: 2
• Power consumption without load: 0,5A
• Input voltage: 48V
• Output voltage: 230V AC
• Output frequency: 50Hz
• Output voltage shape: Pure sine wave
• Efficiency: 90%
• Cooling: Turbo Cooling fan
• Color: Black
• Dimensions: 405 x 210 x 155 mm
• Weight: 9,32 kg
• Product code: 27097

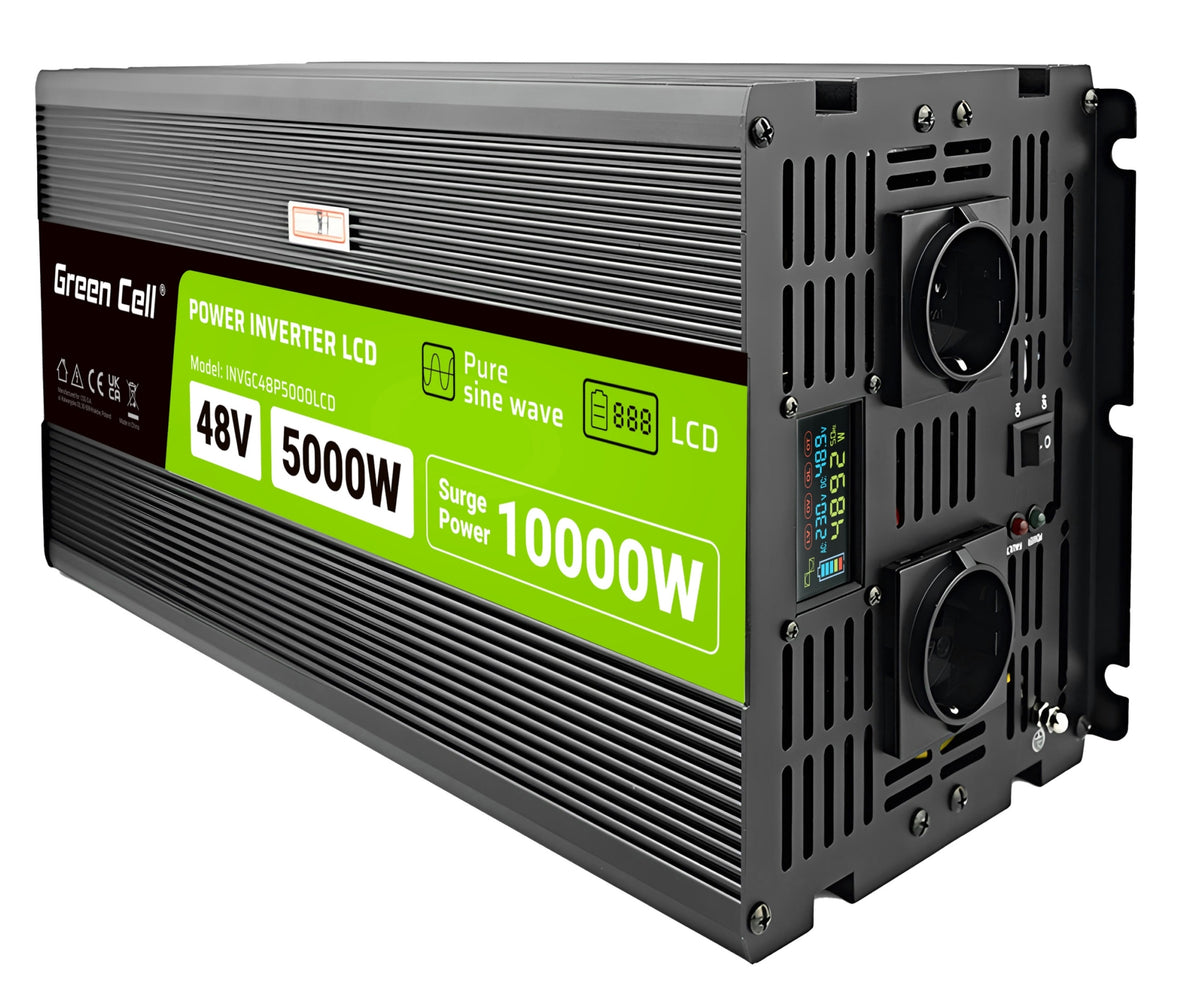

The Green Cell PowerInverter LCD 48V 5000W/10000W is a device that converts 48V DC battery voltages to 230V, so we can use any home device on the road. The device provides pure sine wave current, which allows the use of all types of devices.

Choosing a converter with a clean (or full) sine wave is the safest solution, because it is the same current as in sockets in Europe. An inverter with such a signal allows you to power all devices, even the most sensitive to current parameters. When choosing a pure sine wave, you do not have to worry about the work of connected devices!

• Portable outlet - voltage converter is a device that allows you to use electrical appliances wherever you are, even away from your home power source
• Readable display showing key parameters including current power and battery level for simple and intuitive operation
• Full safety - constantly monitoring the operation of devices such as protection against short circuit, low voltage, too high voltage, too high load, too high temperature, reverse polarity (DC)
• Pure sine wave - works perfectly with devices requiring continuous power supply identical to the socket. These are m.in. laptops, refrigerators, TV sets and the most sensitive ones – solar panels, stoves and CO pumps

An inverter, also called an inverter or inverter, is a device whose task is to change the DC voltage from a car battery or cigarette lighter socket to an alternating current of ~230V. Exactly the same voltage is found in every household outlet (Type E) throughout Europe. The inverter is an excellent choice for those going on a trip by car, motorhome or truck - thanks to it you will be able to freely use all the necessary devices that require an outlet for operation.

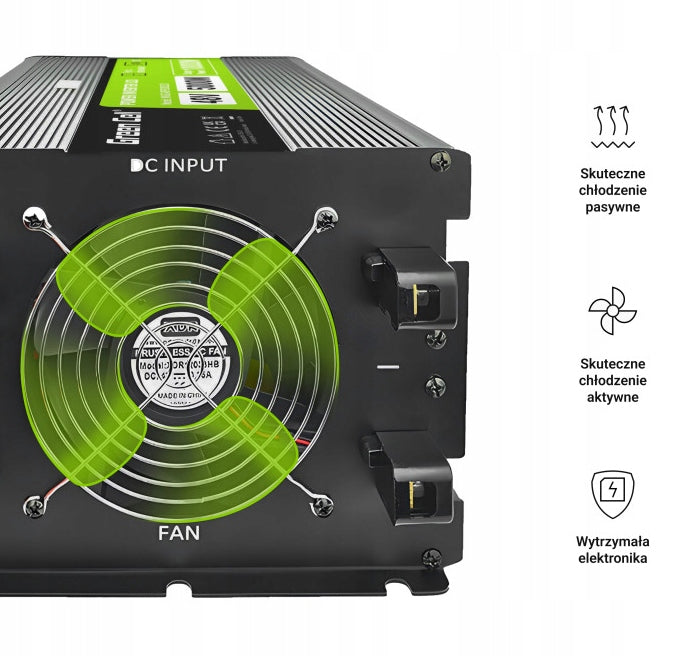

On the back of the inverter there is a fan providing it with effective active cooling.

The whole is enclosed in a small, yet very durable housing, made of high quality aluminum. Thanks to this, the converter is resistant to any mechanical damage and shocks occurring during travel.

1. Battery level indicator
2. Output voltage shape
3. Protection against low voltage
4. Protection against too high voltage
5. Protection against overcharging
6. Protection against too high temperature
7. Input voltage
8. Output voltage
9. Output frequency
10. Load (W)

The first parameter to be determined is the voltage of our battery, which should be fully compatible with the one given on the converter. The most common voltage value is 12V, found in passenger cars, motorhomes and some trucks, and 24V, used mainly in trucks.

After selecting the voltage, you should decide what power of the converter will be appropriate. It has a key aspect, because informs us how many and what devices it is able to supply with electricity. If we want to connect the selected device to the inverter, we need to check on the rating plate what power it draws (if you want to connect more devices, the power should be added up). The power consumed by your device should not exceed 85% of the rated power of the converter! For example, for a laptop with a power consumption of 100W and a heater with a power consumption of 300W, the appropriate converter will be the one with a power of 500W and more.

The inverter has been equipped with a number of necessary security to protect the user and connected devices. This is confirmed by CE and RoHS certificates, which mean a guarantee of safety.

The Green Cell converters have a replaceable fuse, which is an essential protection for the converter and connected devices. Its replacement is very simple and should not cause anyone any problems. We attach spare fuses to each converter to guarantee full safety and the longest possible operation of the equipment.

No forms of fuses, including surge protectors, i.e. popular distributors with protection, should be used at the output of voltage converters. The only safe form of protection of the system is to install a fuse on the battery side and the only allowed form of separation from the mains sockets is the use of a basic distributor, devoid of protection, diodes and switches.

• Voltage converter Green Cell PowerInverter Pure sine with display 48V 5000W/10000W
• Cables for direct connection to the battery
• Spare fuses

Specifications
