Prekė: Laidai su 13 PIN jungtimi ir moduliu Alfa Romeo 147, 156, 159 kabliui. Kategorija: Laidai ir lizdai.

• Gamintojas: Quasar Electronics

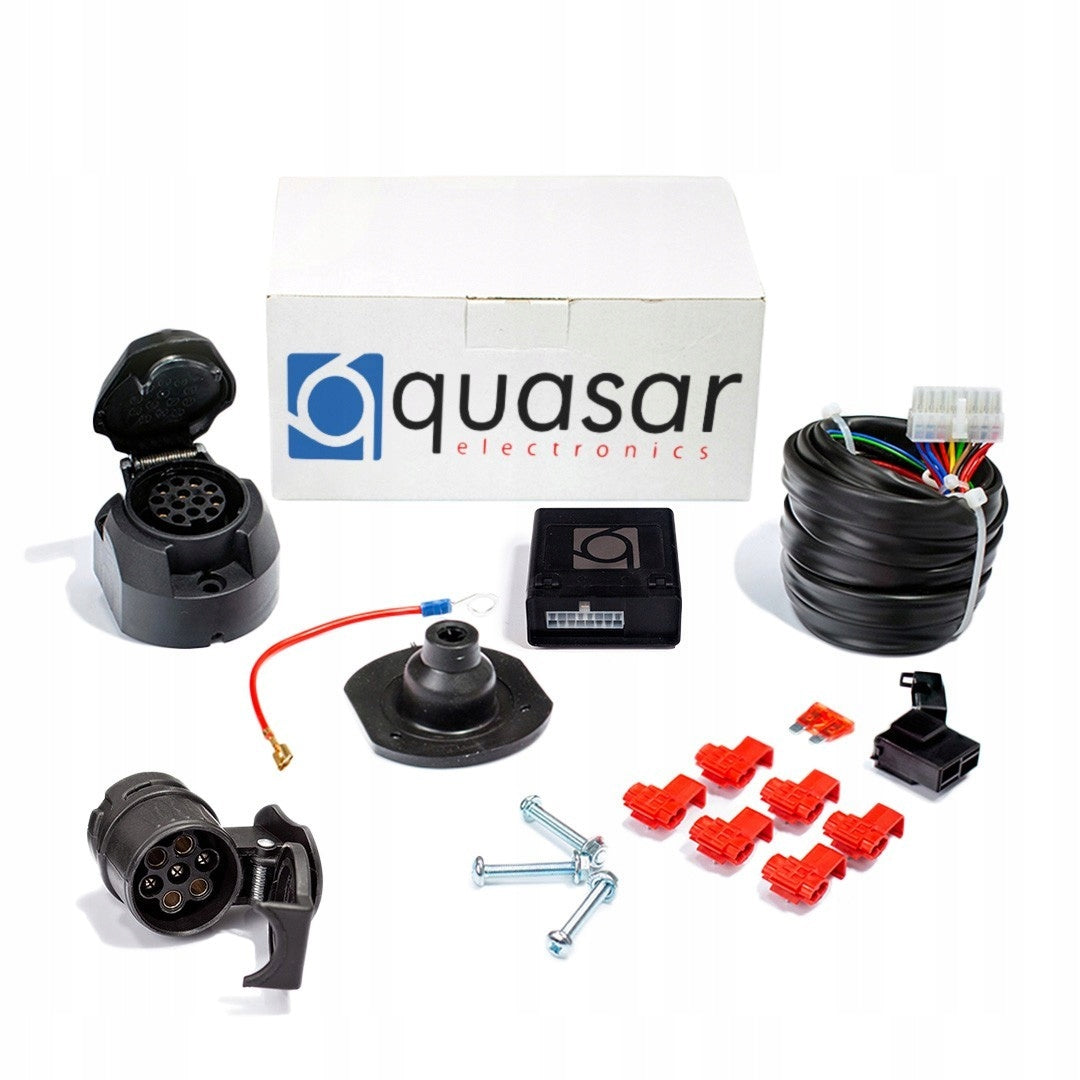

Set contains:

• Towbar wiring harness - universal 13 PIN with electronic module , manufacturer QUASAR Electronics, model: WH1R-G13-8
• Reducer / adapter from 13 to 7 PIN - FREE
• Spare hook ball cover - FREE

The set is designed to provide lighting in:

• bicycle racks
• cargo trailers

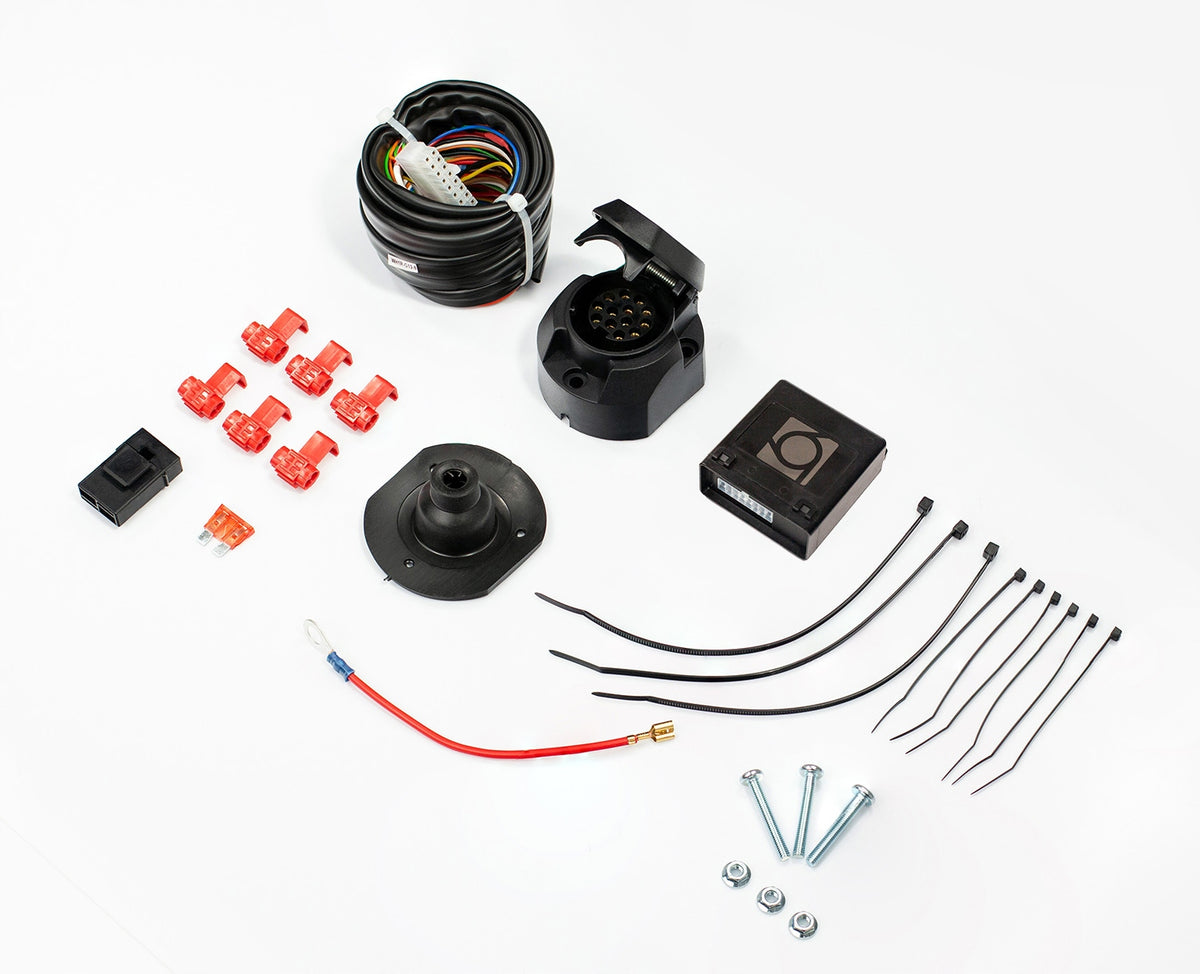

The assembly kit for the universal 13 PIN harness with the electronic module includes:

• WH1R Quasar Electronics electronic module controlled by a digital processor ( DIGITAL )
• main wiring harness terminated with a connector to the module
• 13 PIN standard electric socket and socket seal
• a set of mounting accessories (luminaire with a fuse, quick couplings, screws, nuts)
• detailed "comic" assembly instructions

The main beam is divided on the right and left side of the vehicle, thanks to which the assembly time is shortened

• left side: length signal wires: 1m
• right side: length signal wires: 3m
• power cord: 5m

Characteristics of the module operation

The processor electronic module does not burden the electric circuit of the car, because the current consumption on each of the signal inputs is about 2 mA, which excludes the disturbance of the vehicle electronic system operation.

The electric bundle provides:

• cooperation with LED lighting as well as car single and double filament bulbs
• cooperation with vehicles equipped with CAN bus (digital multiplex)
• cooperation with vehicles equipped with a system for checking the correctness of vehicle lighting, the so-called CHECK CONTROL

The electric harness of the QUASAR Electronics towbar manufacturer has EU approval number E20 10R-04 4019 which allows the goods to be marketed on the automotive market and confirms compliance with the standards specified, among others in Law on Road Traffic.

Functions of the beam module Quasar Electronics model WH1R-G13-8:

Trailer lighting support:

• direction indicator lights
• position lights
• brake/stop lights
• fog light
• reversing light*

Additional Beam Features:

• disconnecting the reversing sensors** - not available
• 12V constant power line on the socket (constant plus) - not available
• trailer battery charging line - not available

ATTENTION!

* reversing light - currently required by the Road Traffic Law for bicycle platforms and trailers with a load capacity of over 750 kg

** the beam does not interfere with the reversing sensors (the description of this issue is included in the "Questions and answers" at the bottom of the offer)

Electric bundles with additional functions are available on our other offers

FREE!

• hook ball cover (cap)
• adapter/adapter (1 pc. ) from 13 to 7 PIN

The adapter allows you to connect the 7 PIN plug of the trailer or trunk to the 13 PIN socket of the car.

Quasar Electronics is a Polish manufacturer with several years of experience. It manufactures electronic equipment for motor vehicles with an electrical installation operating in the range of 12-24V. Innovation in creating devices and their high and durable quality allowed the company to build a well-established position on the European market.

(towing hook and hook wiring harness)

1. Can I use the towbar right after it is installed in the car?

After assembly, you should go to a Vehicle Inspection Station to carry out a technical inspection of the correct installation of the towing hook. From then on, you can use it. Then, to complete the formalities, an appropriate entry should be obtained from the Communication Department within 30 days of the technical examination (in the registration certificate and vehicle card, if the vehicle has one).

2. Can every car tow a trailer?

Whether a given vehicle can tow a trailer is specified in the vehicle approval. This is confirmed by the entry in field O.1 or O2 of the registration certificate. The numbers entered therein mean that the vehicle is approved for towing a trailer and what the permissible total weight may be. If the car does not have the possibility to tow trailers, it does not always mean that it cannot have a towbar. Some car versions may have a towbar only for the purpose of mounting, for example, a bicycle rack on it

3. Is the installation of the towbar wiring harness necessary?

Yes. The electric harness in the set with the tow bar is designed to provide lighting in the trailer or bicycle rack. Its correct operation is checked at the Vehicle Inspection Station. There are bundles with the electronic module or the so-called simple harnesses, without a module, which are sufficient for some car models. In our offers, the sets include the right beam for the proper operation of the lighting.

4. 7 or 13 PIN harness. Which one to choose?

In our offers, towbar kits include a 7 or 13 pin harness. The 7 PIN harness provides the basic lighting of the trailer, i.e. position, stop, fog, and direction indicators. The 13 PIN harness additionally ensures the operation of the reversing light in the trailer. We recommend choosing the 13 PIN harness if the car will tow a trailer with a load capacity of more than 750 kg (with overrun brake) or to transport a bicycle rack. In this case, the Road Traffic Law requires the operation of the reversing light in the trailer registered for the first time since August 1, 2016. Using the adapter socket, you can change the vehicle socket from 7 PIN to 13 PIN and vice versa, but if the vehicle is equipped with a 7 PIN socket, the use of the 13 PIN adapter socket will not make the trailer's reversing light work.

5. Universal or dedicated bundle . Which one to choose?

The universal bundle of Quasar Electronics or TESAT can be easily installed in a modern car. During assembly, a small interference in the electrical system is required - solder into the appropriate wires (recommended) or use the quick couplers from the set. The advantage of the universal set is that it can be installed in various car models and the low purchase price.

Dedicated harnesses are equipped with connectors to connect to the vehicle's electrical system sockets, matching cables based on the technological pattern of the original part. The downside of this solution is the high purchase price and often the need to encode the vehicle system due to the presence of a dedicated beam (additional cost).

6. The principle of operation and the method of assembly of the universal harness with the module (short description based on the Quasar Electronics product model WH1R-G13-8).

Installation is simple and should not be difficult. To be sure, however, we recommend that the harness be installed by a person experienced in such works. The principle of operation of the module is based on the fact that through the "signal" cable it detects the voltage in the cable, e.g. after turning it on in the car, and then with another wire running from the module to the harness socket, it directs the voltage to the trailer's indicator light. The module, as it were, copies the operation of the vehicle's lights by turning on the twin trailer lights. Of course, the module must be powered by a constant plus. In order to properly connect the harness in the car, you need to connect the signal wires from the vehicle installation running to the module, i.e. Direction indicators, lights: position, brake, fog (and reversing in the case of the 13PIN beam). Then connect the wires from the module to the electrical socket (according to the diagram). Finally, you need to connect the module to the power supply (ie "permanent plus", preferably to a battery or other reliable voltage source). The lighting test should be performed at full load of the electrical socket, e.g. after attaching the trailer. Testing with a probe / meter or a not very advanced tester often gives erroneous readings despite a correctly connected installation.

7. How does the installation of the towbar in the car affect the operation of the parking sensors?

The electric harness in the set with the towing hook is designed to provide lighting in the trailer or the trunk and does not interfere with the car's reversing sensors. In such cases, the reversing sensors will notify you of the obstacle when reverse gear is engaged while the vehicle is towing a trailer. The signaling can be turned off with a button that disables the operation of the sensors or simply, with caution, ignore the signal while reversing the vehicle. Some universal harnesses with the module have the function of switching off the reversing sensors. However, due to the complexity of such a solution, we advise against their installation. In many more modern cars, it is not possible to properly disconnect the reversing sensors by the universal module. The vehicle control system reports errors after an intervention in the parking assist system. In very rare cases, the reversing sensors read the presence of a towball (some recent Citroen, Peugeot) as an obstacle. In this case, we recommend installing hooks with detachable balls.

8. Is the towbar approved?

All towbars from our offer have EU approval, which is necessary in order to obtain a technical examination at the Vehicle Inspection Station. The approval is confirmed by the approval plate (sticker) placed on the base of the electrical socket or on the hook bar. For the technical examination, you do not need the approval document, it is enough to confirm it on the rating plate.

9. Do I have to disassemble the ball of the towbar when not in use?

The ball of the towbar must be disassembled when it covers the license plate or the car's lighting. In other cases, disassembly of the towball is not required.

10. Who can install a towbar?

Basically everyone. You can install the set yourself or, for example, in the car service. The condition for obtaining a positive technical examination is the correct installation of the towbar and the wiring harness and it is not important who made it. Also, no documents related to the assembly service are required.

11. Which hook should I choose to transport a bicycle rack?

Each towbar that has approval is perfectly suited for this task. It does not matter whether the hook is unscrewed or detached.

12. Do I need to undercut the bumper to install the tow bar?

Information about the need to undercut the bumper can be found in the technical data section of the offer. The set with the towbar includes an installation manual with a template or the exact dimensions of the bumper undercut. In most cases, the undercut, if necessary , is located in the lower, invisible part of the bumper, in a factory prepared for it.

13. Are assembly instructions included?

Yes. Instructions and assembly diagrams are included with the towbar and wiring harness. We recommend that you read them carefully before installing.

List of car models to which the towbar wiring harness with the electronic module should be installed:

• ALFA ROMEO model: 147 from 2004, 159 from 2005, Giulia Veloce from 2016, Giulietta from 2010, MiTo from 2008, Stelvio from 2016 and all produced after 2010.

• AUDI model: A3 from 2004, A4 from 2005, A5 from 2007, A6 from 2005, A7, A8 from 2005, Q2, Q3, Q5, Q7, A7 and all produced after 2005.

• BMW model: 1 series from 2004, 3 series from 2005, X3 from 2005, 5 series from 2004, X5, X6, 7 series from 2001, X1 from 2009, X2, 2 series, X4 and all produced after 2010.

• CHEVROLET model: Aveo from 2011, Captiva from 2006, Cruze from 2009, Orlando from 2011, Trax from 2013

• CHRYSLER model: Sebring from 2005, PT Cruiser from 2004, 300C from 2004, Voyager from 2004

• CITROEN model: C1 from 2004, C2 from 2004, C3 from 2005, C4 from 2005, C5 from 2003, C8 from 2005, Jumper from 2006, C-CROSSER from 2007, Berlingo from 2008, C4 Picasso, C4 Aircross, DS3, DS4 , DS5, C-Elysee, Jumpy from 2007, Nemo, SpaceTourer and all produced after 2007.

• DACIA model: Duster from 2012, Logan from 2012, Sandero from 2012 and all produced after 2012.

• DODGE model: Avenger, Caliber, Journey, Nitro

• FIAT model: Panda from 2004, Punto from 2003, Grande Punto from 2005, Idea from 2005, Stilo from 2005, Sedici from 2006, Doblo from 2005, Multipla from 2005, Croma from 2005, Linea from 2007, Ulysse from 2005, 500 500L , 500X, BRAVO from 2007, Scudo from 2007, Qubo, Fiorino, Doblo Work Up, Ducato from 2006, Freemont, Fullback, Talento from 2016, Tipo from 2016 and all produced after 2010.

• FORD model: Focus from 2008, Fiesta from 2008, Transit Courier from 2014, Mondeo from 2007, C-MAX from 2010, S-MAX from 2006, Galaxy from 2006, Ranger from 2012, Explorer from 2011, Transit Tourneo from 2014, Kuga from 2012, B-Max from 2012, Edge from 2015, Escape from 2013, Transit from 2014, Transit Custom from 2012 and all produced after 2014.

• HONDA model: CR-V from 2012, HR-V from 2016, FR-V 2004-, Civic from 2012, Jazz from 2015, Accord from 2008

• HYUNDAI model: Elantra from 2011, i10 from 2011, i20 from 2012, i30 from 2012, i40, ix20 from 2010, ix35 from 2010, ix55 from 2008, Kona, Santa Fe from 2012, Tucson from 2010,

• INFINITI model: all models

• IVECO model: all models from 2006

• JAGUAR: all models

• JEEP model: Cherokee from 2014, Compass II from 2017, Grand Cherokee from 2011, Renegade from 2014, Wrangler from 2017

• KIA model: Carens from 2013, Carnival II from 2006, Cee'd from 2007, Niro, Optima, ProCeed GT, Rio from 2011, Soul from 2014, Sorento from 2009, Sportage from 2010, Stinger, Stonic, Venga, Xceed and all produced after 2014

• LANCIA model: Delta from 2008, Phedra from 2005, Voyager from 2011

• LAND ROVER/RANGE ROVER model: Discovery, L322 from 2002 (Large Range), Evoque, Sport, VELAR, Freelander from 2012

• LEXUS model: all models

• MAZDA model: 2 from 2015, 3 from 2013, 6 from 2013, CX-3, CX-5 from 2012, CX-9 from 2012

• MITSUBISHI model: L200 from 2015, Outlander from 2007, ASX from 2012

• MERCEDES model: A-class from 2005, B-class from 2005, C-class from 2007, E-class from 2002, X-class, S-class from 1998, GL from 2006, ML from 2005, R-class from 2005 , Sprinter from 2006, Vito/Viano from 2003, GLC, GLK, GLE, GLA, CLA, Citan and all models produced after 2010.

• MINI model: COOPER COUNTRYMAN from 2010, COOPER CLUBMAN, COOPER PACEMAN and all produced after 2010.

• NISSAN model: Juke from 2019, Micra from 2017, Murano from 2014, Note from 2013, NV 400 from 2010, Pathfinder from 2013, Pulsar from 2014, Qashqai from 2014, X-Trail from 2014 and all models produced after 2014.

• OPEL models: Antara from 2007, Astra from 2004, Corsa from 2006, Combo from 2012, Crossland X, Grandland X, Insignia, Meriva from 2010, Mokka, Movano from 2010, Vectra C from 2002, Vivaro from 2014, Zafira from 2005 and all produced after 2012

• PORSCHE model: Cayenne, Macan

• PEUGEOT model: 207 from 2006, 307 from 2005, 407 from 2004, 607, 807 from 2005, Partner from 2008, Boxer from 2006, 4007 from 2007, 308, 508, 2008, 3008, 5008, Bipper, Expert from 2007 , Rifter , Traveler and all models produced after 2010.

• RENAULT model: Captur, Clio from 2012, Espace from 2015, Fluence, Scenic from 2009, Kadjar, Koleos from 2016, Laguna from 2007, Latitude, Master from 2010, Megane 2008, Talisman, Trafic from 2014 and all models produced after 2015.

• SKODA model: Citigo, Fabia from 2010, Kamiq, Karoq, Kodiaq, Octavia from 2004, Rapid, Roomster from 2010, Scala, Superb, Yeti and all produced after 2010.

• SSANG YOUNG model: Korando from 2010, Rexton from 2014, Rexton Sports, Rodius from 2013, Tivoli, XLV

• SAAB model: 9-3 from 2002, 9-5 from 2010.

• SEAT model: Alhambra from 2010, Altea from 2004, Arona from 2017, Ateca from 2016, Exeo, Ibiza from 2008, Leon from 2005, Mii, Toledo from 2005 and all produced after 2010.

• SUBARU model: Forester from 2013, Legacy from 2009, Levorg, Outback from 2015, Trezia from 2011, XV

• SUZUKI models: Baleno from 2016, Celerio, Ignis from 2016, Jimny from 2018, Swift from 2017, SX4 S-Cross, Vitara from 2015

• TOYOTA model: Auris from 2012, Avensis from 2009, Aygo, C-HR, Corolla from 2018, Highlander from 2008, Hilux from 2016, Landcruiser from 2008, Prius, Proace from 2016, RAV-4 from 2013, Verso from 2009, Yaris since 2011,

• VW model: Amarok, Arteon, Caddy from 2004, Crafter from 2006, Golf from 2003, Jetta from 2005, Passat from 2005, CC, Polo from 2009, Sharan from 2010, T-Cross, T-Roc, Tiguan, Touareg, Touran , Transporter from 2009, UP and all produced after 2010.

• VOLVO model: C30, S40 from 2004, S60 from 2004, S80 from 2004, S90, V40 from 2012, V50 from 2004, V60, V70 from 2004, V90, XC40, XC60, XC70 from 2004, XC90 from 2004 and all models produced after 2010

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	13 PIN
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5907662621350
Parametry	Manufacturer	Quasar Electronics
