Laidas Mazda 3 IV BP, nuo 2019 m., 13 kontaktų

Trumpai apie prekę

Prekė: Laidas Mazda 3 IV BP, nuo 2019 m., 13 kontaktų. Kategorija: Laidai ir lizdai.

• Gamintojas: Hak-system

The offered installation does not fit models from the US market and the UK market.

Dedicated to the car:

Mazda 3 PB (IV), 5-door hatchback, year of manufacture from 03/2019.

Before purchase, at the customer's request, we can send assembly instructions in electronic version.

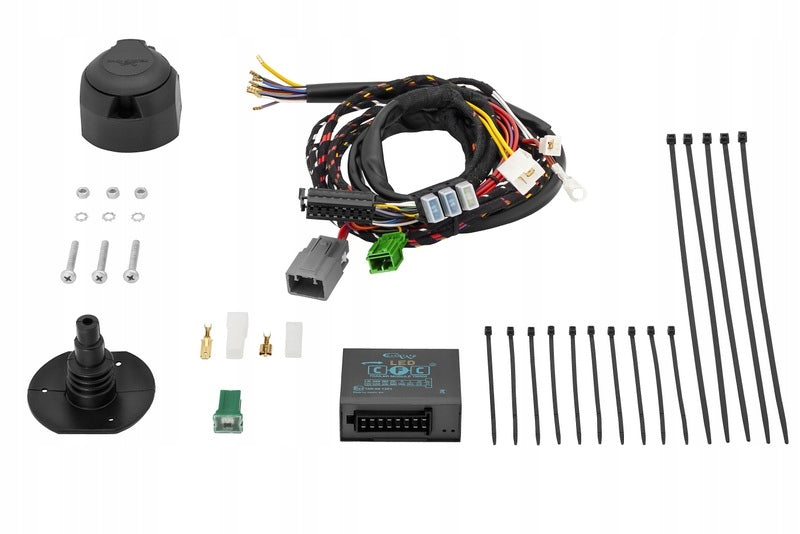

Next to the photo of the sample electrical system.

Dedicated electrical harnesses are designed for a specific make, model and year of the car.

13-pin harness most commonly used for the transport of caravans and large luggage trailers.

We also use it in the case of bicycle platforms with a reversing light - (in the light of applicable regulations, each new platform should have them).

Properties of dedicated bundles:

• adjustment of the length of the wires for optimal arrangement in the interior of the car,
• original plugs (depending on the specific beam model): eliminate errors during assembly and significantly reduce its time,
• optimally selected components: sockets, gaskets, plugs,
• Accurate pictorial assembly instructions.

Technical data of electrical harness

Manufacturer: Hak-System

Beam Type: dedicated

Catalog number: 21120526

Socket Type: 13-PIN

Module type: CFC

Activation required after installation: No

Connection point: back + front

Deactivation of factory reversing sensors: Yes

Loading: Optional - Additional beam number 22400509 required

Fixed plus: Optional - Supplementary beam number 22400001 required

Operation of LED lights in the trailer: Yes

Additional bundles available at our other auctions.

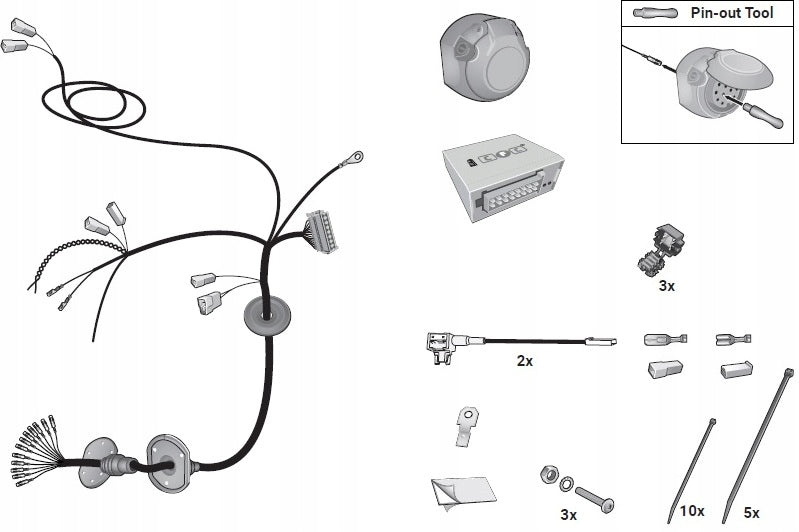

Next to the diagram presenting the contents of the set.

Scheme of connection of 13-PIN socket.

Installation of the towbar or harness is recommended at a professional workshop or service center.

After installation, you should go to a diagnostic station, where the diagnostician will issue a certificate (cost approximately PLN 40), on the basis of which the towbar can be registered in the Transport Department.

Dedicated electrical installations are packed in aesthetic boxes, additionally protected with a thick layer of foil during transport with a hook.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Kind	13 PIN
Parametry	Product weight with unit packaging	2 kg
Parametry	EAN (GTIN)	5904959404771
Parametry	Manufacturer	Hak-system
