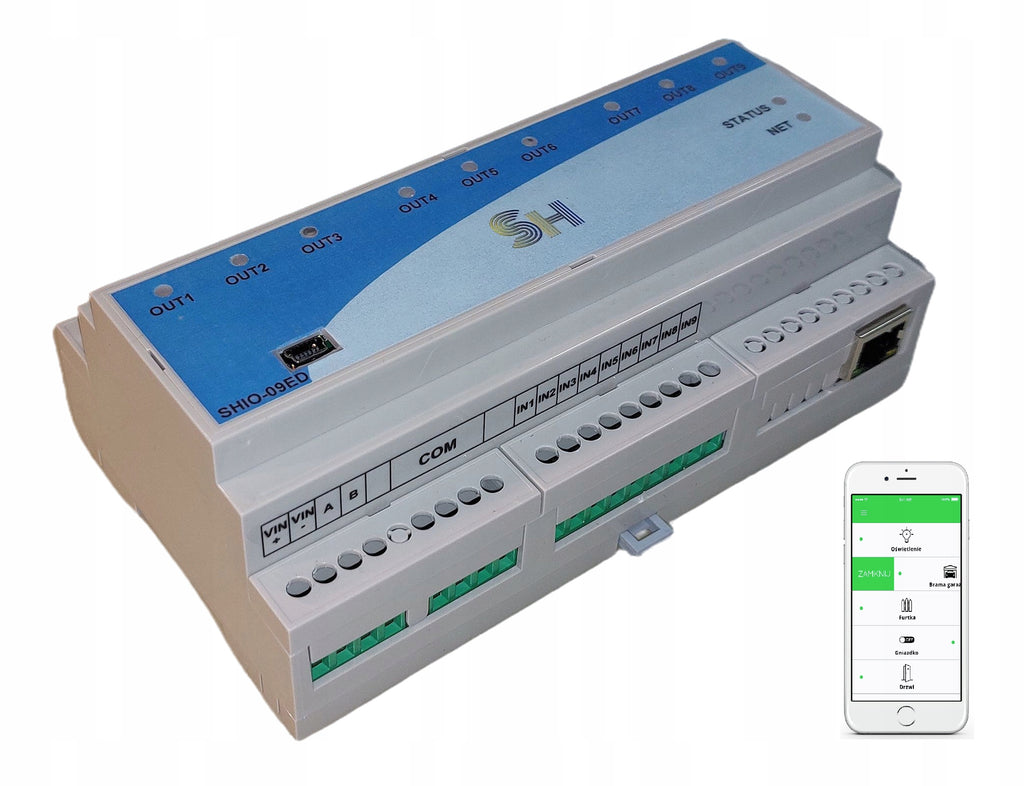

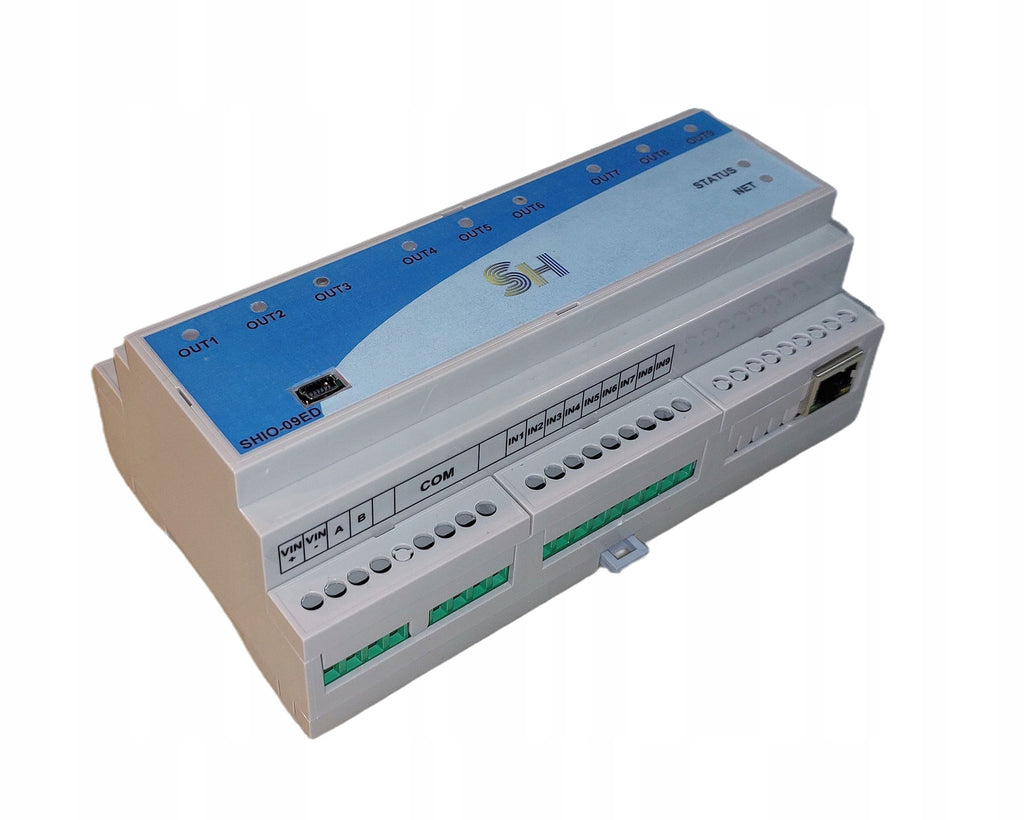

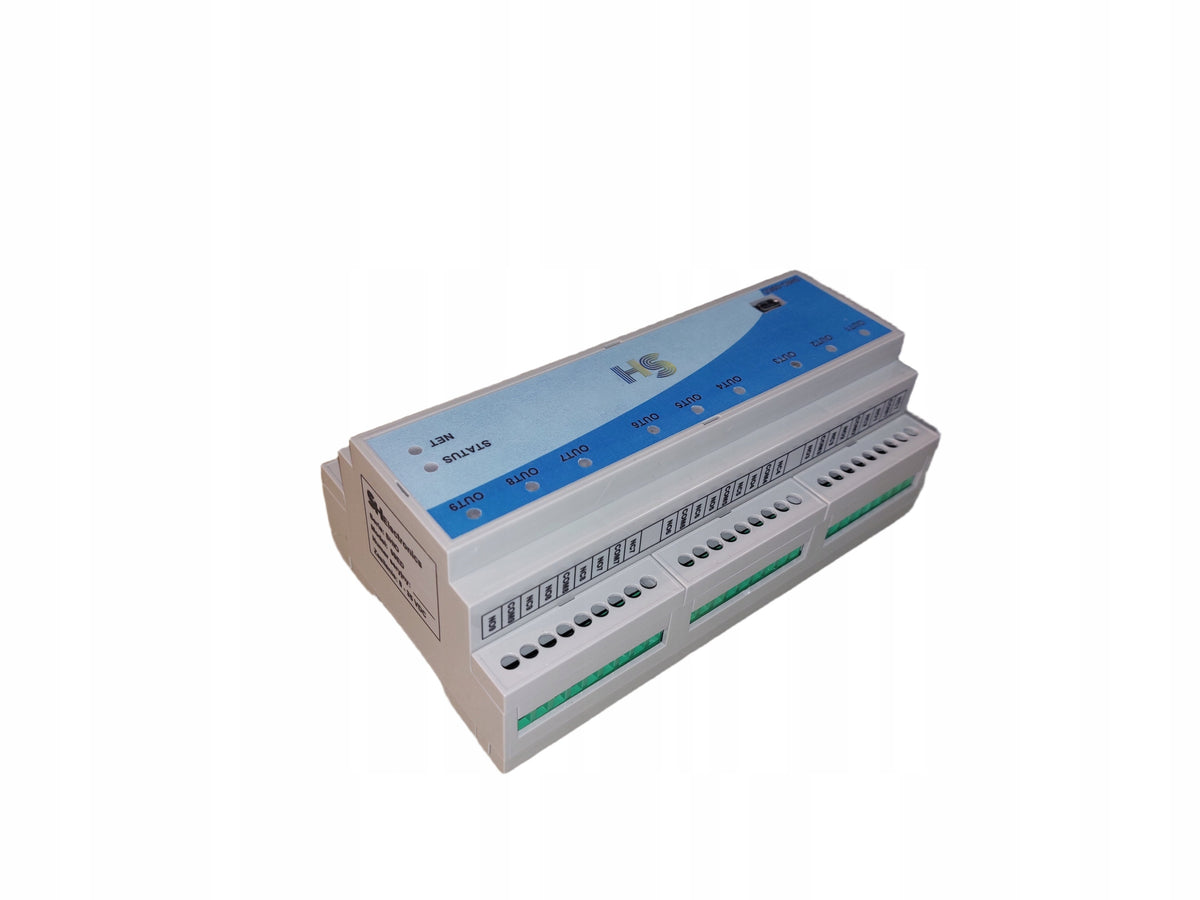

LAN tinklo plokštė SHIO-09ED, Ethernet RJ45, suderinama su supla

Trumpai apie prekę

Prekė: LAN tinklo plokštė SHIO-09ED, Ethernet RJ45, suderinama su supla. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: SHIO-09ED

The subject of the auction is the universal SHIO-09ED controller. A detailed instruction manual is available below the description.

Product designed and manufactured in Poland.

The heart of the controller is the powerful ARM microcontroller from STMicroelectronics. Unlike the competition, we value quality, stability and reliability, which is why we do not use Chinese ESP systems.

Many drivers available on the market are struggling with LAN connection problems - users often report breaking communications and the need to reset devices. In our drivers, this problem has been completely eliminated. We used a professional network module based on the CH9121 chipset, which guarantees a secure connection in all conditions.

Our devices are equipped with Zettler branded relays, which ensure a long service life and trouble-free operation. This is the end of problems with gluing contacts, typical of cheap Chinese counterparts. Bet on proven components and reliability!

Controllers are not stored. From the moment of purchase, shipping can take up to 3 days because the drivers are made to order.

Example applications:

• Lighting control
• Hydration control
• Control of roller shutters
• Control of entrance gates/garage gates and doors/gates

Main features of the controller:

• 9 relay outputs working as standard or pulse (NO, NC, COM outputs) or as roller shutter control.
• 9 configurable contact inputs (OFF, relay switching on, relay switching off, relay switching, S_NO, S_NC, turn off everything, BIS, roller shutter up, roller shutter down).
• Configuration via USB bus using a dedicated PC application.
• Configuration via RS485 bus (using USB-RS485 or ETH-RS485 converter).
• LAN communication. The controller is compatible with supla, which gives you the ability to control from anywhere in the world using a smartphone and a dedicated application for android or ios.
• Operation in relay output or roller shutter control mode
• In relay output mode, channels can control lighting, switching on electrical appliances, garage and entry gates, doors, gates and more.
• In roller shutter control mode, the controller can control up to 4 roller shutter drives.

In relay output mode, each channel can be configured as "Standard" or "Impulse". Configuring the channel as an "Impulse" allows you to turn on the relay for a specified period of time that is configurable. In the app, the time should be given in a mile seconds. The time range that can be set is from 1 ms to 9999999 ms. Each channel can be assigned a memory function that causes the state to be remembered during a power outage. If this option is active, when the power is turned on again, the channel will set itself to the state it was in before the power went out.

The input channels are fully configurable. Each input channel can control any output channel and can be set to one of the following modes of operation:

1. OFF - input does not control any relay
2. Switch - input switches selected relays
3. Attach - input switches on selected relays
4. Turn off - input turns off selected relays
5. S_NO - sensor normally open
6. S_NC - sensor normally closed
7. Turn off everything
8. BIS (work with bistable circuit breakers)
9. CP (copy of input state to output)

In addition, you can set the slope to which the input is to react.

In roller shutter control mode, the controller can be configured to work with single-key or two-key switches.

The device is equipped with an Ethernet module, thanks to which you can remotely control the operation of the controller from anywhere in the world.

The driver is compatible with the supla protocol. In order to control it, the following parameters must be saved in the device:

1. Address of the server
2. Driver name (user decision)
3. Location ID
4. Location password

Detailed instructions for pairing the driver with the server are available.

The controller registers 6 channels that can be set as:

• light switch
• power switch
• gate control
• control of the entrance gate
• garage door control
• door opening control
• stairway machine

In addition, it is possible to configure inputs for opening or closing sensors (e.g. entrance gate). The application will display information whether the gate is open or closed.

In summary, although WiFi technology offers some conveniences, the Ethernet driver provides incomparable stability, speed and security in communication with IoT devices. This allows users to be sure that their home automation system is running smoothly and reliably, making the Ethernet driver an unquestionable advantage over a wireless connection.

Forget about intricate configurations and complicated settings. Thanks to the Ethernet interface in our controllers, the use of the network becomes intuitive and extremely easy. Just a few simple steps and you’re ready to go. It’s a solution that allows you to focus on the essence of your task instead of wasting time on settings.

But that's not all. Our controllers offer not only simplicity but also reliability. With its integrated control and stability mechanisms, you can be sure that your system is running flawlessly, even in the most demanding conditions.

Performance, reliability and simplicity - these are the three key elements that distinguish our controllers from the competition. Thanks to the use of the Ethernet interface, we focus on an innovative approach to operation, which makes your work even more effective and pleasant.

For my part, I provide technical support.

Technical parameters:

Power Supply:

• Supply voltage - 8. .35VDC
• Power consumption (sterile) - 1,5W
• Redundant current protection - 1,5A

Relay outputs (AZ943 from Zettler):

• Insulation resistance - 100 MΩ
• Dielectric strength - 750 VAC
• Contact resistance - max. 100 mΩ
• Contact current - max. 10A

Housing: D9MG from Gainta

The set includes:

• Driver LAN SHIO-09ED
• MiniUSB cable
• PC Apps and Instructions (Download Link)

The device should be connected by a person with the appropriate qualifications!
