Lauko stebėjimo IP kameros HiLook by Hikvision, 8 vnt., 4MP

Trumpai apie prekę

Prekė: Lauko stebėjimo IP kameros HiLook by Hikvision, 8 vnt., 4MP. Kategorija: Rinkiniai.

• Gamintojas: HiLook
• Modelis: IPC-T241H-C BLACK x8 ZESTAW HILOOK by HIKVISION

8x 4Mpx IP Dome Camera | 1x 8-Channel IP Recorder | 8x PoE Switch | 2TB Drive | Mounting Accessories

✅ Complete PoE IP surveillance kit with 8 dome cameras

✅ High image resolution 2560x1440p (4Mpx) and a wide 100-degree recording angle

✅ Cameras suitable for indoor and outdoor installation - IP67 waterproof rating

✅ Cameras equipped with IR infrared illuminators with a range of 20 meters, enabling night recording

✅ Motion detection function - notifications in the app and recording of important events

✅ Video overwrite function (loop recording)

✅ 2TB Hikvision hard drive with high durability included

✅ View via the internet on a computer, smartphone, or tablet

✅ P2P (cloud) support - function allowing remote access without port forwarding and a public IP address

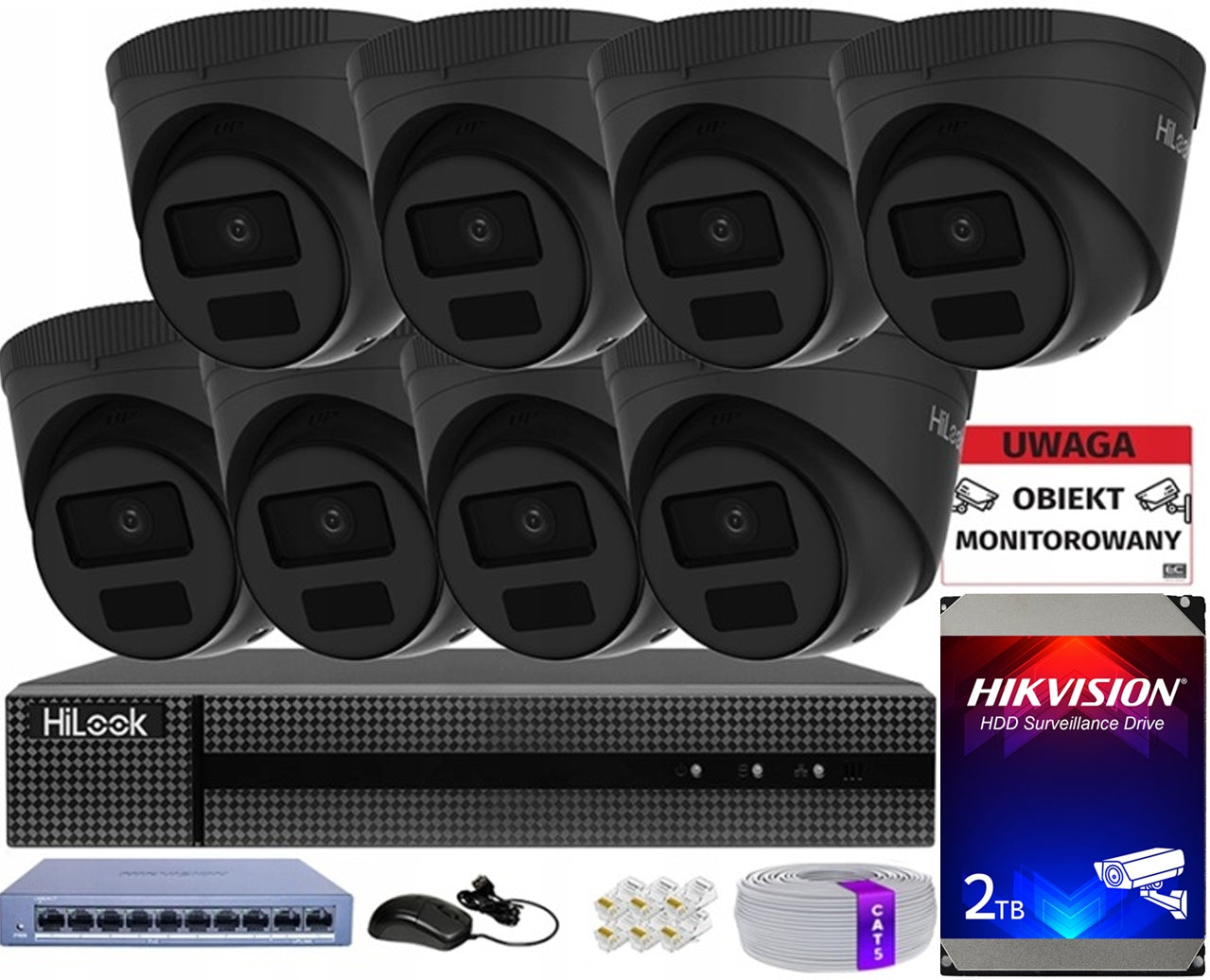

This set includes:

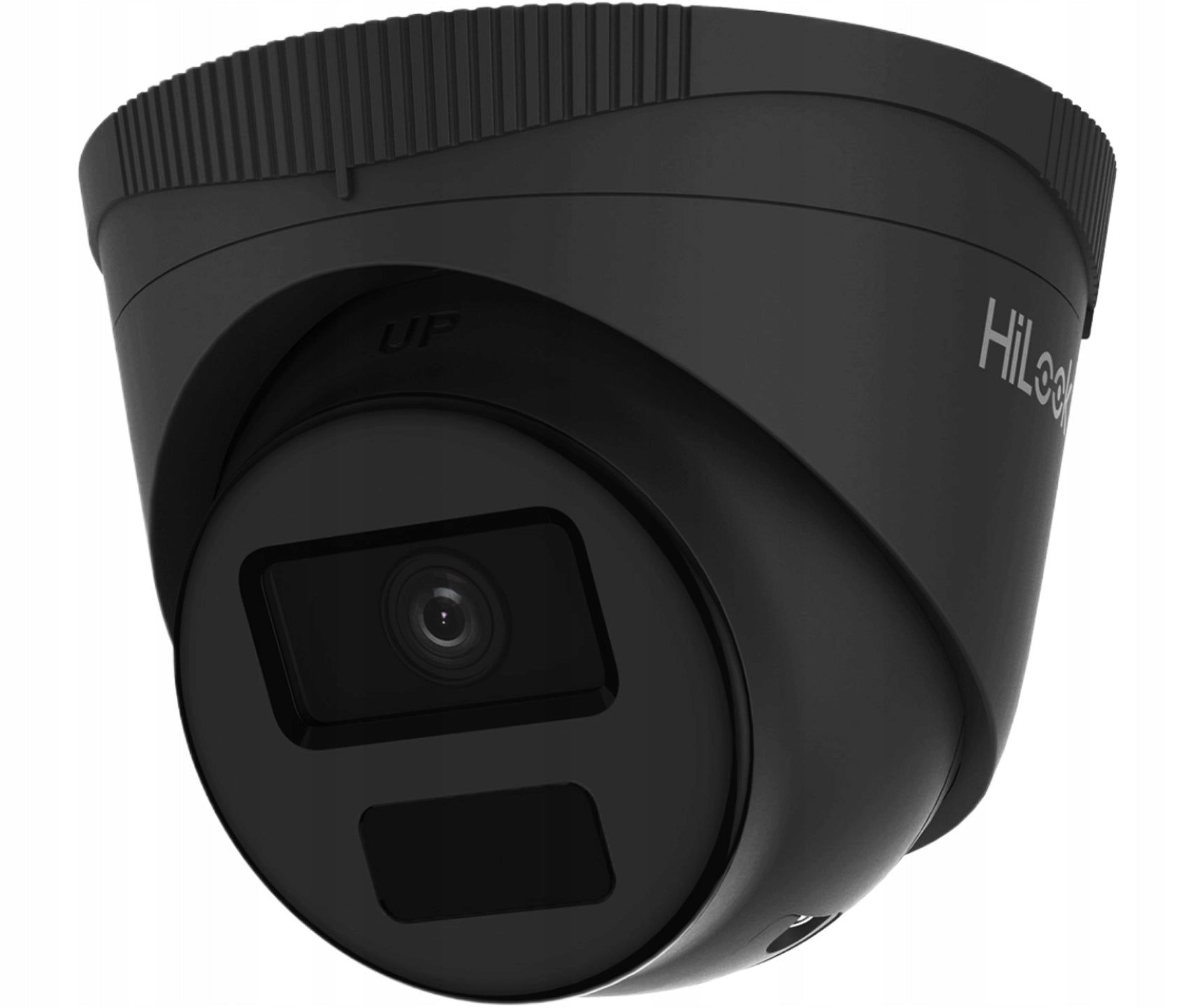

• 8x Dome camera 4Mpx (2560x1440 True 2.5k) - IPC-T241H-C BLACK HiLook by Hikvision

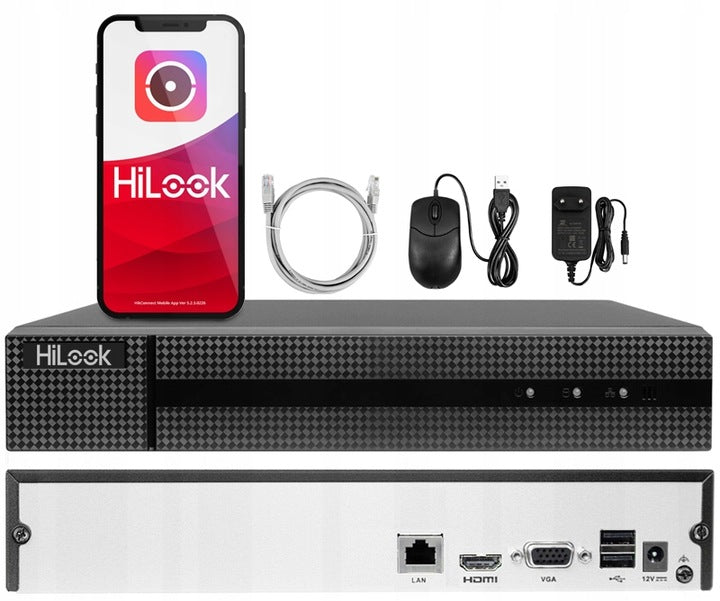

• 1x 8-channel IP recorder - NVR-8CH-4MP HiLook by Hikvision
• 1x PoE Switch 8+2 - DS-XS0110-P Hikvision
• 1x Drive hard to CCTV ( 24/7 recording) - Hikvision 2TB
• 1x UTP twisted pair cable - 40 meters - DS-PL-5E Hikvision
• 16x RJ45 plug

The HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the process of installing and configuring the kit.

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings from the recorder
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

IPC-T241H-C BLACK camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 20m.

This function allows you to record images via 24/7 in any lighting conditions.

The offered camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a lot of space on the hard drive, which positively affects its lifespan.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a recorder is connected using a PoE switch and a single UTP cable.

• Converter: CMOS 1/2.8” 4MPx
• Image resolution: 2560 × 1440p @20fps
• Lens: wide-angle 2,8 mm
• Recording angle: ~100 degrees (wide-angle)
• Image compression: H.265+, H.265, H.264+, H.264
• Double Stream: Yes
• Wide dynamic range: digital WDR
• Digital Noise Cancellation: Yes - 3D DNR
• Other functions: ROI, BLC, Motion detection, Mirror, EXIR
• Infrared range: up to 20 m
• P2P(cloud) support: Yes - a feature that allows remote access without port forwarding and public IP address
• Support in the Hik-Connect mobile app: Yes
• Remote view: Hik-Connect, iVMS-4200, browser WEB
• Assembly: external or internal
• Housing: plastic / black
• Power Supply: 12V or PoE
• Protection class: IP67

• Number of channels: 8
• Recording resolution: to 6Mpx
• Bitrate in/out: 60/60 Mbps
• Video outputs: 1x HDMI, 1x VGA
• USB ports: 2x USB 2.0
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Ethernet interface: 1x RJ45 10 / 100 Mbps
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Preview/remote support: HIK-Connect/HiLook App, iVMS-4200 (lite)
• Storage for HDDs: 1 (up to 6TB)
• Power Supply: 12 VDC
• Power consumption: 18 W (without 10W disk)
• Dimensions: 265 x 225 x 48mm
• Weight: ≤ 1 kg

Includes power supply and mouse.

• LAN ports: 8 xRJ4510/100 Base-TX (8 x PoE (802.3af/at) ), 2 xRJ4510/100 Base-TX
• Transmission speed: 10 / 100 Mbps - 8 LAN & PoE ports, 10 / 100 Mbps - 2 Uplink ports
• Maximum output power: 30 W / PoE port
• Maximum total power: 60 W
• MAC address table: 2k
• Management: None
• LEDs: Power, Link/Act, PoE
• Certificates: CE
• Power supply: 48 VDC/ 1.35 A (power supply included)
• Working temperature: 0 °C ... 40 °C
• Weight: 0.29 kg
• Dimensions: 170 x 28 x 93 mm

The disk in the set is a model from the Surveillance series, dedicated to monitoring, characterized by a higher service life.

• Capacity: 2TB
• Cache: 64 MB
• Interface: Serial ATA III
• Size: 3,5”
• rpm. /min: 5400 rpm

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 16x RJ45 plug
• A set of instruction manual
