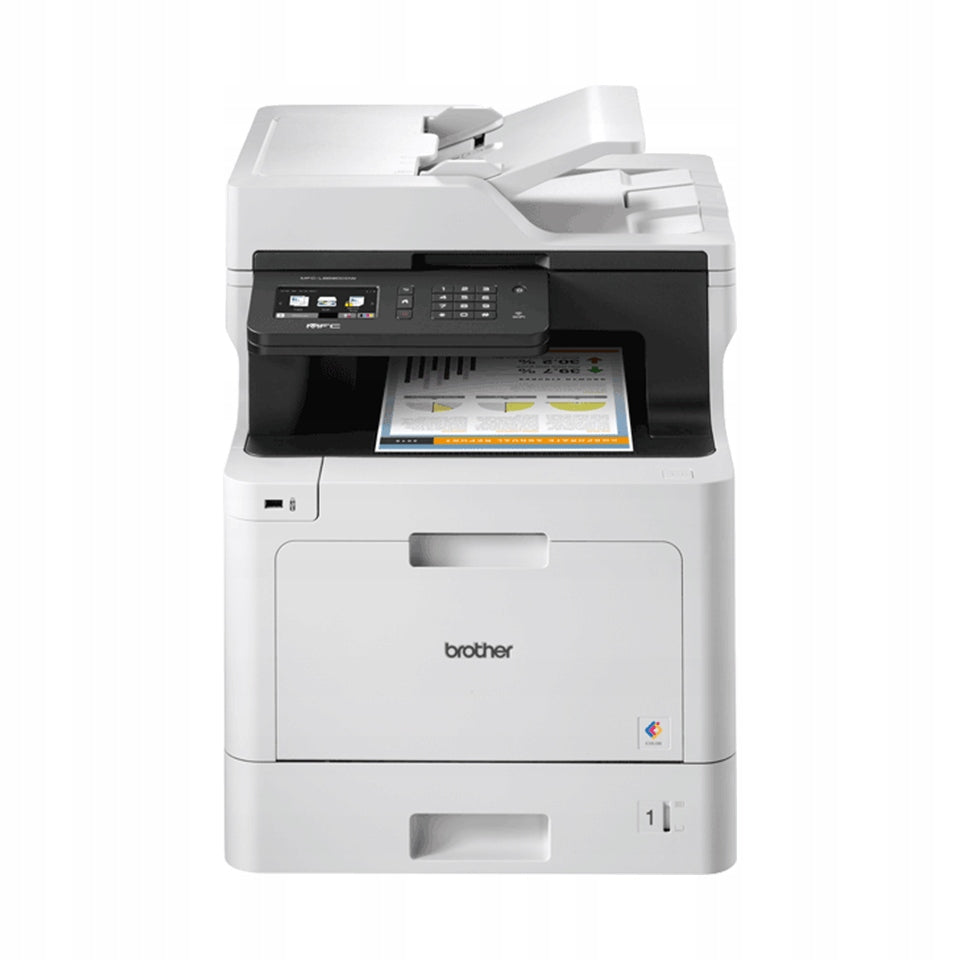

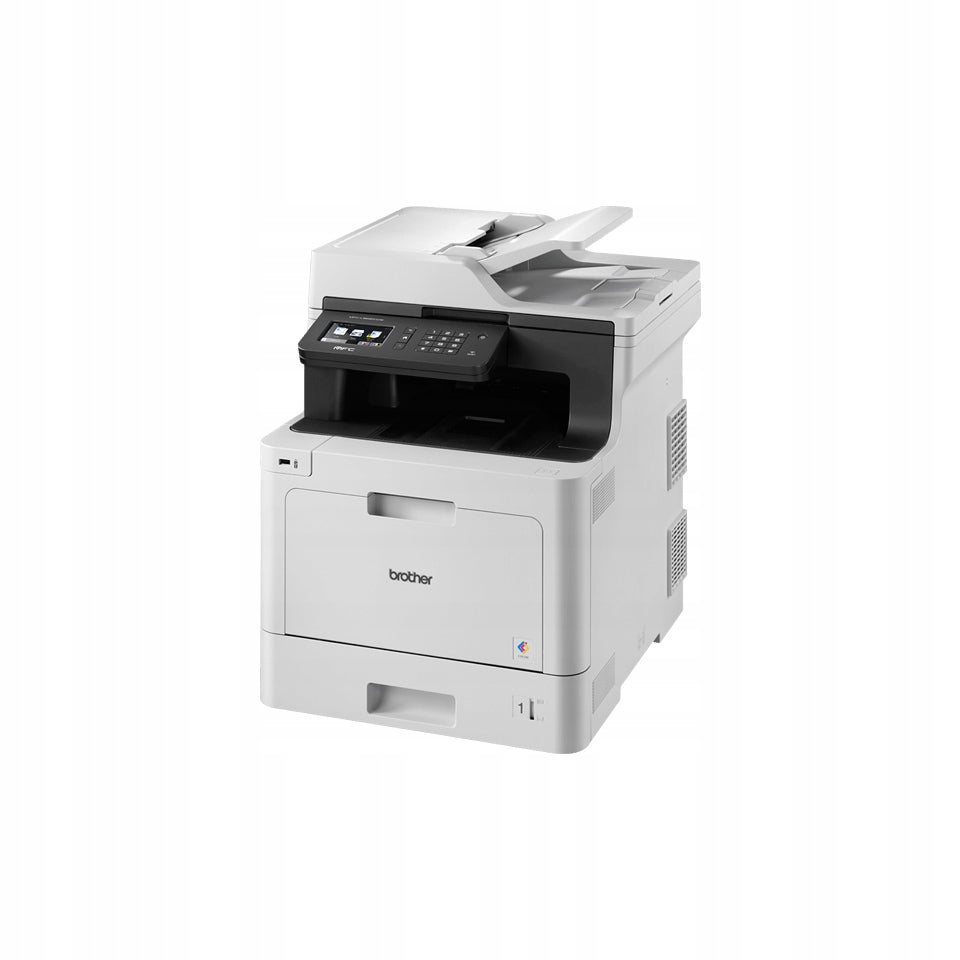

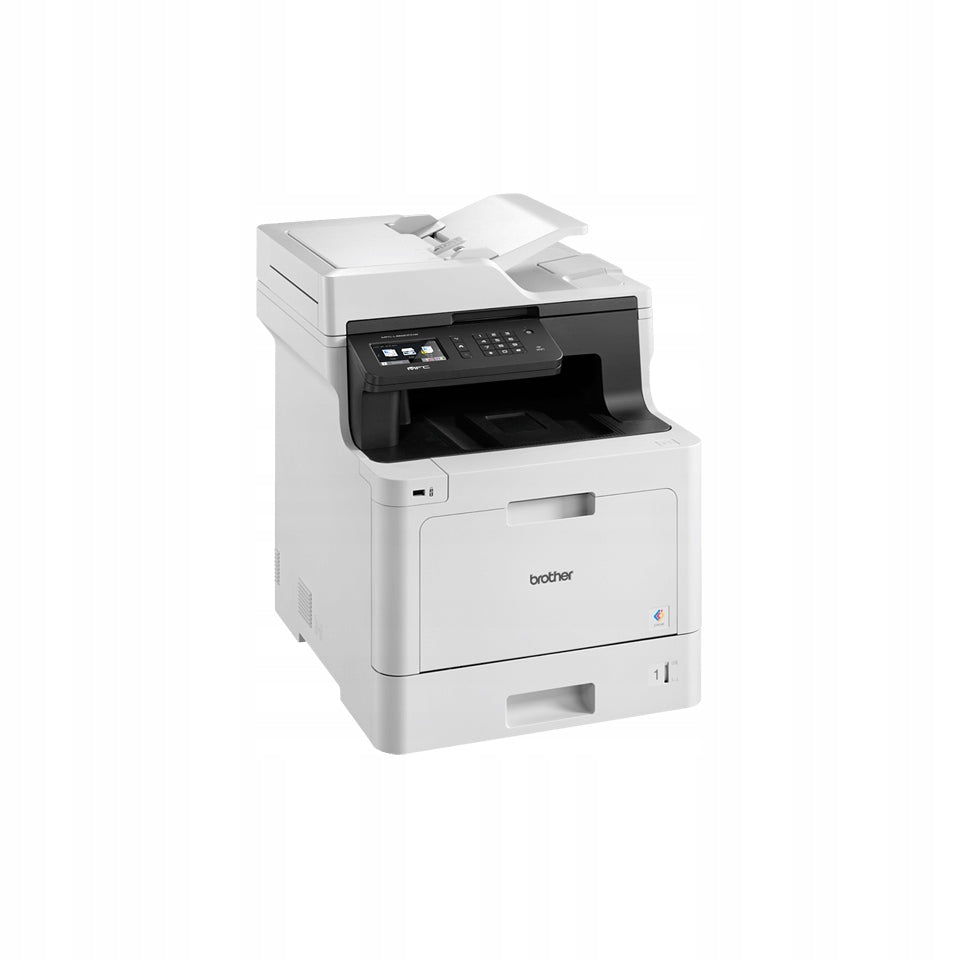

Lazerinis spalvotas spausdintuvas BROTHER MFC-L8690CDW, A4, WiFi

Trumpai apie prekę

Prekė: Lazerinis spalvotas spausdintuvas BROTHER MFC-L8690CDW, A4, WiFi. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: Brother
• Modelis: MFC-L8690CDW

MFC-L8690CDW - color laser multifunction device: printer, copier, scanner, fax, with automatic duplex.

• Print speeds up to 31 pages per minute
• Scanning speed up to 28(56) images per minute in color and monochrome mode
• Touch screen with a diagonal of 9,3 cm
• Interfaces: USB, wireless and giga-bit wired network
• Includes toner up to 3 000 pages in black and up to 1 800 pages in colours
• New product, pre-packaged
• Distribution PL - menu in Polish

MFC-L8690CDW is a device that is characterized by efficient operation and high printing and scanning speed. The model is an ideal solution for document production in dynamically functioning office environments. Brother MFC-L8690CDW offers printing, copying, scanning and faxing functions.

Maximize performance

• High speed printing (up to 31 pages per minute) and double-sided scanning (up to 56 images per minute) in color and black and white mode translates into a significant improvement in work efficiency.
• Achieve maximum efficiency with support for IEEE 802.11b/g/n wireless and 10Base-T/100Base-TX/1000Base-T wired networking.
• Convenient printing from mobile devices using the Brother iPrint&Scan app, the Brother Print Service plugin for Android, Google Cloud Print 2.0, Mopria and AirPrint.
• Above-average paper handling capabilities: standard paper feeders up to 300 sheets expandable up to 1 050 sheets.

Security of printed documents

• Modern companies expect the highest standards of security. With Secure Function Lock 3.0, Active Directory-based authentication, IPsec support, 802.1x, and secure printing, you can rest assured that your documents are secure.

Flexibility and low operating costs

• The MFC-L8690CDW is designed for demanding office environments that print and scan large volumes of documents. The device is therefore supplied with black toner with a capacity of up to 3 000 pages and cyan, magenta and yellow toner with a capacity of up to 1 800 pages. To further reduce operating costs, simply install optional high-yield toner cartridges – black with a yield of up to 6 500 pages, and cyan, magenta and yellow with a capacity of up to 4 000 pages

Specification

General

• Printer type: Color
• Functions: Copy, Fax, Print, Scan
• Maximum paper size: A4
• Technology: Laser
• Laser Classification: Class 1 Laser
• Connection: USB, Wired Network, Wireless Network
• Memory: Internal (512 MB)
• Control panel: Touchscreen
• Display: Yes

Printing

• Single-sided A4 mono print speed: 31 (pages per minute)
• Single-sided A4 color print speed: 31 (pages per minute)
• Duty cycle: Up to 3000 pages
• A4 mono duplex print speed: 14 (pages per minute)
• A4 color duplex printing speed: 14 (pages per minute)
• First print out time: Less than 15.0 seconds from ready mode
• Mobile printing: Yes
• Automatic 2-sided printing: Yes
• Print languages: PCL6, Brother ESC-P, PDF Version 1.7, XPS Version 1.0, BR-Script3
• Silent mode: Yes
• Built-in fonts: PCL (66 scalable fonts), Postscript (66 scalable fonts), 12 bitmap fonts, 16 barcode fonts
• Printer features: N-up printing, Poster printing, ID card printing, Booklet printing, Print profiles, Watermark printing, Manual duplex printing
• Embedded Barcodes (PCL): Codabar, Code128 (Set A, Set B, Set C), Code39, Code93, EAN128 (Set A, Set B, Set C), EAN-13, FIM (US-PostNet), GS1Databar, Interleaved 2 of 5, ISBN (EAN), ISBN (UPC-E), MSI, Post Net (US-PostNet), UPC-A, UPC-E, EAN-8

Printer drivers

• Printer Drivers: ChromeOS (Supports ChromeOS native printing), Linux (CUPS, LPD/LPRng (x86/x64 environment)), macOS (10,14,x), Windows (10, 11, 8,1, Server), Server (2008, 2008 SP2, 2012, 2012 R2, 2016, 2019, 2022), Visit the manufacturer's website for a full list of supported operating systems and to download the latest drivers and software.

Paper handling

• Paper input: Multi-purpose tray (50 sheets), Automatic document feeder (50 sheets), Lower trays (250 sheets)
• Paper output: Face down (150 sheets), Face up (1 sheet (straight path))
• Media Sizes: Duplex (A4), Multi-purpose Tray (Width: 76.2 mm to 215.9 mm x Length: 127 mm to 355.6 mm), Automatic Document Feeder (Width: 105 mm to 215.9 mm x Length: 147.3 mm to 355.6 mm), Standard Tray (Tray 1) (A4, Letter, Legal, Folio, A5, A5 (Long Edge), A6, Executive, Mexico Legal)
• Media types and weights: Standard (Tray 1) (Plain, Recycling, Colour & Letterhead, 60 - 105 g/m²), Multi-purpose tray (Plain, Recycling, Bond, Colour & Letterhead, Glossy, 60 - 163 g/m²), Automatic duplex printing (Plain, Recycling, Colour & Letterhead, Glossy, 60 - 105 g/m²), Automatic document feeder (Plain, Recycling, 64 - 90 g/m²)
• Paper sensors: Low paper sensor

Copying

• Copy features: Multiple/Stack/Sort copying, Enlarge/Reduce ratio %, N-in-1 copying, 2-in-1 ID card copying, Receipt copying
• FCOT from Standby (seconds): Color (17.0 seconds), Mono (16.0 seconds)
• Grayscale: 256 shades
• Copy speed A4 single-sided color: 31 (pages per minute)
• Copy speed A4 mono single-sided: 31 (pages per minute)

Network

• Wired security: 802.1x (EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IMAP4, IPPS, POP3, SMTP), SMTP-AUTH, SNMP v3, IPsec, Kerberos, APOP
• Wireless Security: 802.1xWireless (EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP), SSL/TLS (HTTPS, IMAP4, IPPS, POP3, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), SMTP AUTHENTICATION, Kerberos, IPsec, APOP, SNMP v3
• Wireless setup assistance: Yes

Scanning

• Scanner type: Dual CIS (Contact Image Sensor)
• Resolution: Interpolated (Up to 19200 x 19200 dpi), Scanner glass, ADF
• Color Depth: Output (24-bit color processing), Input, 48-bit color processing
• Grayscale: 256 levels 8 bits
• Scan speed A4 single-sided color (3): 28 (images per minute)
• Single-sided A4 mono scan speed (3): 28 (images per minute)
• Scan speed A4 color duplex (3): 56 (ipm)
• Scanning speed A4 mono duplex (3): 56 (images per minute)

Scanner functions

• Standard Features: Scan to (USB, Email Server, PC, Network Folder, Network, SharePoint, SFTP, FTP, File, Image)
• Scan Profiles: 25 pre-programmed networks
• Scanning Features: Skip Blank Page, Auto Deskew, Split PDF
• Direct Scan: Yes

Scan drivers

• Scan Drivers: Windows (Windows 11, Windows 10, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2, TWAIN, WIA), Macintosh (10.14.x, TWAIN, AirPrint Scanning, ICA), Linux (SANE), Visit support page. brother . com for a complete list of supported operating systems and to download the latest drivers and software.

Faxing

• Faxing: Phonebook, PC fax, Out of paper, Memory transmission, Internet fax (I-fax), Server fax, Fax ID, Error Correction Mode (ECM), DRPD (Directory Dialling) (UK, DK only), Cover page, Chain dialing, Broadcasting, Batch transmission, Automatic redial, Automatic two-sided faxing, Automatic paper size reduction

Fleet management tools

• Fleet management tools: LAN/WAN management software (BRAdmin Professional), Unattended installer, MSI installer, Embedded web server, Mass Deployment Tool

Software

• Supplied software: Windows software ( Brother iPrint&Scan, Kofax PaperPort), Macintosh software ( Brother iPrint&Scan Desktop), Utilities

Consumables and accessories

• Toner: Toner cartridge (BK Toner, CMY Toner), BK Toner (3000 pages), CMY Toner (1800 pages)
• Drum unit: 50,000 pages (3 pages/job)
• Pass: 130,000 pages (3 pages per job)
• Waste toner container: 50,000 pages
• Optional accessories: Paper trays (Lower tray - 250 sheets), Lower tray - 250 sheets (LT-330CL), Card reader holder (CH-1000), Filter holder, Cabinet

Contents of the box

• Carton contents: Power cord, Quick Start Guide, Product Safety Guide, Warranty, Device, Consumables

Dimensions and weight

• Weight with box: 33.7kg
• Dimensions With Box: 663mm (W) ) x 542mm (depth ) x 654mm (height )
• Weight without box: 27.9kg
• Dimensions without box: 435mm (width x height) ) x 526mm (depth ) x 539mm (height )

Work cycle

• Recommended monthly volume: Up to 3,000 pages

Work environment

• Power consumption (approximately): Off (0.03W), Printing (580.0W), Ready mode (70.0W), Sleep mode (10.0W), Deep sleep mode (1.4W), Network Standby (1.4W, 1.6W)
• Sound Power: Printing (<6.56B(A)), Quiet Mode (<6.0B(A)), Standby Mode (Inaudible)
• Sound Pressure: Printing (49.0 dB), Quiet Mode (44.0 dB), Ready (Inaudible)
• TEC value: 1.9 kWh/week
• Operating Environment: Humidity % (20 - 80%), Celsius (10°C - 32°C), Fahrenheit (50°F - 90°F)
• Storage Environment: Humidity % (35 - 85%), Degrees Celsius (0°C - 40°C), Degrees Fahrenheit (32°F - 104°F)
• Warm up Time from sleep mode (seconds): 31

Address book

• Address book: Speed ​​dial, Group dial, LDAP

Solutions

• Compatible solutions: Brother Solutions Interface (BSI)

Connection

• Local Interface: USB 2.0 Host (Front), Hi-Speed ​​USB 2.0
• Wireless network interface: 2.4GHz: IEEE 802.11b/g/n
• Wired interface: Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T)
• Display IP Address: Yes
• Wireless setup assistance: Yes
• Wireless Apps: No
• WiFi Direct: Yes

Mobile and internet connectivity

• Mobile and internet connectivity: Apple AirPrint, Mopria®, Brother iPrint&Scan, Brother Print Service Plugin, Brother Apps, Web Connect

Security features

• Wired security: 802.1x (EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP), SSL/TLS (HTTPS, IMAP4, IPPS, POP3, SMTP), SMTP-AUTH, SNMP v3, IPsec, Kerberos, APOP
• Wireless Security: 802.1xWireless (EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, PEAP), SSL/TLS (HTTPS, IMAP4, IPPS, POP3, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), SMTP AUTHENTICATION, Kerberos, IPsec, APOP, SNMP v3
• IP Filter: Yes
• IPv4: ARP, RARP, BOOTP, DHCP, APIPA (AutoIP), DNSResolver, LLMNR responder, LPR/LPD, Custom RAW Port / Port9100, SMTP Client, IPP/IPPS, SNMPv1/v2c/v3, HTTP/HTTPS Server, TFTP Client, TFTP server, ICMP, Web Services (Print), Web Services (Scan), SNTPClient, TELNET Server, LDAP, FTP Client, POP3 Client, CIFS Client, IMAP4 Client, mDNS, WINS/NetBIOS name resolution
• IPv6: NDP, mDNS, DNS Resolver, LLMNR responder, LPR/LPD, Custom RAW Port / Port9100, IPP/IPPS, SMTP Client, SNMPv1/v2c/v3, HTTP/HTTPS Server, ICMPv6, LDAP, CIFS Client, IMAP4, POP3, FTP Client, FTP Client, RA, SNTP Client, TELNET Server, Client TFTP, TFTP Server, Web Services (Print), Web Services (Scan)
• Features: Firmware updates, Email notifications, Email reports, Secure Function Lock 3.0, Settings Lock+EE2390:E2406, Secure Key Management, Secure Print, Secure Cloud Printing, Local Active Directory/LDAP authentication, Print history storage

Disclaimers

• Scanning speeds based on ISO/IEC 17991
• Approximate performance value according to ISO/IEC 19798
• Capacity calculated for 80 g/m² paper
