LCD manipuliatorius PERFECTA serijos centralėms, SATEL

Trumpai apie prekę

Prekė: LCD manipuliatorius PERFECTA serijos centralėms, SATEL. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: PRF-LCD

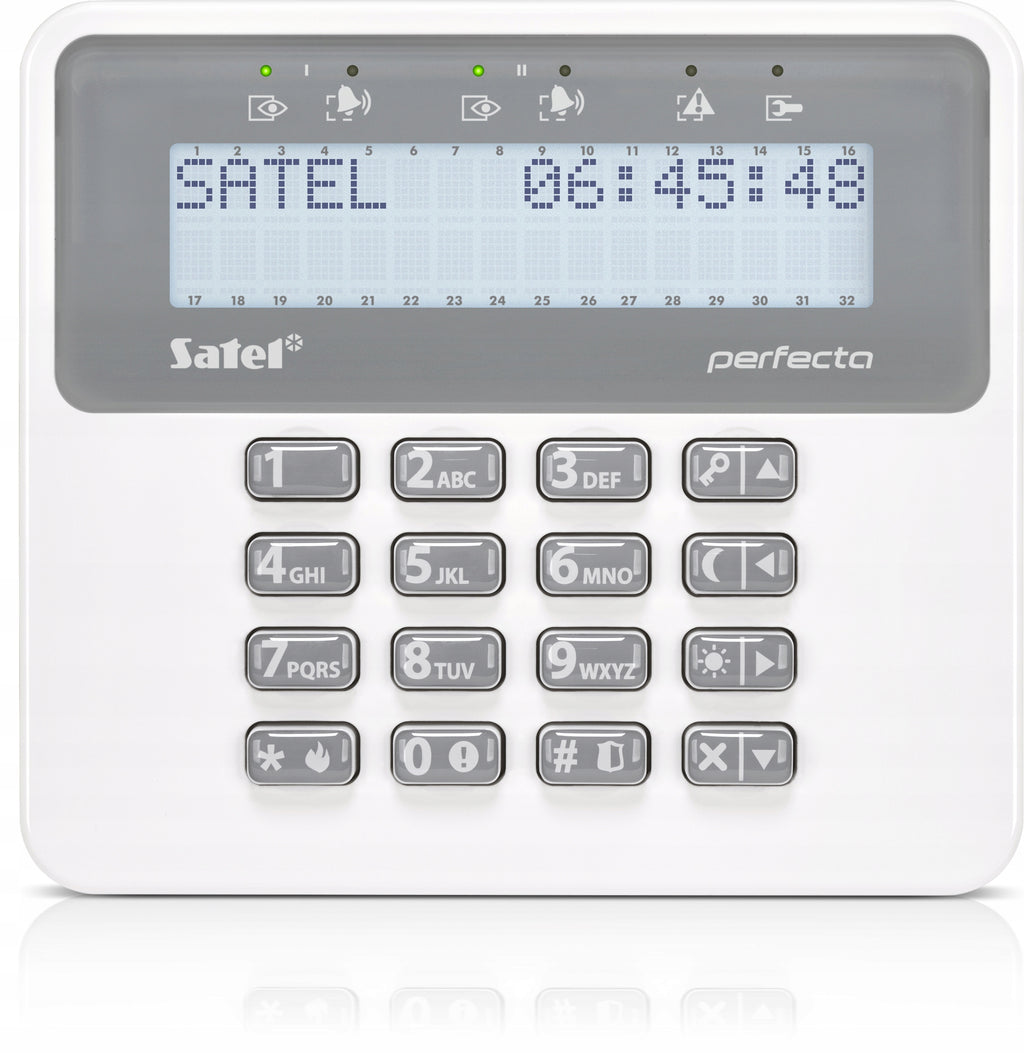

The PRF-LCD manipulator is used for daily operation of PERFECTA series control panels.

The device meets the safety requirements Grade 2 specified in EN 50131.

Large keys, LCD display and LEDs indicating the status of the system make the operation of the system convenient and transparent for all users.

The keyboard, in addition to numeric keys, also has buttons that allow you to quickly turn on the selected surveillance mode

(day, night, full) and triggering three alarms: assault, fire, help.

The attractive appearance of the PRF-LCD manipulator means that it can fit into the decor of interiors protected by the system.

• cooperation with PERFECTA series control panels
• large, easy-to-read LCD display
• LEDs informing about the status of zones and system
• quick switching on the selected standby mode using function keys
• alarms ROBBERY, FIRE, HELP triggered from the keyboard
• Display and key backlighting
• sound signaling of selected events in the system
• signalling loss of communication with the control panel

Technical data:

Supply voltage (±15%) 12 V DC

Housing dimensions 139 x 124 x 22 mm

Operating temperature range -10...+55 °C

Current consumption at standby 30 mA

Maximum current consumption 50 mA

Weight 246 g

Maximum humidity 93±3%

Environmental class according to EN50130-5 II
