Apraksts
Trumpai apie prekę
Prekė: LED juostų valdiklis SHELLY RGBW, WiFi, nuotolinis valdymas. Kategorija: Automatizavimo moduliai.
- Gamintojas: Shelly
- Modelis: Shelly Plus RGBW PM Plus
Manufacturer: Shelly
Product Code: PlusRGBWPM
Specification:
- Manufacturer: Shelly
- Model: PlusRGBWPM
- Dimensions: 42 x 37 x 12 ±0,5 mm
- Weight: 17 g
- Maximum tightening torque of screw terminals: 0,2 Nm
- Cable cross-section: from 0,1 to 1 mm²
- Length of isolated cable: 6 mm
- Assembly: In a wall box
- Housing material: Plastic
- Housing color: Yellow
- Connection Color: Green
- Ambient temperature: from -20 °C to 40 °C
- Moisture: 30% - 70%
- Power supply: 12/24 VDC
- Power consumption: < 1,2 W
- Maximum control voltage: 24 VDC
- Maximum control current: 4 A per channel (10 A total)
- PWM frequency: 22 kHz
- Voltmeter: 0-24 V
- Voltmeter accuracy: ± 5%
- Amperometer: 0-10 A
- Ammeter accuracy: ± 10%
- Power and energy measurement: Yes
- No-load detection threshold: 0,5 VA per channel
- Built-in temperature sensor: Yes
- Wi-Fi range: Up to 30 m inside, up to 50 m outside (depending on local conditions)
- Bluetooth version: 4.2
- Bluetooth range: Up to 10 m inside, up to 30 m outside (depending on local conditions)
- Processor: ESP-Shelly C38F
- Clock frequency: 160 MHz
- RAM: 400 KB
- Flash memory: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 (5 URLs per webhook)
- Scripts: Yes
- MQTT: Yes

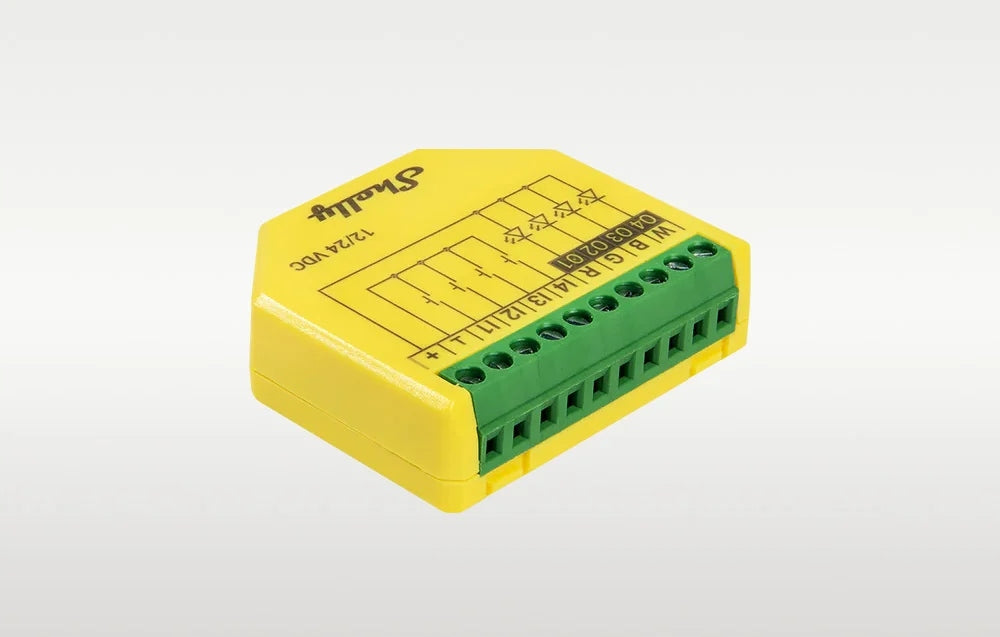

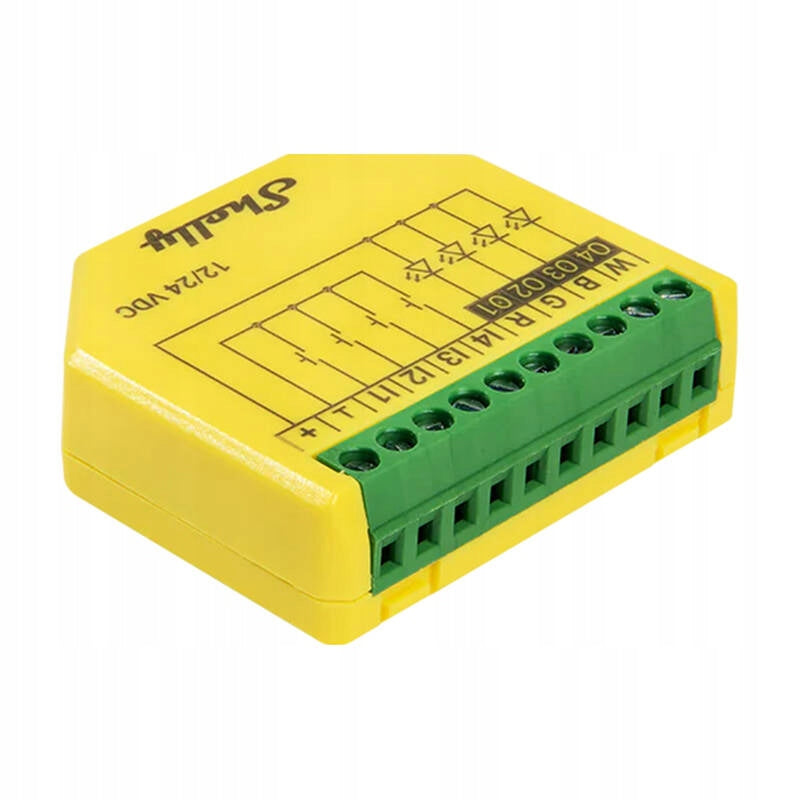

Shelly Plus RGBW PM LED Strip Driver
The Shelly Plus RGBW PM LED strip driver is your key to creating a unique atmosphere in your home or office. It supports 12V and 24V LED strips in White, RGB and RGBW modes, allowing for complete freedom of personalization. Subtle light for evening relaxation, dynamic lighting effects at the party or practical kitchen lighting – all this is within reach. No need to install additional hubs means that you can start your adventure with smart lighting immediately after connecting.
Light effects that delight
With Shelly Plus RGBW PM you can give your interior a unique character. Create the right mood by dimming the light or choosing from 16 million colors. The device also offers unique lighting effects that will bring any room to life, from subtle tonal transitions to dynamic color changes.
Smart Schedules and Scenes
Customize lighting to your lifestyle with smart schedules and scenes. The Shelly Plus RGBW PM controller allows you to create personalized action plans that automatically adjust the light to your rhythm of the day. Combine it with other Shelly devices to create a comprehensive automation system that fully meets your needs!
Control at your fingertips
With Wi-Fi and Bluetooth support, lighting control becomes a breeze. All you need is the Shelly Smart Control app to monitor your energy consumption, set night mode or make changes in real time. The device works with the most popular platforms and protocols, as well as voice assistants such as Alexa and Home Assistant. You can also integrate them into your favorite automation system to enjoy full control over your lighting – no matter where you are.
Safety and reliability in one
The device monitors energy consumption and has overload protection, which increases safety and helps control costs. The built-in ESP32 processor provides lightning-fast responses to every change, ensuring that every change of settings is immediately visible. Shelly Plus RGBW PM also acts as a Wi-Fi amplifier and BLE gateway, improving the coverage of your home network.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Kind | control panel |
| Parametry | Series | Shelly Plus RGBW PM - Kontroler RGBW |
| Parametry | Brand | Shelly |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | Manufacturer code | Shelly Plus RGBW PM Plus |
| Parametry | EAN (GTIN) | 3800235265635 |
| Parametry | Packaging status | original |
