Piegādes termiņš visā Lietuvā: 5-7 darba dienas.
Piegādes cena uz norādīto adresi: 3 eiro
Apraksts
Trumpai apie prekę
Prekė: Lengvųjų sunkvežimių OBD2 diagnostikos įranga J1939. Kategorija: Baterijų testeriai.
- Gamintojas: HUMZOR
- Modelis: NC601

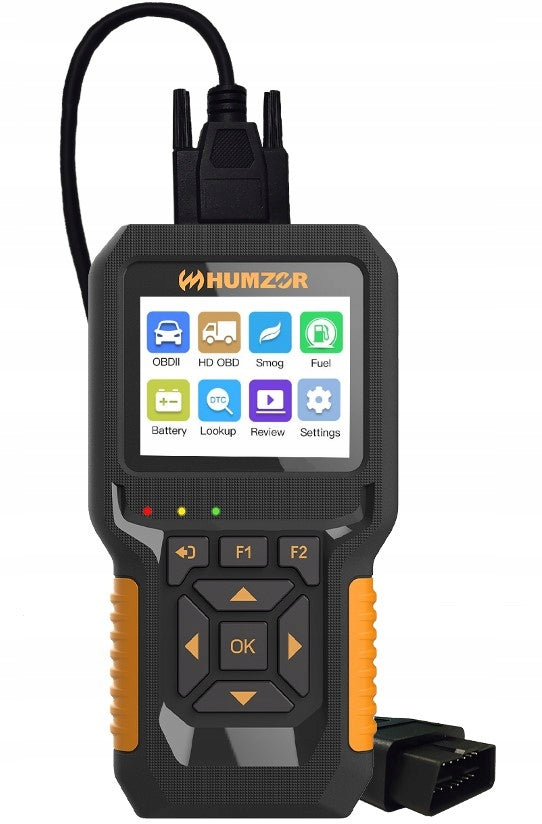

OBD-2 diagnostic scanner for passenger cars, trucks and machinery
HUMZOR NC601 - OBD-II error scanner:
- Large color readable display
- universal - supports 12/24V passenger cars and trucks compliant with OBD-2 standard since 1996
- included J1939 - 9-pin adapter (e.g. for heavy equipment - excavators, Cummins construction machinery, Caterpillar, etc. )
- solid connection cable with high-quality plug - especially important for intensive use
- fast error scanning
- very simple installation and operation
- power supply from the OBD socket – does not require external power supply
- menu in English, German, Russian, French, Spanish, Chinese and Italian
- aesthetic case included
Information video:
https://www. humzor . com/uploads/file/20221128/11b10bc316b29a02efb0a365b7519cea.mp4

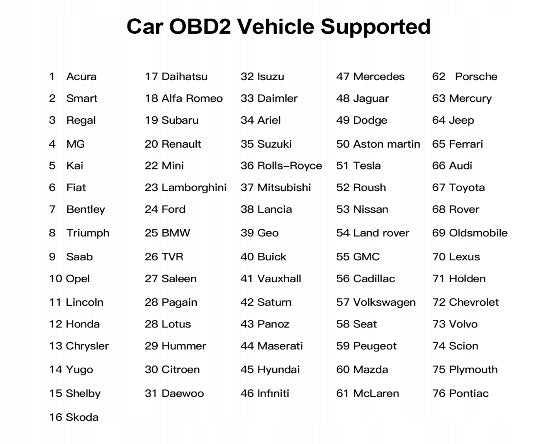

Supports 76 vehicle brands:
Example functions of the HUMZOR NC 601 scanner:
- reading the error codes recorded that caused the CHECK ENGINE light to be lit
- erasure of the CHECK ENGINE control
- OBD II error reading and erasure
- MIL detection
- reading parameters on an ongoing basis (Online)
- Preview of frozen frames (Freeze Frames)
- O2 sensor test
- display of EVAP test data
- battery test
- control of smog
- library of fault code information
Supported connection protocols:
- J1850(PWM,VPW)
- ISO_9141-2
- ISO_14230-4(KWP,KWP-5BPS)
- ISO_15765 -4(CAN,CAN-B, CAN-C,CAN-D)
The interface supports Cummins, Caterpillar, Detroit, Paccard, etc. diesel engines.

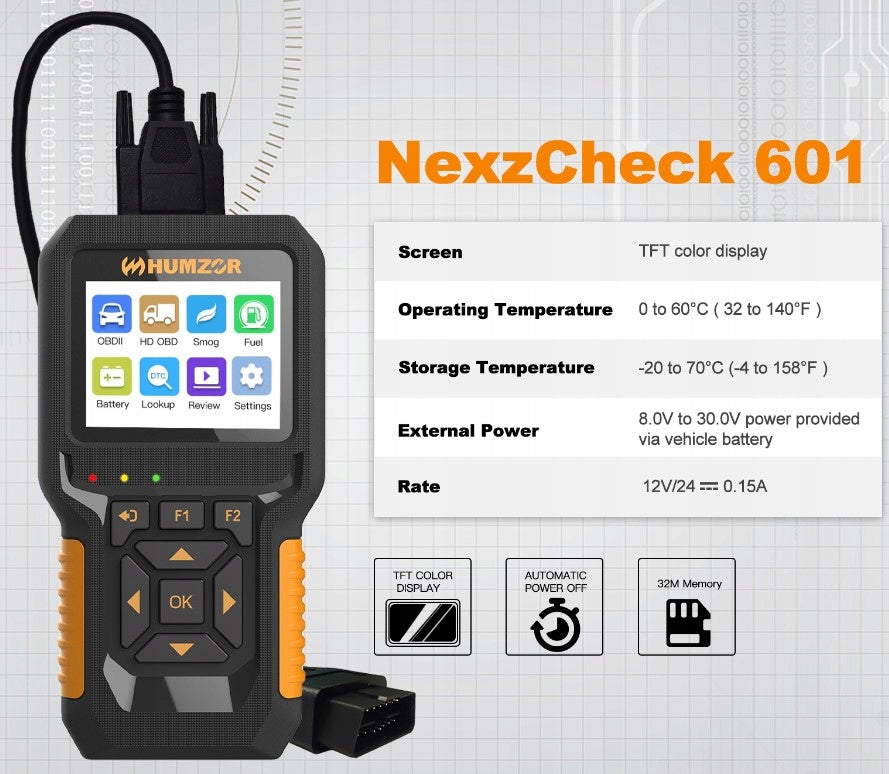

Specification:
- power supply: 8-30V
- Input voltage: 12V/24=0,15A
- TFT color display 320*240 pixels
- Operating temperature: 0 to 60°C
- menu in English, German, Russian, French, Spanish, Chinese and Italian (no Polish)
- OBD-2 diagnostic connector (16-pin)
- does not require external power supply
- dimensions: 220mm * 150mm * 65mm
- Weight: approx. 0,8kg
Content of shipment from Konektor store:
- OBD-2 diagnostic scanner HUMZOR NC601
- OBD-2 connection cable
- USB cable
- adapter J1939 - 9-pin
- aesthetic case
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | HUMZOR |
| Parametry | Product weight with unit packaging | 0.8 kg |
| Parametry | EAN (GTIN) | 5903815321856 |
| Parametry | Manufacturer code | NC601 |
