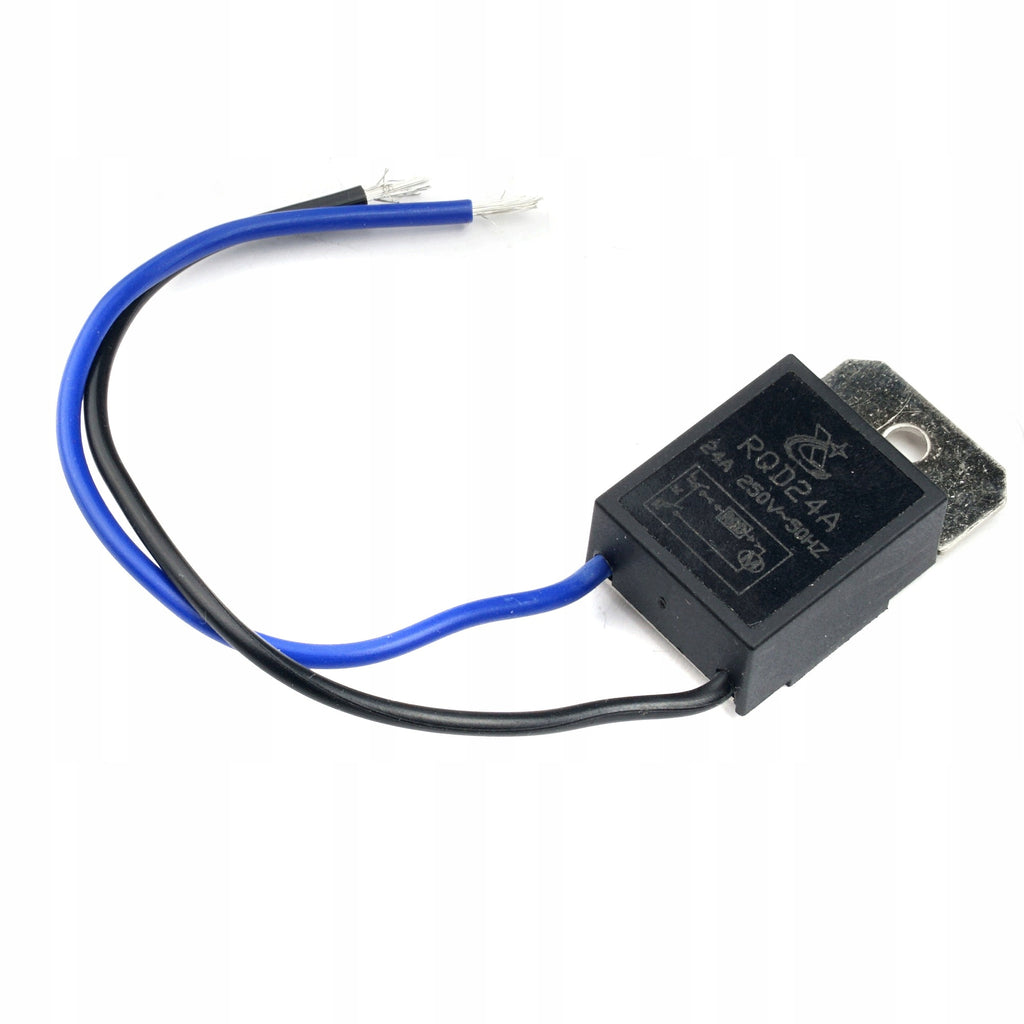

Lėto paleidimo įtaisas Softstart, 250V, 24A

Trumpai apie prekę

Prekė: Lėto paleidimo įtaisas Softstart, 250V, 24A. Kategorija: Maitinimo jungikliai.

• Gamintojas: no brand
• Modelis: 3-H-057

Soft Start, also known as Soft Start, is a module that enables soft and controlled start-up of brush motors (commuter). It is an excellent solution for devices that require protection against sudden shocks and overloads during start-up.

Soft Start is designed to ensure smooth and safe starting of various types of equipment, such as grinders, drills, screwdrivers, fans, compressors, pumps, conveyors, as well as other industrial and household appliances. Thanks to the use of soft start technology, the product eliminates sudden surges and overloads that may occur during engine start-up, which minimizes damage to devices and increases their service life.

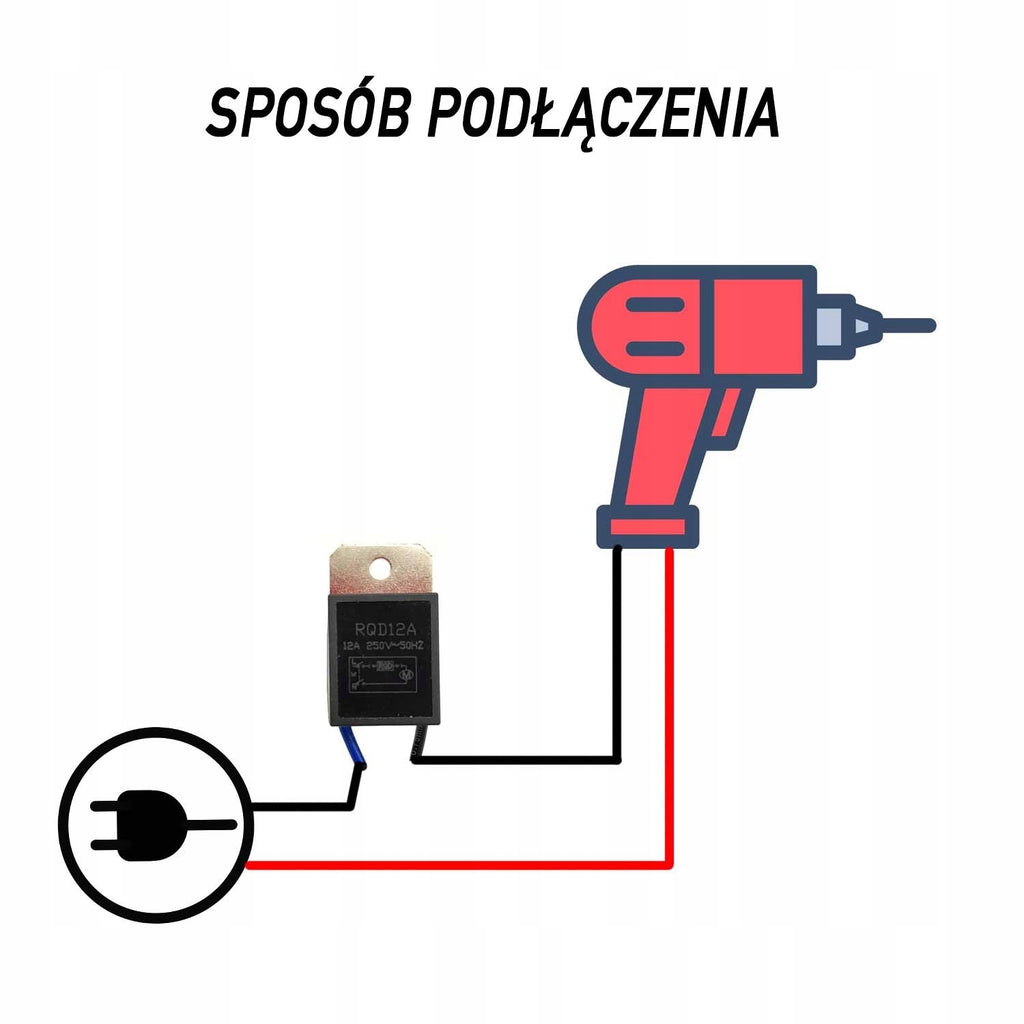

An important advantage of Soft Start is its simplicity of installation and operation. The device is compact and easy to install in devices. The connection diagram is shown in the photo.

Specification:

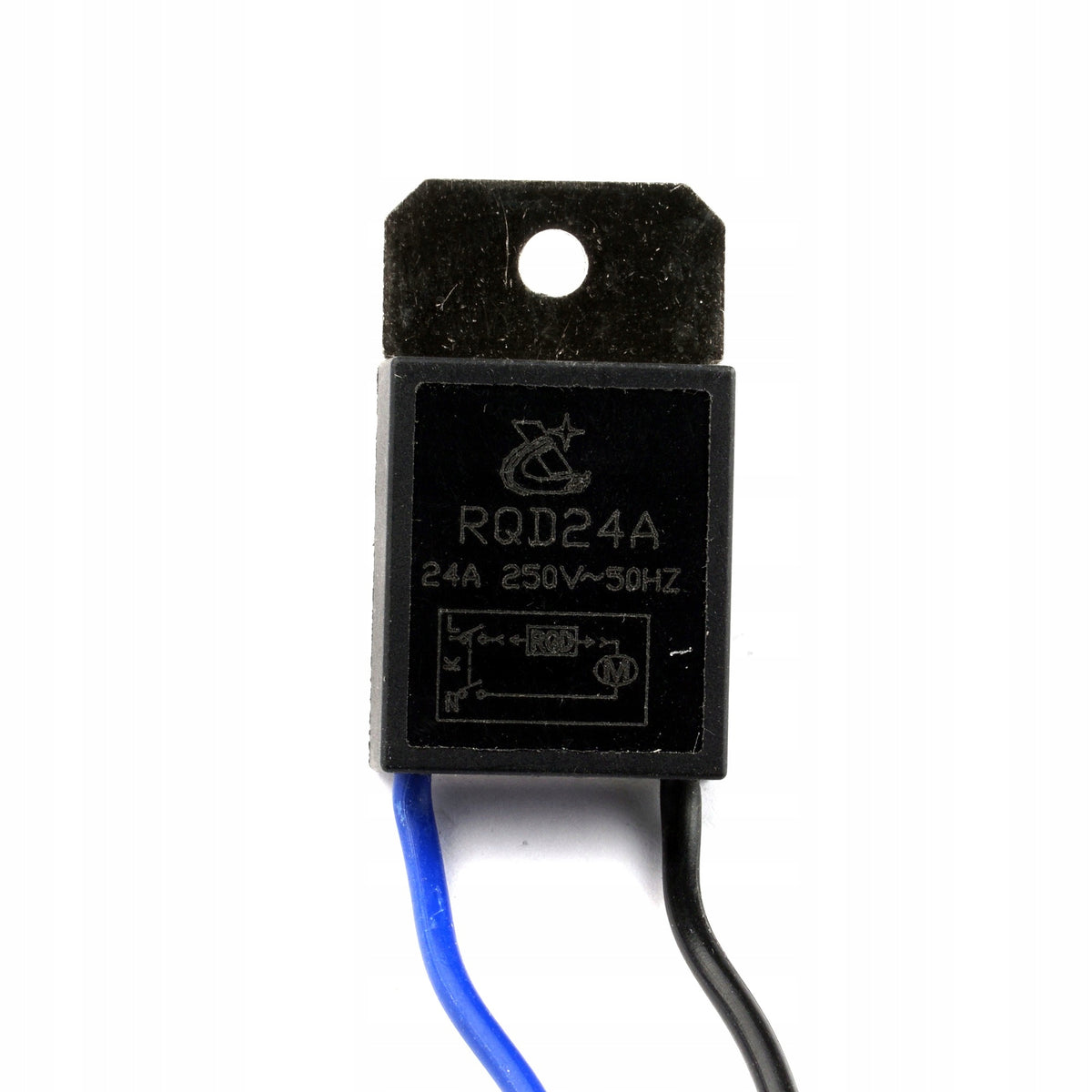

• Model: RQD24A
• maximum voltage: up to 250V AC
• maximum current: 24A
• frequency: 50/60Hz
• supported motors: brush (commuter)
• dimensions: 21mm x 25mm x 13mm (mounting plate protrudes for an additional 11mm)

Benefits of using the soft start module:

• Overload protection: Soft Start allows for a controlled increase in current during start-up, eliminating sudden current surges that can cause overload and damage to motors and other electrical equipment.
• Increased durability: With its gentle start, the Soft Start minimizes stress and shock when starting engines, which can extend their lifespan and reduce maintenance and repair costs.
• Energy saving: Soft Start allows you to control the current during start-up, which can help reduce peak electricity grid loads and associated electricity costs.
• Safety: Soft Start minimizes sudden current surges during start-up, which can increase the safety of equipment operation and protect against damage

How to choose Softstart for the engine?

The current supported by Softstart must be equal to or greater than the rated motor current. We recommend choosing a model with a stock of minimum 30%,

because when starting, the instantaneous current may be higher. If your engine downloads 9A, select softstart minimum 12A. You can buy a softerstart with a larger

stock but never weaker
