Ličio akumuliatoriaus talpos testeris 20A 85W

Trumpai apie prekę

Prekė: Ličio akumuliatoriaus talpos testeris 20A 85W. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 82404

Description

Our battery capacity tester is an extremely precise device designed to control the condition of batteries. Whether you're a professional electronics engineer or a DIY electronics enthusiast, this will be the perfect choice for you. It has extensive functions, supports charging and discharging, and allows you to precisely check the capacity of the battery to make sure it is working in good condition. Choose it as a reliable partner for battery control now!

Main features

Sturdy construction: Made mainly of high-quality cast iron, in the spraying process, resistant to impact and scratches, it is characterized by high durability and reliability, which guarantees long-term use.

High efficiency: The device allows you to perform 4-wire, voltage and current tests using various cables, which guarantees accuracy. The capacity measurement accuracy is 10 Ah / 0,001 Ah, 10 A-100 A / above 0,01 A, 100 A / 0,1 A. This allows the device to accurately measure the battery capacity and help users understand the actual condition of the battery, avoiding equipment failure or performance degradation caused by inaccurate measurement of battery capacity.

3 operating modes: The device offers 3 operating modes: constant current discharge, constant power consumption and constant voltage and constant current charging, which allows it to be adapted to different testing scenarios.

Charging and discharging function: The device supports charging and discharging functions, which helps users to comprehensively assess the performance of lithium batteries.

Good heat dissipation: Heat dissipation holes effectively prevent the device from overheating during long operation, while extending the life of the product.

Thoughtful design: A dedicated USB to TTL cable allows you to connect your computer, control startup with software and get more extensive functions.

Simple operation: The simple panel and easy-to-read LCD display make it easy to operate, so you can easily get started and complete the battery test quickly.

Lightweight and portable: It is small (12,7 x 15,7 x 8,7 cm) and light (1,6 kg), does not take up much space and can be easily taken to the workplace.

Details

Practical cables: Allow for convenient and stable connections, making it easy to use.

LCD Display: It can display important data such as voltage, current, capacity, time and power consumption in real time, so you can clearly understand the situation during battery test.

Application

It can be used to test the capacity of lithium/lead acid batteries.

Specification

Model: EBC-A20

Material: Iron

Process: Spraying

Color: Broken White

Shape: Rectangular

Display Type: LCD

Computer Connection: USB to TTL Cable

Total power: 85 W

Power supply: DC 19 V-20 V, current over 3,5 A

Voltage setting: 0,00-30 V, minimum step 0,01 V (maximum 18 V during charging)

Current setting:

Discharge: 0,1 A-20 A, minimum 0,01 A (automatic current limitation when power consumption is exceeded)Charging

Current: 0,1 A–5 A, min. 0,01 A (automatic current limitation when power consumption is exceeded)

3 modes: DSC-CC (direct current discharge), DSC-CP (constant power consumption), CHG-CV (constant voltage and constant current charging)

Voltage test: 0,0 – 4,5 V (low voltage), accuracy up to 0,003 V

4,5 V to 30 V (high voltage), accuracy up to 0,01 V

Current test: 0,1 – 20 A, accuracy up to 0,01 A

Capacity test accuracy: 10 Ah / 0,001 Ah, 10 A–100 A / above 0,01 A, 100 A / 0,1 A

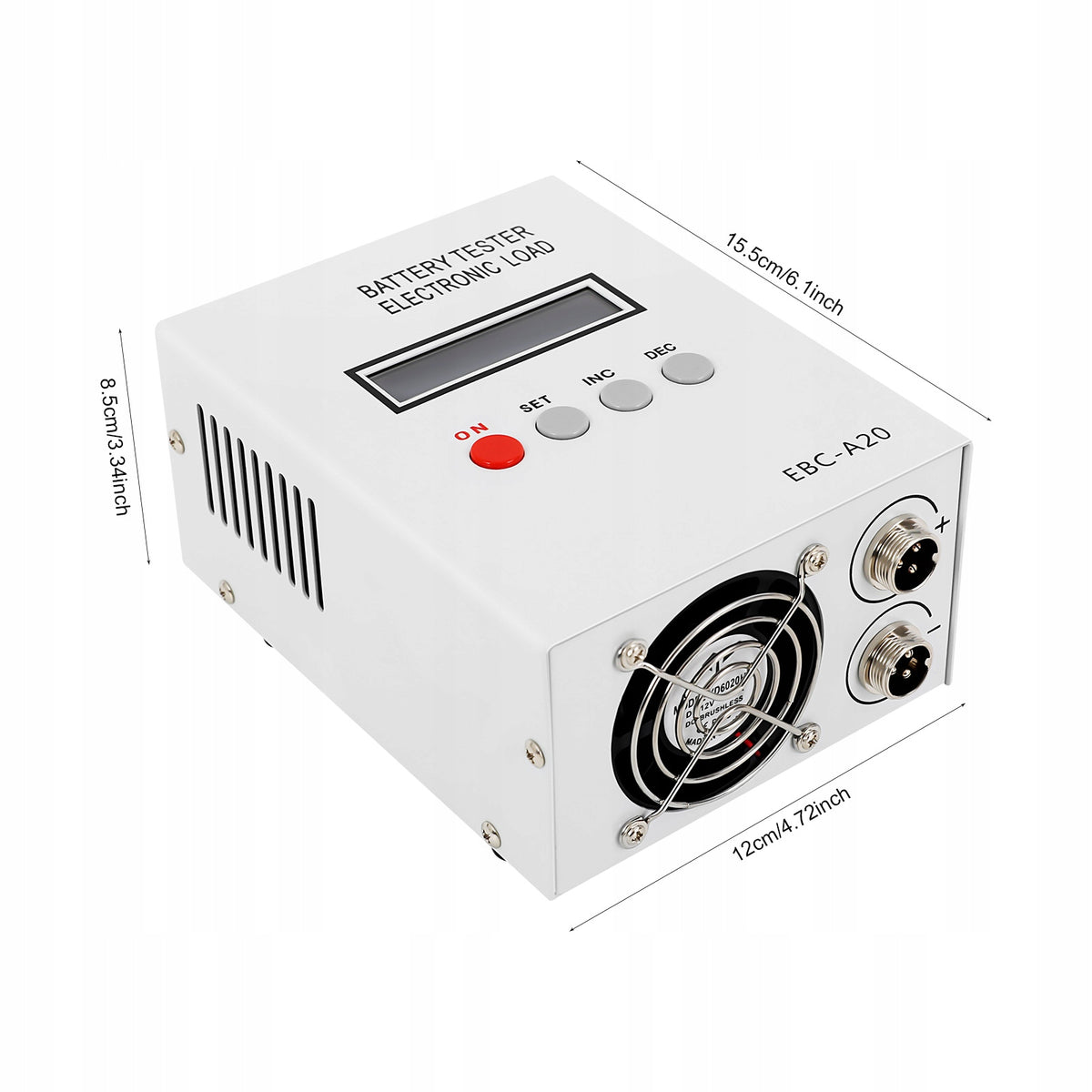

Product Size: 12*15,5*8,5 cm/4,72*6,1*3,34 inch

Package Dimensions: 28*25*14 cm/11,02*9,84*5,51 inch

Gross weight: 1,74 kg/3,84 lbs

Net weight: 1,65 kg/3,64 lbs

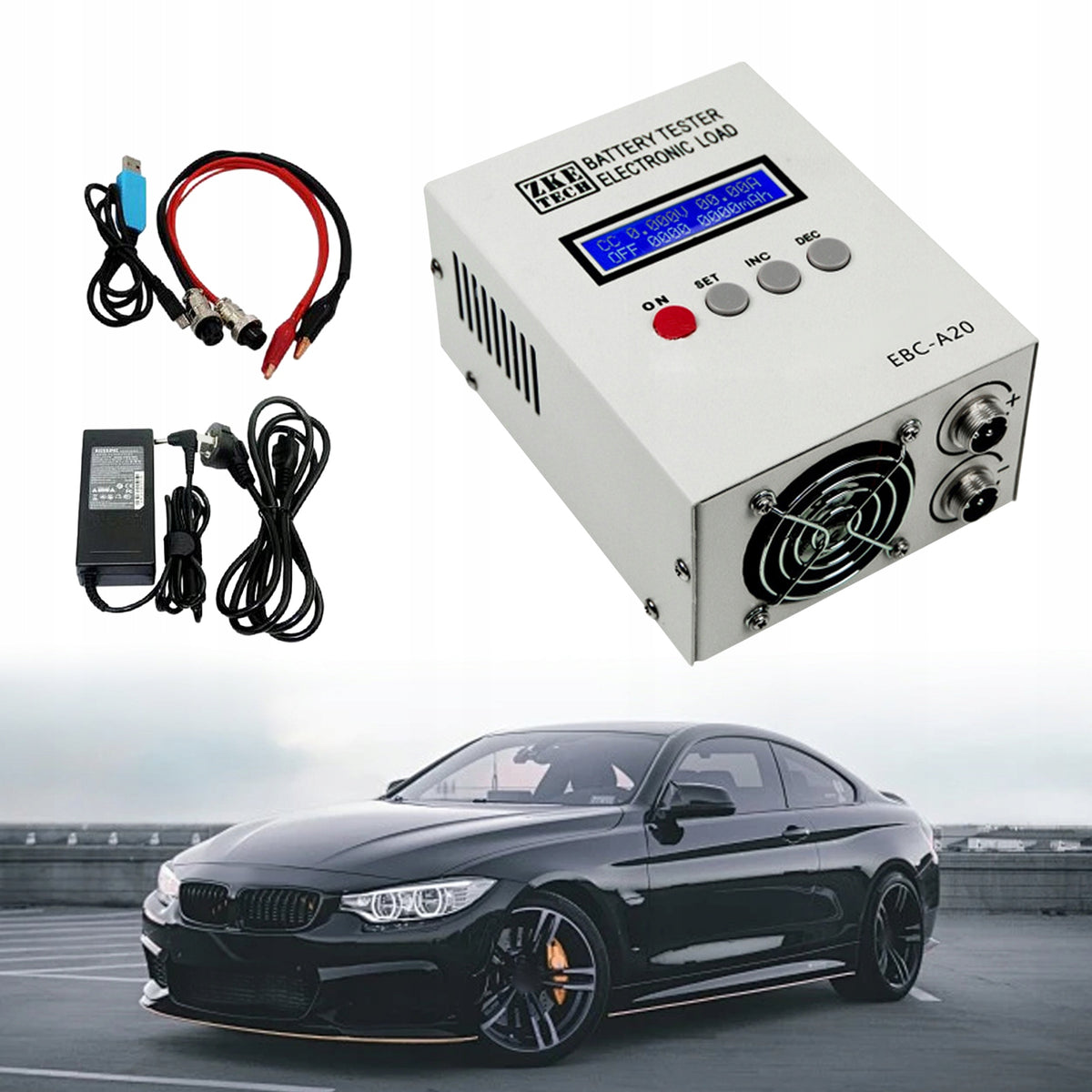

Content of the package:

1 x Battery Capacity Tester

1 x Power Cord

1 x USB Cable

1 pair of test clips

1 x Adapter

Note

1. Be careful and avoid moisture and water during use and handling.

2. Remember not to replace the positive and negative poles and always use the tester within the allowed range.

3. This model does not support charging and testing NiMH, NiCd batteries. 4. Please take into account the slight color difference caused by the shooting light and the manual measurement error of 1-3 cm. Before placing an order, make sure that it does not matter to you.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	6976081582404
Parametry	Manufacturer code	82404
