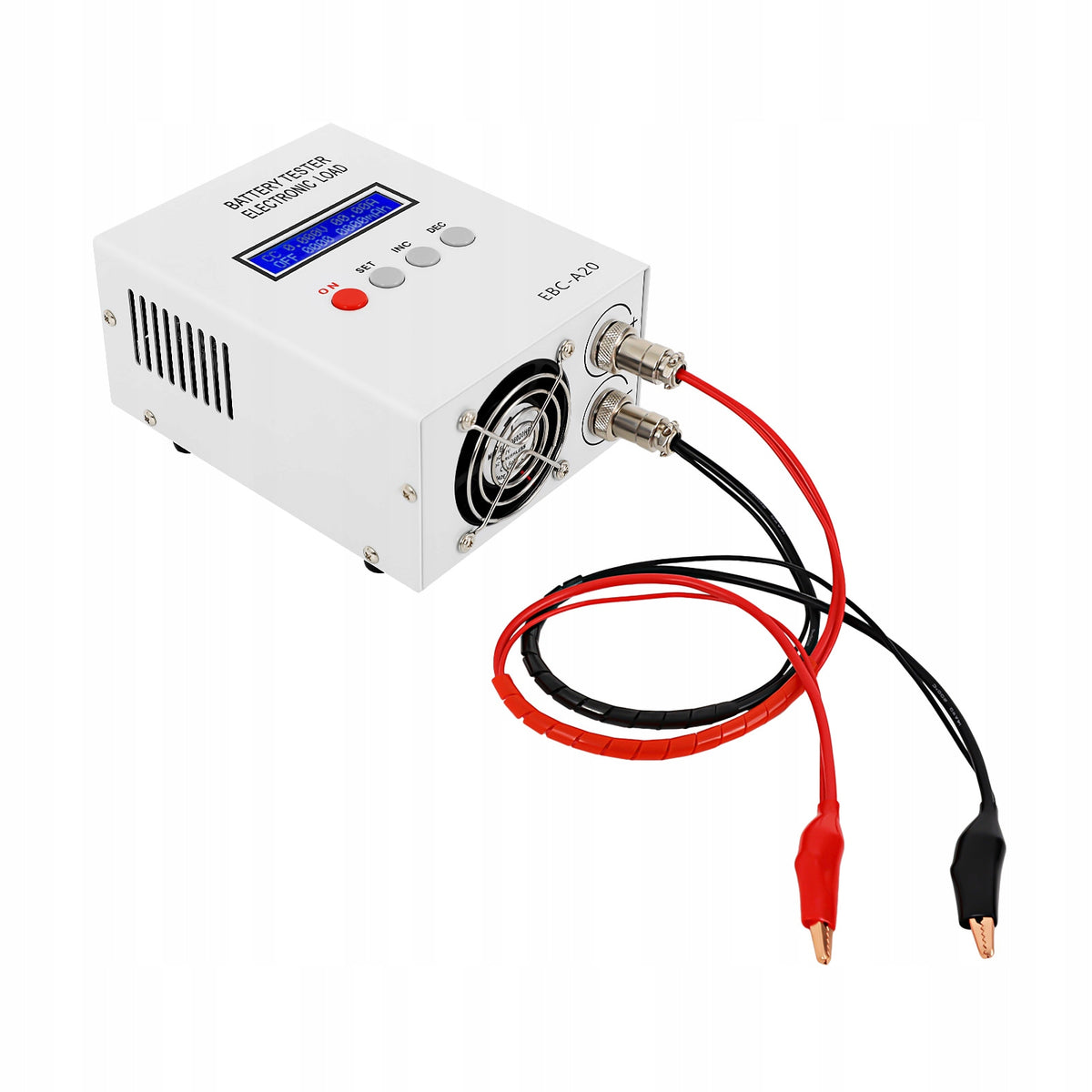

Ličio jonų baterijų testavimo prietaisas su LCD ekranu

Trumpai apie prekę

Prekė: Ličio jonų baterijų testavimo prietaisas su LCD ekranu. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 96518

Key Features

Build to Last: It is mainly made of high-class iron, with a spraying process, which is impact-resistant, and scratch-resistant, with high durability and reliability, ensuring long-term use.

High Efficiency: It can perform 4-wire testing, voltage testing, and current testing using different cables to ensure accuracy, and the capacity test accuracy is 10Ah / 0.001Ah, 10A-100A / above 0.01A, 100A / 0.1A, so it can accurately measure the capacity of the battery, help users understand the true state of the battery, to avoid equipment failure or performance degradation caused by inaccurate battery capacity.

3 Working Modes: It has 3 working modes: constant current discharge, constant power consumption, and constant voltage and constant current charging, which can meet the needs of different scenarios of testing.

Charging and Discharging Function: It supports charging and discharging functions, which can help users comprehensively evaluate the performance of lithium batteries.

Good Heat Dissipation Performance: The heat dissipation holes can effectively prevent the performance of the equipment from being affected by overheating during a long working time while extending the service life of the product.

Intimate Design: The dedicated USB to TTL cable can support the connection of the computer to control the start through the software and achieve more expanded functions.

Simple Operation: The simple panel and clear LCD display make it easy for you to operate so that you can easily get started and quickly complete the battery test operation.

Lightweight & Portable: It is small(4.72*6.1*3.34 in) and lightweight(3.64 lbs), not taking up too much space, and is easy to carry to the workplace for your convenience.

Specifications

Model: EBC-A20

Material: Iron

Process: Spraying

Color: Off White

Shape: Rectangular

Display Type: LCD

Computer Connection: USB to TTL Cable

Total Power: 85W

Power Supply: DC19V-20V, Current Above 3.5A

Voltage Setting: 0.00-30V, Minimum Step is 0.01V (Maximum 18V When Charging)

Current Setting:

Discharge: 0.1A-20A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)

Charging: 0.1A-5A, Minimum 0.01A (Automatic Current Limit When Over Power Consumption)

3 Modes: DSC-CC (Constant Current Discharge), DSC-CP(Constant Power Consumption), CHG-CV (Constant Voltage and Constant Current Charging)

Voltage Test: 0.0-4.5V (Low Voltage), Accuracy Up to 0.003V

4.5V-30V (High Voltage), Accuracy Up to 0.01V

Current Test: 0.1-20A, Accuracy Up to 0.01A

Capacity Test Accuracy: 10Ah / 0.001Ah, 10A-100A / Above 0.01A ,  100A / 0.1A

Product Size: 12*15.5*8.5cm/4.72*6.1*3.34 in

Package Size: 28*25*14cm/11.02*9.84*5.51 in

Gross Weight: 1.74kg/3.84 lbs

Net Weight: 1.65kg/3.64 lbs

Package Included

1* Battery Capacity Tester

1* Power Cord

1* USB Cable

1Pair* Test Clips

1* Adapter
