Linijinis pavaros VEVOR 12V, 250 mm, atsparus vandeniui, su tvirtinimo laikikliu

Trumpai apie prekę

Prekė: Linijinis pavaros VEVOR 12V, 250 mm, atsparus vandeniui, su tvirtinimo laikikliu. Kategorija: Kietieji diskai.

• Gamintojas: Vevor
• Modelis: CGXXZXQ10

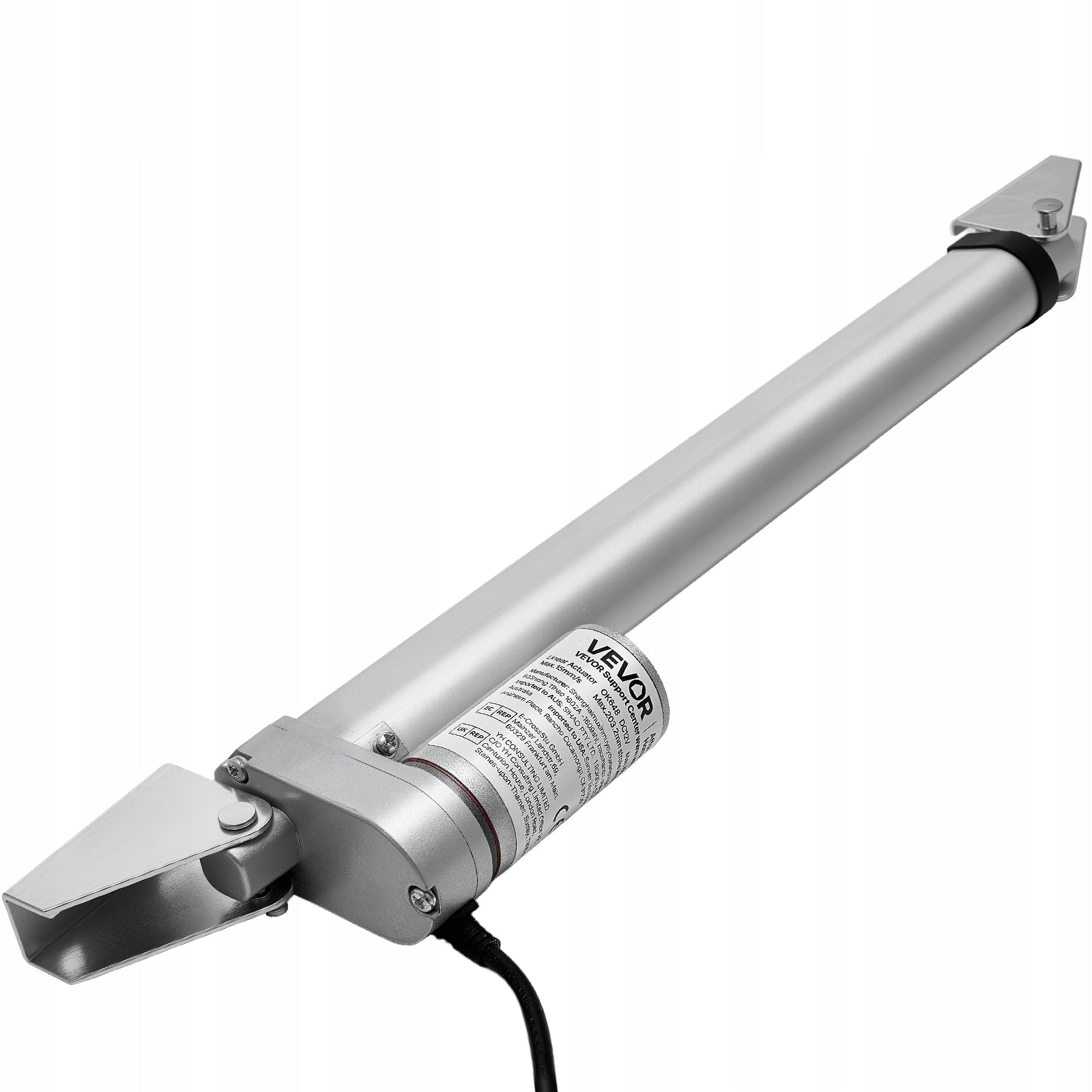

VEVOR linear actuator

Efficient stroke adjustment, smooth motion control

With a stable torque of 102 kg, high speed of 15 mm/s, IP54 rating and quiet operation of 50 dB, this 12-volt linear actuator is ideal for home use and other automation applications. It offers more efficient and comfortable use, significantly improving the quality of life.

Efficient stroke adjustment

Strong and stable torque

Quieter operation for added comfort

Protection class IP54

Key Specifications

Specifications

Article model number: OK648

Input Voltage: DC 12 V

Maximum load/string force: 1000 N (225 lbs)

Driving speed: 0,6 inches/s (15 mm/s)

Stroke length: 9,84 inch / 250 mm

Length after unfolding: 23,82 inch / 605 mm

Length after folding: 13,98 inch / 355 mm

Degree of protection IP: IP54

Main Material: Aluminum Alloy

Net weight: 2,6 lbs / 1,196 kg

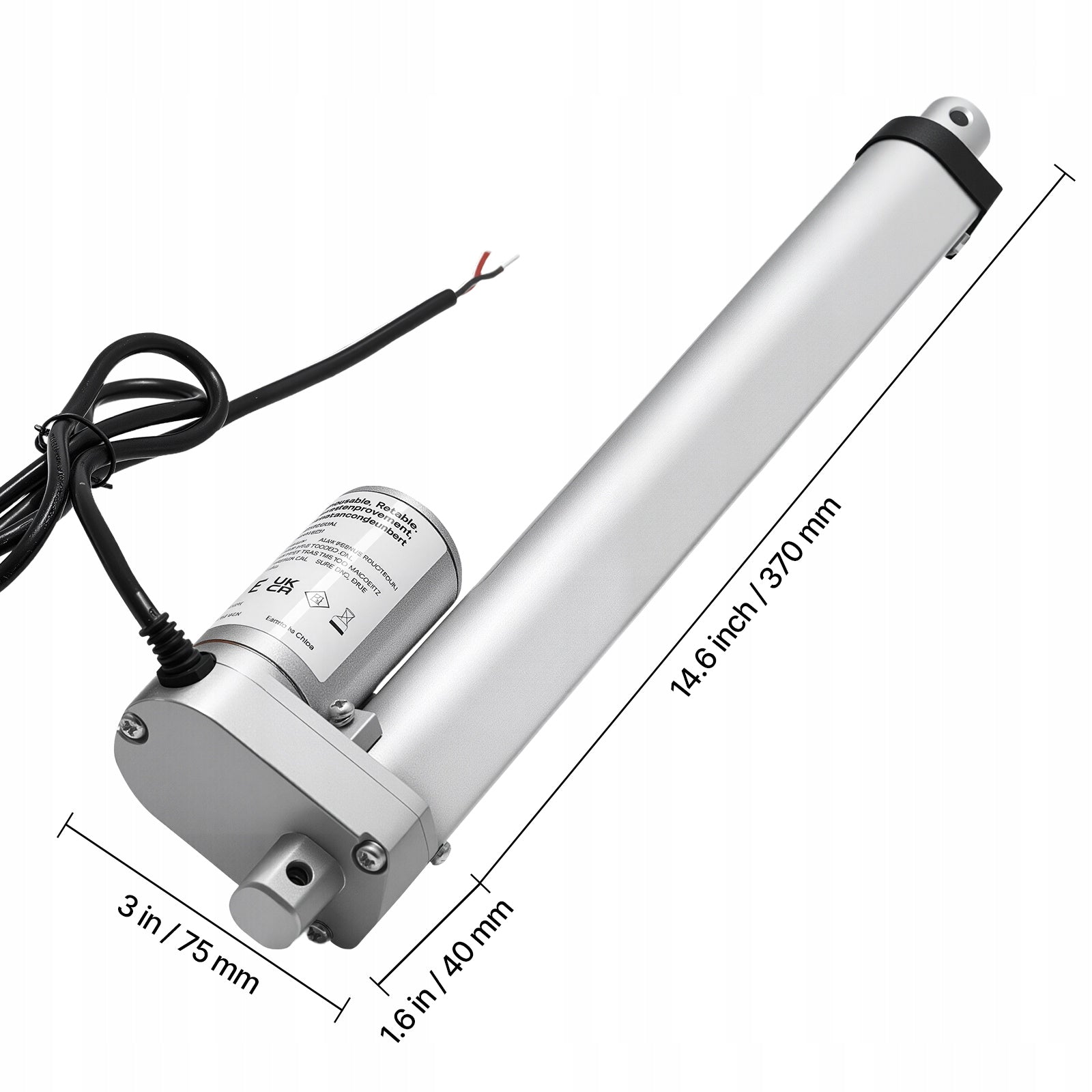

Product Dimensions: 14,6 x 3 x 1,6 inches / 370 x 75 x 40 mm

Strong linear force

The 12V linear actuator integrates perfectly into your living space, allowing you to effortlessly adjust the height of your furniture, lift and lower desks and curtains, and power other automation systems for smooth and efficient movement in a variety of applications.

Protection class IP54

The IP54 rating and robust aluminum alloy housing guarantee a long engine life indoors. (Note: To ensure consistent performance and longer life, do not use the motor outside and prevent water from entering the engine.)

Easy installation

For optimal performance, we recommend using a linear actuator in conjunction with the controller, allowing for more precise motion control. The product contains only a pusher; additional mounting accessories must be purchased separately.

Technical data

Clearly stated product dimensions to ensure optimal selection and fit. Stroke length: 9,84 inches (250 mm); Length after unfolding: 23,82 inches (605 mm); Length after folding: 13,98 inches (355 mm).

High quality and durability

Our linear hub actuator is manufactured with precision and using the highest quality materials for a longer lifespan.

Variety of uses

The 12V linear actuator can be easily integrated into various indoor equipment such as massage sofas, reclining seats, TV lifts, lifting tables, electric wheelchairs, electric window openers and other automation systems.

Package Contents

2 x Mounting Brackets

2 x Screws

2 x R-pins

Key features

Efficient stroke adjustment: The VEVOR 12 V linear actuator moves at a speed of 15 mm/s (0,6 inches/s) and is ideal for frequent height adjustment. It effectively copes with everyday automation tasks, such as adjusting the height of furniture, lifting and lowering the desk, or opening car windows.

Powerful and stable torque: Stable torque of 1000 N (225 lbs) is ideal for light industry and residential construction applications such as massage sofas, reclining seats, TV lifts, lifting tables, electric wheelchairs, electric window openers and other automation systems. Smooth and stable operation in low load and long service life applications.

Quiet operation for greater comfort: With a noise level below 50 dB, our 12V linear actuator is the perfect choice for bedrooms, offices, hospitals, and laboratories where silence is key. Enjoy efficient and reliable operation without disturbing your surroundings.

IP54 rating: With an IP54 rating and a durable aluminum alloy housing, this linear actuator offers a long lifespan in indoor applications. (Note: To ensure consistent performance and longer life, avoid outdoor use and prevent water from entering the engine, which could cause it to burn out.)

Key specifications: Driving speed: 15 mm/s (0,6 inches/s); Stroke length: 250 mm (9,84 inches); Length after unfolding: 605 mm (23,82 inches); Length after folding: 355 mm (13,98 inches); Current consumption: 5 amps; Input voltage: 12 V DC; Fill factor: 25%
