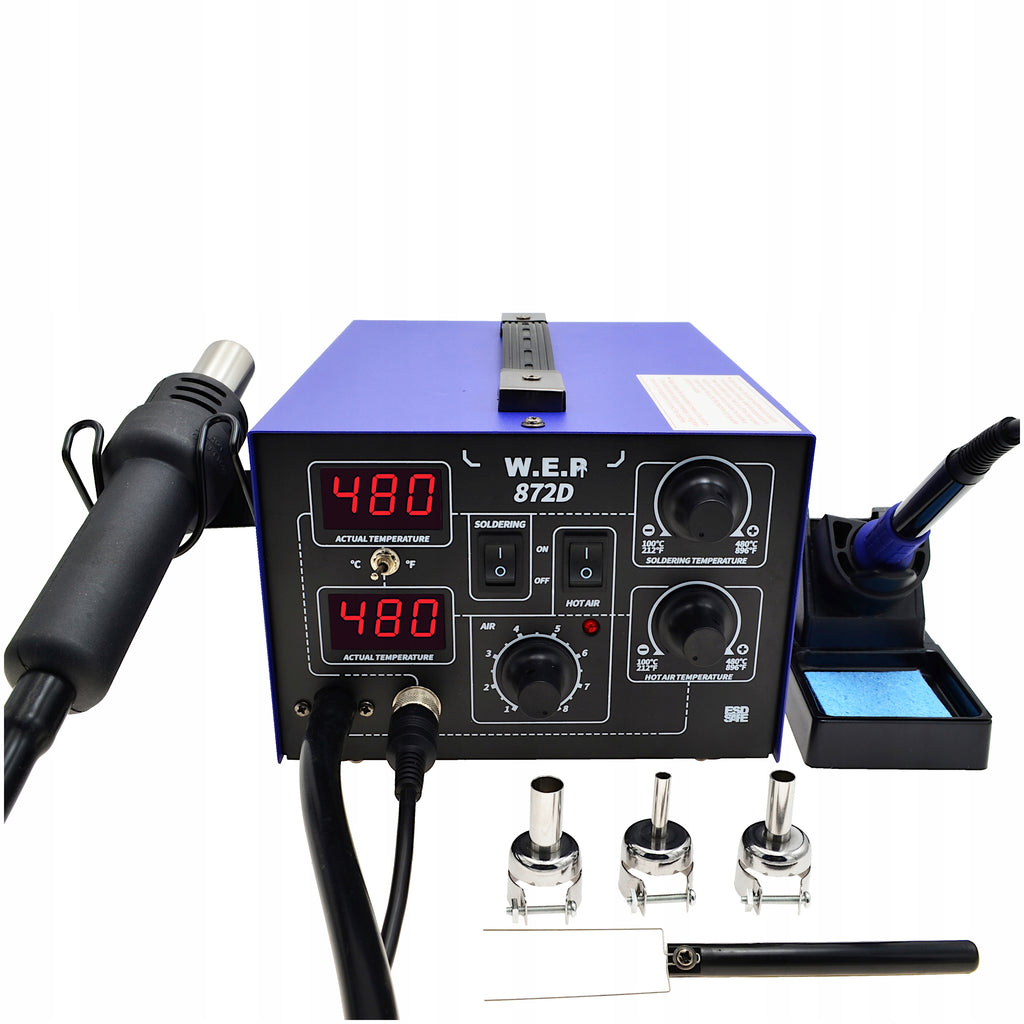

Litavimo stotelė 2in1 HOTAIR WEP 872D, 660W, nauja versija, 900M antgaliai

Trumpai apie prekę

Prekė: Litavimo stotelė 2in1 HOTAIR WEP 872D, 660W, nauja versija, 900M antgaliai. Kategorija: Lituokliai.

• Gamintojas: WEP
• Modelis: 872D
• Galia: 660 W
• Įtampa: 230 V

By buying from us at HOTAIR Robert Mazurek you can be sure of the guarantee and quality of the products sold. We are a Polish company operating since 2011

✅ Official representative of the soldering station manufacturer WEP

✅ 2in1 soldering station - HOTAIR and tip soldering iron for the most popular tips on the market 900M ⚡

✅ Power up to 660W ⚡

✅ Stable and smooth operation of hot air blowing thanks to compressor

✅ 2 easy-to-read displays

✅ Nozzles with hot air soldering iron and smd gripper in station equipment

✅ Hot Air temperature control: 100 - 480°C

✅ Foot temperature control: 100 - 480°C

✅ Smooth regulation of hot air blowing

✅ The hot air flask cools down to a safe temperature when turned off, after which it automatically turns off

✅ Iconic refined design for trouble-free operation ⚡

The WEP 872D soldering station has been designed to meet the high requirements of electronic service. The design is well thought out and proven thanks to the long-term presence of this model on the market. It is distinguished by a stable and powerful power supply based on the transformer and control via the PID controller.

Both the Hotair station and the head soldering iron can work independently.

The Hotair station is equipped with a automatic cooling system of the heating element after completion of work, which significantly extends its service life and ensures trouble-free operation for a long time.

Two LED displays show the set temperature value and its actual value during the operation of the soldering iron, which facilitates precise control and brings excellent results.

Functions and possibilities:

• Soldering of electronic components
• Welding of plastics
• Heating and condensation of heat shrink shirts
• Defrosting of frozen parts
• Dissolving adhesives and solders
• Tanning and removal of paints

Repairs in the electronic service are associated with many threats both for the repaired elements and for the service technician. The soldering station ensures the highest safety standards and is designed in accordance with ESD Safe standards.

The hot air is generated by the compressor located in the main unit of the station and supplied by a long, flexible silicone cable resistant to high temperatures. This solution provides a strong and stable blow. Thanks to the lack of a fan in the flask, the work is more precise and less tiring.

Hot air flask has a standard outlet size of 22 mm, which provides a large selection of solder nozzles available on the market.

These nozzles fit models: Aoyue, PT, Hakko, Sunnko and many others. At our other auctions you can buy as many as 80 types of solder nozzles, including BGA, PLCC, SIP, SOP, QFP nozzles and plastic welding nozzles such as BUT, Iron, Super Nozzle and many others.

The nozzles in our station are distinguished by a gap, which allows the removal of excess reversing air, especially at high temperatures and low air supply. This solution significantly extends the life of the heating element and prevents overheating, which is rarely found in other manufacturers.

Included with the soldering station are replaceable nozzles with slot:

• Round nozzle 4.4 mm: for precise operations requiring concentrated heating
• Round nozzle 8 mm: for heating larger areas evenly.
• Round nozzle 9 mm: for tasks requiring a larger stream of hot air on large surfaces.

Soldering flask model WEP 907A is a proven and popular flask, characterized by easy availability of consumable parts, such as heating element and tips.

The flask uses 900M tips, which are widely available on the market – we offer as many as 90 types, including miniwave tips.

Service work requires many activities, which is why well-designed stands are extremely useful. They allow safe deposition of soldering flasks and convenient cleaning of the soldering tip.

Soldering station WEP 872D is characterized by:

• Power supply: 230 V AC ± 10%
• Real temperature reading
• Total peak power: 660W
• Length of power cable: 130cm
• Electronics power supply: Transformer
• ESDSafe system
• Real temperature reading: Yes
• Temperature stabilization: Digital PID
• Displays temperatures in degrees C or F.
• Hot Air Temperature LED Display
• LED Display Temperature Tip
• Dimensions: 285 x 190 x 137 (L. x W x H )
• Weight: 3,3kg

HOTAIR SPECIFICATION:

• Heater supply voltage: 230V AC
• Spiral heater mounted on a ceramic core with integrated thermocouple type K
• Mica isolation
• Display Type: LED
• Smooth regulation of hot air temperature in the range from 100-480°C
• Temperature stability (static): ±1°C
• Length of hotair flask cable: 90cm
• Air supply source: Compressor
• Compressor power: 18W
• Pressure generated: 0,032MPa
• Capacity: 32L/min
• Control: single-turn potentiometers

SPECIFICATION OF THE TIP FLASK:

• Peak power 60W
• Heating element with a power of 45W
• Heater supply voltage: 24V AC
• Temperature control range: 100-480 °C
• Temperature stability (static): ±1°C
• Display Type: LED
• Length of flask cable: 100cm
• Heater: metal with integrated thermocouple type K
• Grounding resistance of the tip:≤ 2 Ω
• Grounding potential of the tip: ≤ 2mV

Handle Needle Tweezers Lift for Service

Professional service tool, ideal for precise work in electronics and electrical engineering. The needle tweezers gripper makes it easy to remove and move small components, such as BGA and SMD systems, and precision soldering.

Application:

• Deleting IC elements
• Lifting small objects, BGAs and integrated circuits
• Disassembly of SMD systems
• Precise work in places inaccessible to classic tweezers
• Lifting hot elements
• Transferring and placing circuits on PCBs
• Soldering and desoldering

Technical specification:

• Total length: 143 mm (± 2 mm)
• Length of gripping element: 51 mm (± 2 mm)
• Width of gripping element: 29 mm (± 2 mm)
• Handle diameter: 1 cm (± 1 mm)
• Execution: Antistatic plastic

Features:

• Precise workmanship: Ideal for precise service tasks
• Antistatic plastic: Ensures safe operation with delicate electronic components
• Ergonomic design: Facilitates long-term use without hand fatigue
• Versatility: Useful in various stages of electronics repair and assembly

The offered set consists of the following elements:

• Soldering station HOTAIR WEP 872D
• HOTAIR flask holder
• Soldering flask 907A with tip (model T-I)
• Stand for putting down the tip flask
• Sponge in the base for cleaning the tip
• Power cable
• Handle for lifting IC systems
• A set of 3 nozzles:
• round nozzle with a diameter of 4.4 mm
• round nozzle with a diameter of 8 mm
• round nozzle with a diameter of 9 mm
• Instruction manual in Polish.

• Transport screws secure the compressor during transport. Before starting work, they should be removed so that the soldering station can function properly
