Lodēšanas izlodēšanas stacija WEP 948 75W ar vijumu

Trumpai apie prekę

Prekė: Lituoklio išlitavimo stotelė WEP 948 75W su pynute. Kategorija: Lituokliai.

• Gamintojas: Hotair
• Modelis: 948 SET1486
• Galia: 75 W
• Įtampa: 230 V

+Suction tape braid for desoldering 0.5mm

By buying from us at HOTAIR Robert Mazurek you can be sure of the guarantee and quality of the products sold. We are a Polish company operating since 2011

✅ Official representative of the soldering station manufacturer WEP

✅ Very high power desoldering machine -⭐ 90W⚡

✅ Control with the PID microcontroller

✅ Protection ESD SAFE!!!

✅Functions: Sleep, automatic shutdown, temperature correction

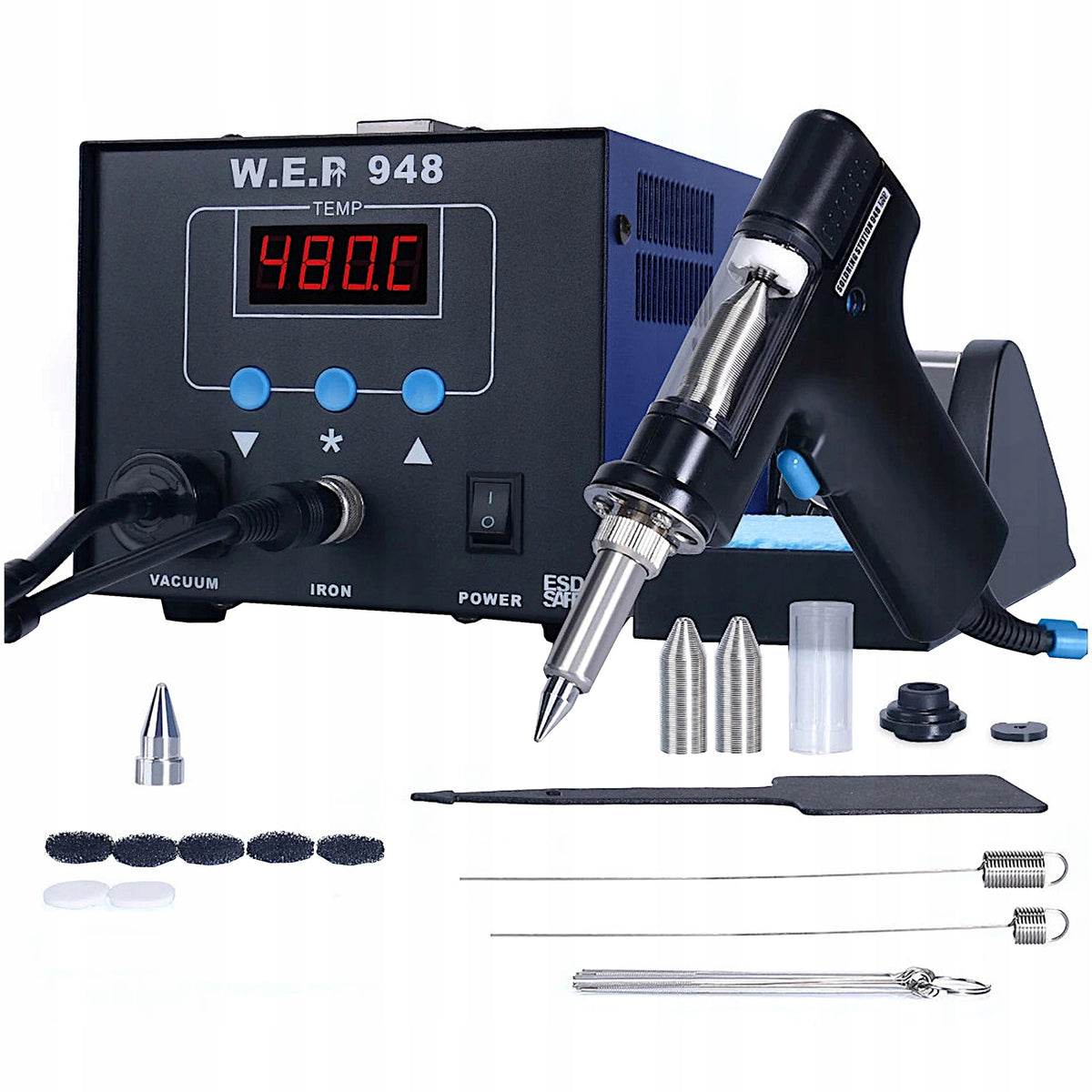

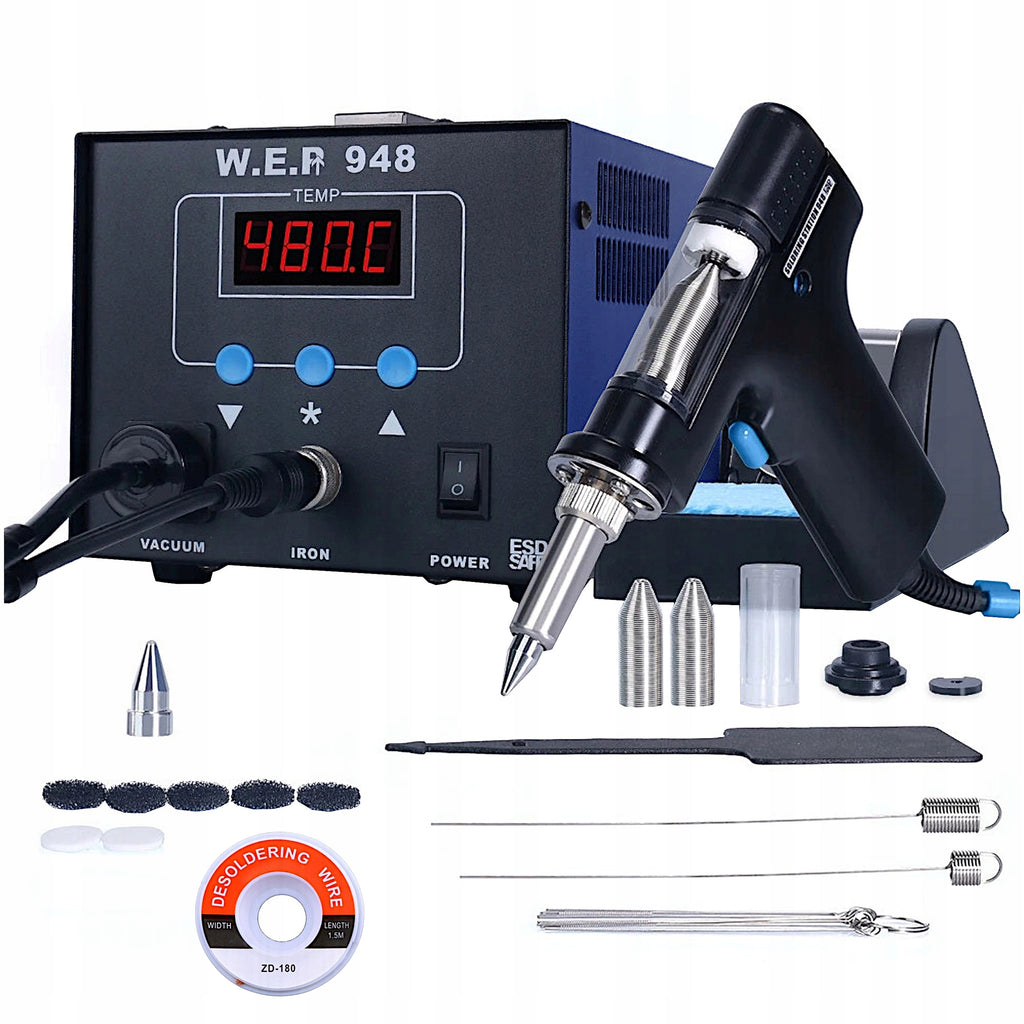

What's included:

• WEP 948
• Pistol stock holder with sponge
• 8 pin desolder gun with attached tip
• 2x Cleaning Pin
• Set of 8 tips cleaners for cleaning tips of different thicknesses
• Power cord
• Silicone pack
• Nozzle (grottoes) for suction gun
• Filter cover
• 1x spare sleeve for gun

Spare filters

• White - 2 pcs.
• Black - 5 pcs.

Spare filters

• Spring-loaded - 2 pcs.

+ EXTRAS

• Braided tapes 0.5 mm - 1pcs

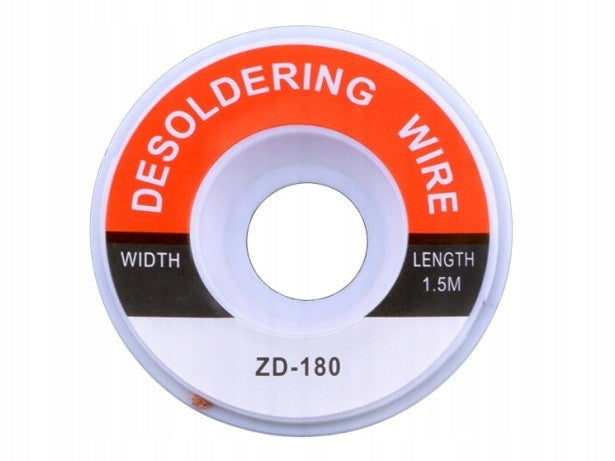

Suction tape wick for desoldering, 0.5 mm, length 1.5 m, wick

Parameters :

• Length: 1.5 m
• Size: 0.5 mm

Tin suction tape is essential and indispensable when performing repairs in electronic services.

The tape is used in both SMD and threading components. The braid is used to remove tin and remove excess tin from soldering points by adhesion method.

It is a weave of high purity copper wires. Wires have no oil or oxide impurities. The braid is covered with a layer of crystalline rosin (flux). This shortens the absorption time of tin and does not cause the effect of overheating of the element. Rosin (flux) protects the braid against its oxidation.

With its fast heating and 90W power, the WEP 948 desoldering machine allows you to quickly and conveniently solder/solder all electronic components.

Characteristics

• The fast PID processor is responsible for temperature control in the soldering iron, reacts to temperature changes in real time, thanks to which we get a very stable value of the set temperature, much better than similar products.
• The station is constructed taking into account ESD standards, this prevents damage to soldered elements.

The WEP 948 station has user-friendly features.:

• Working in C/F mode, the ability to set on the display in which units the temperature will be displayed.
• Sleep function to reduce the heating time of the flask to a set temperature has been added to the station sleep function, thanks to which after putting the flask on the stand after a predetermined time (60 seconds to even 99 minutes) it will go into sleep mode, and the temperature will drop to 200 degrees. After raising the flask again, it will take much less time to heat it to an earlier temperature. Thanks to this, the power consumption decreases, the soldering tip wears out much slower. It is possible to disable this function by setting the time to 0.
• Automatic shutdown function of the soldering station to save energy goes into sleep mode, if it is not woken up from it can automatically turn off.
• Temperature compensation function are different tips, some are long and thin other short and thick, which leads to different thermal conductivity of these tips, and thus different temperatures at their tips. This is where the temperature compensation function comes in handy, thanks to which we can correct excess or deficiency of temperature in the range of ± 50 degrees.

The WEP 948 soldering iron station is characterized by

• Power supply 230V
• Suction gun: 75W
• Socket: 8 pin
• Temperature range: 380°C-480°C
• Display: LED
• Temperature stability: ±1C
• Heating element voltage: AC 26V ± 10%
• Compressor power: 12W
• Vacuum power: Max .12Mpa
• Grounding resistance on the grotto: below 2 ohm DC
• Dimensions: 234x202x134 (L x W x H)
• Cable length: up to 120cm

Regular cleaning of the suction gun affects performance and without problem work

The manufacturer has thought through the construction of the gun thanks to which cleaning is done with great ease, it saves a lot of time on service

After the first start, the binder will melt off the nozzle

SET1486
