Lituoklio stotelė HOTAIR 8586D III PRO, 2 viename, preciziškam litavimui

Trumpai apie prekę

Prekė: Lituoklio stotelė HOTAIR 8586D III PRO, 2 viename, preciziškam litavimui. Kategorija: Lituokliai.

• Gamintojas: Hotair
• Modelis: 8586DIIIPRO
• Galia: 780 W
• Įtampa: 230 V

By buying from us at HOTAIR Robert Mazurek you can be sure of the guarantee and quality of the products sold. They have been operating since 2011

✅ Universal – Hot Air flask for working in any position and 75W tip soldering iron compatible with 900M tips, including miniwave.

✅ Precise Hot Air operation – special slotted nozzles ensure minimal, controlled blowing.

✅ Wide compatibility – supports the most popular 900M tips and nozzles.

✅ Temperature control:

• Hot Air: 100 - 480°C
• Tip soldering iron: 200 - 480°C

✅ Automatic cooling – increases the life of the device.

✅ Powerful blowing – up to 120L/min for faster operation.

✅ Silent operation – the fan in the flask reduces noise.

✅ Full set – SMD gripper included.

✅ Temperature calibration – even more precision.

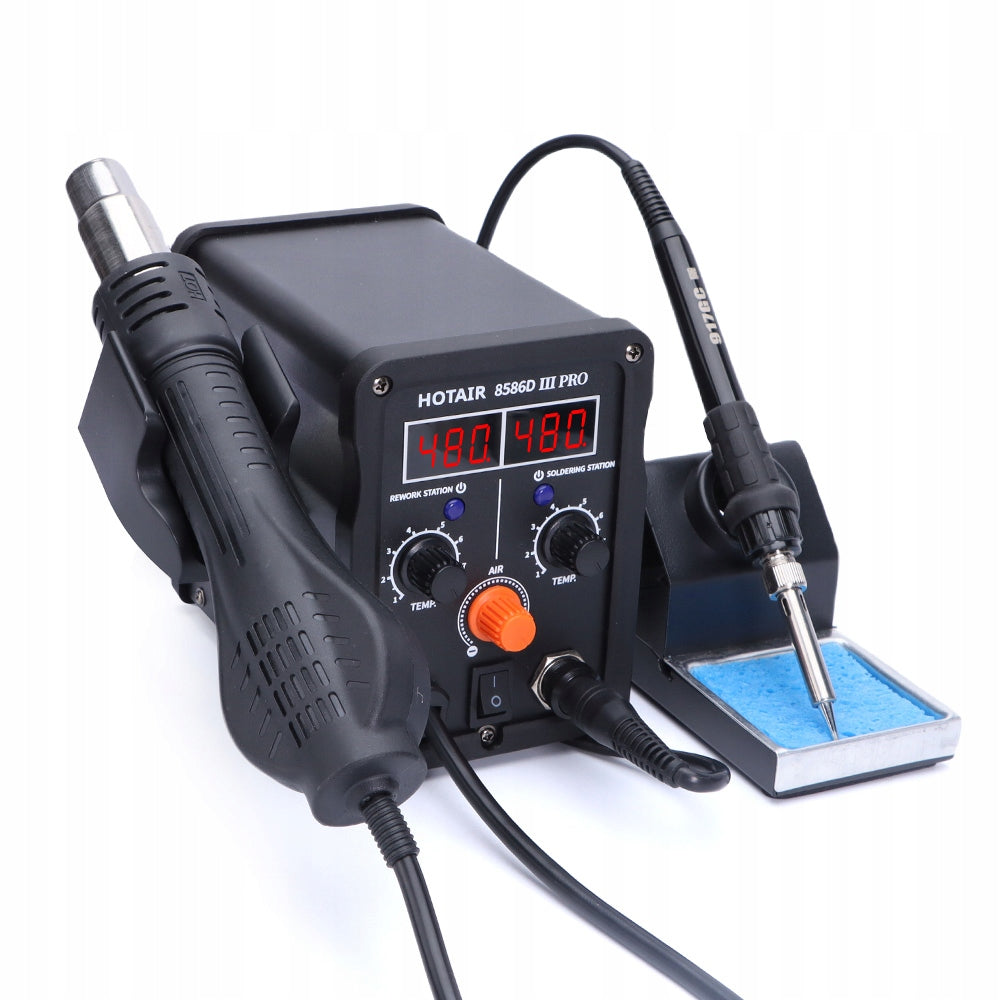

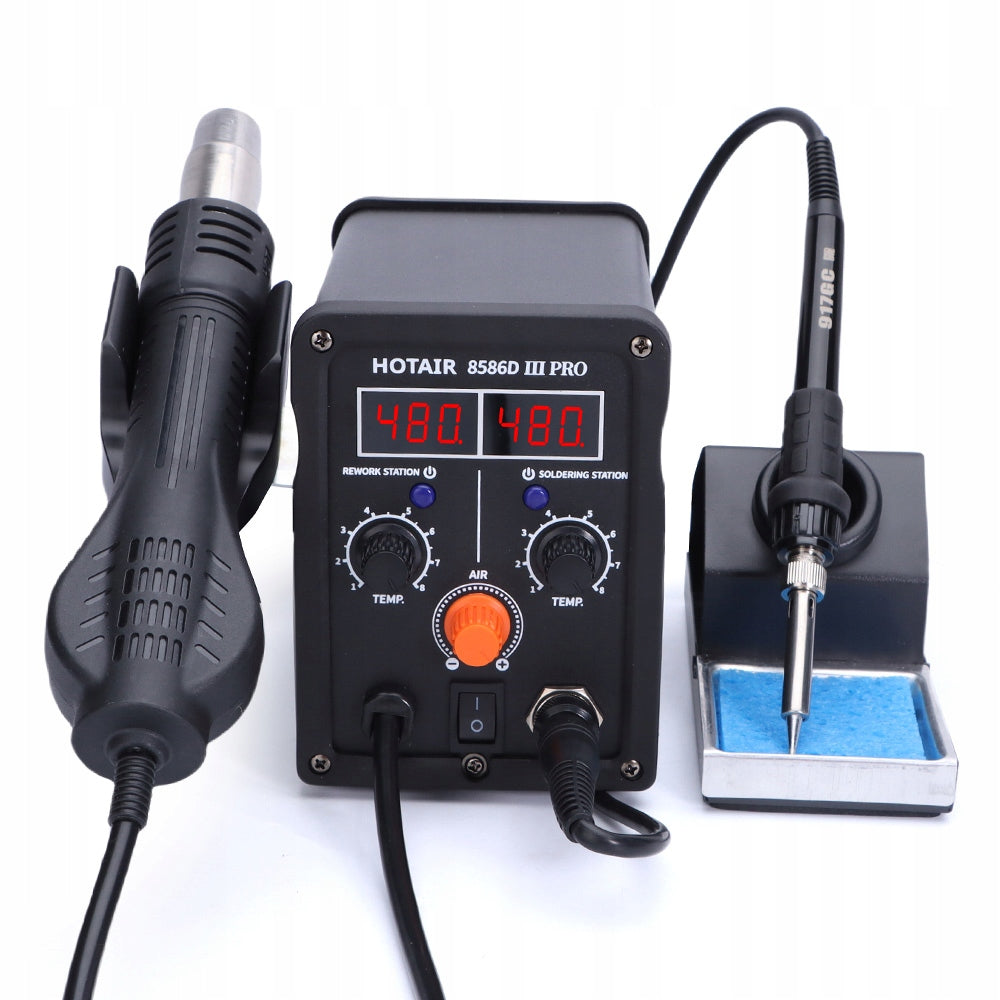

The HOTAIR 8586D III PRO soldering station is a versatile device combining hot air blowing and head soldering iron 75W, compatible with 900M tips, including miniwave. Precise temperature control and special slot nozzles guarantee controlled blowing, which facilitates work with delicate components. The station offers strong 120L/min blowing, automatic cooling and quiet operation thanks to the placement of the fan in the flask. This professional tool will work well in both electronic services and hobby workshops.

Here you will also find soldering accessories such as chemicals, mats, fluxes, pastes and handles that will facilitate work and provide professional results.

Repairs in the electronic service are associated with many threats both for the repaired elements and for the service technician. The soldering station ensures the highest safety standards.

Functions and possibilities:

• Soldering of electronic components
• Welding of plastics
• Heating and condensation of heat shrink shirts
• Defrosting of frozen parts
• Dissolving adhesives and solders
• Tanning and removal of paints

The soldering flask is equipped with a brushless fan with a soft start and high durability, which provides blowing power up to 120 L/min and high reliability.

In the flask there is a heating element on a ceramic skeleton, built of thick wire covered with mica, which protects against accidental short circuit with the housing. The heater with a power of 700 W guarantees instant heating to the set temperature, enabling efficient work with electronic components and comfortable welding of plastics.

The Hot air flask has a standard outlet size of 22 mm, which provides a large selection of solder nozzles available on the market.

These nozzles fit models: Aoyue, PT, Hakko, Sunnko and many others. At our other auctions, you can buy as many as 80 types of solder nozzles, including BGA, PLCC, SIP, SOP, QFP nozzles and plastic welding nozzles such as BUT, Iron, Super Nozzle and many more.

The nozzles in our station are distinguished by a gap, which allows the removal of excess reversing air, especially at high temperatures and low airflow. This solution significantly extends the life of the heating element and prevents overheating, which is rarely found in other manufacturers.

Included with the soldering station are replaceable nozzles with slot:

• Round nozzle 5 mm: for precise operations requiring focused heating
• Round nozzle 8 mm: for heating larger areas evenly.
• Round nozzle 10 mm: for heating large areas evenly.
• Square nozzle 12x12 mm: for BGA systems.

Service work requires many activities, which is why well-designed stands are extremely useful. They allow safe deposition of soldering flasks and convenient cleaning of the soldering tip.

The soldering station HOTAIR 8586D III PRO is characterized by:

• Robust and ergonomic housing.
• Processor control high operating stability, extending the life of heating elements, energy saving.
• Standby status
• Remembers the last set temperature
• Power supply 230V
• Power station 780W

Hotair soldering iron

• Hot air temperature control from 100-480 [°C]
• Temperature stability ± 1[°C]
• Display LED
• Setting the temperature with buttons,
• Smooth adjustment of air blowing with buttons,
• Air flow up to 120 litres/minute [max]
• Hot air outlet head size 22mm (Fits all nozzles from PT/Aoyue station)

Grotowa soldering iron

• Temperature control of the tip from 200-480[°C]
• Temperature stability ± 2[°C]
• Display LED

Handle Needle Tweezers Lift for Service

Useful tool for:

• Deleting IC elements
• Lifting small objects, BGA systems, integrated circuits
• Dismantling of SMD systems
• Precise work in places inaccessible to classic tweezers
• Lifting hot elements
• Transferring and placing circuits on PCBs
• Soldering and desoldering

Technical specification:

• Overall length: 143 mm (±2 mm)
• Grip length: 51 mm (±2 mm)
• Grip width: 29 mm (±2 mm)
• Handle diameter: 1 cm (±1 mm)
• Made of: antistatic plastic

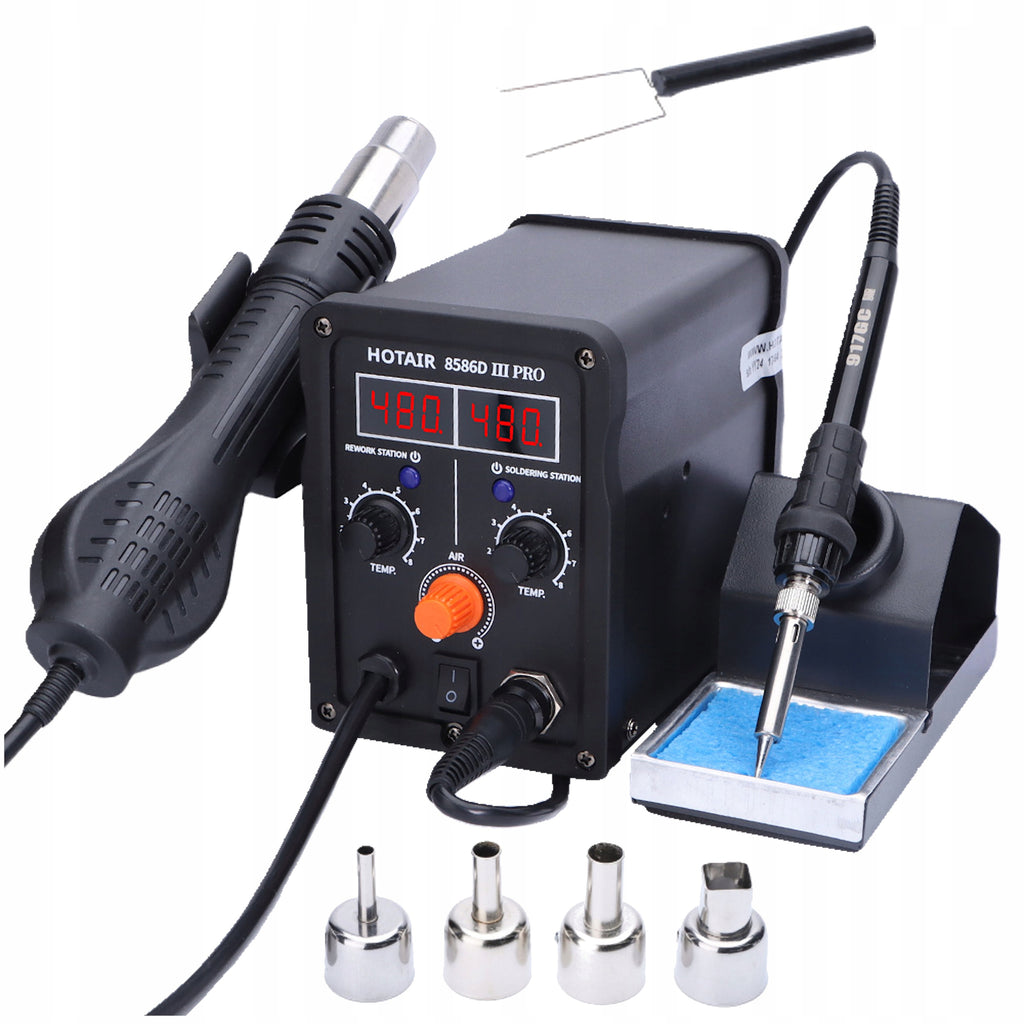

The offered set consists of the following elements:

• Soldering station HOTAIR 8586D III PRO
• Stand for flask hotair
• Nozzle set:
• round nozzle with a diameter of 5 mm
• round nozzle with a diameter of 8 mm
• round nozzle with a diameter of 10 mm
• 12x12 mm square nozzle
• Base for tip flask with cleaning sponge
• Group with T-I tip
• User manual

IMPORTANT

When switching on the station, the flask should be placed in the stand. After removing the flask, the station will start working.

8586D-III-PRO-HOTAIR
