Magnetinis gręžtuvas STAKO, fi80, 2050W, 16 kg, MT3, M24

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas STAKO, fi80, 2050W, 16 kg, MT3, M24. Kategorija: Gręžimo staklės.

• Gamintojas: Stako
• Modelis: SCY-2800RE+
• Galia: over 851 W

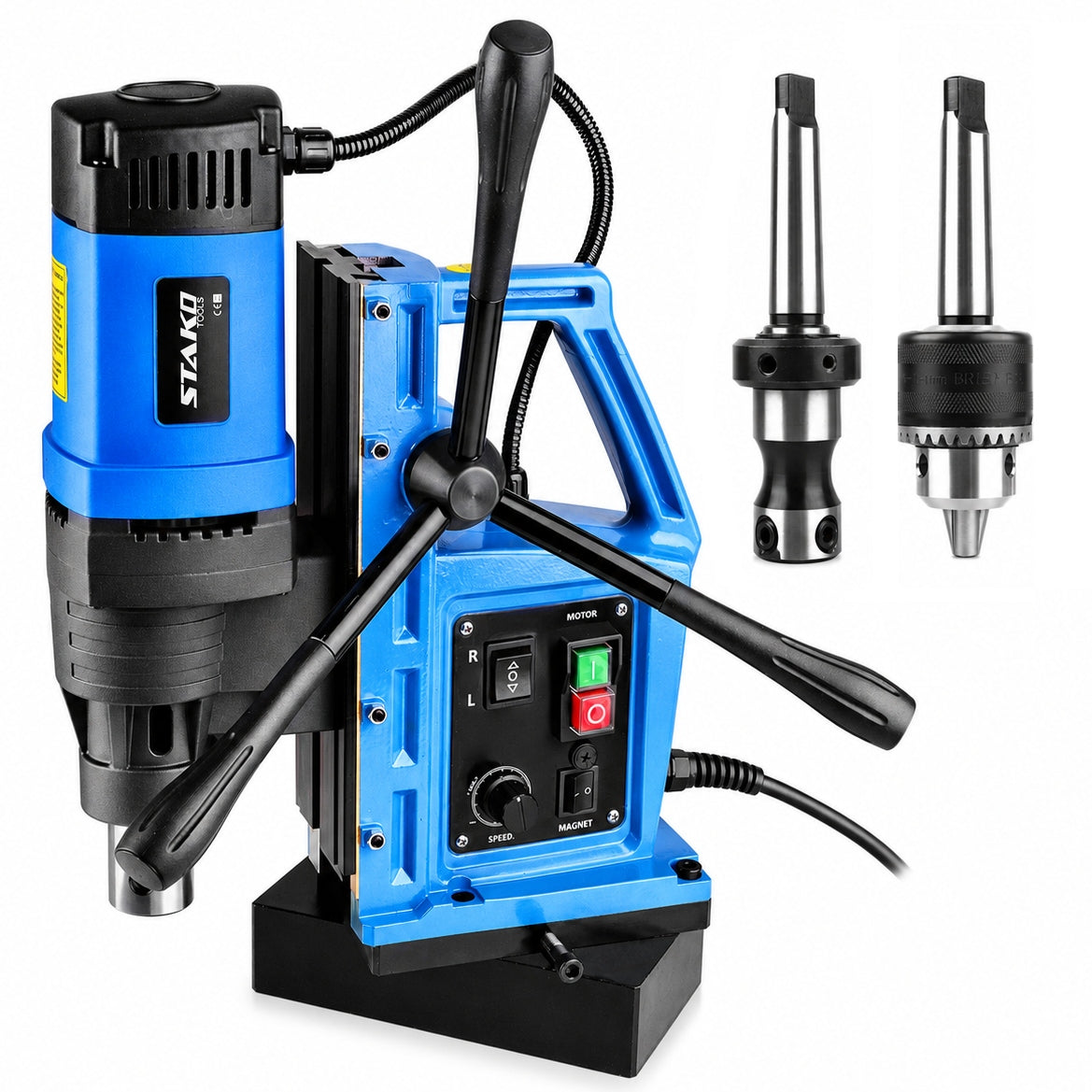

PROFESSIONAL MAGNETIC DRILL WITH THREADING FUNCTION STAKO SCY-2800RE+

DRILLING UP TO Ø80 MM | TAPPING UP TO M24 | 2050 IN | MT3

ZEST-2 — 2 HANDLES INCLUDED

In this version, you get 2 handles, thanks to which you will use one machine for both drilling with trepanation mills and standard cylindrical drills.

1. WELDON 19 MM (3/4") HANDLE for trepanation / core cutters.

2. DRILL HOLDER 3 to 16 MM for standard cylindrical drill bits.

TECHNICAL DATA:

• Engine power: 2050 W
• Power supply: 230 V / 50 – 60 Hz
• Soft Start: YES
• Threading capability: YES, max. M24
• Rotation direction: right / left
• Smooth speed control: 0 – 340 rpm /min
• Spindle: MT3 cone
• Max. Drilling diameter with full drill: Ø28 mm
• Max. diameter of drilling with trepanation cutter: Ø80 mm
• Working stroke: 185 mm
• Magnetic force: 17 000 N
• Magnetic foot dimensions: 202 × 103 mm
• Rotating magnetic base: YES
• Device weight: 16 kg

FREE TO SET

HSS TREPANATION MILL + CENTERING REMOTE

As part of the current promotion, each drill is accompanied by a HSS trepanation mill and a FREE centering remote control.

SELECT CUTTER DIAMETER: Ø12–Ø20 MM

Working length of cutter: 30 mm

After purchase, enter the selected diameter of the cutter in the message to the seller.

In the absence of information, we will send the cutter in a randomly selected size.

THE MAIN ADVANTAGES:

• ✅ High quality and robust construction
• ✅ Multifunctionality – designed for core drilling, full drilling and threading
• ✅ Wide range of drilled holes - max. fi 80 mm
• ✅ High power - 2050 Watt and at the same time gentle start (soft start)
• ✅ Engine rotation: right / left (threadable)
• ✅ Smooth speed control from 0 to 340 revolutions per minute

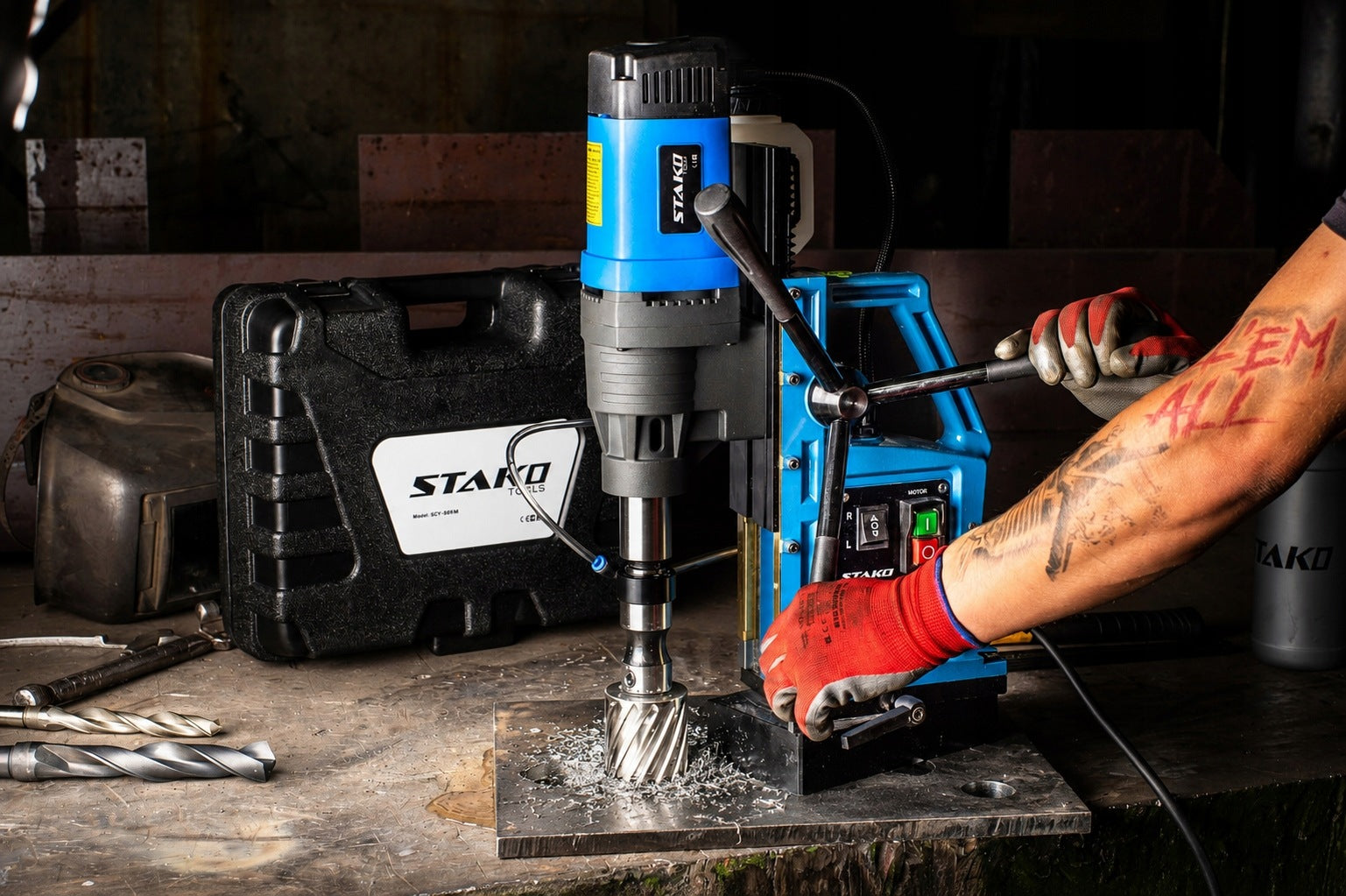

Our magnetic drill is a guarantee of increasing the efficiency and precision of the holes, avoiding mistakes and damage to the material that can occur during classic manual drilling. Moreover, it makes the drilling process much faster, which translates into saving time and resources.

This type of equipment is an alternative to table machines, is characterized by much lower weight, greater mobility and comfort of work, while maintaining sufficiently high technical parameters, including engine power.

It is ideal for steel, installation, shipbuilding, bridge, crane production, assembly and locksmith works, where it meets the highest requirements.

INTUITIVE CONTROL PANEL

The control panel is designed for convenient and intuitive operation of the device. All the most important control functions are easily accessible during operation.

SMOOTH SPEED CONTROL 0 – 340 RPM /MIN

Smooth speed control allows to adjust the rotation to the type of work performed, the diameter of the tool and the material being processed. It is particularly useful when drilling holes of various diameters and threading.

PROTECTION AGAINST RESTART

The device is equipped with protection against automatic restart after power failure and restoration. In the event of an interruption in power supply, the machine will not start automatically when the voltage returns.

DOUBLE COIL MAGNETIC BASE – FORCE 17 000 N

The two-coil magnetic base generates attraction force up to 17 000 N, ensuring stable attachment of the drill to the appropriate ferromagnetic surface.

The strong magnetic base allows stable positioning of the device during operation in a horizontal and vertical position, facilitating precise tool guidance and making holes in steel structures.

When working vertically, at height or overhead, additional machine protection should be used in accordance with the instruction manual, including the seat belt.

ROTATING MAGNETIC BASE – PRECISE ADJUSTMENT OF THE SETTING

The SCY-2800RE+ model is equipped with a rotating magnetic base, which allows you to change the position of the drill to 45° to the right or left.

The base design also allows for correction of the position of the device forward and backward, making it easier to precisely position the tool relative to the designated drilling point.

Thanks to the ability to adjust the position, it is easier to correct the position of the drill without having to move the entire machine every time.

BUILT-IN LEVEL – PRECISE SETTING

The built-in level makes it easy to position the drill correctly before starting work. It allows you to quickly control the position of the device and precisely level it.

Better setting control, greater precision and more comfortable operation.

In order to broaden the information about the offered product below, we provide a link to a video published on YouTube by an independent enthusiast. The material presents the test of our magnetic drill in the version with a power of 1780 W, maximum drilling diameter of Ø 60 mm and attraction force of 14 800 N:

https://www.youtube.com/watch?v=qMuKOl7ucIw

THE SET INCLUDES:

• 1 x Magnetic drilling machine STAKO SCY-2800RE+
• 1 x Weldon 19 mm Drill Chuck

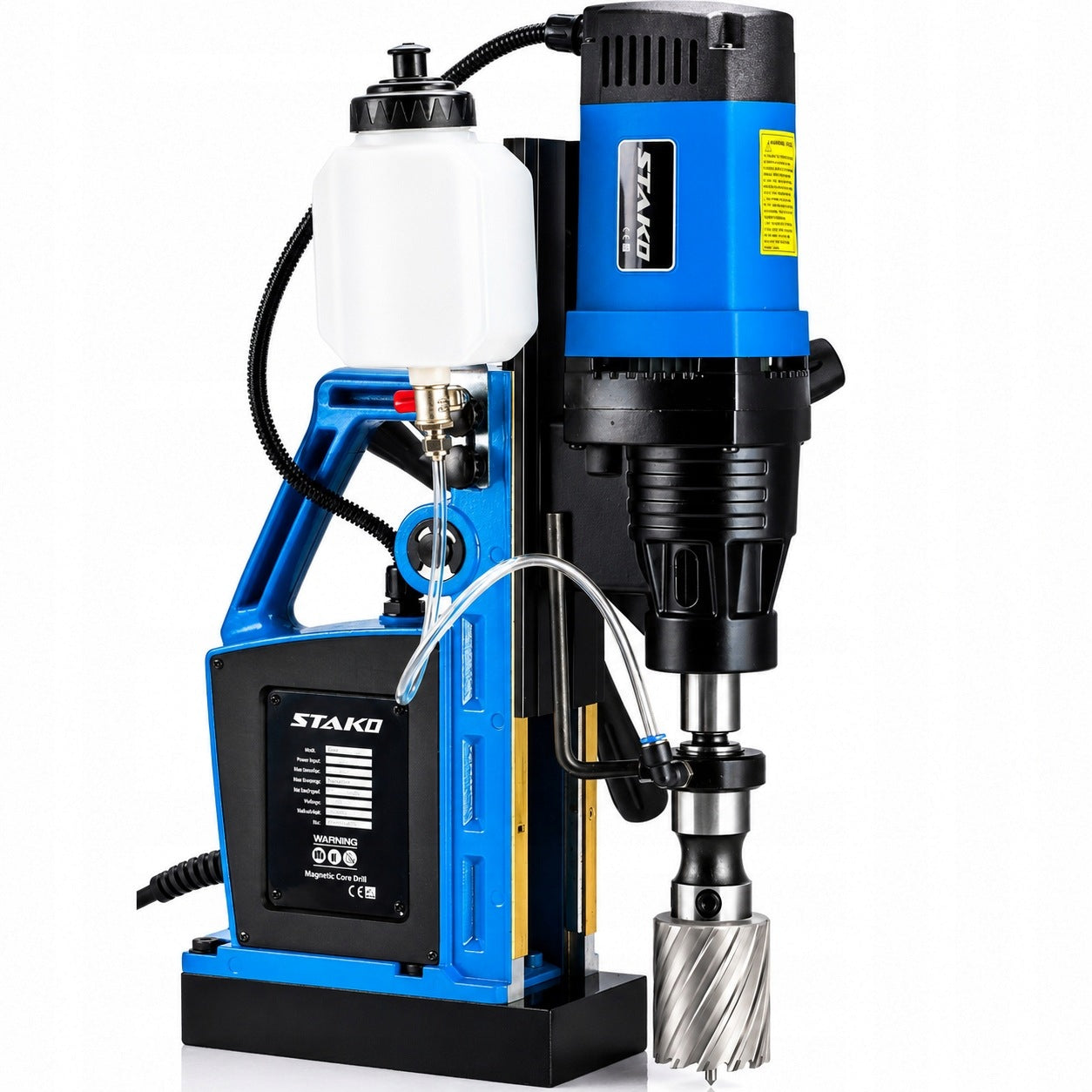

• 1 x Coolant container and hose
• 1 x Drill chuck 3 – 16 mm
• 1 x Drill Chuck Mandrel
• 1 x Drill Chuck Crimping Wrench
• 1 x MT3/MT2 Reducing Sleeve
• 1 x Punching Wedge
• 2 x Allen Wrench
• 3 x Feed handle
• 1 x Seat Belt
• 2 x Motor Brushes
• 2 x Fuse
• 1 x Manual
• 1 x Carrying case

✨ + Currently valid for free! ✨

Comparison of models of magnetic drills STAKO from the SCY-2800 series:

SCY-2800E – basic model for drilling.

SCY-2800RE – additionally threading function (right/left rotation).

SCY-2800RE+ – threading function (right/left rotation) and rotating magnetic base.

Common parameters: power 2050 W, max. drilling diameter Ø 80 mm and magnetic force 17 000 N.
