Magnetinis gręžtuvas WABROTECH WT98RE, 2080W, su pjovimo laikikliu

Trumpai apie prekę

Prekė: Magnetinis gręžtuvas WABROTECH WT98RE, 2080W, su pjovimo laikikliu. Kategorija: Gręžimo staklės.

• Gamintojas: WABROTECH
• Modelis: 01-1K-00298RE
• Galia: over 851 W

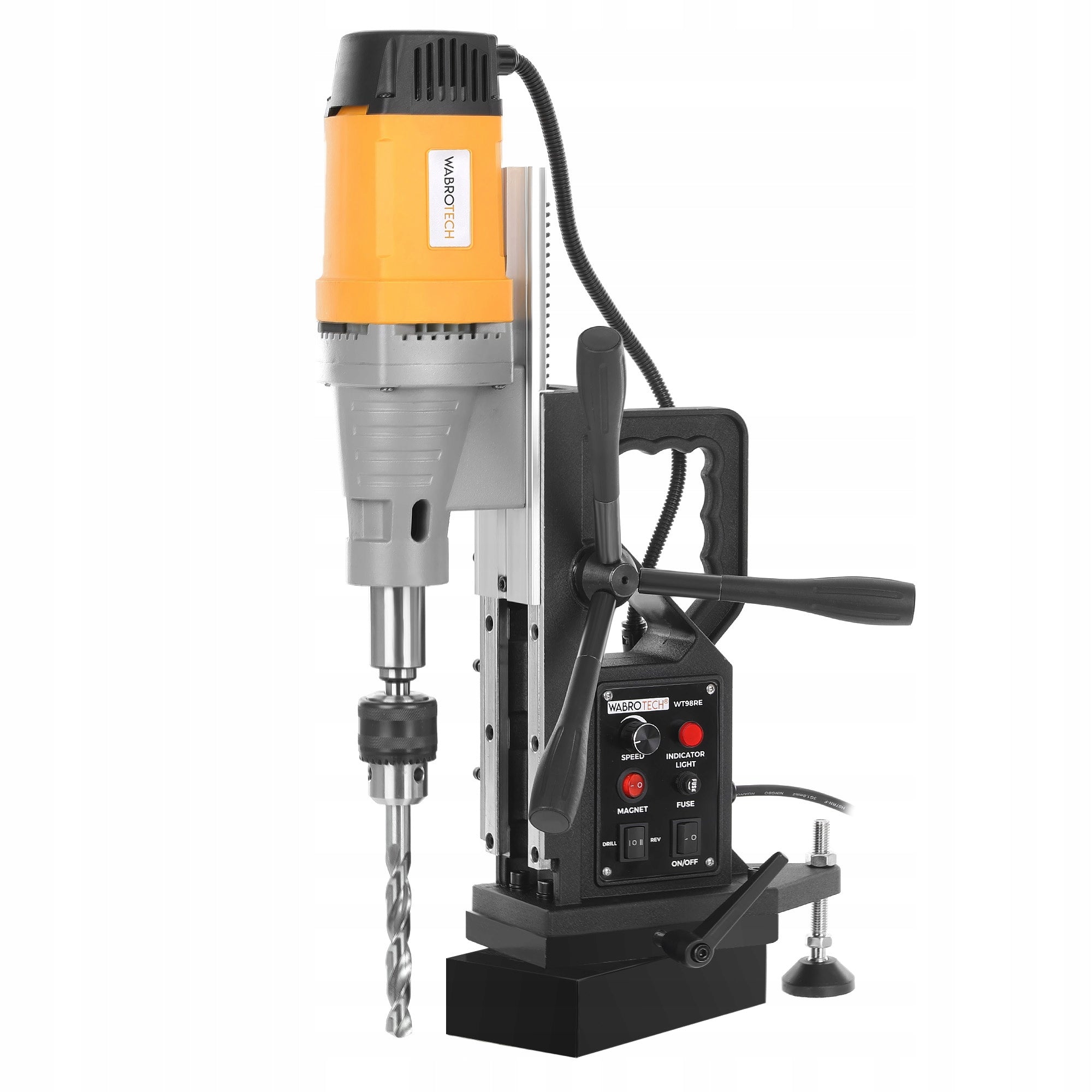

MAGNETIC DRILL WABROTECH WT98RE

Technical data:

• Tool holder: Conical spindle MT3
• Engine power: 2080 W
• Power supply: 230 V / 50 Hz / 20C
• Soft start: YES
• Max. Rotation speed: 350 rpm (adjustable on potentiometer)
• Reverse rotation (threading function): M3-M22
• Max. Ø drilling (full): 28 mm
• Max. Ø drilling (tube): 98 mm
• Max. working stroke: 180 mm
• Magnetic force: 16800 N
• Magnetic foot dimensions: 200 x 105 mm
• Device Dimensions (D x Sz x W): 630 x 370 x 220 mm
• Device weight: 19,60 kg
• Weight including packaging: 28,50 kg
• Transport case included: YES

Drilling machine WABROTECH WT98RE – powerful power and durability

WABROTECH WT98RE in the version with milling set has on board a 2080 W motor with windings made of pure copper and covered with durable insulation. Combined with a reinforced mechanical transmission, it allows you to achieve excellent drilling results, unattainable for most devices in its price range.

Smooth motor speed control in the range of max. 350 rpm allows you to work with different drill diameters and materials. The spindle embedded in the housing with two machine bearings ensures stable operation of the drill, eliminating any beatings. The mounting plate moves in durable guides with the possibility of adjustment and their replacement. The feed operation remains smooth at every stage, allowing you to easily delete slacks. An electromagnet with a force of up to 16 800 N translates into the possibility of safe operation in any position, also above the head.

WABROTECH WT98RE – drilling parameters

Our magnetic drill is equipped with an external spindle with Morse 3 cone input, allowing the use of any drill chucks. The presented model is characterized by the following drilling parameters:

• maximum drilling diameter with a full drill 28 mm,
• maximum diameter of drilling with a 98 mm pipe drill,
• maximum working stroke of 180 mm.

Drill chuck error tolerance +/- 0,5 mm.

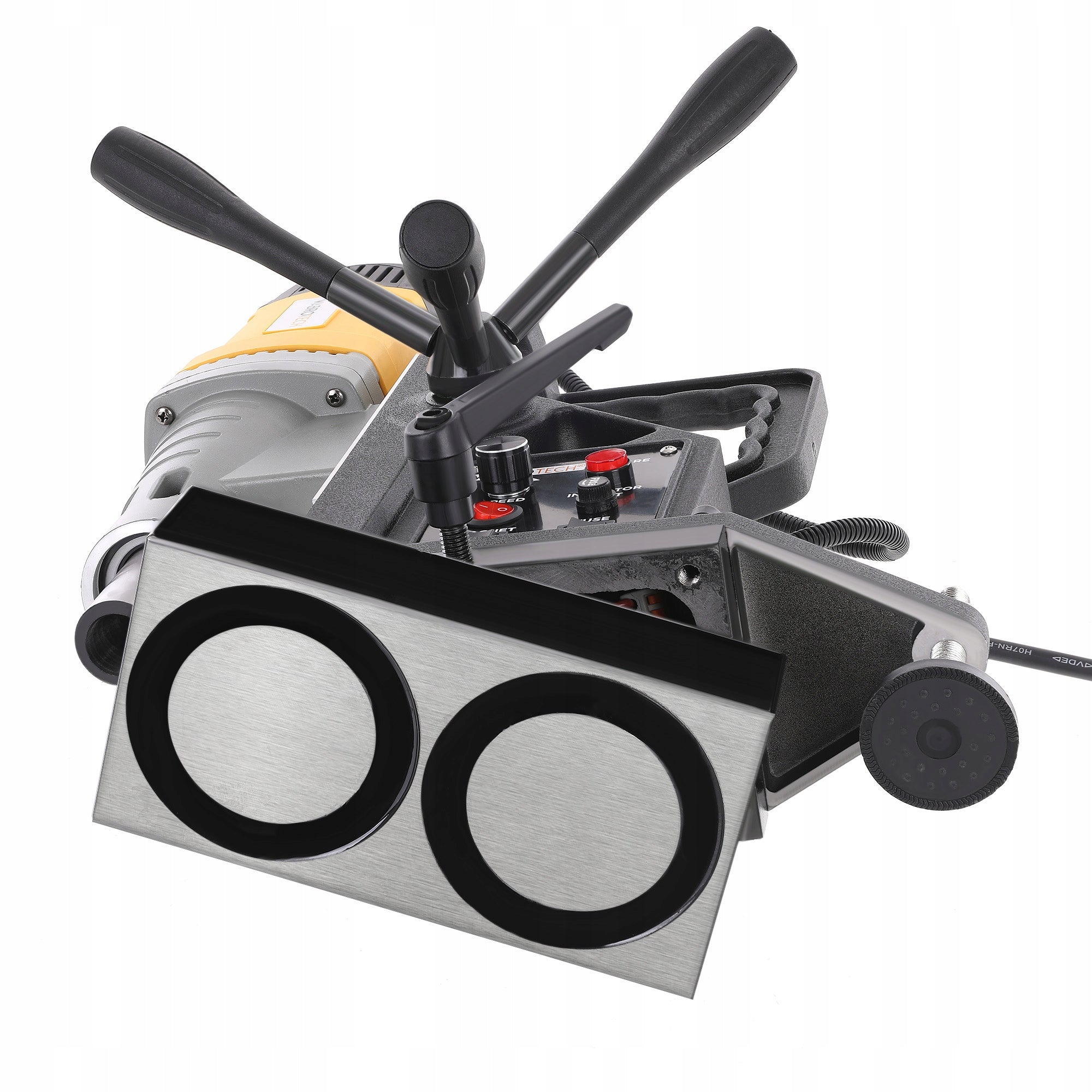

Rotating base in drill WT98RE

The WT98RE magnet is equipped with an adjustable base, allowing you to rotate 45° to the right or left relative to the magnetic foot. In addition, it has the ability to extend the drill forward and backward. Changing the distance between the spindle axis and the magnetic foot is possible in the range from 3,75cm to 6,15cm. This translates into a significant increase in work opportunities, especially in the case of unusual materials

Magnetic drilling machine WT98RE – for whom?

Based on the possibilities, our experts recommend the presented machine m.in. for the following works and industries:

• processing of steel materials,
• construction and installation companies,
• production of machinery and cranes,
• services,
• locksmith workshops.

WABROTECH WT98RE (set for cutters) – equipment:

• 1 x Magnetic Drilling Machine WT98RE
• 1 x Carrying case (free)
• 3 x Feed handle
• 1 x MT3 B16 pin
• 1 x B16 3-16 mm drill chuck
• 1 x Adapter from MT3 to MT2
• 1 x Weldon 32 mm Drill Chuck
• 1 x Foot Lock Holder
• 1 x Punching Wedge
• 1 x Seat Belt
• 1 x Fuse
• 1 x Brush Set
• 1 x Coolant tank
• 1 x Drill Chuck Crimping Wrench
• 1 x Manual
