Medicininis elektrostimuliatorius ECOSTIM ECO54, TENS/EMS masažuoklis

Trumpai apie prekę

Prekė: Medicininis elektrostimuliatorius ECOSTIM ECO54, TENS/EMS masažuoklis. Kategorija: Masažuokliai.

• Gamintojas: Ecostim
• Modelis: ECO54
• Spalva: gray

The TENS/EMS ECO54 electrostimulator is an advanced device for muscle training and relaxation and pain relief. It has 19 EMS programs and an additional 4 that can be programmed individually. It also has 26 ready-made programs for TENS analgesic electrostimulation and an additional 4, which can be programmed individually. In addition, ECO44 allows you to perform physical therapy treatments resembling massage - 6 ready-made programs. All electrostimulation programs have been developed based on the knowledge and experience of our specialists and in cooperation with physiotherapists, sports trainers and specialists in the field of pain management.

The ECO54 electrostimulator is a modern device that delivers comfortable TENS and EMS currents. It's a dual-channel unit, supporting up to 4 electrodes simultaneously. It features 51 pre-set programs for pain relief, rehabilitation, and sports training support.

The ECO54 offers 2 operating modes: Manual, where you can set and save up to 8 individual electrostimulation programs, and Automatic, which includes the 51 pre-set programs.

Simple operation and small size allow it to be used by patients at home. For professional purposes, it is also used in clinics and rehabilitation rooms. It is recommended for physiotherapists, doctors and athletes (the possibility of using manual mode).

ECO54 is characterized by high quality of materials used. The device is battery powered. The set includes a charger, and is additionally equipped with a clip to wear at the strap.

The easy-to-read LCD display allows you to monitor the current operating parameters of the device. The most popular and cheapest TENS electrodes with a 2mm PIN/PLUG connector will fit into the device.

Smooth transition to subsequent modes of operation of the device (soft switch function), prevents the unpleasant feeling of "pricking", ensuring high comfort of stimulation.

The electrostimulator is sold in the original case.

THE ELECTROSTIMULATOR IS MEDICALLY CERTIFIED.

Types of currents in the ECO54 model:

TENS - the most popular method of physical therapy used to relieve pain. It involves stimulating the nerve endings found in the skin. Depending on the selection of parameters, TENS activates one of two mechanisms:

• pain gate – consists in replacing the nerve impulse with an electrical impulse. Because the electrical impulse reaches the brain instead of the nerve impulse, the sensation of pain is disrupted. The analgesic effect occurs immediately, but is quite short-lived.
• release of endorphins (naturally produced by the body hormones with analgesic and well-being effects. The analgesic effect is delayed but long-lasting.

The best analgesic effect is achieved by first using a program such as a pain gate, and later a program stimulating the production of endorphins.

In TENS stimulation, it is important to prevent the body from getting used to specific parameters, so you should change the program from time to time. Therefore, some programs are an alternative to other programs. They can be used interchangeably.

EMS – neuromuscular electrostimulation has a stimulating effect on muscles. EMS is used both in rehabilitation, e.g. to rebuild muscles weakened by long-term immobilization or paresis, as well as in sports training. It allows you to keep your muscles in good condition, e.g. in people affected by injuries that prevent physical exercise. All programs consist of 3 phases: warm-up, training and rest.

MASSAGE - special programs for massage and relaxation. Properly selected parameters of TENS and EMS currents simulate massage techniques.

TENS programmes:

1. Migraine, headache
2. Paraesthesia – feelings of tingling, numbness, etc.
3. Joints, hands, feet – a program used in acute pain or as a preliminary treatment for chronic pain. Fast but short-term analgesic effect.
4. Thoracic and lumbar spine – a program used in acute pain or as a preliminary treatment in the treatment of chronic pain. Fast but short-term analgesic effect
5. Sciatica, shoulder rupture - a quick but short-term analgesic effect.
6. Menstrual pain
7. Joints, hands, feet - used for chronic pain. Massage treatment. Pain relief effect lasting up to 4 hours. Before that, it is worth performing the procedure using the P3 program.
8. Sciatica, shoulder rupture - used for chronic pain. Massage treatment. Pain relief effect lasting up to 4 hours. Before that, it is worth performing the procedure using the P5 program.
9. Phantom pain
10. Thoracic and lumbar spine - endorphin secretion. Delayed but significantly prolonged analgesic effect. Overall improvement in well-being. Before that, it is worth performing the procedure using the P4 program.
11. Joints, hands, feet - secretion of endorphins. Delayed but significantly prolonged analgesic effect. Overall improvement in well-being. Before that, it is worth performing the procedure using the P3 program.
12. Rheumatism, arthritis.
13. Cervical spine, shoulders - a program for very sensitive people
14. Thoracic and lumbar spine - a program for very sensitive people
15. Thoracic and lumbar spine, sciatica, shoulder rupture - analgesic program for very sensitive people.
16. Joints, hands, feet, cervical spine, shoulders - analgesic program for very sensitive people.
17. Sciatica, shoulder rupture - endorphin secretion. Delayed but significantly prolonged analgesic effect. Overall improvement in well-being. Before that, it is worth performing the procedure using the P5 program.
18. Cervical spine, shoulders - used in acute pain or as a preliminary treatment for chronic pain. Fast but short-term analgesic effect.
19. Pain relief and relaxation massage of the back.
20. Cervical spine, shoulders - secretion of endorphins. Delayed but significantly prolonged analgesic effect. Overall improvement in well-being. Before that, it is worth performing the procedure using the P18 program.
21. Professor Han I’s stimulation consists in a combination of low and high frequency. It brings very good results in the fight against pain. It combines the method of pain gate and endorphin production. The feelings are very intense.
22. Stimulation of Prof. Han II – an alternative to the program No. 21.
23. Prof. Han’s stimulation combined with blows (TENS burst) – a very intense and effective method. Very intense feelings.
24. Stimulation of Prof. Han with intensity modulation – Feelings resembling a strong massage.
25. Stimulation of Prof. Han with frequency modulation – a milder variety for more sensitive people.
26. Prof. Han’s stimulation – different feelings on both channels.
27. Manual
28. Manual
29. Manual
30. Manual

EMS Programmes:

1. Cleansing muscles of toxins, improving circulation
2. Restoration of large muscles m.in. muscles of the back, thighs, buttocks, abdomen, chest
3. Restoration of very small muscles m.in. rectifiers and flexors of fingers, facial muscles, pelvic floor muscles
4. Restoration of small muscles: m.in. muscles of the hands, lower legs
5. Increasing muscle strength and endurance for people who do not train
6. Keeping muscles in good shape (e.g. during immobilisation)
7. Fat burning
8. Warm-up
9. Increasing muscle strength and endurance for people who train with low or medium intensity
10. Increasing muscle strength and endurance for people who train at high intensity
11. Increasing the mass and volume of smaller muscles m.in. hand muscles
12. Increasing the mass and volume of large muscles m.in. muscles of the back, thighs, buttocks, abdomen, chest
13. Anti-cellulite effect
14. Firming and tightening of the skin – antiaging effect
15. Lymphatic drainage – removal of swelling
16. Increasing the explosive power of large muscles m.in. muscles of the back, thighs, buttocks, abdomen, chest
17. Increasing the explosive power of smaller muscles m.in. hand muscles
18. Maximum muscle contraction – program for large muscles m.in. muscles of the back, thighs, buttocks, abdomen, chest
19. Maximum muscle contraction – program for smaller muscles m.in. hand muscles
20. Manual
21. Manual
22. Manual
23. Manual

Massage and relaxation programs:

1. Lomi-lomi massage
2. Gua-sha massage
3. Shiatsu massage
4. Stroking
5. Kneading
6. Clapping

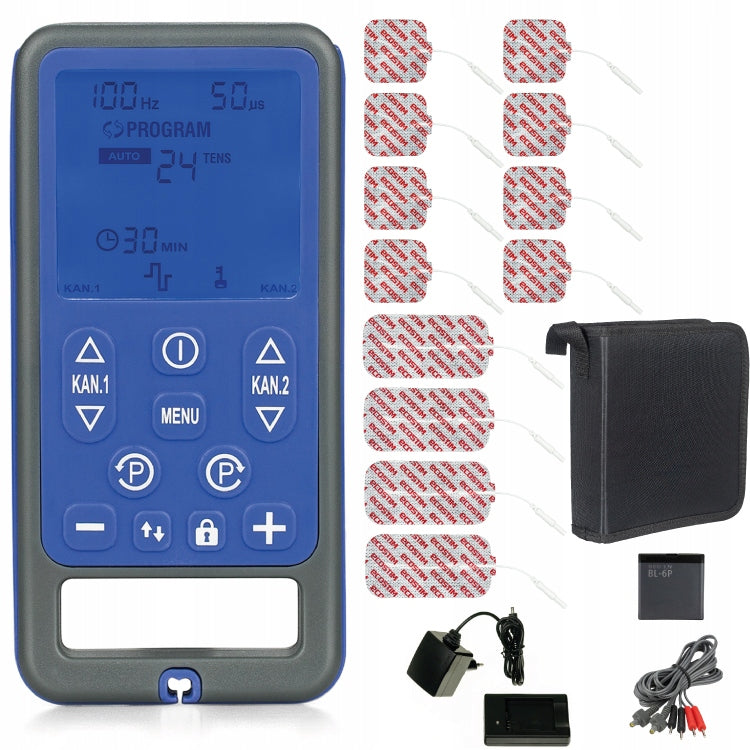

EACH SET INCLUDES:

• 1 ECO54 ELECTROSTIMULATOR (EAN 5901947048054)
• 8 GEL ELECTRODES, SELF-ADHESIVE EL.P.NWCS.50.50. SQ (EAN 5901947042250)
• 4 GEL ELECTRODES, SELF-ADHESIVE EL.P.NWCS.100.50. RC (ENGLISH 5901947044100)
• 2 CONNECTION CABLES FOR ELECTRODES DEDICATED TO ECO54 (EAN 5901947042229)
• 1 LITHIUM-ION BATTERY BUILT INTO THE AKU.BL-6F (EAN 5901947041048)
• 1 AC ADAPTER (EAN 5901947046180)
• 1 CASE (EAN 5901947043189)
• 1 POLISH MANUAL

We reserve the right to include in the set accessories slightly different in appearance from those shown in the pictures. We ensure that the quality and parameters remain unchanged.

What is worth buying for the set?

• spare gel electrodes, other sizes, other shapes
• alternatively durable, non-wearable textile or silicone electrodes
• connection cables KAB.T39.PIN-4 (EAN 5903111450250), the possibility of connecting 4 electrodes simultaneously on one channel (stimulation of larger areas of the body)

Type of currents generated: TENS / EMS

Number of programs: 59

Frequency: 1-150 Hz

Effective power (max): 112 mA

Pulse width: 50-400 µs

Number of electrostimulation channels: 2

Number of electrodes, standard/maximum: 4/8

Battery power: ❌

Power supply: ❌

Battery power supply: ✔

• Cancer
• Severe heart arrhythmia and other heart conditions (doctor or physical therapist consultation required)
• Nervous system disorders, such as: epilepsy, Parkinson's disease, multiple sclerosis (doctor or physical therapist consultation required)
• Pacemaker (doctor or physical therapist consultation required)
• Musculoskeletal system disorders (doctor or physical therapist consultation required)
• Electrodes for one channel must not be placed so that the current passes through the heart (e.g., one electrode on the chest and the other on the back).
• Uncontrolled high blood pressure
• Pregnancy (doctor or physical therapist consultation required)
• Circulatory system disorders such as: venous insufficiency, thrombosis, atherosclerosis (doctor or physical therapist consultation required). Visible spider veins that are not raised are not a contraindication.
• Do not place electrodes on skin with wounds or other lesions. Electrodes can be used around a wound.
• Metal implants in the treatment area
• Do not use on a wet body. Only the pads under the electrodes may be damp if necessary.
• General infections with fever
• Impaired sensation
• Difficulty communicating with the patient, mental disorders
• Pain of unknown origin (doctor or physical therapist consultation required)
• Recent injuries, post-operative period (doctor or physical therapist consultation required)

The products we offer are made of the highest quality materials. Their sale is preceded by thorough tests in terms of safety and product quality, carried out in certified testing units.

We have been selling our products for many years to rehabilitation rooms and SPAs, hospitals, medical centers and individuals using TENS / EMS / IFS therapies at home.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Ecostim
Parametry	Manufacturer code	K.ECO54
Parametry	Model	ECO54
Parametry	Kind	electrostimulator
Parametry	Color	gray
Parametry	Power supply	battery and mains
Parametry	Product weight with unit packaging	0.7 kg
Parametry	EAN (GTIN)	4251909199593
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
