Apraksts
Trumpai apie prekę

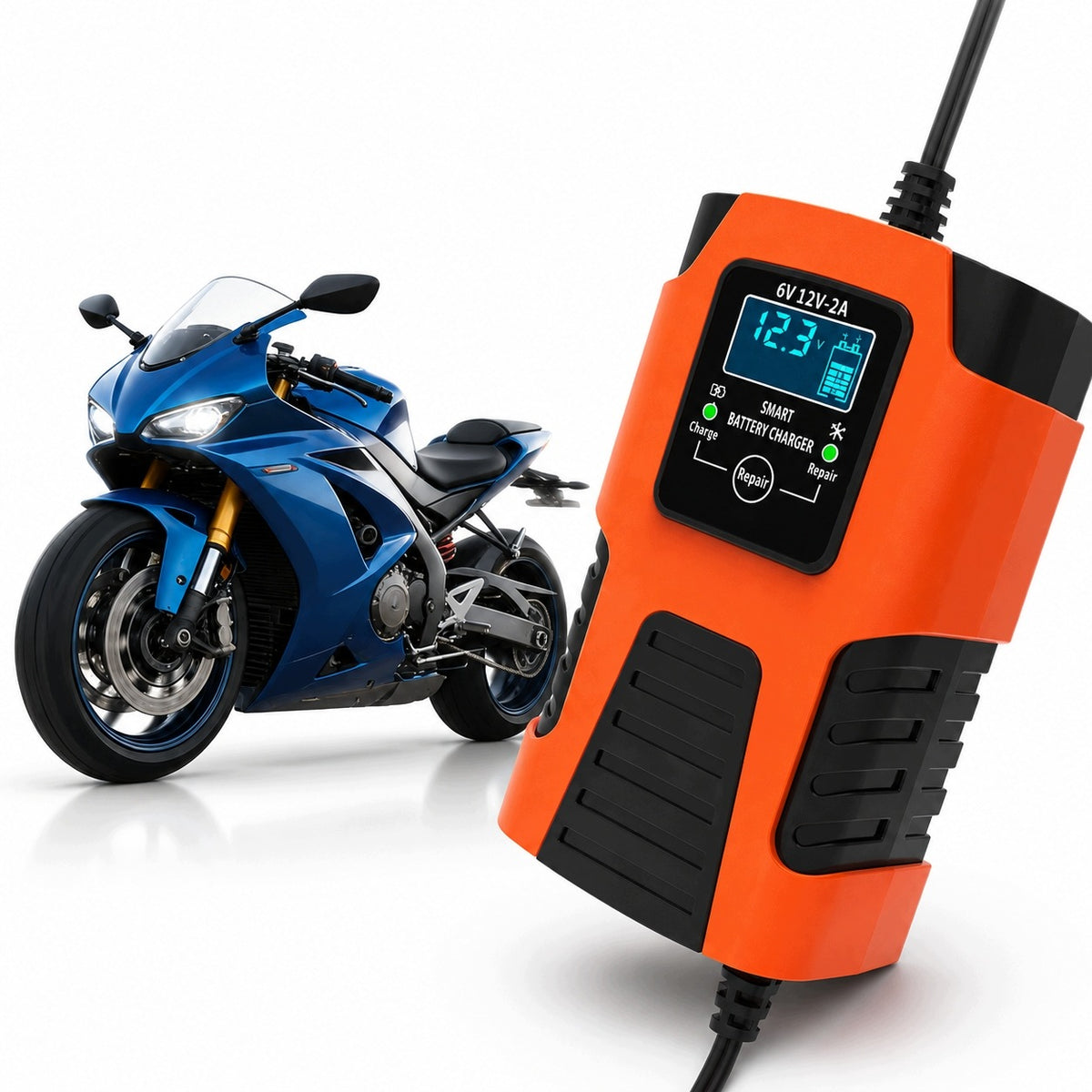

Prekė: Motociklų akumuliatoriaus pakrovėjas 6V/12V 2A AGM, GEL, LCD, automatinis, su remontavimo funkcija. Kategorija: Baterijų įkrovikliai.
- Gamintojas: A2
- Modelis: ZYX-J99
Automatic charger for 6V and 12V batteries
Compact charger / rectifier 2A designed primarily for small batteries used in motorcycles, scooters, mopeds, quads and other vehicles and devices equipped with 6V or 12V lead-acid batteries.
The device automatically recognizes the voltage of the connected battery and conducts the charging process without the need to manually dial 6V or 12V.
The easy-to-read LCD display allows you to control the voltage, charging current, and indicative battery level on an ongoing basis.
The most important advantages
- 6V/12V Automatic Battery Recognition
- Maximum charging current 2A
- Automatic 3-Step CC/CV/ Float Charging Process
- Easy-to-read LCD display
- 5-stage charge level indicator
- Support for popular AGM, GEL, VRLA, WET and Calcium batteries
- Pulse mode Repair
- Automatic transition to the backup stage after charging
- Protection against reverse polarity
- Short-circuit protection
- Overvoltage protection
- Overheating protection
- Overload protection
- Compact dimensions and light weight
- Power supply directly from the 230V mains
6V/12V Automatic Recognition
You do not have to manually select the battery voltage.
The charger automatically identifies the 6V or 12V installation and selects the appropriate operating mode. Thanks to this, the operation boils down to the correct connection of terminals to the battery and connection of the device to the network.
This is particularly convenient for motorcycles, scooters and other vehicles using different types of small batteries.
3-Step CC/CV/ Float Charging Process
Charging is done automatically in three stages:
CC – Constant Current
Charging with controlled current.
CV – Constant Voltage
Stabilization of voltage as the battery level increases.
Float – maintenance
After reaching the appropriate level of charge, the device proceeds to the maintenance stage.
This makes the whole process much more convenient than with a classic rectifier requiring manual control.

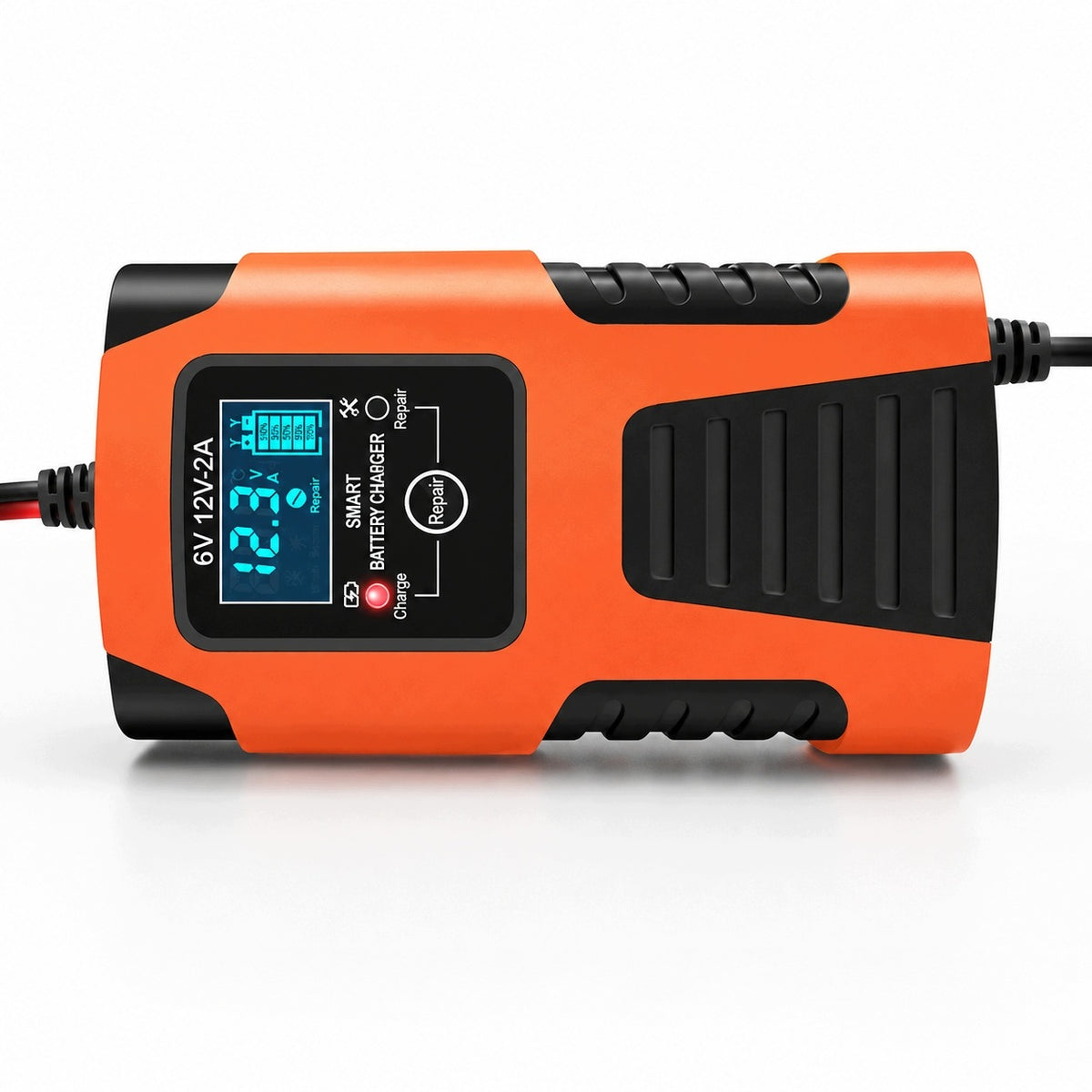

Easy-to-read LCD display
The built-in screen allows you to control the most important information while working.
m.in is displayed.:
- Battery voltage
- Current charging current
- Approximate charge level 20 / 40 / 60 / 80 / 100%
- Information about full charge
- Active Repair Mode
- Termination of Repair Mode
- Error message in case of incorrect connection
This allows you to see what is happening with the battery.
Repair mode – impulse charging
The charger is equipped with an additional Repair mode, using impulse charging.
The function can help restore the efficiency of partially sulphurized or long unused lead-acid batteries.
The mode is activated by a separate button. After its activation, the display appears the marking of the repair mode.
The manufacturer recommends about 5 hours of Repair mode for the motorcycle battery. During the process, the temperature of the battery should be controlled – if it starts to heat up excessively, regeneration should be stopped.
Repair mode is not intended to repair mechanically damaged, compact or completely worn batteries and does not guarantee the recovery of the original capacity.
For AGM, GEL, VRLA and classic batteries
The charger is designed for 6V and 12V lead-acid batteries, including:
- AGM
- GEL
- VRLA
- WET / Flooded – batteries with liquid electrolyte
- Calcium
- Deep Cycle
- maintenance-free lead-acid batteries
The device is not designed to charge lithium, Li-Ion or LiFePO4 batteries.
Ideal for motorcycle and scooter
The charging current of up to 2A makes the device particularly well suited to small batteries used in:
- Motorcycles
- Scooters
- Mopeds
- Quads
- Tricycles
- Small vehicles and machines with 6V or 12V installation
- Other devices using a compatible lead-acid battery
Always check the voltage, type, capacity and charging current recommended by the battery manufacturer before charging.
Multi-level security
The charger electronics are equipped with a set of safety features to increase the safety of use.
The device has protection against:
- Reverse connection of poles
- Short-circuiting
- Too high voltage
- Overheating
- Overload
In case of incorrect connection of terminals, the device signals an error on the display.
Simple operation
- Check that the battery type and parameters are compatible with the charger.
- Connect the red clamp to the positive pole “+”.
- Connect the black terminal to the negative pole “−”.
- Connect the charger to the network.
- The device will automatically recognize the battery voltage and start working.
- Control the process on the LCD display.
- Once charging is complete, disconnect the device from the mains and then remove the terminals from the battery.
Approximate charging time
According to the manufacturer’s data, the time needed to reach about 100% of the charge level is approximate:
- 4Ah battery – about 2 hours.
- 10Ah battery – about 5 hours.
- 15Ah battery – about 8 hours.
- 20Ah battery – about 10 hours.
The real time depends on m.in. from the initial level of charge, technical condition, temperature and characteristics of a specific battery.
Technical specification
Device model: ZYX-J99
REVENmoto symbol: Z3887EU
Type: automatic battery charger / rectifier
Supported battery voltage: 6V / 12V
Voltage recognition: automatic
Maximum charging current: 2,0A
6V battery charging voltage: approx. 7,4V
12V battery charging voltage: approx. 14,8V
Voltage measurement tolerance: ±0,3V
Power supply voltage: 100 – 240V AC
Frequency: 50/60Hz
Rated power: 30W
Input current: 0,15A RMS at 230V AC
Current ripple: ≤0,12A RMS
Charging process: 3-stage CC/CV/ Float
Battery types: AGM, GEL, VRLA, WET/Flooded, Calcium, Deep Cycle, maintenance-free lead-acid
Recommended capacity range in the offer: 4 – 20Ah
Cooling: natural
Working temperature: from -20°C to +45°C
Display: LCD
Dimensions: approx. 130 × 75 × 50 mm
Net weight: approx. 250 g
Plugin: European 230V
Color: orange-black

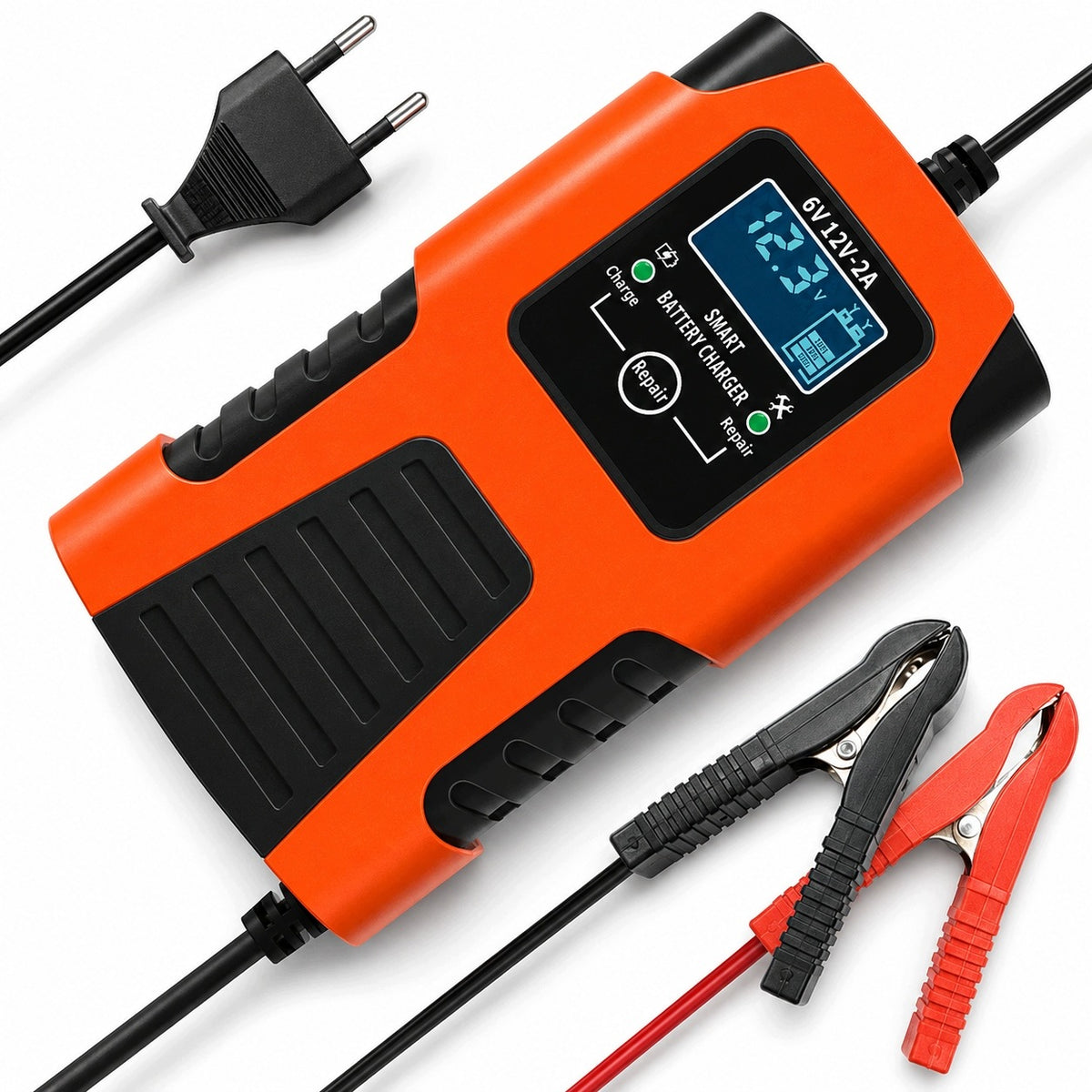

Contents of the set
- 6V/12V 2A Automatic Charger
- cable terminated with crocodile clamps
- power cord with European plug
- instruction manual
- original packaging
Important information
The charger is designed exclusively for compatible lead-acid batteries.
Do not use for lithium batteries.
Repair mode is a function supporting battery regeneration and does not replace the replacement of a damaged or permanently worn battery.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Model | ZYX-J99 |
| Parametry | Brand | A2 |
| Parametry | Maximum amperage | 2 A |
| Parametry | Product weight with unit packaging | 0.2 kg |
| Parametry | EAN (GTIN) | 5908015753629 |
| Parametry | Packaging status | original |
