Multimediju centrs VW Touran 2003–2010, 10" Android 15, 4+64 GB, CarPlay, WiFi, AHD kamera

Trumpai apie prekę

Prekė: Multimedijos centras VW Touran 2003–2010, 10" Android 15, 4+64 GB, CarPlay, WiFi, AHD kamera. Kategorija: Radijo grotuvai.

• Gamintojas: no brand
• Modelis: RAH3156

TECHNICAL PARAMETERS

• Operating system: Android 15
• Processor: Quad-Core ARM Cortex-A53
• RAM: 4 GB
• Internal memory: 64 GB
• Display: 10" LCD with capacitive touch panel
• Screen resolution: 1280 × 800
• Wi-Fi: 2,4 GHz
• Bluetooth: hands-free calling and music playback
• Apple CarPlay: wired and wireless
• Android Auto: wired and wireless
• Mirror Link: supported
• Navigation: GPS
• Radio: FM
• Sound Corrector: EQ
• Split Screen: supported
• Picture-in-Picture: supported
• Audio formats: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID, OGG
• Video formats: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
• System languages: English, Polish, Slovak, Czech, Hungarian, German, French, Italian, Spanish, Portuguese, Russian, Turkish and others
• Control from the steering wheel: operated by CANBUS
• Reversing camera input: AHD 1080P/720P and CVBS
• USB: 2 USB connectors
• Audio outputs: RCA and SUB
• Audio input: AUX
• External microphone: supported
• Amplifier: YD7388
• Working voltage: 9 – 16 V

COMPATIBILITY

• Volkswagen Touran: 2003–2010

The radio is designed for the corresponding versions of the Volkswagen Touran of the first generation.

Before buying, compare the shape of the center console, the appearance of the front panel and the back of the factory radio and the type of antenna connector with the photos presented in the offer.

APPLE CARPLAY AND ANDROID AUTO

• The radio supports Apple CarPlay and Android Auto. When you connect a compatible phone, you can use maps, music, calls, messages, and voice assistant directly on your device screen.
• The phone's features are displayed in a clear interface that is tailored to the driving experience. The availability of individual applications depends on the phone and its operating system.

ANDROID 15, 10" SCREEN AND 4+64GB MEMORY

• The large capacitive 10" touchscreen with a resolution of 1280 × 800 provides clear images and convenient navigation, music, calls and applications.
• The quad-core processor and 4 GB of RAM enable efficient use of the basic functions of Android 15.
• 64 GB internal memory provides space for applications, offline maps, music and other media files.

WI-FI AND BLUETOOTH

Built-in Wi-Fi allows you to connect the radio to your phone's hotspot or other available wireless network. Once you have access to the internet, you can use compatible apps, online maps and multimedia.

Bluetooth allows you to:

• make phone calls
• Play music from your phone
• synchronize the phone book
• use compatible Bluetooth devices

ONLINE AND OFFLINE GPS NAVIGATION AND SPLIT SCREEN

• The built-in GPS module allows you to use compatible online navigation applications. After downloading the appropriate maps, you can also use offline navigation without internet access.
• The included GPS antenna helps to achieve stable satellite signal reception.
• The split screen function allows you to display two compatible applications at the same time, such as navigation and a music player.

REVERSING CAMERA AHD, CANBUS AND STEERING WHEEL CONTROL

• The set includes an AHD reversing camera. The radio supports CVBS and AHD signals at 720P or 1080P resolution.
• When properly connected, the camera image is automatically displayed when the reverse gear is turned on. Auxiliary lines and the ability to change the orientation of the image are also available.
• The included CANBUS module allows the radio to communicate with the installation of a compatible car and support for steering buttons on the steering wheel. The availability of individual functions depends on the vehicle equipment.

FM/RDS RADIO, SOUND EQUALIZER AND MULTIMEDIA

The built-in tuner supports FM band and RDS function. RDS can display information transmitted by compatible stations, including the station name and current broadcast data.

The built-in EQ allows you to adjust the sound settings to your preference.

The radio also allows you to:

• Playing music via Bluetooth
• Playing files from a USB stick
• Connecting a compatible device via AUX input
• Use of four audio output channels
• Connecting a compatible subwoofer
• use of two USB connectors

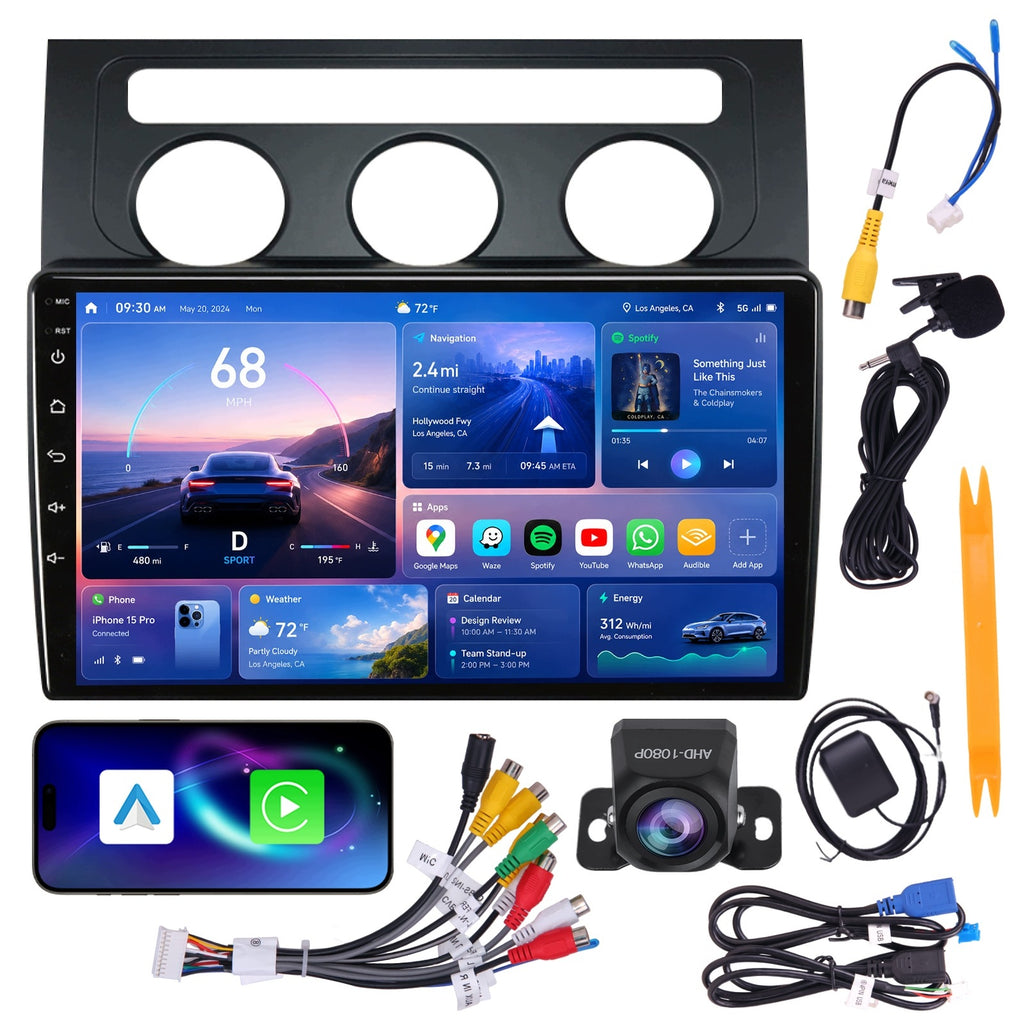

CONTENTS OF THE SET

• Android 15 radio with 10" screen
• Dedicated panel for Volkswagen Touran
• AHD reversing camera
• CANBUS module
• dedicated main power harness
• reversing camera input cable
• RCA cable
• 4-pin USB cable
• 6-pin USB cable
• external microphone
• GPS antenna
• radio antenna adapter
• adapter for dual antenna connector
• dismantling tool
• installation instructions

IMPORTANT INFORMATION BEFORE PURCHASE

• The radio is intended for the Volkswagen Touran from 2003 to 2010, whose center console and factory radio correspond to the examples shown in the offer photos.
• Depending on the version of the car, the factory radio may have a single or double antenna connector. Before buying, check the front and rear parts of the original device and the connectors used in the car.
• The CANBUS module is factory connected to a dedicated beam and should not be disconnected during assembly.
• The factory reversing camera is not compatible with the included beam. Use the camera included in the kit.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Brand	no brand
Parametry	Kind	accessory
Parametry	Model	RAH3156
Parametry	Product weight	1.8 kg
Parametry	Amplifier power	4x45 W
Parametry	Media played	USB
Parametry	Screen diagonal	10"
Parametry	Installation	2-DIN
Parametry	EAN (GTIN)	7841971127517
Parametry	Manufacturer code	RAH3156
Parametry	Packaging status	original
Parametry	Supported file formats	.aac,.ape,.flac,.mp3,.wav,.wma
Parametry	Radio	RDS information,FM band
Parametry	Functions	touchscreen,sound equalizer,playing music from iPhone/iPod
Parametry	Ports	AUX,RCA pre-out (preamplifier),RCA sub-out (subwoofer),USB
Parametry	Communications	Bluetooth,GPS,Wi-Fi
