Piegādes termiņš visā Lietuvā: 5-7 darba dienas.
Piegādes cena uz norādīto adresi: 3 eiro
Apraksts
Trumpai apie prekę
Prekė: Multimedijos grotuvas FORD FOCUS 2004–2010, 9", Android 15, 4+64 GB, CarPlay, WiFi, AHD kamera. Kategorija: Radijo grotuvai.
- Gamintojas: no brand
- Modelis: RAH3119
TECHNICAL PARAMETERS
- Operating system: Android 15
- Number of cores: 4
- RAM: 4 GB
- Internal memory: 64 GB
- Screen diagonal: 9 inches
- Screen resolution: 1280 × 800
- Screen type: capacitive touch screen
- Split screen function: supported
- Wi-Fi: 2,4 GHz
- Wi-Fi standard: 802.11 b/g/n
- Bluetooth: calls, music and phone book synchronization
- Apple CarPlay: wired and wireless
- Android Auto: wired and wireless
- Mirror Link: wired and wireless connection
- Navigation: GPS online and offline
- Radio: FM with RDS
- FM range: 87,5 – 108 MHz
- Power amplifier: maximum 4 × 45 W
- Sound Corrector: EQ adjustment
- Control from the steering wheel: manual assignment of compatible buttons
- Reversing camera input: CVBS and AHD
- Maximum camera image quality: up to 1080P
- Reversing camera: AHD included
- USB: 2 USB 2.0 connectors
- Supported USB stick: 4 to 64 GB
- USB video recorder: supported when connected to compatible DVR camera
- Audio AUX input: left and right channels
- Audio outputs: four analog RCA channels
- Subwoofer output: supported
- External microphone: supported, microphone included
- Working voltage: 9 – 16 V
- Working temperature: from -20°C to +60°C
- Video decoding: H.264/AVC
- Maximum video resolution: up to 1080P
- Audio formats: MP3, FLAC, APE, WMA, WAV, AAC, M4A, AMR, Opus, MID, OGG
- Video formats: AVI, ASF, MP4, MOV, MPG, MPEG-1/2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
- System languages: English, Polish, Slovak, Czech, Hungarian, German, French, Italian, Spanish, Portuguese, Russian, Turkish and others
COMPATIBILITY
- Ford Focus: 2004–2010
The radio fits compatible versions of the car with both manual and automatic air conditioning.
Before buying, compare the shape of the center console, the appearance of the factory radio and the connectors behind it with the photos presented in the offer.
CARPLAY, ANDROID AUTO, BLUETOOTH, MIRROR LINK AND WI-FI
The radio supports Apple CarPlay and Android Auto wired and wireless. When you connect a compatible phone, you can use maps, music, calls, contacts, messages, and voice assistant on your device screen.
Bluetooth allows you to:
- conducting telephone conversations
- wireless music playback
- synchronization of the telephone book
The Mirror Link function allows you to wired or wirelessly display images from a compatible smartphone.
Built-in 2,4 GHz Wi-Fi allows you to connect the radio to your phone’s hotspot or other available wireless network. Once you have access to the internet, you can use applications, online maps and multimedia services.
9" 1280 × 800 SCREEN, ANDROID 15 AND 4+64GB MEMORY
- The capacitive 9" touchscreen with a resolution of 1280 × 800 provides a clear image and convenient operation of navigation, applications and multimedia.
- The Android 15 system, quad-core design, 4 GB of RAM and 64 GB of internal memory enable efficient use of the most important functions of the radio.
- Internal storage allows you to store apps, offline maps, music, videos and other media files.
- The split screen feature allows you to use two compatible apps at the same time, such as navigation and a music player.
ONLINE AND OFFLINE GPS NAVIGATION
- The built-in GPS module allows you to use compatible navigation applications directly on the radio screen.
- Once connected to the internet, online navigation is available along with current traffic information. After downloading the appropriate maps to the device memory, you can also use offline navigation.
- The set includes an external GPS antenna, which helps to achieve stable satellite signal reception.
- You can also start navigation from your phone via Apple CarPlay or Android Auto.
FM/RDS RADIO, EQ EQUALIZER AND STEERING WHEEL CONTROL
The built-in tuner supports the FM 87,5 – 108 MHz band and RDS function. Compatible radio stations can display the station name and information about the currently broadcast program.
The four-channel amplifier and adjustable EQ allow you to adjust the nature of the sound to suit your music type and preferences.
Radio offers:
- FM tuner with RDS function
- maximum amplifier power 4 × 45 W
- EQ equalizer settings adjustment
- four analog RCA output channels
- Output for compatible subwoofer
- AUX audio input
- Playing music via Bluetooth and USB
- Input for external microphone
The kit does not use the CANBUS module. In compatible versions of the car, analog buttons on the steering wheel can be assigned manually using the learning function. Control availability depends on the factory installation of the vehicle.
REVERSING CAMERA AHD 1080P INCLUDED
- The set includes a AHD reversing camera. The radio supports CVBS and AHD signals with image quality up to 1080P.
- When properly connected, the camera image automatically appears on the screen when the reverse gear is turned on. The device also supports auxiliary lines and mirror image function.
- The AHD camera provides a clearer picture than a standard CVBS camera, making it easier to park and observe the space behind the car.
- The ability to maintain the factory camera depends on its connector and the type of signal. An older CVBS camera can display lower quality images, so we recommend using the new AHD camera included.
1080P MEDIA, TWO USB CONNECTORS AND DVR SUPPORT
The radio allows you to play music and movies in quality up to 1080P.
Supported audio formats:
- MP3, FLAC, APE, WMA, WAV
- AAC, M4A, AMR, Opus, MID, OGG
Supported video formats:
- AVI, ASF, MP4, MOV, MPG
- MPEG-1/2/4, VOB, MKV, FLV
- TS, WMV, RMVB, 3GP
Two USB 2.0 connectors allow you to connect your phone, portable memory or compatible accessories. The radio works with USB drives from 4 to 64 GB.
The device also supports a compatible USB video recorder. The DVR camera is not part of the kit.

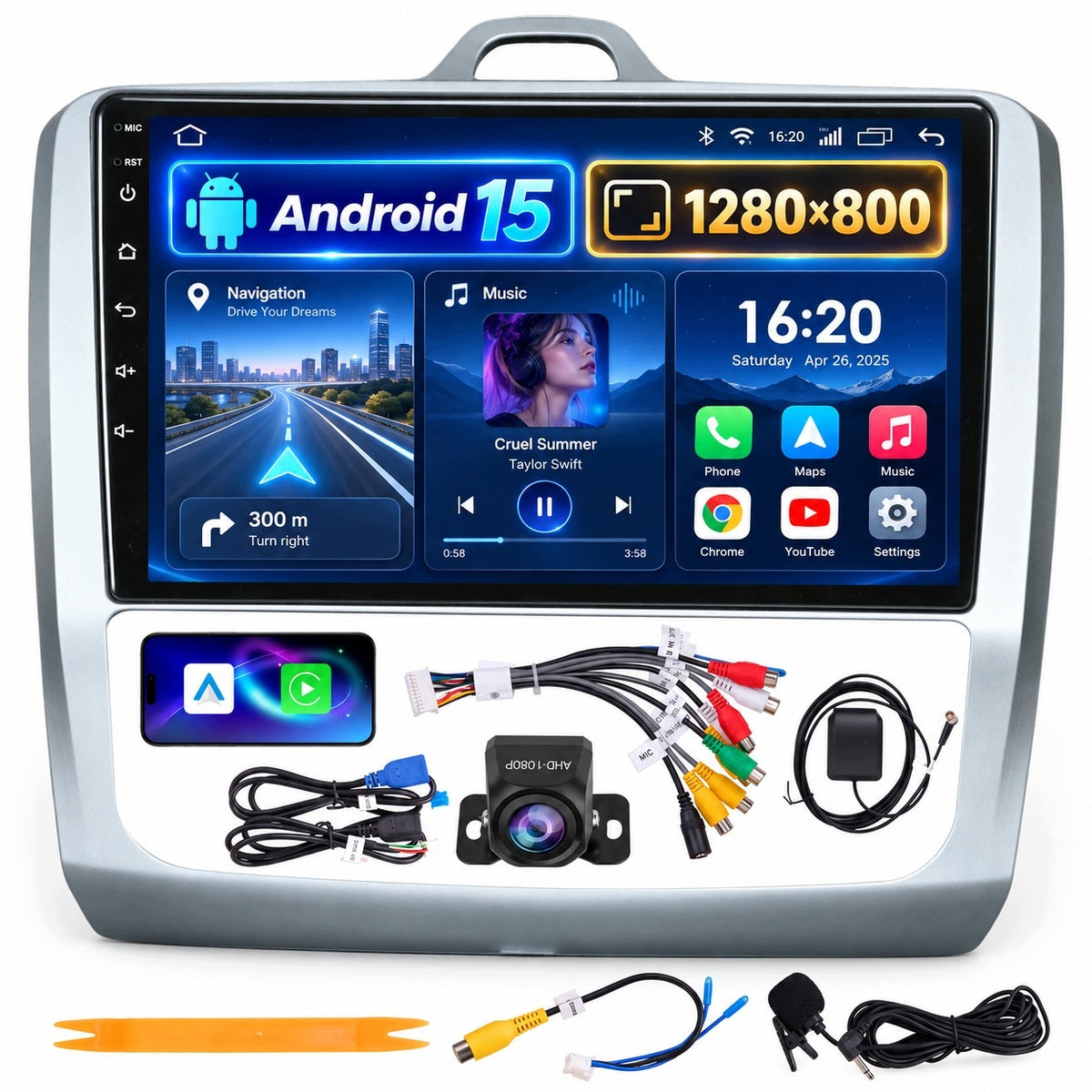

CONTENTS OF THE SET
- Android 15 radio with 9" screen
- dedicated frame for Ford Focus
- AHD reversing camera
- dedicated power beam
- RCA cable
- reversing camera input cable
- 4-pin USB cable
- 6-pin USB cable
- external microphone
- GPS antenna
- radio antenna adapter
- dismantling tool
- installation instructions
IMPORTANT INFORMATION BEFORE PURCHASE
- The radio is designed for the Ford Focus from 2004 to 2010 with a compatible center console layout. Fits versions with manual and automatic air conditioning.
- Before buying, you should carefully compare the shape of the console, the mounting hole, the appearance of the factory radio and its rear connector with the photos presented in the offer.
- The kit does not include the CANBUS module. In compatible cars, the buttons on the steering wheel can be assigned manually. The operation of this function depends on the type of factory installation.
- The original car microphone is not supported. Use the external microphone included in the kit.
- The ability to maintain a factory reversing camera depends on its connector and the type of signal. An additional adapter may be needed in some cars.
- In the absence of experience with automotive installations, it is recommended to install by a qualified installer.
FREQUENTLY ASKED QUESTIONS – FAQ
1. Does the radio fit Ford Focus with manual and automatic air conditioning?
Yes. The panel is designed for compatible versions with manual and automatic air conditioning. Before buying, you should compare the console and connectors with the photos in the offer.
2. Does the kit include CANBUS?
No. This model does not use the CANBUS module.
3. Will the buttons on the steering wheel work without CANBUS?
In compatible versions of the car, analog buttons can be assigned manually using the learning function. The operation depends on the factory installation of the vehicle.
4. Does the device have a polish menu?
Yes. Polish can be selected in the system settings.
5. Do Apple CarPlay and Android Auto work wirelessly?
Yes. Both functions are wired and wirelessly supported if your phone is compatible with them.
6. Is the reversing camera included?
Yes. The set includes an AHD camera. The radio supports CVBS and AHD signals up to 1080P.
7. Can I use navigation without internet?
Yes. After downloading compatible maps to the radio memory, navigation can run offline.
8. Can a factory microphone be used?
No. The factory microphone is not supported. Use the external microphone included in the set for calls.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With invoice (excluding VAT) |
| Parametry | Brand | no brand |
| Parametry | Kind | accessory |
| Parametry | Model | RAH3119 |
| Parametry | Product weight | 1.8 kg |
| Parametry | Amplifier power | 4x45 W |
| Parametry | Media played | USB |
| Parametry | Screen diagonal | 9" |
| Parametry | Installation | 2-DIN |
| Parametry | EAN (GTIN) | 7841971128187 |
| Parametry | Manufacturer code | RAH3119 |
| Parametry | Packaging status | original |
| Parametry | Supported file formats | .aac,.ape,.flac,.mp3,.wav,.wma |
| Parametry | Radio | RDS information,FM band |
| Parametry | Functions | touchscreen,sound equalizer,playing music from iPhone/iPod |
| Parametry | Ports | AUX,RCA pre-out (preamplifier),RCA sub-out (subwoofer),USB |
| Parametry | Communications | Bluetooth,GPS,Wi-Fi |
