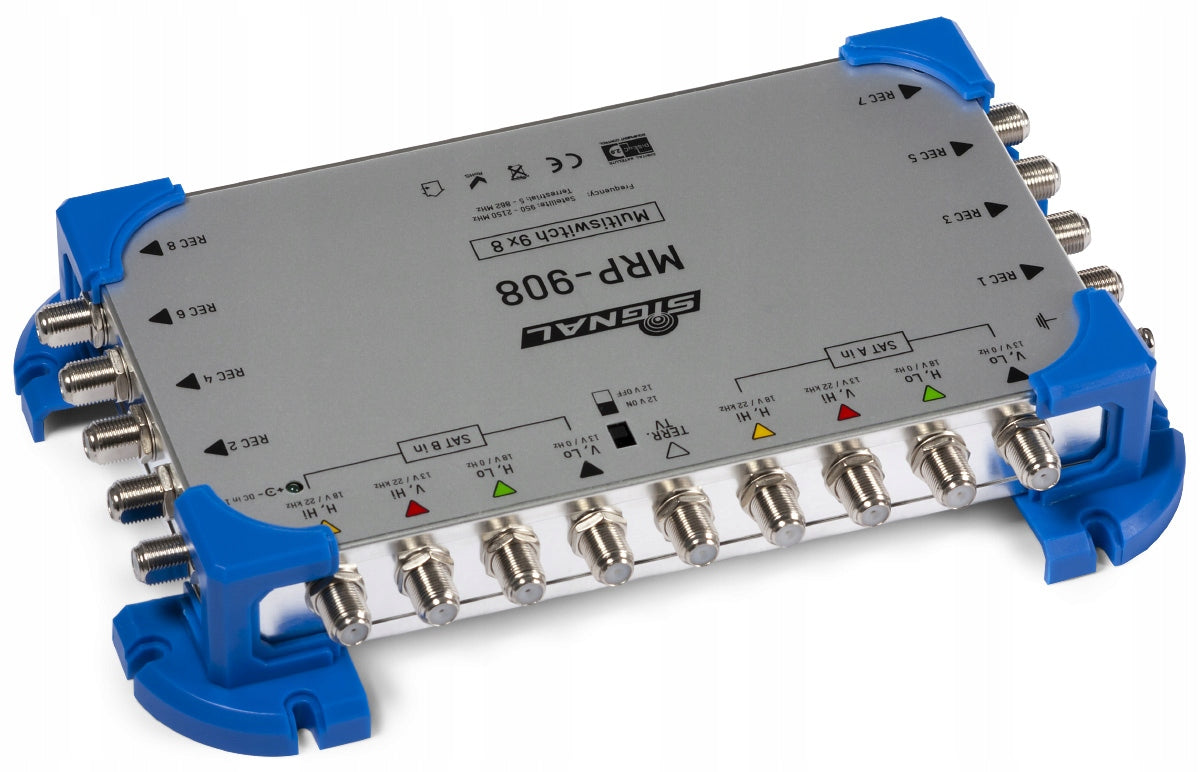

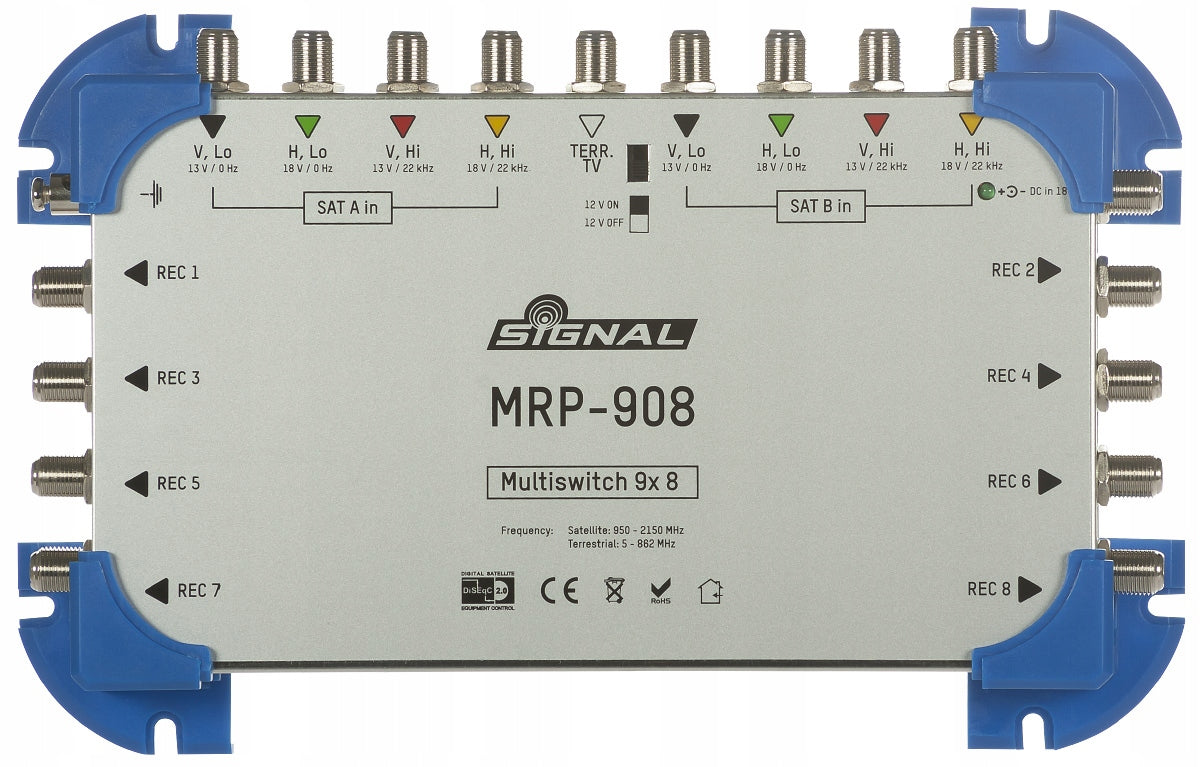

Multiswitch Signal MRP-908, 9 įėjimai, 8 išėjimai

Trumpai apie prekę

Prekė: Multiswitch Signal MRP-908, 9 įėjimai, 8 išėjimai. Kategorija: Multijungikliai.

• Gamintojas: Signal
• Modelis: MRP-809

Product Code: MRP-908

Distinguishing features:

• radial multiswitch,
• inputs: 8 of the two quatro LNBs, 1 terrestrial FM / DVB-T,
• outputs: 8 for SAT tuners,
• passive FM / DVB-T track equipped with On / Off switch 12V DC,
• separation between inputs greater than 25 dB,
• high separation of outputs 30 dB (no crosstalk between bands and polarities),
• cable characteristics pre-correction,
• very high input level of 105 dBμV,
• high output level: 100 dBμV,
• PSU and multiswitch voltage indicators (simple diagnostics of power failure or short circuit in the ground path),
• ground connection,
• compact dimensions 220 × 120 × 42 mm,

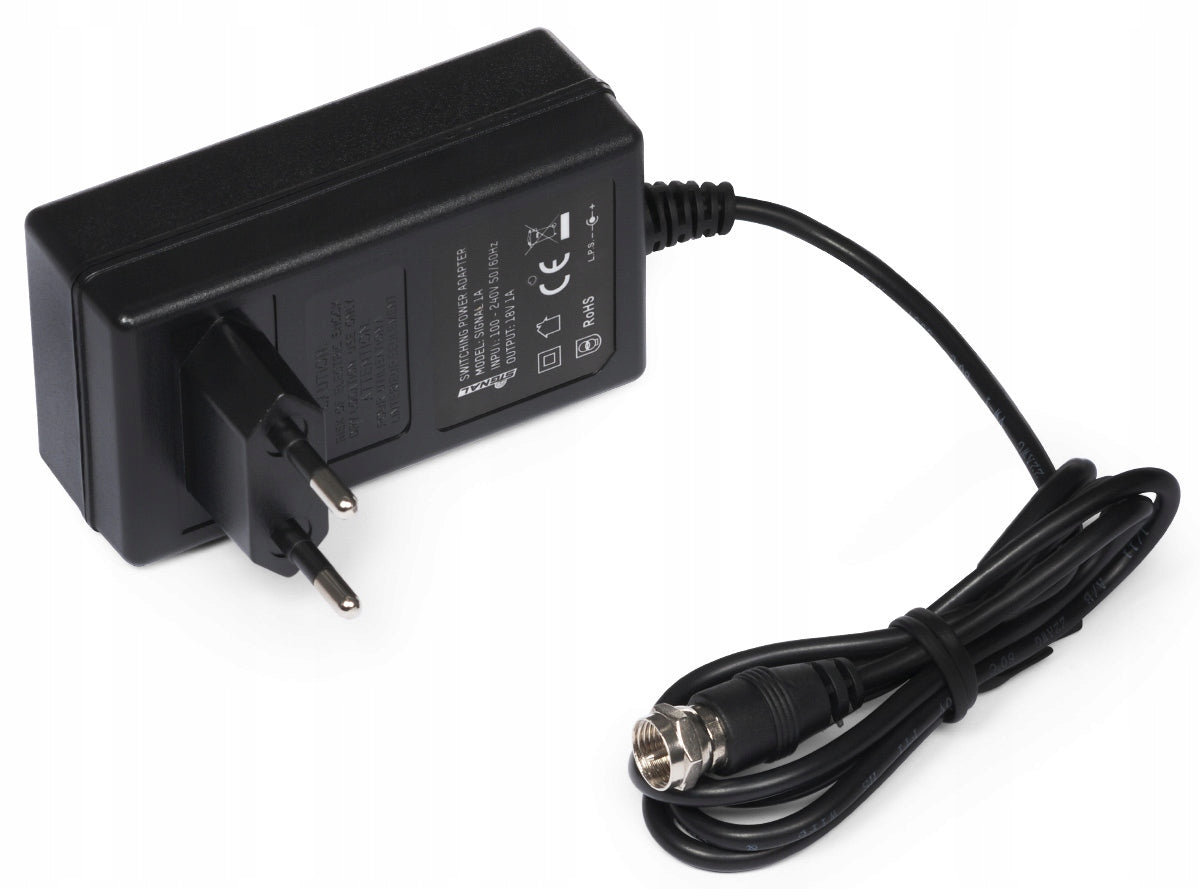

• external DC 18 V 1 A power supply,
• 3-year warranty.

The new family of Signal multiswitches enables the implementation of RTV / SAT installations in single-family houses and small residential and office buildings. Multiswitches are designed to work inside the building. Multi-range switches are dedicated to installations based on a star topology. In this type of systems, the cables from the end sockets converge at the place of multiswitch or multiswitch assembly. High separation of outputs (no crosstalk between bands and polarities) and built-in correction of cable characteristics make it possible to eliminate the influence of cable attenuation increasing with frequency.

Technical data:

• Name: MRP-908
• Inputs: 8xSAT, 1xFM / DVB-T;
• Outputs: 8
• Frequency range [MHz]: Terr: 5-862, Sat: 950-2150;
• Attenuation [dB]: FM / DVB-T 14 ± 1.5
• SAT 0
• Return loss [dB]: FM / DVB-T 8
• SAT 10
• Separation [dB]: polarization H / V 25
• between inputs 30
• FM / DVB-T outputs 22
• SAT 28
• Output level [dBμV]: 100
• Preamplifier power supply [V / mA]: 12/60 max
• Power supply: Input: 90-264V, Out: 18V 1A
• Working temperature range [ºC]: -20 ... + 50
• Dimensions [mm]: 222 × 142 × 42
