Neilona vārtiņu lenta ar tērauda stieni, M4, 1 m, līdz 800 kg

Trumpai apie prekę

Prekė: Nailoninė bėgio juosta vartams su plieniniu strypu, M4, 1 m, iki 800 kg. Kategorija: Diskai.

• Gamintojas: no brand
• Modelis: LZNM4-1

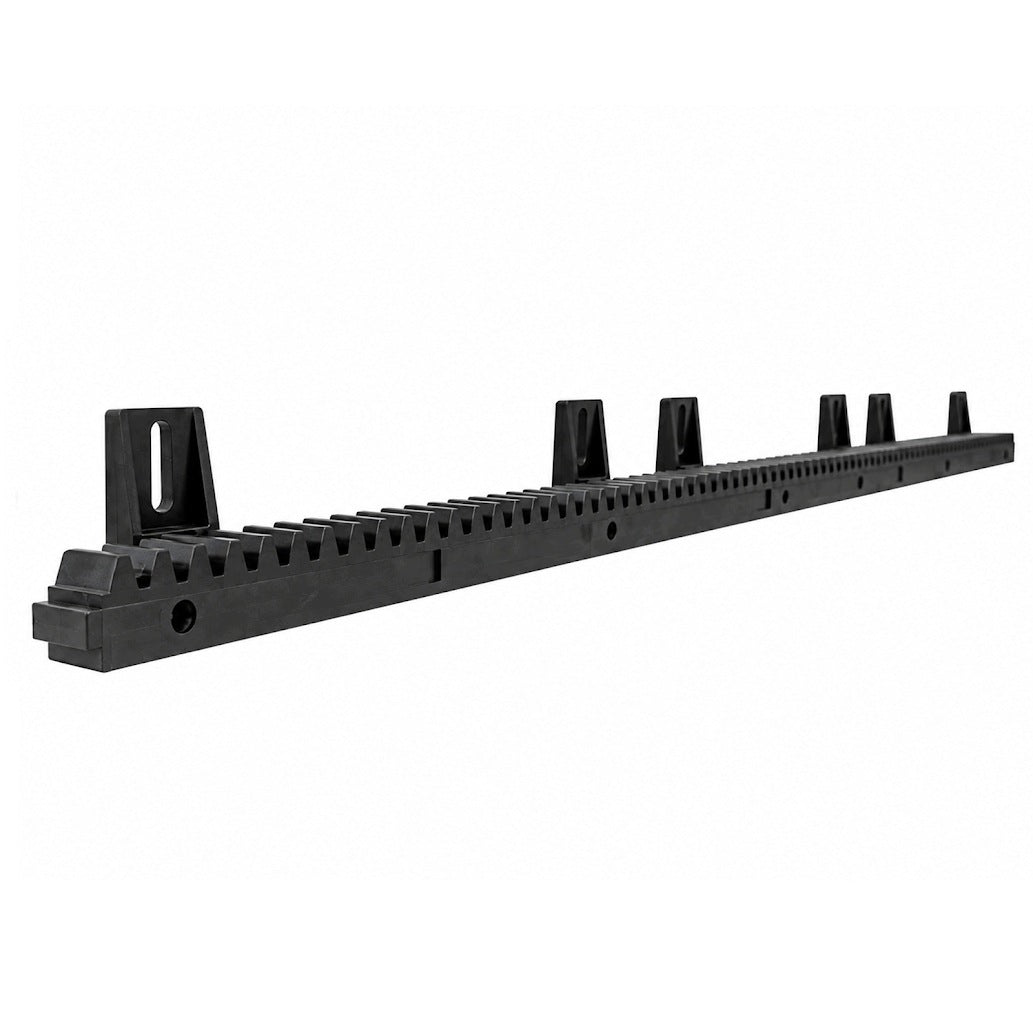

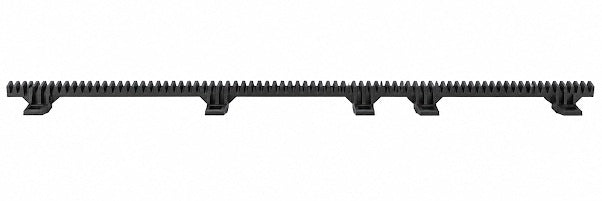

NYLON GEAR M4 1METER FOR SLIDING GATE UP TO 800 KG

Durable nylon gear strip designed for automatic sliding gate drives. The M4 tooth module enables cooperation with a properly matched gear of the gate machine.

The strip has a length of 1 meter and is designed for sliding gates weighing from 600 to 800 kg. Six attachment points allow you to securely mount it to the gate structure.

The set includes mounting screws and spacers, so the product is ready to install after proper adjustment to your drive.

THE MOST IMPORTANT ADVANTAGES

• length of the strip: 1 meter,
• standard M4 tooth module,
• designed for automation of sliding gates,
• suitable for gates weighing 600 to 800 kg,
• made of durable nylon,
• inside the strip there is a steel core
• six attachment points,
• the possibility of combining subsequent sections,
• quiet and smooth operation of the mechanism,
• resistance to conditions typical for external applications,
• Screws and spacers included.

TECHNICAL PARAMETERS

• Product Type: Sliding Gate Gear Strip
• Material: nylon
• Dental Module: M4
• Length: 100 cm
• Width: 2 cm
• Height: 3 cm
• Recommended gate weight: 600 – 800 kg
• Number of mounting points: 6
• Mounting Method: Screwed
• Application: sliding gate drive
• Number of slats on offer: 1 piece

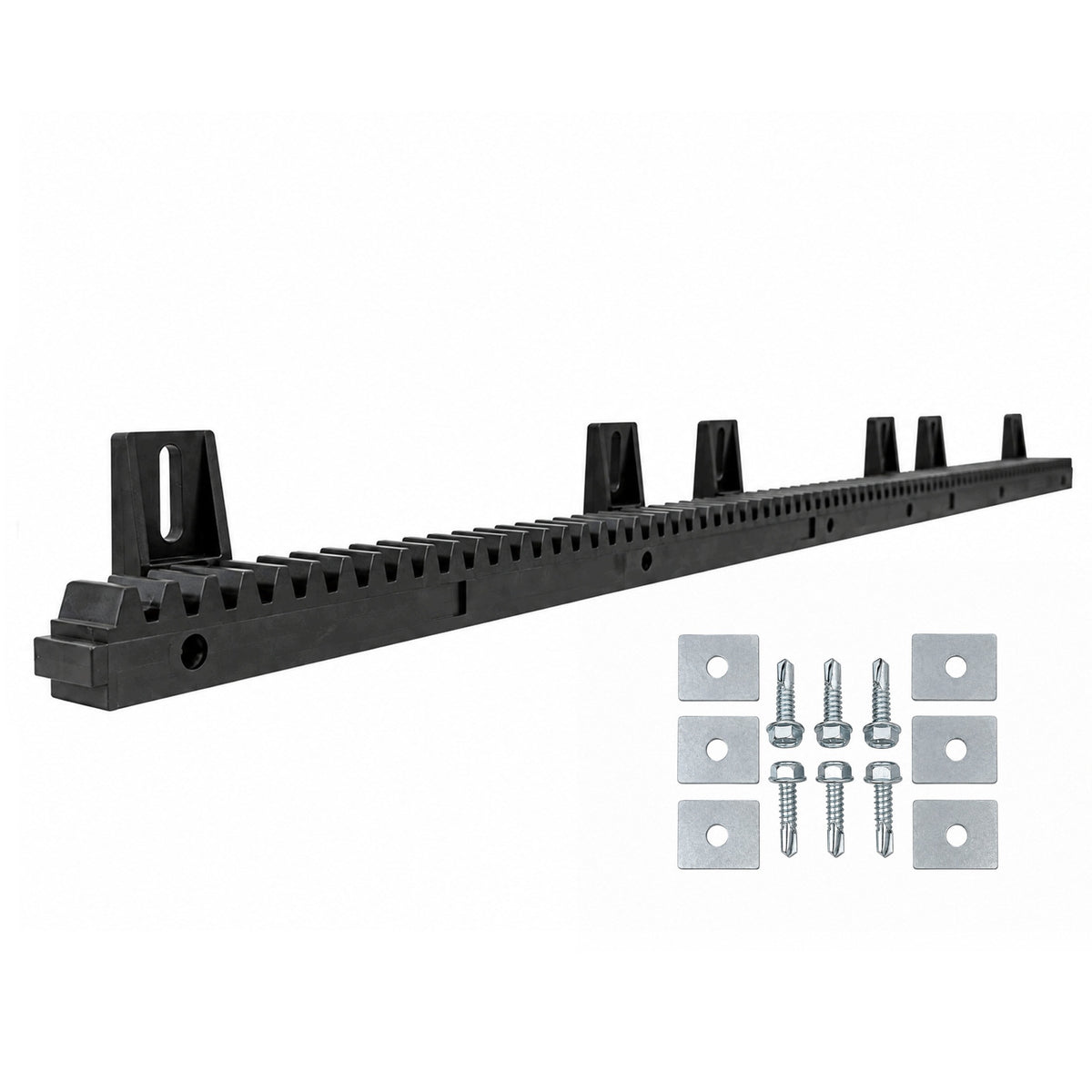

ASSEMBLY KIT

In the set you get:

• 1 × M4 nylon gear strip with a length of 1 m,
• 6 × mounting screw,
• 6 × spacer sheet.

Fasteners make it easier to maintain the proper distance of the strip from the gate structure and the correct adjustment of the teeth to the drive wheel.

APPLICATION

The gear rail is used to transfer movement from the drive gear to the gate leaf. It will work well during the installation of new automation, expansion of the mechanism and replacement of worn elements.

The strip can be used in:

• automatic sliding gates,
• property and entrance gates,
• home installations,
• entry systems in company areas,
• drives using M4 teeth.

ASSEMBLY OF SEVERAL EPISODES

One strip has a length of 100 cm. In the case of a longer gate, an appropriate number of sections should be used, maintaining the continuity of teeth on their joints.

During installation, you need to correctly adjust the height of the strip relative to the drive gear. The component should not base the weight of the gate on the drive wheel. After installation, check the free movement of the sash along the entire length.

BEFORE PURCHASE

Check whether your machine uses a gear compatible with the M4 module. You should also choose the number of slats according to the length of the gate leaf and the position of the drive.

The offer is for one 1 meter long nylon gear bar with six mounting screws and six spacer plates.
