Apraksts
Trumpai apie prekę
Prekė: Neodimio magnetas su rankena, 120 kg, Ø50 mm, 23 mm, paieškai su virve, 8 cm traukos nuotolis. Kategorija: Neodimio magnetai.
- Gamintojas: MAGNEPOL
- Modelis: MAGN-UM50

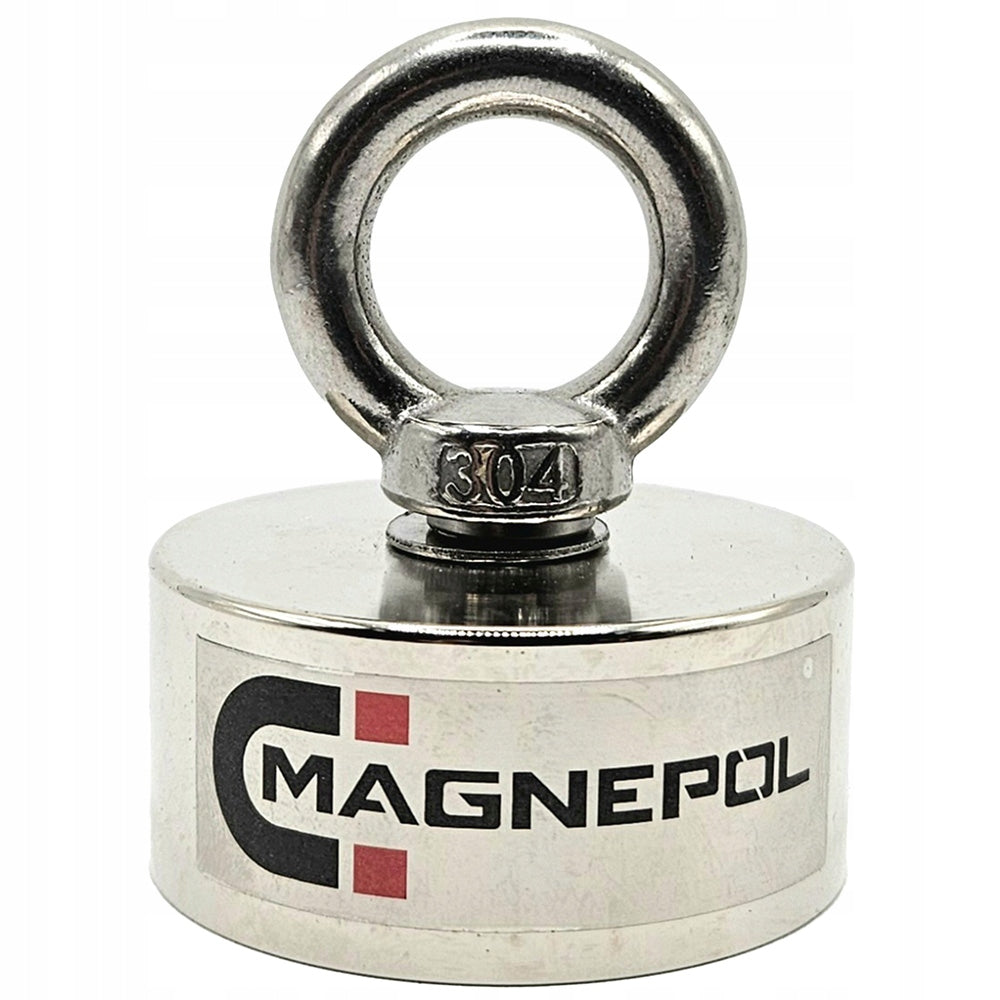

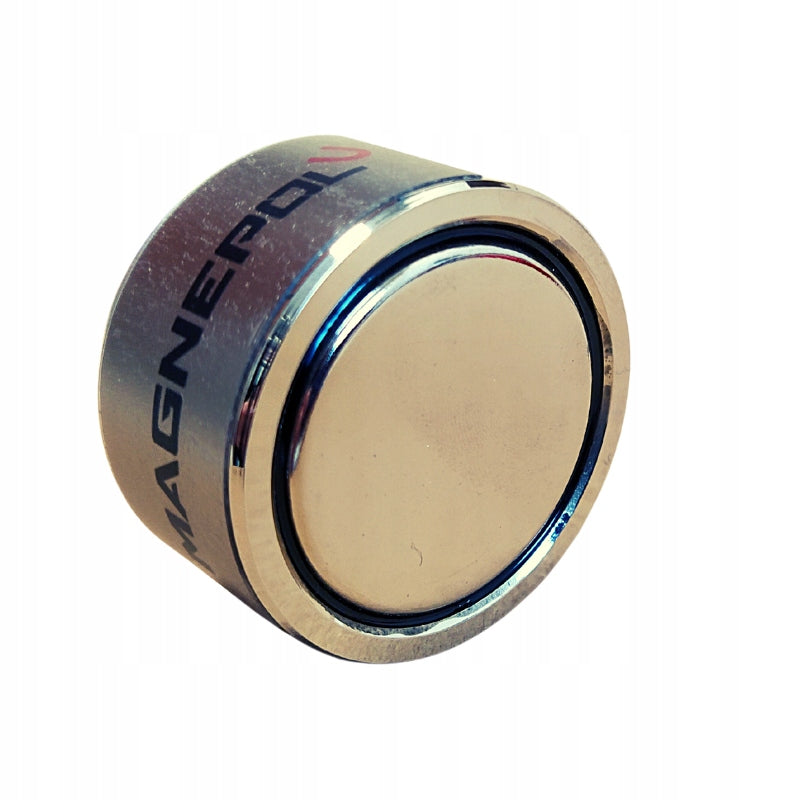

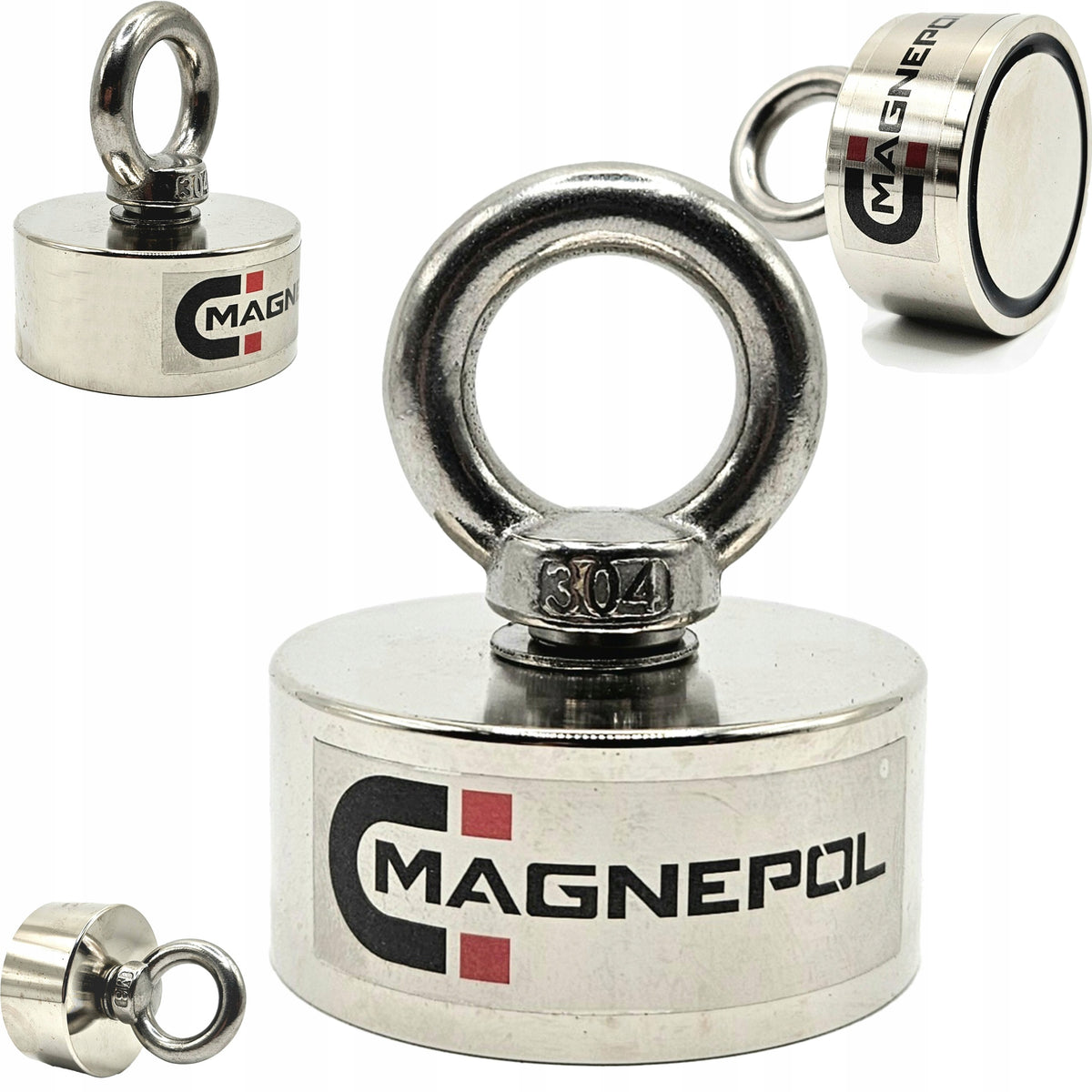

HANDLE WITH NEODYMIUM MAGNET
MAX LIFTING CAPACITY: 120kg*
Magnetic range: 8cm
Magnetic induction (max): 6200Gs
Anti-corrosion coating:
magnet - nickel + copper + nickel
housing - nickel + copper + nickel
Diameter: 50mm
Thickness: 23mm
Attachment - ear: screw with ear M8
*IMPORTANT: The given lift is checked using a special forcemeter, where the magnet is "glued" to a thick, even, steel surface and this is the maximum value.
The stated lifting capacity will be less for thin, uneven, paint-coated or rusted metals. In extreme cases, depending on the size, shape, iron content, as well as the state of the attracted object, the attraction force can drop to 0. The given parameter is used for comparison purposes between models.
WITH A STRONG NEODYMIUM MAGNET
and stainless steel rope ear
RELEVANT INFORMATION
The lifting capacity is a comparative parameter, while the operating range, i.e. the range of the magnetic field generated by the magnet, is an important parameter for determining the effectiveness of the magnet search.
High lift does not guarantee fruitful search - the range of the field may be too small to find and fish anything.
How do we measure the scope of action?
It is checked with a special magnetic field meter, which determines how large the range of the magnetic field is, expressed in centimeters and how high the density of the magnetic field is, expressed in the unit Gauss [Gs] or Tesla [T]
MAGNEPOL products are:
- Precise execution
- Accurately calculated magnetic gap, optimizing lifting capacity
- Properly selected housing thickness for comfortable use and protecting the magnet
- Magnet pasted onto epoxy resin, protecting it from falling out, shocks and getting into the handle of impurities
- Aesthetic cardboard box and polyurethane foam packaging
The thickness of the neodymium magnet housing matters.
Why?
One pole of the magnet acts directly on the attracted object, and the other saturates with its energy enclosure / handle, which in such a system also emits its own magnetic field.
Both the housing material, wall thickness and magnetic gap are of great importance in terms of maximum use of magnetic properties and protection of the magnet embedded in them.
MAGNEPOL products have been continuously improved for over 20 years.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Shape | cylinder |
| Parametry | Lifting capacity | 120 kg |
| Parametry | Material symbol | N52 |
| Parametry | Product weight with unit packaging | 0.81 kg |
| Parametry | Manufacturer code | MAGN-UM50 |
| Parametry | EAN (GTIN) | 5903003211778 |
| Parametry | Dimensions | 50x23mm |
| Parametry | Number of pieces on offer | 1 szt. |
| Parametry | Brand | MAGNEPOL |
| Parametry | Packaging status | original |
| Parametry | Additional information | with thread,with an eyebolt |
