Neodimio plokštelės magnetas 40x13,5x5 mm su poveržle, skylute varžtui, 4 vnt.

Trumpai apie prekę

Prekė: Neodimio plokštelės magnetas 40x13,5x5 mm su poveržle, skylute varžtui, 4 vnt.. Kategorija: Neodimio magnetai.

• Gamintojas: Sensei
• Modelis: Płytkowe Prostokątne Mocna Listwa Magnetyczna

▶ BRAND: Sensei

▶ MAGNET DIMENSIONS: 40x13,5x5 mm

▶ MAGNETIC CLASS: N45

▶ MAXIMUM LIFTING CAPACITY: up to 15 kg

▶ COATING: Anti-corrosion Ni-Cu-Ni

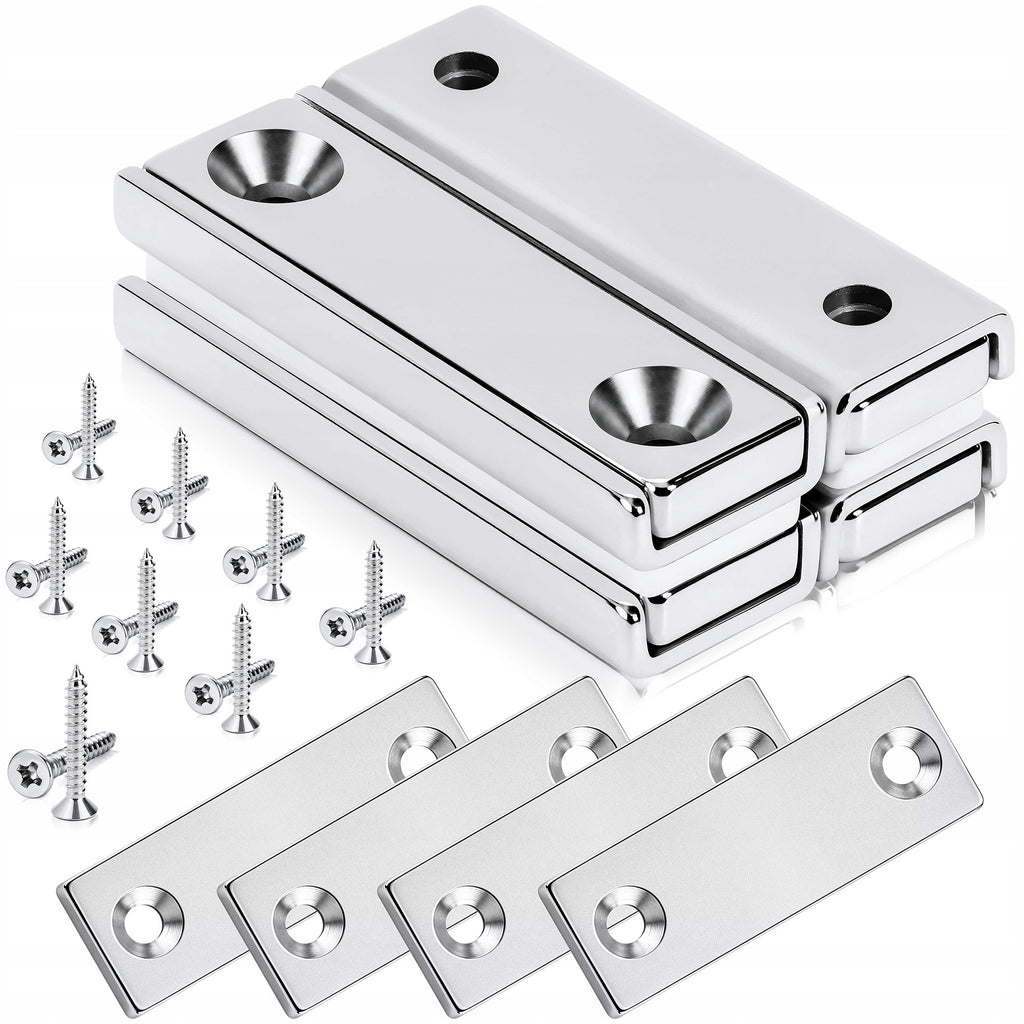

▶ SET: 4 magnets, 4 washers, 16 screws

⭐ Complete mounting kit, ready to use right out of the box. Embedding a neodymium core in a steel housing significantly increases the power of the magnet and its protection against breakage as a result of a violent impact.

⚡ Note: screws should be tightened sensitively. Despite the steel casing, the neodymium core is a brittle material, resembling ceramics. Tightening the countersunk screw too hard will act as a wedge and can cause the magnet to break from the inside.

A set of 2 magnets and 2 steel washers allows for several mounting options. Worth knowing: The magnets in this set have the same polarity (they push away from each other). The system is designed to be combined with steel washers from the set or directly with metal objects.

➡ Option 1 (Magnet itself): The simplest and most popular application. You screw the magnet to the wall, bookcase or shelf and attach metal objects to it. It will work well when organizing the workshop, keeping tools such as flat wrenches or hammers in place.

➡ Option 2 (Magnet + Washer): Classic hitch. You screw the magnet on one element (e.g. furniture frame), and steel pad on the other (e.g. doors). This solution stabilizes warped wooden cabinet doors, locks sliding doors and allows you to create invisible drawer protection against children. It works well as an effective alternative to forged, mechanical bolts and latches.

➡ Option 3 (Magnet + Material + Washer): You press the material (e.g. mosquito netting), inserting it between a screwed magnet and a loose (unscrewed) steel washer. Note: each layer of material acts as a distance and drastically reduces the power of the magnet, so this method will work only for light and thin materials (up to about 2 mm thick in the case of a Magnet + Washer connection).

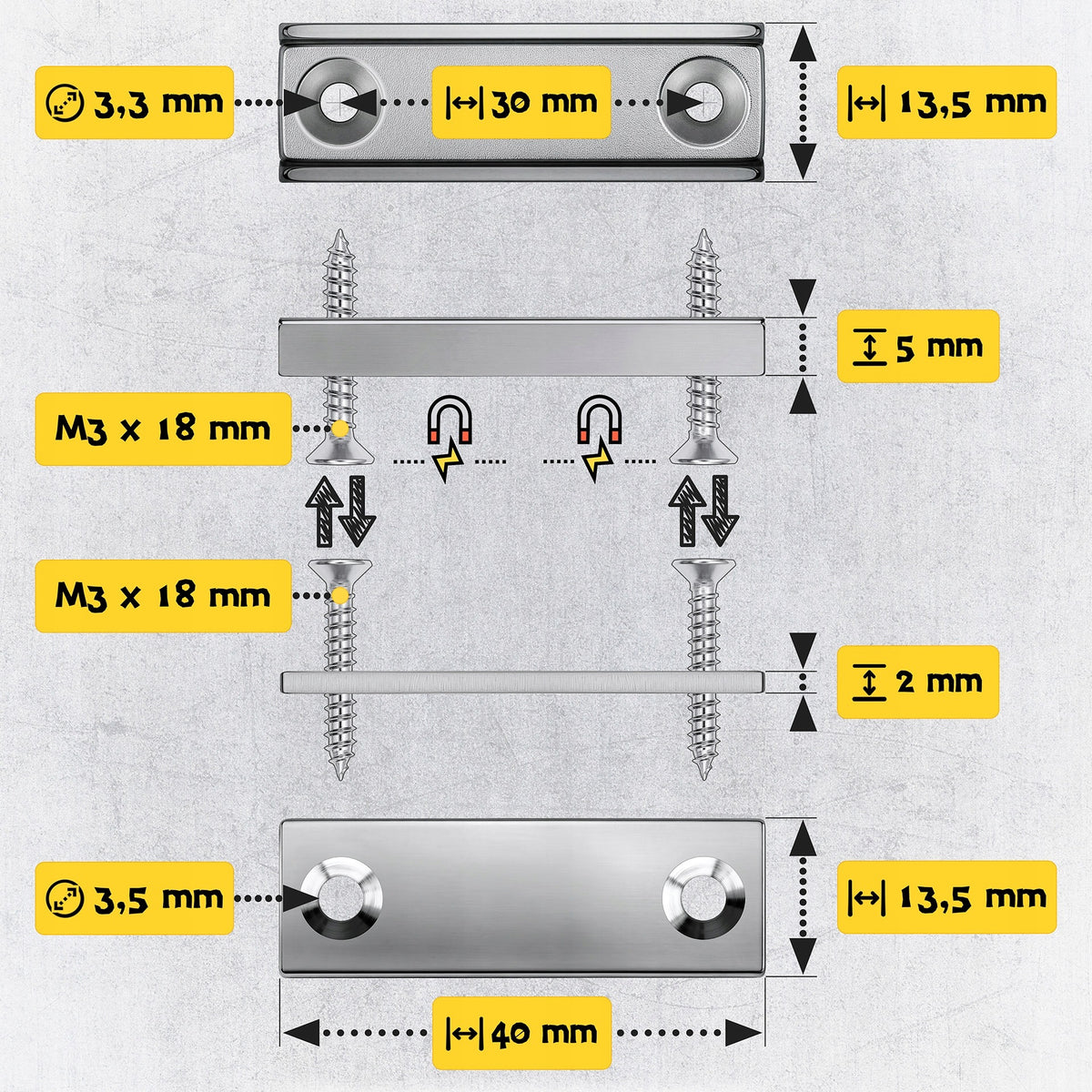

Magnets have a screw hole with the so-called. chamfering (cone-shaped). Thanks to this, after screwing in the included screws, their heads perfectly match the surface.

Neodymium magnets have a powerful attraction force. Taking care of your comfort and safety, each magnet in the box has been separated from the rest by a special plastic spacer. This makes it easier to separate them freely before assembly.

With a flat design, included steel washers, and screws, you get a reliable mounting system. This kit solves everyday problems where standard locks or hooks fail. Perfectly suited for:

✅ Furniture repair: as a hidden closure to solve the problem of warped wooden cabinet doors and non-closing oven doors.

✅ Security: for creating invisible from the outside, effective locks of drawers and cabinets against children and pets.

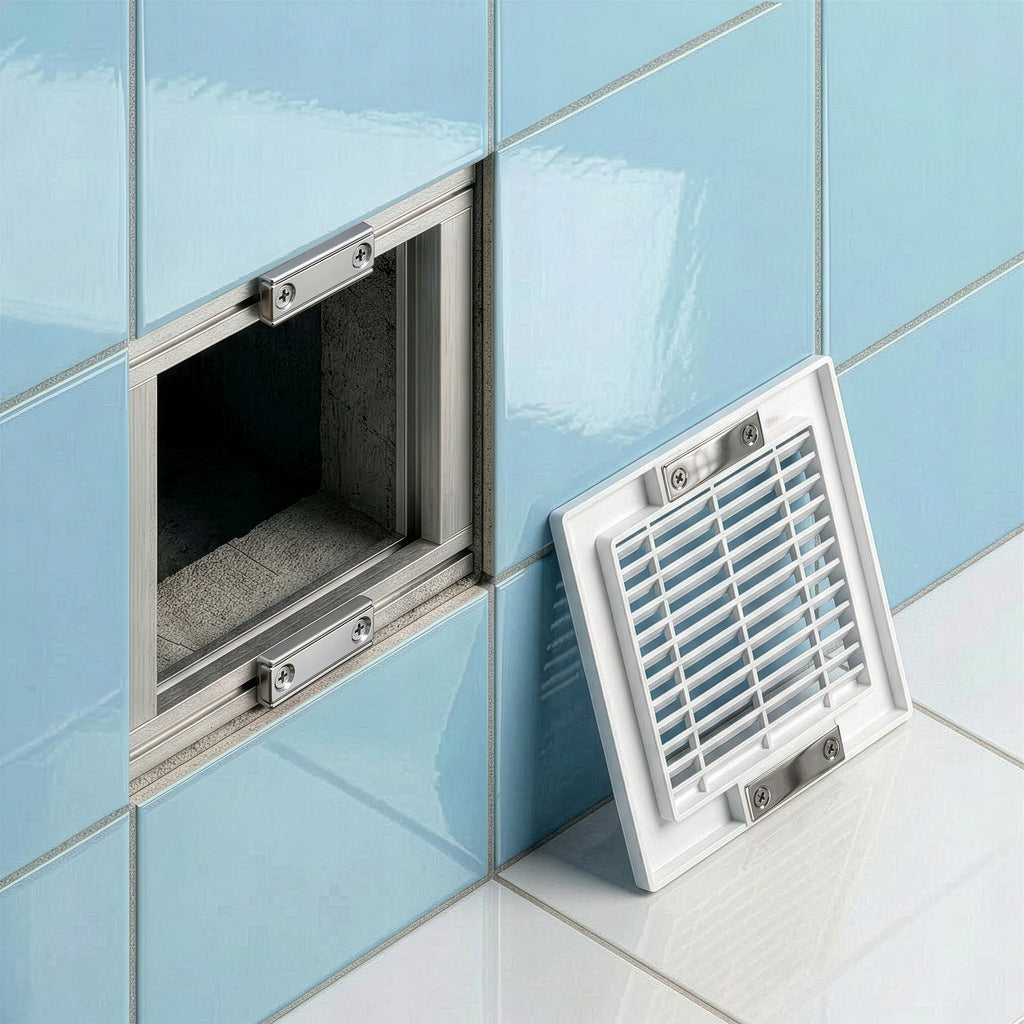

✅ Home and carpentry: for stable locking of sliding doors, terrace doors with mosquito net and for holding inspection doors (e.g. counter grilles).

✅ Workshop and garage: as a magnetic holder screwed to a wall or rack, facilitating the organization of medium-sized metal tools (e.g. flat wrenches, pliers, measuring cups).

✅ Automotive / Motorhomes: for secure locking of furniture fronts, which effectively prevents cabinets and drawers from opening automatically while driving and shocks.

Many sellers give inflated values. We play open cards and educate our clients. The maximum lifting capacity (15 kg) is the force measured in laboratory conditions with perpendicular detachment from the steel plate with a thickness of 2.0 mm.

Remember that in everyday use, the strength of the magnet is influenced by two key factors:

1 Thickness of the metal surface: the thinner, the smaller the tearing force of the magnet (see Table-1 in the graphic).

2 Direction of force action: if the magnet is affected by a sliding force, the weight maintenance is determined not by one (as in the case of detachment), but by two forces: pressure force (equal to the detachment force) and friction force depending on the friction coefficient of the magnet by a given type of surface (Table-2). On slippery, polished steel, the magnet will slide off much easier than on a rough, matte surface of the same thickness.

Take a look at our infographic to carefully plan your installation and choose the right configuration for your workload.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Shape	plate
Parametry	Lifting capacity	15 kg
Parametry	Additional information	with thread
Parametry	Material symbol	N45
Parametry	Product weight with unit packaging	0.13 kg
Parametry	Manufacturer code	Płytkowe Prostokątne Mocna Listwa Magnetyczna
Parametry	EAN (GTIN)	5906670594076
Parametry	Dimensions	40x13,5x5 mm
Parametry	Number of pieces on offer	2 szt.
Parametry	Brand	Sensei
Parametry	Packaging status	original
