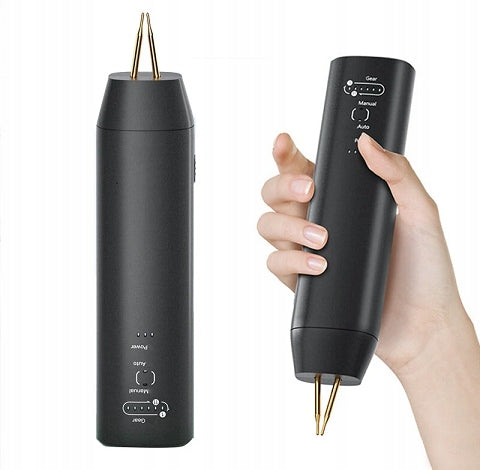

Nešiojamas taškinio suvirinimo aparatas H1 Dual Pulse su integruota 18650 baterija

Trumpai apie prekę

Prekė: Nešiojamas taškinio suvirinimo aparatas H1 Dual Pulse su integruota 18650 baterija. Kategorija: Sandarikliai.

• Gamintojas: Agoal
• Modelis: H1
• Įtampa: 5 V

The portable point welding machine for cells is a modern, compact device weighing only 128 grams, equipped with a built-in lithium-polymer battery and USB-C connector for charging. The welding machine offers a double pulse welding function, which allows for precise welding of sheets up to 0,25 mm thick, depending on the material. Thanks to welding electrodes 0,8 mm apart and 11 power levels, the user can adjust the settings to their needs, both in automatic and manual mode. The device provides voltage stability, has protection against falling, short circuit, and against too high and low temperature, and automatically turns off after 8 minutes of inactivity. When fully charged, it allows you to perform up to 1500 welding points, with a minimum current consumption of 80 uA.

Technical parameters

- withpoint welding machine, portable cell welding machine

- Built-in battery

- double pulse welding

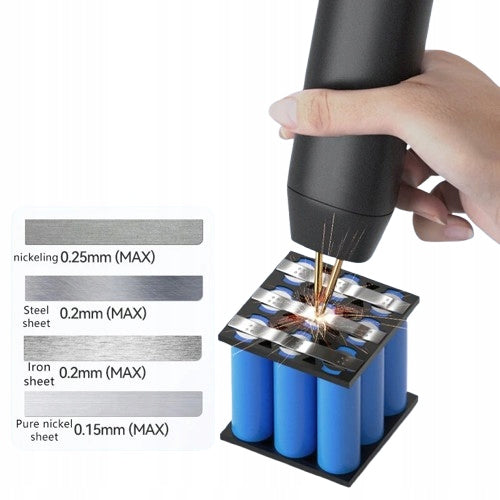

- welds sheet metal up to 0,25mm (depending on the material from which it is made)

- welding electrodes located at a distance of 0,8mm from each other

- small weight: 128g

- Automatic operation adjusts power settings by itself

- manual operation manually change the set power

- 11 power levels

- charge level indicator

- the size of the weld depends on the power level

- on a full charge allows welding up to 1500 points (depending on the size and set power)

- low power consumption of 80uA

- after 8 minutes of inactivity, it will automatically turn off

- protection against falling

- voltage stabilization

- Short circuit protection

- protection against too high and low temperature

- Built-in lithium-polymer battery

- USB-C connector for charging your device

- rated voltage 4,2V

- maximum output current: 650W

- dimensions: 830 x 215 x 35mm

- button for adjusting settings and operation

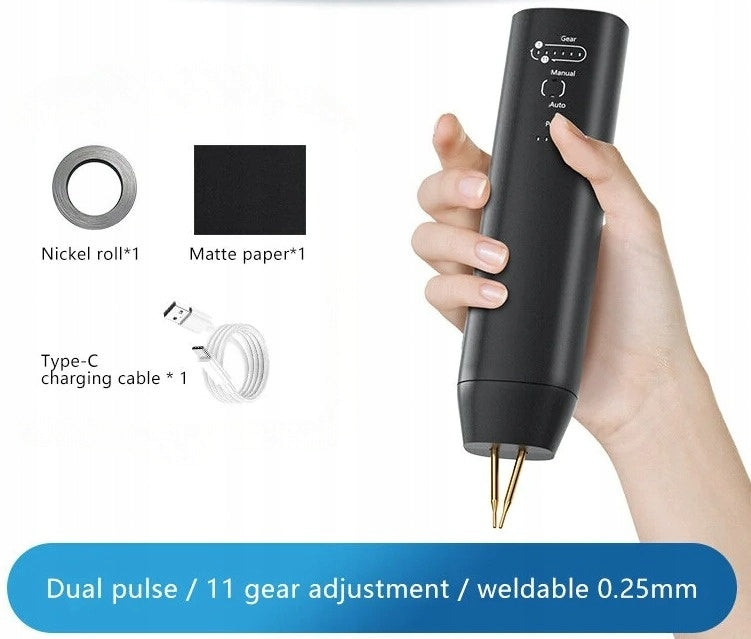

The set includes

- 1 x H1 Dual-Pulse Portable Spot Welding Machine

- 1 x USB charging cable

- 1 x original packaging

- 1 x roll of nickel-plated sheet metal - test

- 1 x Paper Mat
