Apraksts
Trumpai apie prekę
Prekė: Nešiojamas vienfazis dyzelinis generatorius Kraft&Dele, 7000 W. Kategorija: Elektros generatoriai.
- Gamintojas: Kraft&Dele
- Modelis: KD123
- Įtampa: 230 V
Single-phase diesel generator, designed for frequent use under heavy loads. A device with a professional construction, ideally suited for use in a company, farm, construction site, catering establishment, single-family house and many others.
For easier transport of this up to 165kg unit, four full rubber castors, bearing, were used in it. Housing reinforced with rivets at the bottom. Mechanical and electric ignition. Metal powder coated housing. The aggregate has a built-in voltage regulator, thanks to which the speed of rotation of the motor is adjusted to the current load. The solution allows you to minimize the amount of fuel burned.
- Model: KD123
- Phases: 1
- Voltage: 12/230-50/60 Hz
- Engine: Diesel air-cooled - Engine power: 7500 W
- Generator power: 7000 W Fuel consumption: 0.98 l/h - Volume fuel tank: 10L
- 3x sockets 230V 1x12V 8,3A
- Continuous power generator: 8,15 kVA / 6.5 KW
- Maximum generator power: 8,75 kVA / 7 KW
- Excitation mode: self-excitation and voltage regulator (AVR) ATS device allowing the unit to operate in the machine - Starting: ATS electrostart (automatic excitation)
- Additional electric start
- Built-in voltmeter
- Fuel Level Indicator - Output at 12 Volts
- Rectifier function 8,3A
- Built-in unit mounted on cushioning cushions
- Dimensions: 920x550x680 mm
- Weight: 165kg
- Highest quality requirements
- Short-circuit protection
- Aggregate adapted to work in the automation system (ATS)
- Very economical
- Rubber Stabilizers and Aggregate Engine Cushions
- Full AVR Voltage Stabilizer
- Digital display

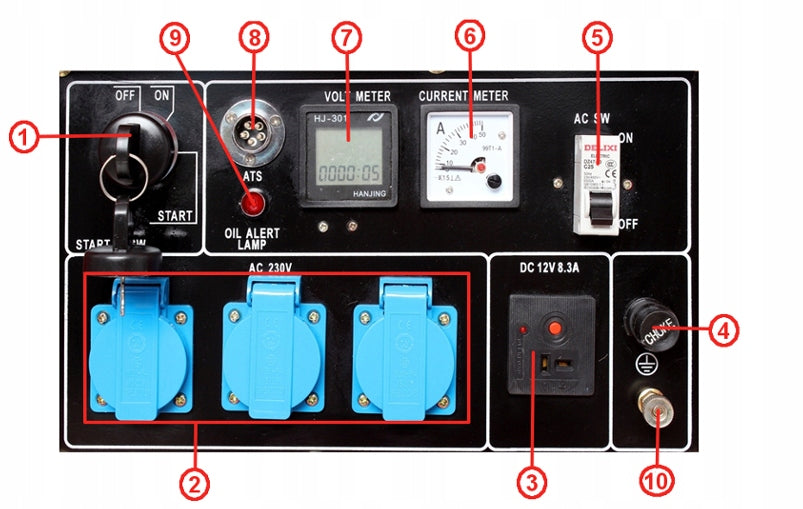

1. Electric start.
2. 230V AC sockets.
3. 12V DC socket.
4. Suction.
5. Short-circuit fuse.
6. Amperemeter.
7. Display LCD (motor hours, voltmeter, frequency).
8. ATS socket (automatic excitation).
9. Low oil warning diode.
10. Grounding.
The AVR system allows you to power modern and distortion-sensitive electronics such as computers, ups, pumps, etc. The principle of operation is to maintain a constant voltage at all phases, regardless of the momentary load of the generator.

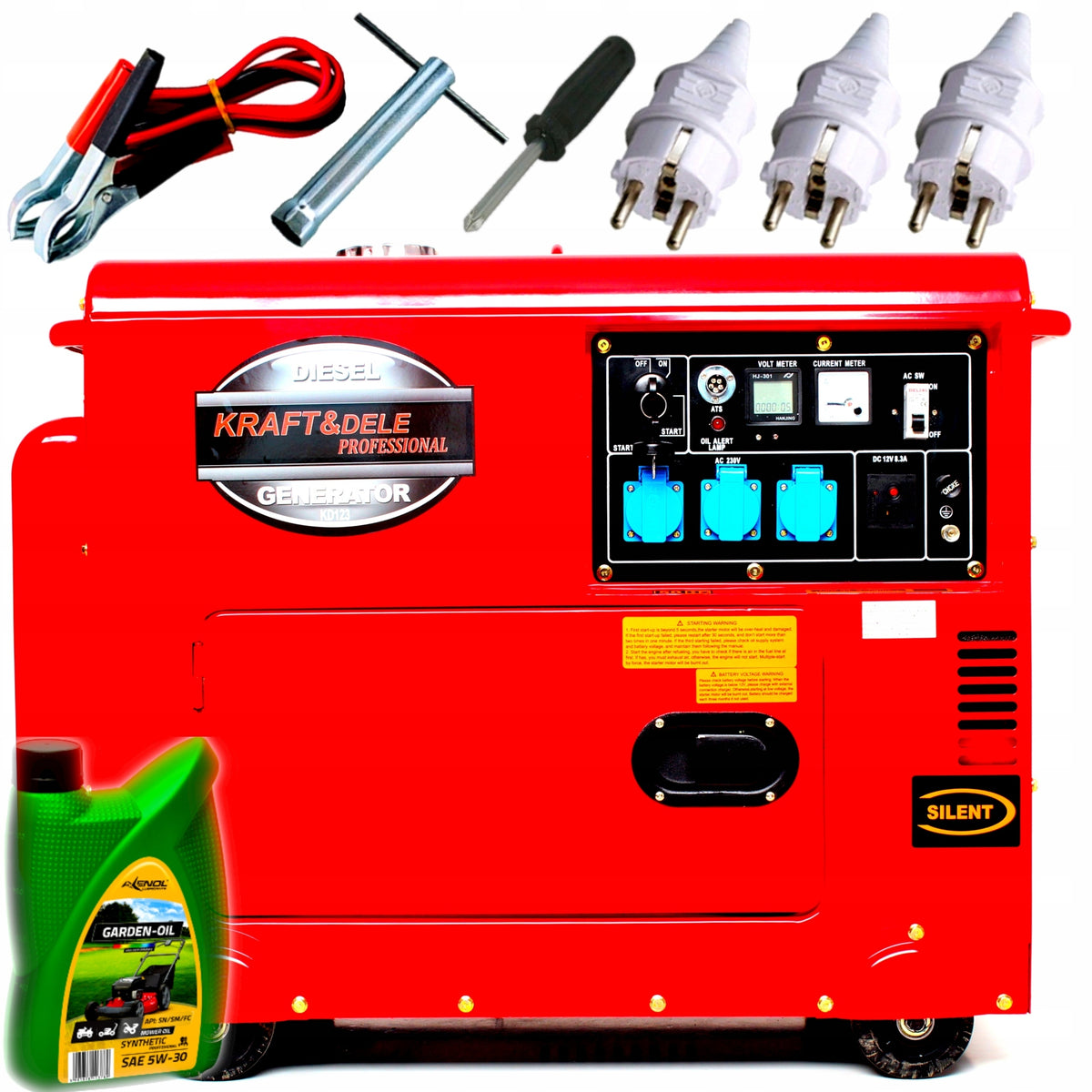

Composition of the set:
Generator set kd123 Kraft&Dele User manual in Polish
12V Battery Charging Cables
Candle Wrench / Screwdriver
0,6L oil
Set of current plugs
Keys for electric start-up
- Highest quality of workmanship, (meets all strict quality standards)
- Short-circuit protection C25
- Amperemeter - gives the current consumption (A)
- DC socket 12V 8,3A
- Aggregate adapted to work in the automation system SZR(ATS)
- Digital display giving real-time operating parameters of the unit: output current frequency (Hz), output voltage (V) and time worked by the unit (MTH)
- Quiet and even engine operation,
- The engine of the unit has a cast iron and hardened piston,
- Very economical,
- Rubber stabilizers and engine cushions of the unit (vibration damping and noise reduction),
- Full voltage stabilizer AVR,
- ATS system
- Meets environmental safety standards (TUV, CE, GS)
The most important elements of the generator, such as stands and rotors used in Kraft&Dele aggregates, are made of pure copper of the highest quality with very good electrical conductivity.
The use of high-quality copper allows for a longer service life, which translates into the production of less heat.
It achieves efficiency higher to 5% than aggregates with traditional aluminum winding.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | Kraft&Dele |
| Parametry | Model | KD123 |
| Parametry | Kind | portable |
| Parametry | Generator type | single-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 7000 W |
| Parametry | Nominal power of the alternator | 7000 W |
| Parametry | Engine power | 10 KM |
| Parametry | Gasoline tank capacity | 0.42 l |
| Parametry | Device weight | 160 kg |
| Parametry | Fuel type | diesel fuel |
| Parametry | Frequency | 50 Hz |
| Parametry | Operating time on the tank | 14 h |
| Parametry | Lc IEC noise level | 90 dB |
| Parametry | Product height | 70 cm |
| Parametry | Product width | 91 cm |
| Parametry | Product depth | 55 cm |
| Parametry | Average combustion | 1 l/h |
| Parametry | Number of 1-phase outlets | 3 |
| Parametry | Number of 3-phase outlets | none |
| Parametry | Supply voltage | 230 V |
| Parametry | Manufacturer code | KD123 |
| Parametry | Product weight with unit packaging | 165 kg |
| Parametry | Startup | electric,manual |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
