Nuotolinio valdymo pultas ELMES MTX su STX kodu, 2 kanalų

Trumpai apie prekę

Prekė: Nuotolinio valdymo pultas ELMES MTX su STX kodu, 2 kanalų. Kategorija: Rinkiniai.

• Gamintojas: Elmes
• Modelis: MTX z kodem STX

MTX with code STX!!! - two-channel radio transmitter without housing - ELMES

KEELOQ® variable coding system

Alarm transmissions are dynamically encoded in the KEELOQ® system from Microchip USA, ensuring the highest level of security.

Each press of the remote control button generates and sends a new code.

The receiver tracks these changes and only responds to new code. Codes once used are not accepted.

Prevents from reusing captured codes.

___________________________________________________

The MTX transmitter with the STX code is basically the same transmitter as the regular MTX, but...

If we want to be 100% sure that our blinds will actually be closed (after one control) or open, I suggest buying it.

Ordinary MTX after one control, unfortunately will not always give us such certainty.

MTX with STX code is a radio transmitter for the 433,92MHz band, which works with all Elmes Elektronik receivers, (exception RP501HRhet).

The operating range in open space is maximum 100 meters.

The transmitter has wired leads, the shorting or opening of which triggers radio transmissions.

3 wires are derived from the transmitter: common (+9V) and two corresponding to the first and second buttons of the two-button remote control.

Shorting the common cable with one of the others corresponds to pressing the first or second button of the remote control.

To ensure reliable operation with very short stimulation, the transmission is extended by 1,5 seconds.

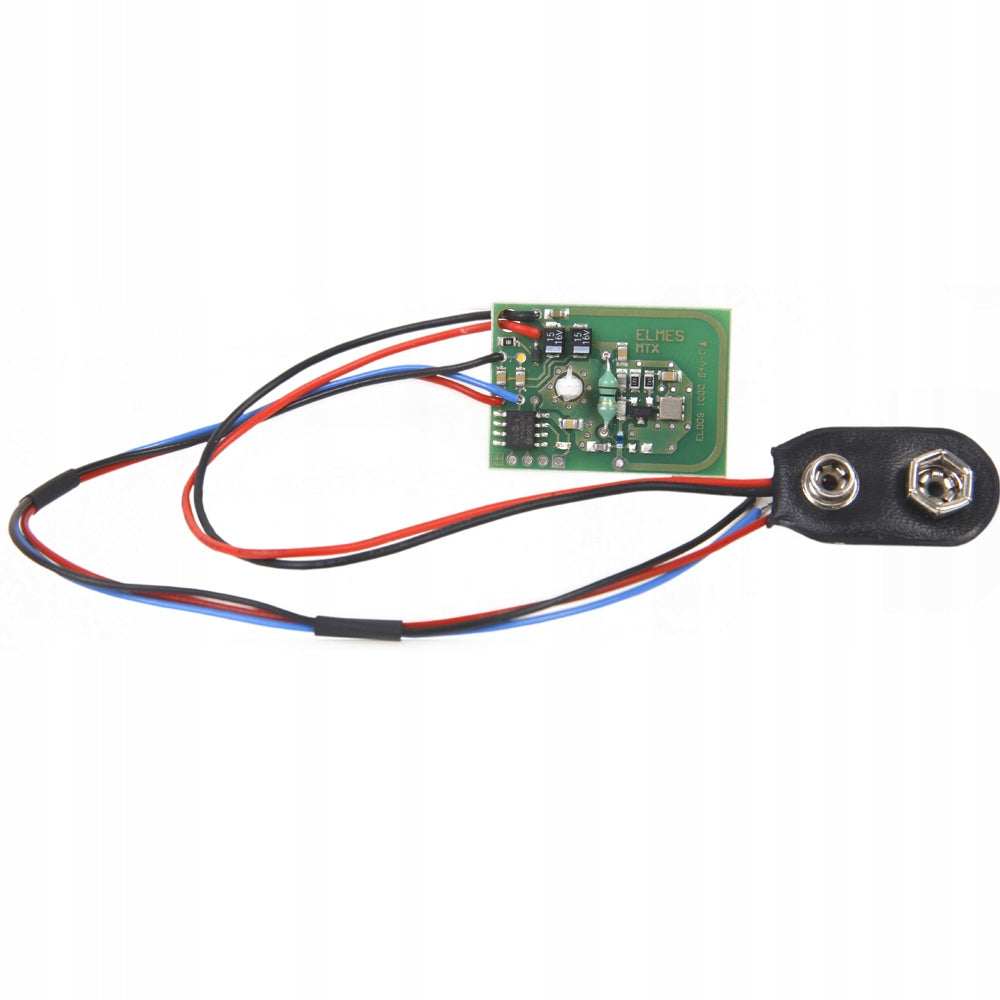

The transmitter is offered in the form of a circuit board with 200mm long control cables and a clip for 9V batteries.

Small size and installation foot allow installation

For example, under a double bell switch in an electric flush-mounted installation box.

ALL PILOTS of the ELMES brand and other products are in adjacent auctions.
