Nuotolinio valdymo pultelis 4 kanalų ZAMEL P-457/4 EXL10000008

Trumpai apie prekę

Prekė: Nuotolinio valdymo pultelis 4 kanalų ZAMEL P-457/4 EXL10000008. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: P-457/4

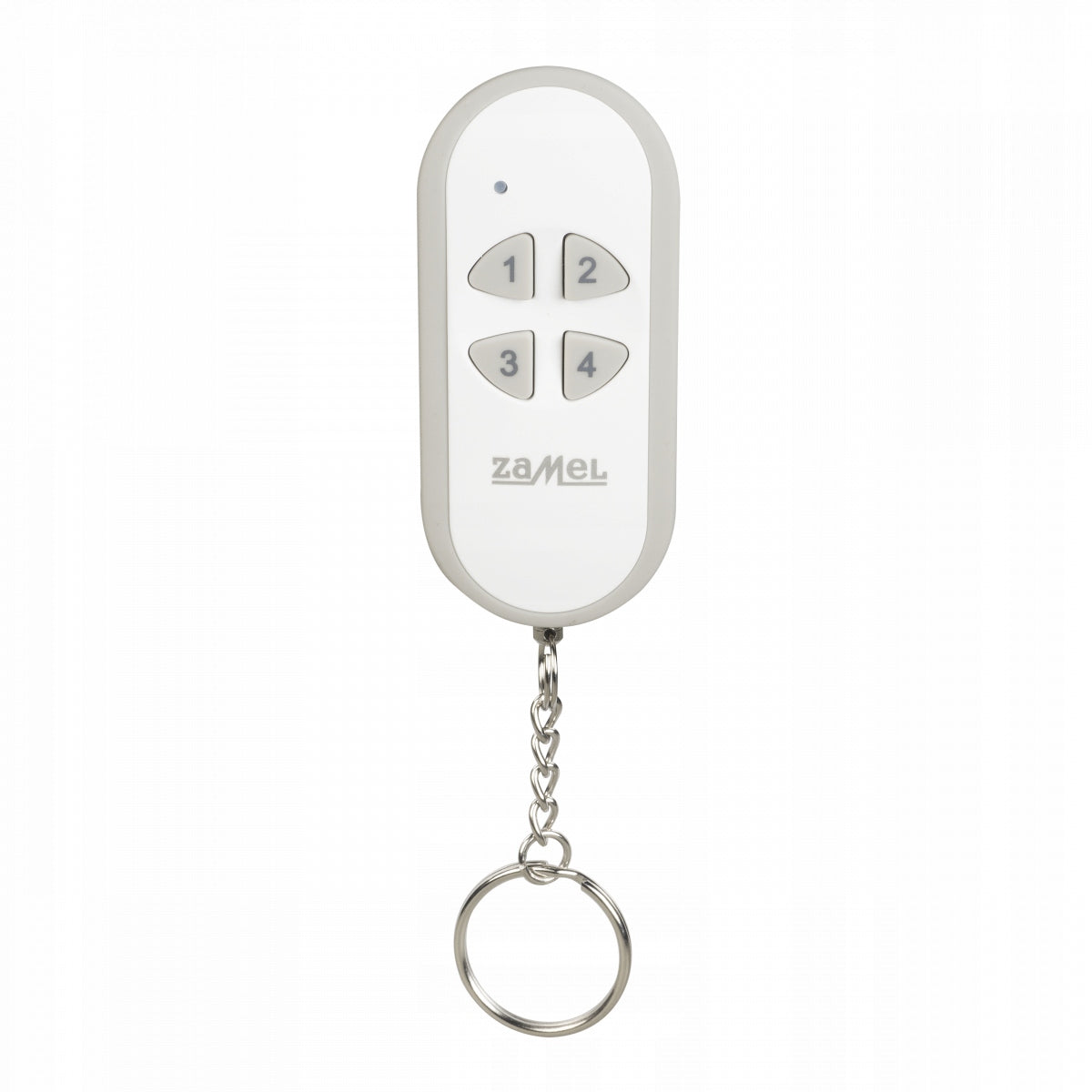

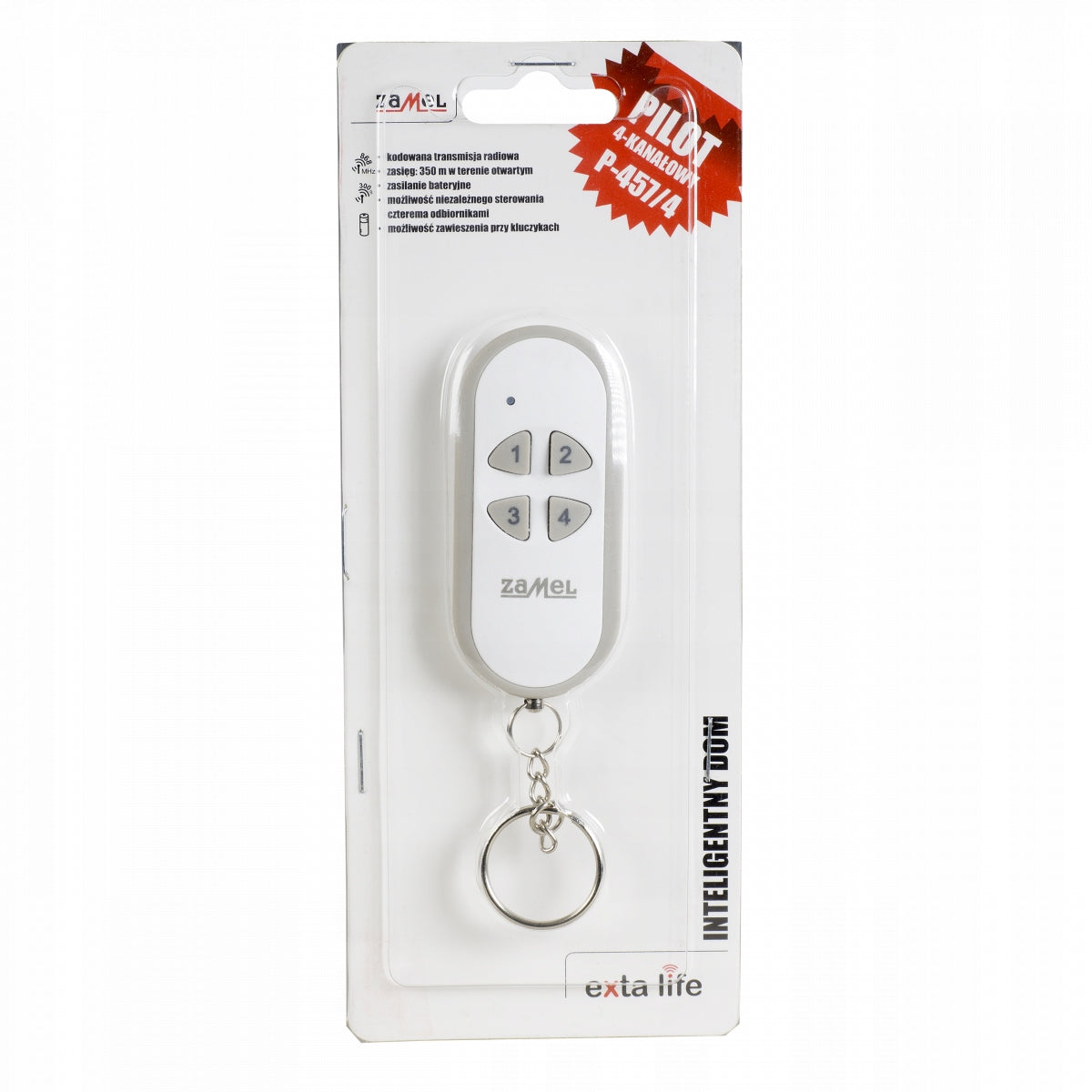

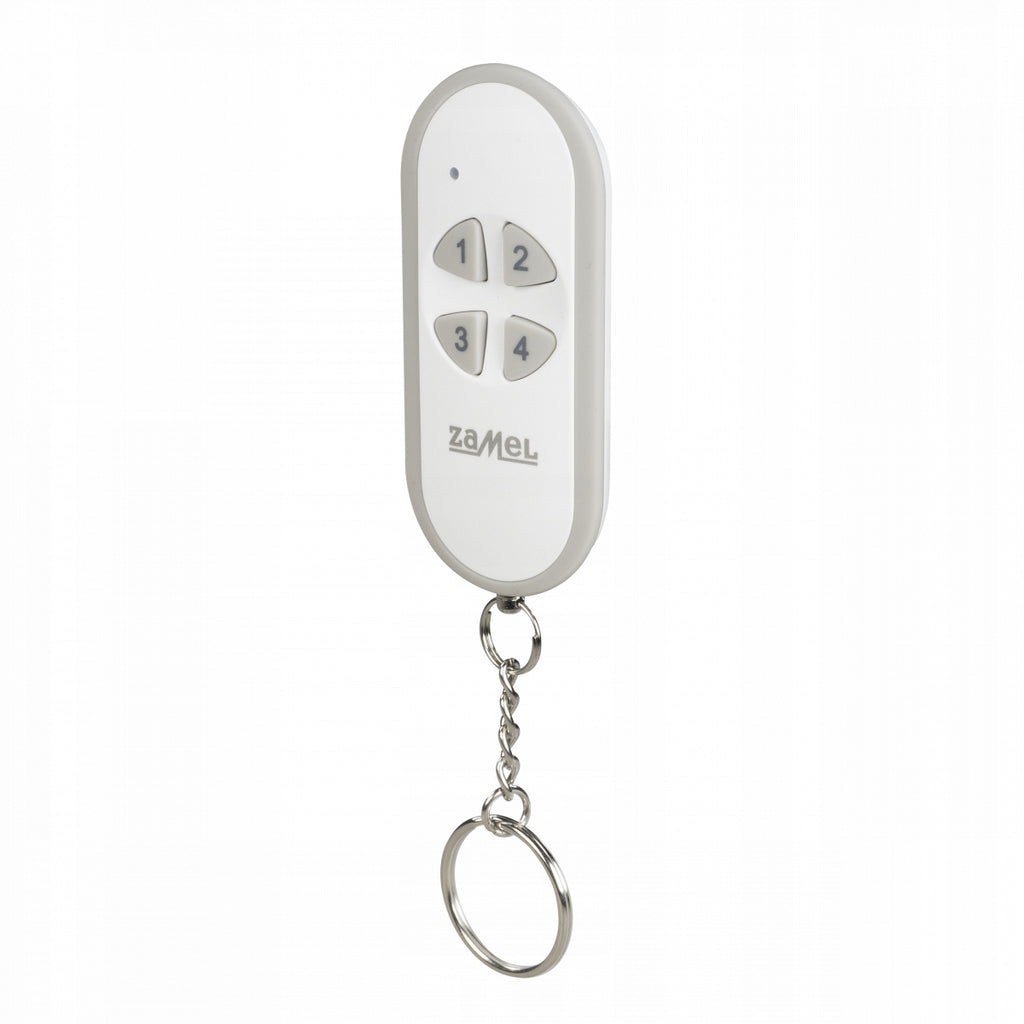

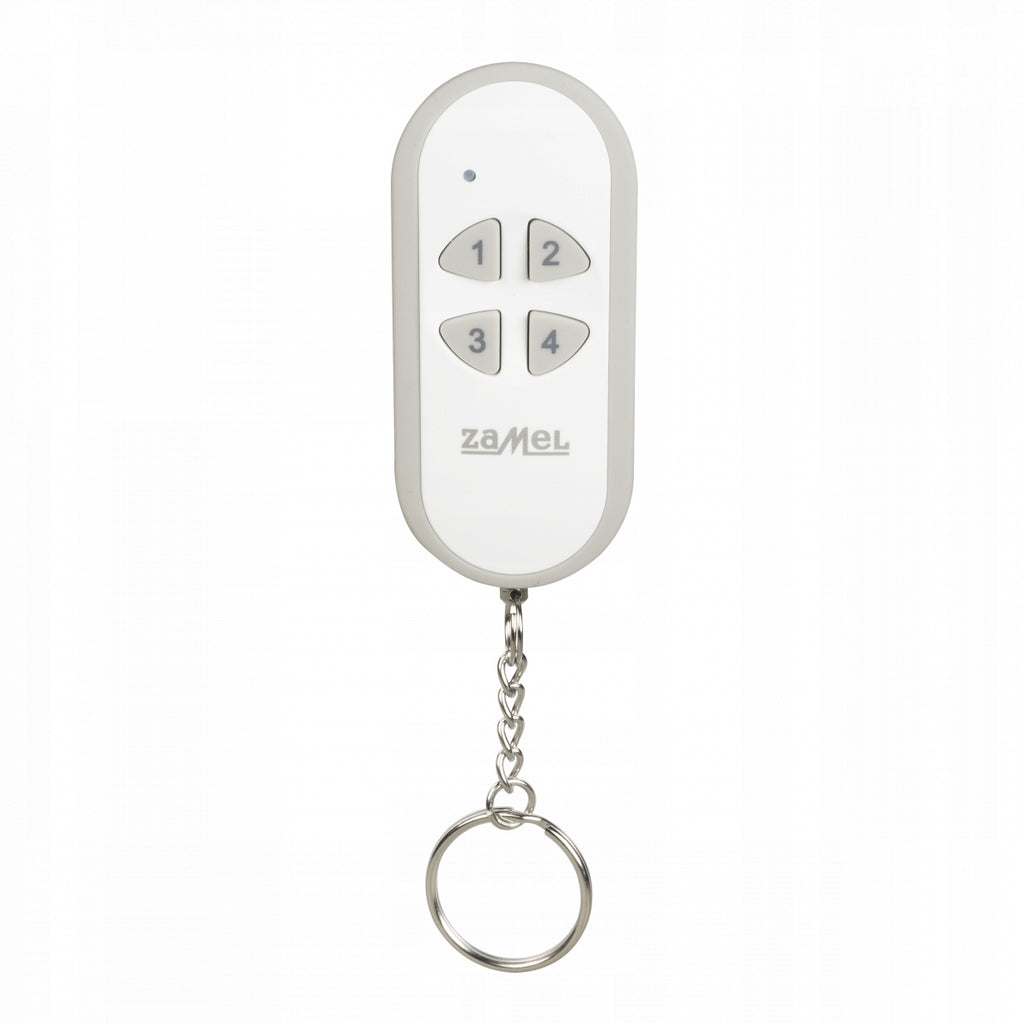

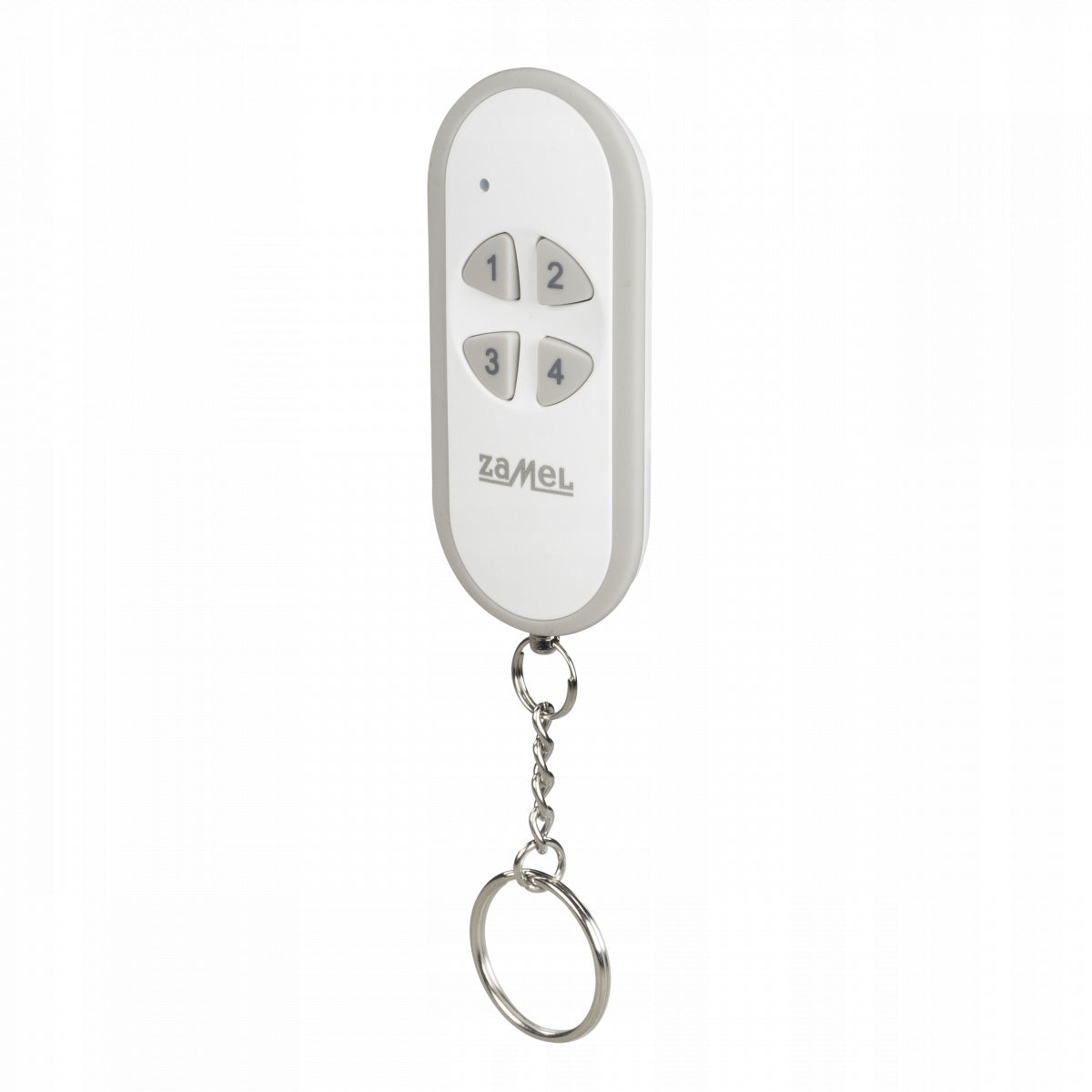

Pilot P-457/4 (4-button) allows wireless control of receivers of the EXTA LIFE system. It is used for remote switching on/off lighting, lightening/dimming operations and for the operation of window blinds, entrance gates and garage doors. The implemented frame encoding algorithm increases control security. The remote control is distinguished by its small dimensions, ergonomic shape and attractive appearance. Comfortable silicone buttons for easy control. A practical chain with a keychain allows you to mount the remote control, for example, with car keys.

• 4-button radio remote control (4-channel),

• Remote control of EXTA LIFE receivers,

• Possibility of independent control of four receivers,

• Encrypted radio transmission

• Battery powered,

• Small size, ergonomic silicone buttons,

• Long operating range (up to 350 m in open area).

When the button is pressed, the remote control sends a radio signal to the EXTA LIFE system components. This is indicated by the blink of a green LED in the remote control. The receiver similarly signals the reception of the signal. In order to work properly with receivers, the remote control must be properly paired with them. The method of pairing (entering individual buttons into the receiver memory) is described in the instructions for use of individual EXTA LIFE receivers. The remote only sends a radio signal when you press/release the button. When the button is pressed, the radio signal is not sent. This protects against too fast battery discharge.

The given range of action concerns open space, i.e. ideal conditions, without obstacles. If there are obstacles between the receiver and the transmitter, it is necessary to provide for a reduction in the operating range for: wood and gypsum by 5 to 20%, bricks from 20 to 40%, reinforced concrete from 40 to 80%, respectively. With metal obstacles, the use of radio systems is not recommended due to the significant limitation of the operating range. The range of operation is also negatively affected by overhead and underground high-power lines and GSM network transmitters located in close proximity to devices.

● standard functionality allows direct control of EXTA LIFE receivers,

● the functionality of individual remote control buttons depends on the type of receiver with which the buttons have been paired (for example, after pairing with the ROP-22 receiver, the buttons can be used to turn on / off the lighting and after pairing with the SRP22 roller shutter controller to close / open the roller shutters),

● individual buttons can be assigned simultaneously to more EXTA LIFE receivers,

● in the event that one remote control is to control more than one receiver, the recommended mode of operation is the "on / off" mode (for example: "1" button - turn on, "2" button - turn off or vice versa),

● remote control buttons can be assigned to receivers in different operating modes, which depend on the type of receiver (details described in the operating instructions of individual EXTA LIFE receivers),

● if the remote control buttons are assigned to the receiver in time mode, you can assign an individual time in the range from 1s to 18 hours for each button,

● buttons can be selectively removed from receiver memory

• Trademark: P-457/4
• Manufacturer code: EXL10000008
• Rated supply voltage: 3 V DC
• Battery type (quantity): CR2032
• Battery life: 3 ÷ 5 years (depending on usage)
• Number of channels: 4
• Transmission: radio – ISM 868 MHz band
• Transmitter power: ERP < 20 mW
• Transmission method: one-way – 9600 bps
• Encoding: algorithm based on 128 bit key
• Cooperation: only with EXTA LIFE system elements
• Range: up to 350m in open area
• Indication of battery transmission/discharge: LED green
• Operating temperature: -10 ÷ 55 ºC
• Position of work: any
• Degree of protection: IP20
• Protection class: III
• Degree of contamination: 2
• Dimensions: 74 x 33 x 11,5 mm
• Weight: 0,025 kg

Instructions available for download in "Additional information"
