OBD-2 atminties išsaugojimo LED baterija, 5A

Trumpai apie prekę

Prekė: OBD-2 atminties išsaugojimo LED baterija, 5A. Kategorija: Baterijų testeriai.

• Gamintojas: no brand
• Modelis: 6978394278425

• 【High Quality OBD2】 Battery Memory: Our OBD2 battery saver is made of pure copper wire and high quality silicone cable, which is highly insulated and durable. With built-in overload protection for safe operation during the entire battery replacement
• 【Smart display and compatibility】: OBD2 cable shows switching between displaying voltage and current back and forth. The 150cm adapter works with any 12V DC power source and is compatible with passenger cars, SUVs and light commercial vehicles
• 【Easy OBD2】 installation: red terminal to positive pole, black terminal connect to negative pole. Insert the OBD plug into the vehicle socket – after a successful connection, the red LED lights up. No additional configuration required
• 【Reliable memory protection】: OBD2 adapter continuously powers current to car systems and prevents data loss in control devices. Nickel-plated crocodile clamps provide corrosion resistance contact for long-term reliability
• 【 Versatile Use】: Prevents hour resets, audio settings, window lifters and sitting position. OBD2 plug maintains individual vehicle configurations during maintenance work on the car battery

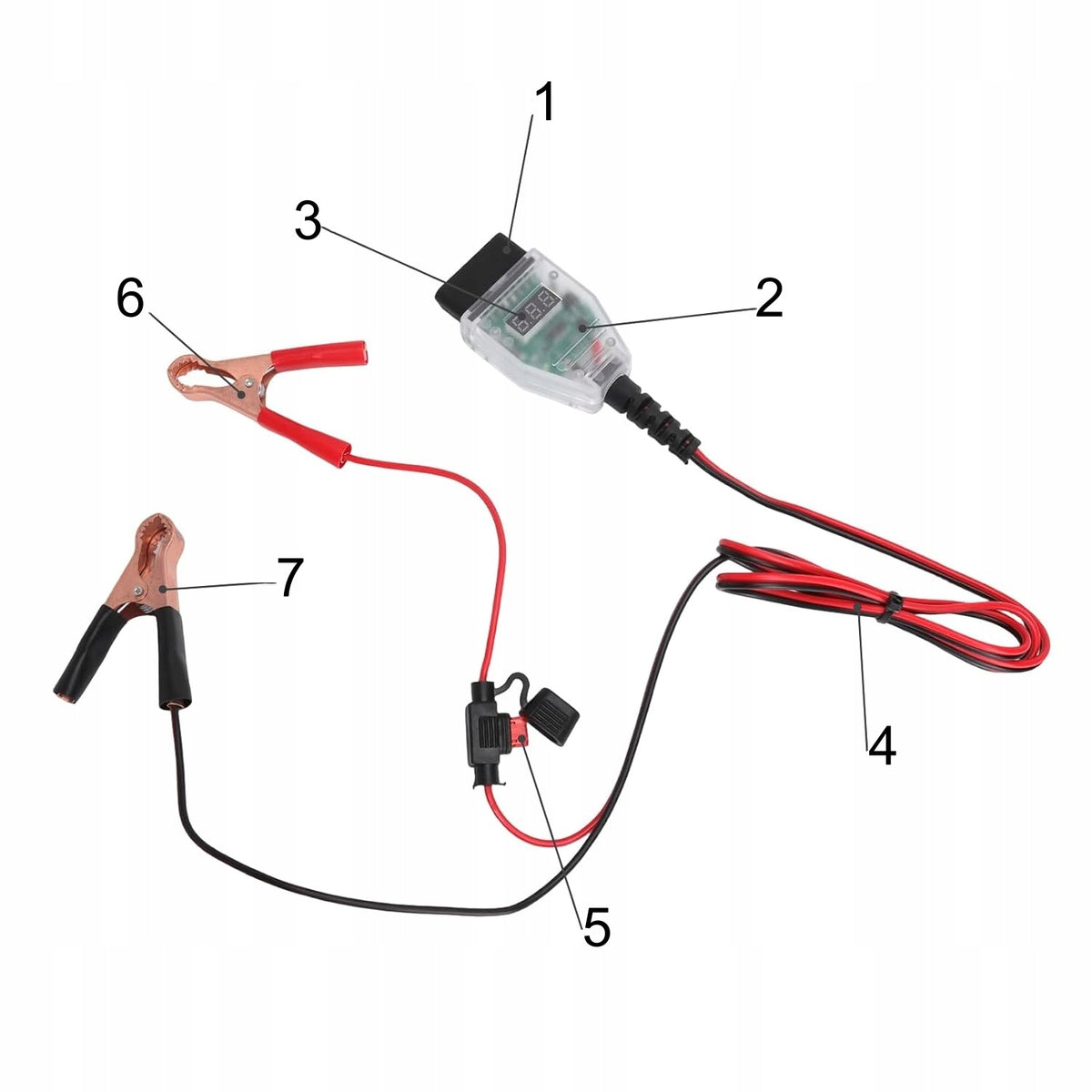

PRODUCT DETAILS:

① OBD interface

② Printed circuit board

③ Digital Monitor

④ Total length 150 cm, thick copper wire 1,5 mm (15 AWG)

⑤ All-inclusive insurance

⑥ Positive clamp

⑦ Negative clamp

Product Dimensions:

• Connector dimensions: 67 mm x 45 mm
• Cable length: 120 cm
• Overall length: 150 cm
• Wire diameter: 1,5 mm (15 AWG)
• Maximum fuse current: 5 A

OBD II Car ECU Memory Saver Cable with 2 Clamps, 12V Digital Display Power Cord, Battery Connector Replacement Kit, Power Off Memory Function, Vehicle Data Pre-setting Electronic with 5A Fuse

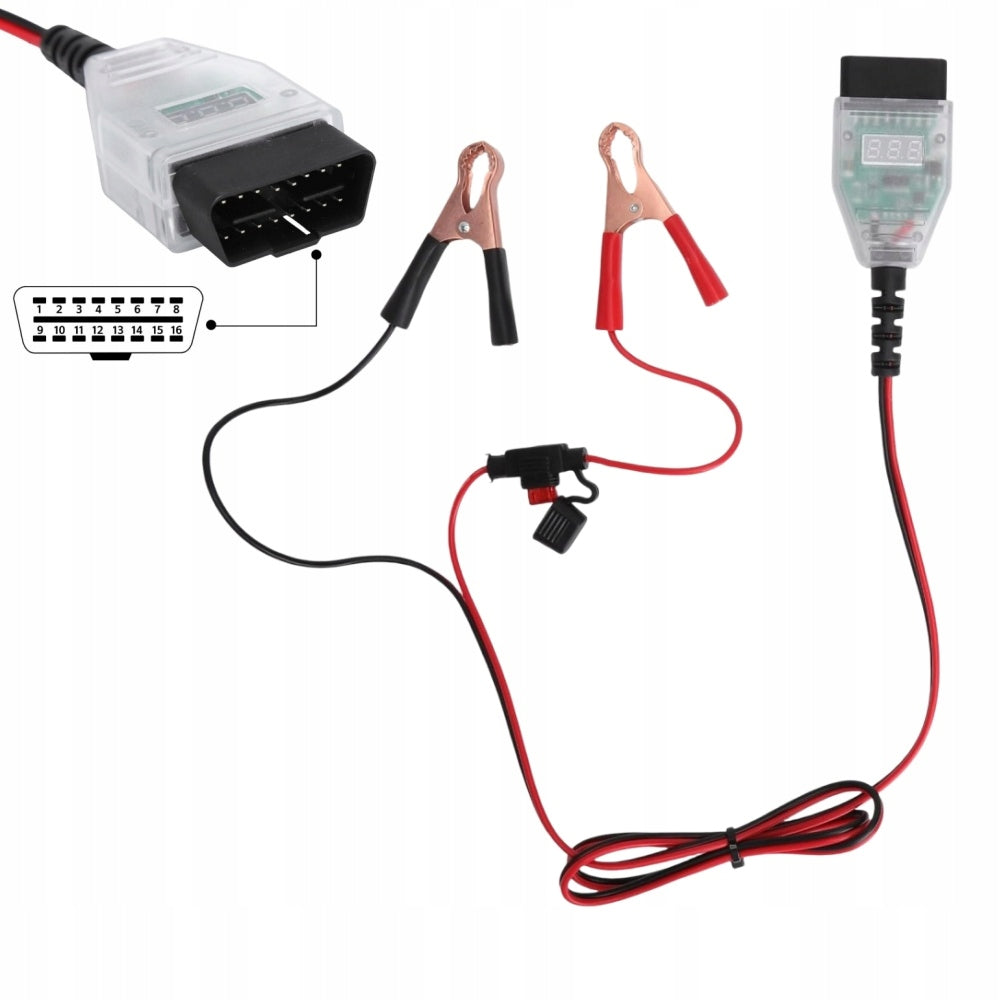

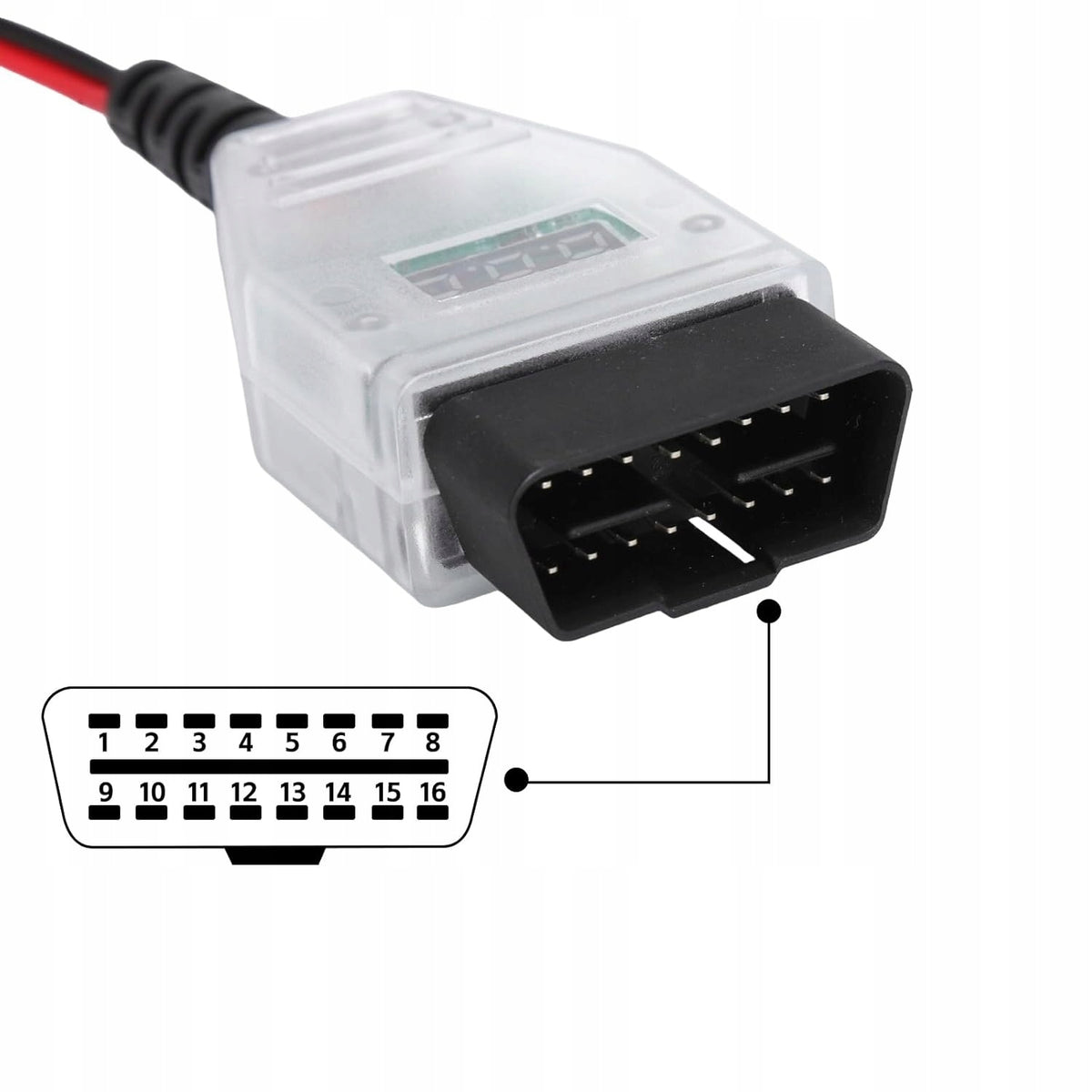

✅1. Compatible with all OBDII ports, works with 99% of vehicles. Standard OBD2 interface. Available for OBDII vehicles from 1996. One end of this OBD II memory saver is a standard OBD2 interface, compatible with 99% of vehicles on the market. The other port of this OBDII data saver is two battery clamps that can be connected to the positive and negative terminals of a backup battery. The red clamp connects to the positive terminal, and the black clamp connects to the negative terminal.

✅2. The metal OBD pins are gold-plated for better contact and electrical transmission reliability. The built-in 5A fuse in the memory saver provides enhanced overload protection. Powered by an emergency starter with a DCP 12V power socket for the OBD II memory module, it preserves vehicle codes, electronic settings, and controlled device memory. Disconnect the old battery and install the new one. Built-in overload protection. Our car memory saver features a high-quality copper wire and a flame-retardant silicone cable.

✅3. The car memory saver module is essential when disconnecting the battery for repairs. Throttle correction data may be lost, the one-touch window up/down function may stop working, the window position signal stored in the control unit is lost, and the control unit cannot determine the exact position of the currently open window. The module remains connected to an external power source, maintaining the car's computer memory. The car memory saver module, equipped with a crocodile clip car charger, powers the car's computer through the OBD-II port during battery replacement. 4. Only 4 steps to save memory data. Step 1: Test the backup battery, 2: Turn off the vehicle. 3: Connect the cable to the vehicle's OBD2 port. Step 4: Disconnect, remove, or replace the existing vehicle battery and start working. Your vehicle's memory data will never be lost.

✅4. The Battery Tester Memory Saver is a professional device for protecting vehicle data. It can preserve vehicle codes and electronic settings, preventing information loss after the onboard computer shuts down. This exclusive battery clamp can be connected to a 12V backup battery to ensure no failures during battery replacement. This professional battery tester with memory protection is a must-have product for car repair shops, auto shops, and mechanics. Car Memory Saver: Prevents electronic memory loss when the battery is disconnected. This tool protects critical car computer data, such as dashboard data, acoustics, seat setting memory, and the digital clock.

User Manual and Notes - (4 Steps)

✅*1)*. Connect the positive terminal of the backup battery to the red clamp and the negative terminal to the black clamp (incorrect connection will burn out the car's computer).

✅*2)*. After the red indicator light on the plug lights up, connect the car's OBD plug. At this point, a "Didi" sound will be heard. A correct plug connection is indicated by this sound.

✅*3)*. You can now safely replace the battery, but be careful.

NOTE for Step 3:

# When replacing the battery, remember to close the car and follow these guidelines.

# DO NOT turn on electrical devices like headlights.

# DO NOT connect the positive battery terminal to ground. Doing so will blow the car's OBD socket fuse, causing failure during battery replacement.

# DO NOT turn the car's ignition on (start) when the old battery is disconnected and the new one is not yet installed.

# DO NOT turn the key to the "ACC ON" position. Doing so may blow the memory saver fuse due to high current and overload.

✅*4)*. After replacing the battery, first loosen the red clamp of the tool. If the tool still makes a sound, the process was successful. If it does not make a sound, it means the fuse in the car has blown.

NOTE for Step 4:

# DO NOT touch the red and black clamps when removing the clamp, as this will cause a short circuit.

Indicator light condition:

• Red light: good connection to the vehicle.
• Red light: poor connection to the vehicle.
• Blue light shines: current flow.
• Blue light off: voltage.

Contents of the pack:

✅1 x Connector for fixing car memory

Specifications
