Oro filtrų komplektas VIESSMANN VITOVENT 300-W V4, G4/F7, 2 vnt.

Trumpai apie prekę

Prekė: Oro filtrų komplektas VIESSMANN VITOVENT 300-W V4, G4/F7, 2 vnt.. Kategorija: Dalys.

• Gamintojas: Filtrant
• Modelis: ZVI3V4GF02

✅ High quality replacement filters class G4 (EU4) and F7 (EU7) for ventilation system Viessman Vitovent.

✅ Version V4, throughput 300 m3/h, 400 m3/h.

✅ Fits Viessmann Vitovent 300-W models:

• Viessmann Vitovent 300-W HR A300 - 300 m³/h
• Viessmann Vitovent 300-W HR A400 - 400 m³/h
• Viessmann Vitovent 300-W H32S B300 - 300 m³/h
• Viessmann Vitovent 300-W H32S B400 - 400 m³/h
• Viessmann Vitovent 300-W H32E B300 - 300 m³/h
• Viessmann Vitovent 300-W H32E B400 - 400 m³/h

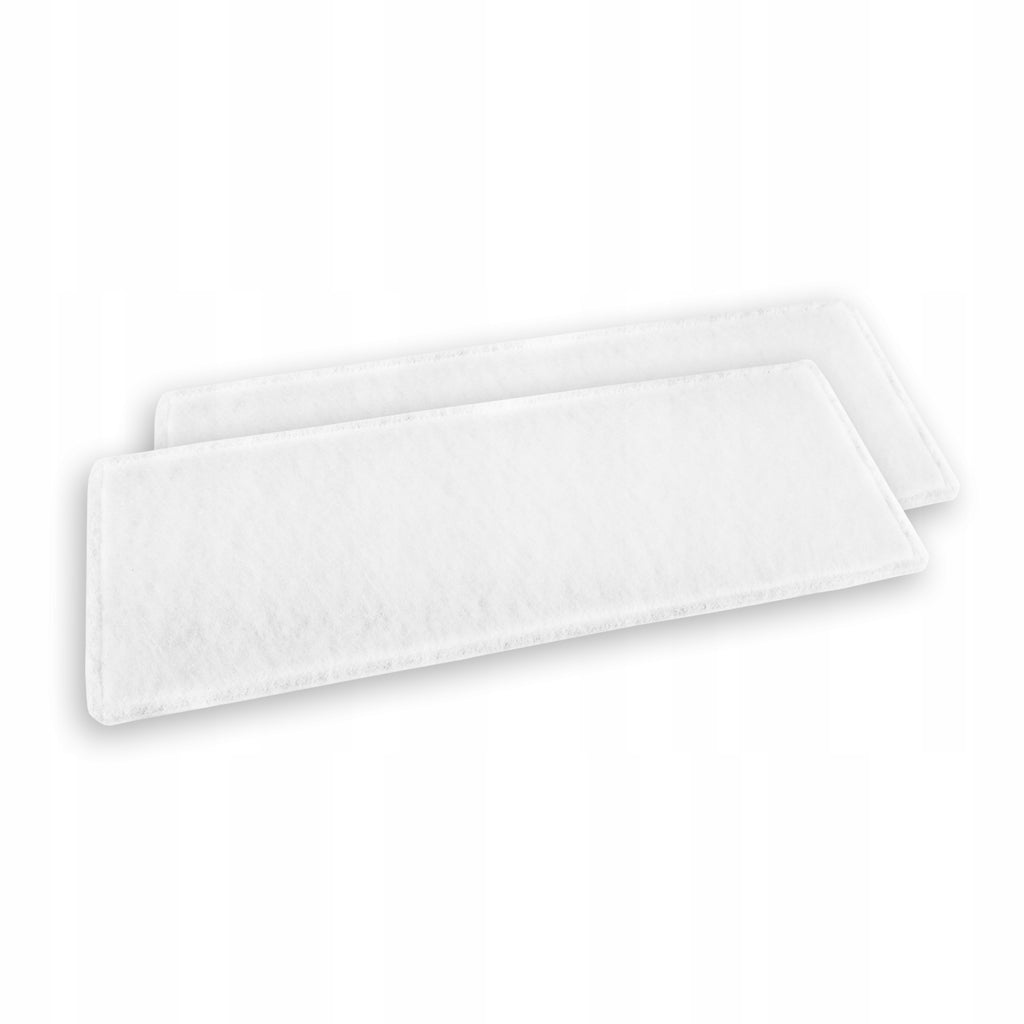

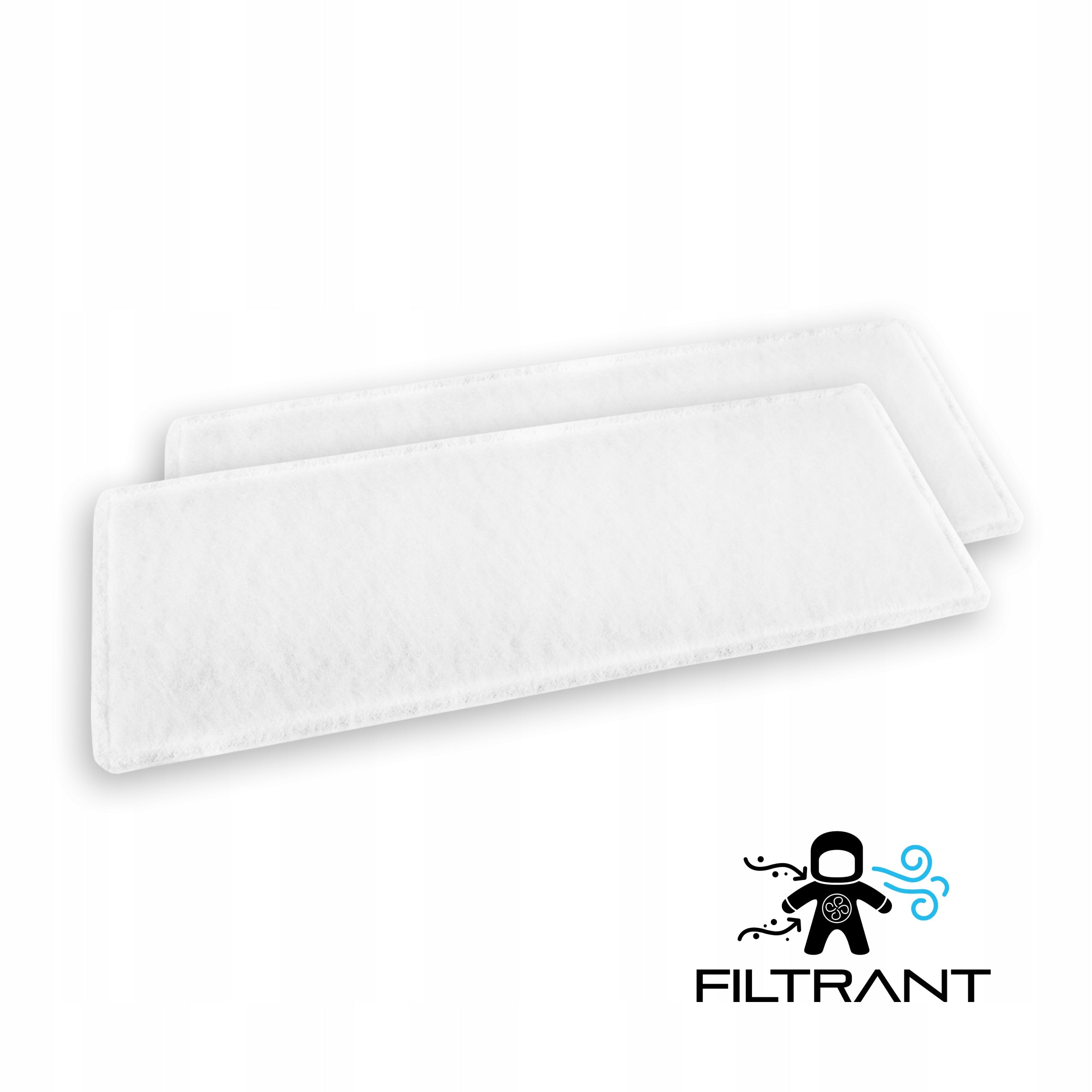

✅ The subject of the offer is a set of 2 pcs. filters - one class G4 and one anti-smog class F7.

✅ Filters produced in Poland.

✅ Product Information:

👉 Application: supply / exhaust.

👉 Type: Flat filter, pollen filter

👉 Filter material class: G4 (EU4, ISO Coarse) and F7 (EU7)

👉 Condition: New

👉 Brand: Filtrant

👉 Maximum capacity: 300/400 m3/h

👉 Manufacture: PL

👉 Product code Viessmann: 7521197

👉 Viessmann unit: 7521193 and 7521194

❗ Choose the right replacement filter for your device.

Viessmann has several models of recuperators. The model to which this listing applies is highlighted in green.

Viessmann Vitovent 300 (older versions):

❌version V1 – 260 m3/h, with Bypass

❌version V2 – 300/400 m3/h, without Bypass

❌version V3 – 180 m3/h

Viessmann Vitovent 300-C:

❌150 m3/h (ceiling)

Viessmann Vitovent 300-W (newer versions):

✅ version V4 – 300/400 m3/h:

▪ Type HR A300 A400

▪ Type H32E/H32S B300 B400

❌325/400 m3/h:

▪ Type H32S C325 + C400

❌225 m3/h

❌450/600 m3/h

❌Viessmann Vitovent 200-W

Filters for other recuperators are available at other auctions.

👉 Estimated service life: 3 - 6 months (depending on the amount and intensity of impurities)

👉 Filter made on a wire frame with a diameter of approx. 5 mm, which is trimmed with a suitable filter material

👉 The filter is a replacement. Images and names of devices, parts and brands were used to identify the product being sold.

✅ Recommendations:

We recommend replacing the filters regularly according to the manufacturer’s guidelines. On average every 3 months the device should be inspected (so-called. "Small service" carried out by the user himself) and replace the filter. To ensure optimal operation of the air handling unit, all filters should be replaced after six months at the latest. "Large service" of the device should be carried out every 24 months by a specialist-installer.

Longer use of dirty filters, on which contaminants accumulate from the outside, block the flow of air. This results in increased filtration resistance, which is associated with a decrease in device performance, operating volume, increased energy consumption and reduced air comfort in the home.

Filters retain various types of pollen, dirt and debris, so they do not get into our homes. We can enjoy clean and fresh air.

Particular attention should be paid to this by residents of areas with an increased risk of air pollution as a result of smog and people with allergies.

✅ Technical data of G4 material:

– Mat thickness (non-woven): 10,0 ± 2,0 mm

– Average filtration efficiency determined by synthetic dust test: 90,9 %

– Surface weight: 250±25 g/m2

– Color: white

– Flammability Feature: Self-extinguishing

– Minimum flow pressure difference: 36 Pa

– Maximum flow pressure difference: 250 Pa

The fabric has been tested by m.in. at the National Research Institute (Fig. next) and has a PZH certificate (below).

✅ Technical data of F7:

- Approximate thickness: 4mm

- Material Composition: 100% white polyester

- Flammability feature: self-extinguishing

- Does not absorb moisture

- Grade I, produced in Poland

- Fiber has Oeko-Tex®Standard100 quality certificates

✅ The filter material is divided into the following categories:

👉 Pre-filters (coarse):

• G (from G1 to G4) - filters for filtering larger impurities, coarse dust (pollen with a diameter of more than 10 micrometers); G4 = ISO Coarse 50% (according to ISO 16890)

👉 Intermediate filters:

• M (M5 to M6) - ISO ePM10 / ePM2.5; M5 = ISO ePM10 50 % (according to ISO 16890)

👉 Accurate filters:

• F (from F7 to F9) - ISO ePM1 (anti-smog) - filters for filtering fine dust (pollen with a diameter of about 10 micrometers); F7 = ISO ePM1 55% (according to ISO 16890)
