Gaisa kompresors 10 bar, 920 l/min, ar eļļu

Trumpai apie prekę

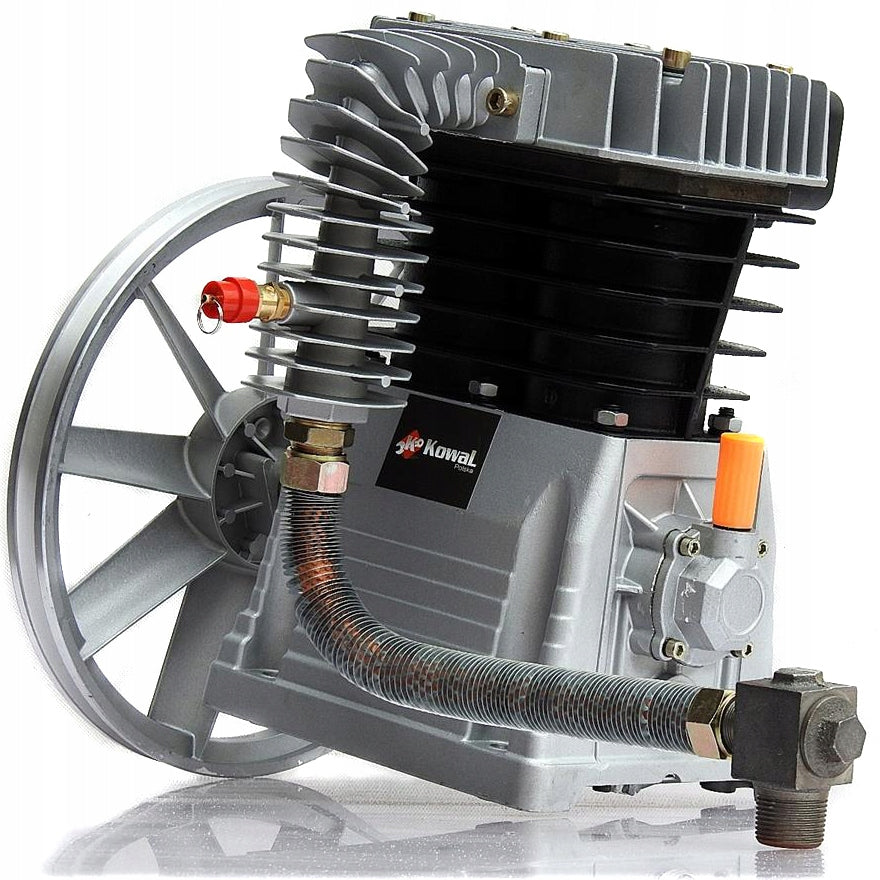

Prekė: Oro kompresorius 10 bar, 920 l/min, su alyva. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: H2090 10 Bar
• Galia: 4 kW

• Compressor + oils + filter + pipe + check valve + safety valve

• New, improved design!
• side exhaust air cooler
• enlarged valve seats for faster airflow
• Raised head heat sink
• air outlet pipe with aluminium heat sink, ribbed
• increased compression ratio to 10 BAR

Solid construction. The weight of the set is about 32 kg! 2 large pistons with a diameter of 2 x 90 mm!

Dimensions:

• max suction capacity: 920 L-min
• max working capacity: 700 L-min
• required min engine power: 4 kw
• Suggested cylinder capacity: 150 to 500 L
• required compressor rated speed: 800-1000 r/min
• oil bowl capacity: approx. 2 Liters
• max. pressure: 10 bar
• Weight: about 32 kg
• Piston diameter: 2 x 90 mm
• pulley diameter: 35 cm
• Drive: 1 x 17 mm V-belt
• spacing of fixing screws: 17,5 x 18 cm
• direction of rotation: left (looking from the side of the wheel)
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each start. If necessary, supplement its condition.

Specifications
