Apraksts
Trumpai apie prekę
Prekė: Oro kompresorius 10 bar, alyvos, 50L arba 100L. Kategorija: Kompresoriai.
- Gamintojas: Bizon Polska
- Modelis: 48mm Bizon Polska
- Galia: 2.25 kW
- Įtampa: 230 V
- New, improved design!
- enlarged valve seats for faster airflow
- Raised head heat sink
- increased compression ratio to 10 BAR
- enlarged diameter of the cooling turbine
- oil lubrication, splash lubrication
- 3 ring pistons

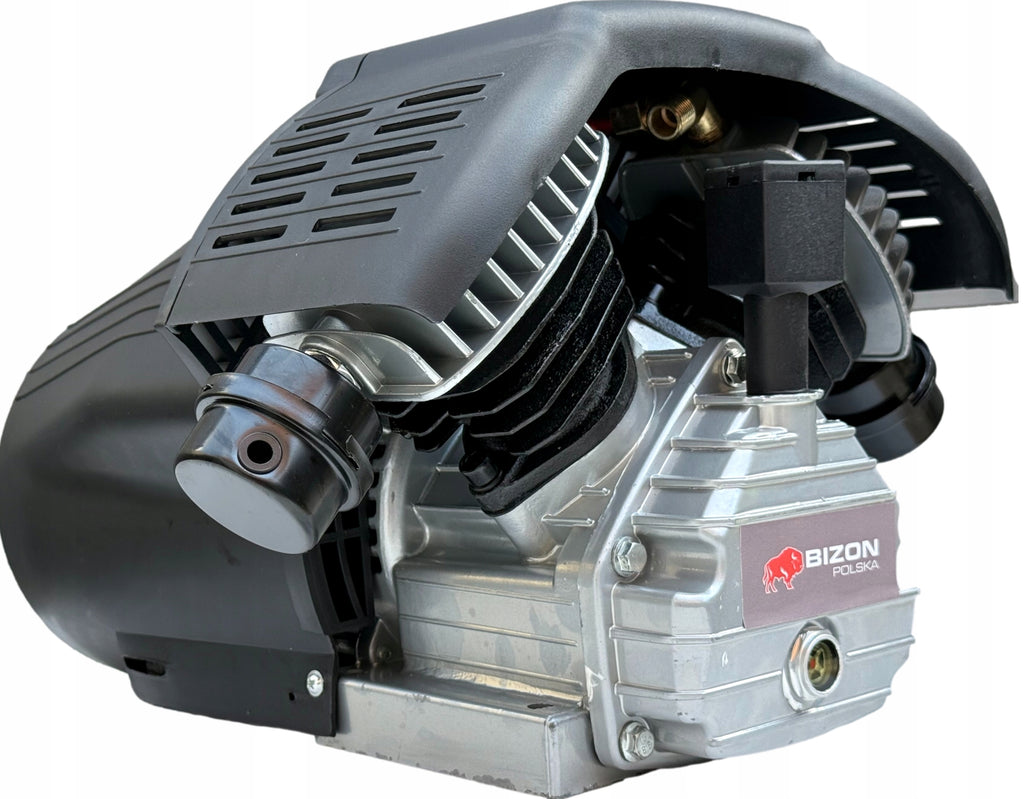

Original oil compressor, 2-piston. The compressor is single-phase, air-cooled and oil-lubricated. Designed for painting, pumping, sandblasting, blowing and for all kinds of work with other pneumatic devices.
diameter of pistons 2 x 48 mm!!!
Distinguishing features of the offered model:
- The compressor is equipped with two iron cylinders with increased ribbed (significantly better heat dissipation, an important technical aspect if the compressor is to be used in demanding and long-lasting activities)
- increased suction chambers - result in increased suction efficiency (540L-min),
- increased compressor compression rate to 10bar!!
Improved tricyclic piston:
- better heat flow (heat dissipation) from the piston to the cylinder, which has an even better effect on the life of the compressor
- Sealing, i.e.
THIS MODEL STANDS OUT FROM OTHER BRANDS DUE TO THE HIGH "EFFICIENCY" OF THE COMPRESSOR, I.E. A SMALL DIFFERENCE BETWEEN SUCTION EFFICIENCY AND OPERATION, it is a confirmation of the highest quality materials used in the production of the compressor and its manufacture, i.e.:
- steel valve plates
- three-ring piston made of duralumin
- iron cylinders
- forged connecting rods
- enlarged valve seats
POWER MAX 3KW
High power of the induction motor is a guarantee of full satisfaction with the compressor. In cooperation with an efficient compressor, it is ideal for activities such as plastering, painting or powering pneumatic tools.
The whole is built in a modern and, what is important, practical housing which directs all the air sucked by the fan towards the cylinders.
Enlarged cooling turbine
Oil chamber vent with paper insert.
- silence the compressor operation
- do not throttling the air flow
- do not melt for longer work
- resistant to mechanical damage
- max suction capacity: 540 L-min
- max working capacity: 390 L/min
- Power supply: 230v
- compressor rated speed: 2850 r/min
- max engine power consumption: 3 kw (3000 watt)
- Working power 2,25kW
- Suggested cylinder capacity: 50 to 150 L
- max working pressure: 10 bar
- Weight: about 20 kg
- Cylinder diameter: 2 x 48 mm
- oil pan capacity: approx. 0,4 Liter
- oil used: compressor LD-100
- 1 replacement after 5 hours, then every 50 hours
- lubrication: splash
- Cylinders: cast iron
- 2 air filters - housing made of metal
- correct oil level: covered 3/4 slide
- Check the oil level before each start. If necessary, supplement its condition.
- ATTENTION! If you are mounting a compressor on a cylinder, be sure to also install an end vent that will release air from the system when the compressor is turned off. To do this, connect the non-return valve with the pressure switch with the tube

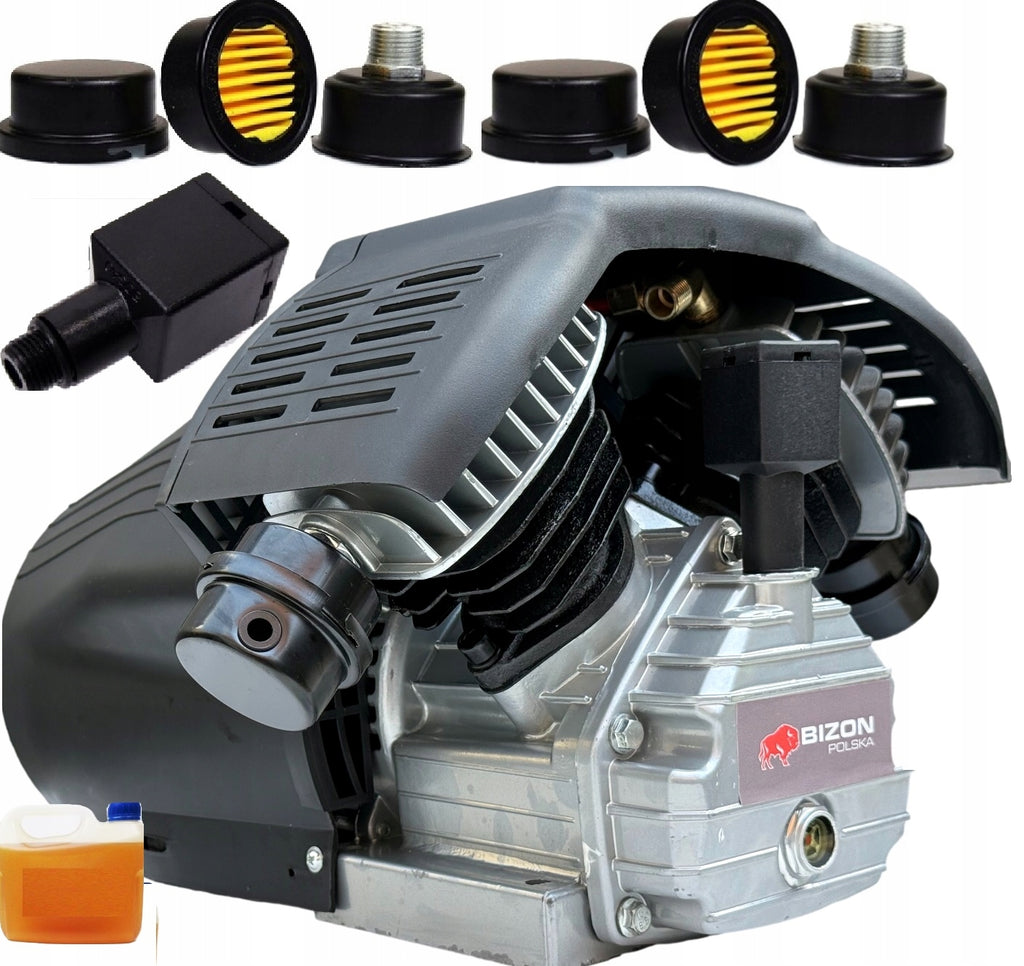

2 x 1/2" Filters
Oil
Bleeder Valve
Adaptable to multiple cylinders.
- Total pump height: 46 cm
- width of the windmill housing: 24 cm
- cylinder width: 35 cm
- height from paws to electric can: 25 cm
- spacing of fixing screws: 14 cm x 12,5 cm
Fits most compressors available on the Polish market
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Bizon Polska |
| Parametry | Manufacturer code | Góra zbv 48mm Bizon Polska |
| Parametry | Type | oil compressor |
| Parametry | Kind | piston compressor |
| Parametry | Engine power | 2.2 KM |
| Parametry | Power | 2.25 kW |
| Parametry | Theoretical output | 540 l/min |
| Parametry | Effective capacity | 530 l/min |
| Parametry | Maximum pressure | 10 bar |
| Parametry | Tank capacity | 50 l |
| Parametry | Device weight | 40 kg |
| Parametry | Tank system | horizontal |
| Parametry | Power supply | mains |
| Parametry | Supply voltage | 230 V |
| Parametry | Product weight with unit packaging | 24 kg |
| Parametry | EAN (GTIN) | 5903738782185 |
| Parametry | Model | 48mm Bizon Polska |
| Parametry | Batteries included | no |
