Oro kompresorius 10 bar, alyvos, 915 l/min

Trumpai apie prekę

Prekė: Oro kompresorius 10 bar, alyvos, 915 l/min. Kategorija: Kompresoriai.

• Gamintojas: Bizon Polska
• Modelis: 2090 Bizon Polska
• Galia: 4 kW
• Įtampa: 400 V

• Compressor + oils + metal filters

• New, improved design!
• enlarged valve seats for faster airflow
• Raised head heat sink
• increased compression ratio to 10 BAR
• enlarged diameter of the cooling turbine
• oil lubrication, splash lubrication
• 3 ring pistons with a diameter of 90 mm

• max suction capacity:920 L-min
• max working capacity: 600 L-min
• required compressor rated speed: 820-1000 r/min
• Required engine power: 3 - 4 kw
• Suggested cylinder capacity: 100 to 500 L
• max working pressure: 10 bar
• oil bowl capacity: approx. 2 Liters
• Weight: about 30 kg
• Piston diameter: 2 x 90 mm
• pulley diameter: 36 cm
• Drive: 2 x 17 mm V-belt
• spacing of fixing screws: 26 x 14 cm
• direction of rotation: left (looking from the side of the wheel)
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each startup. If necessary, supplement its condition.

• 2 piston compressor (2 x 90 mm)

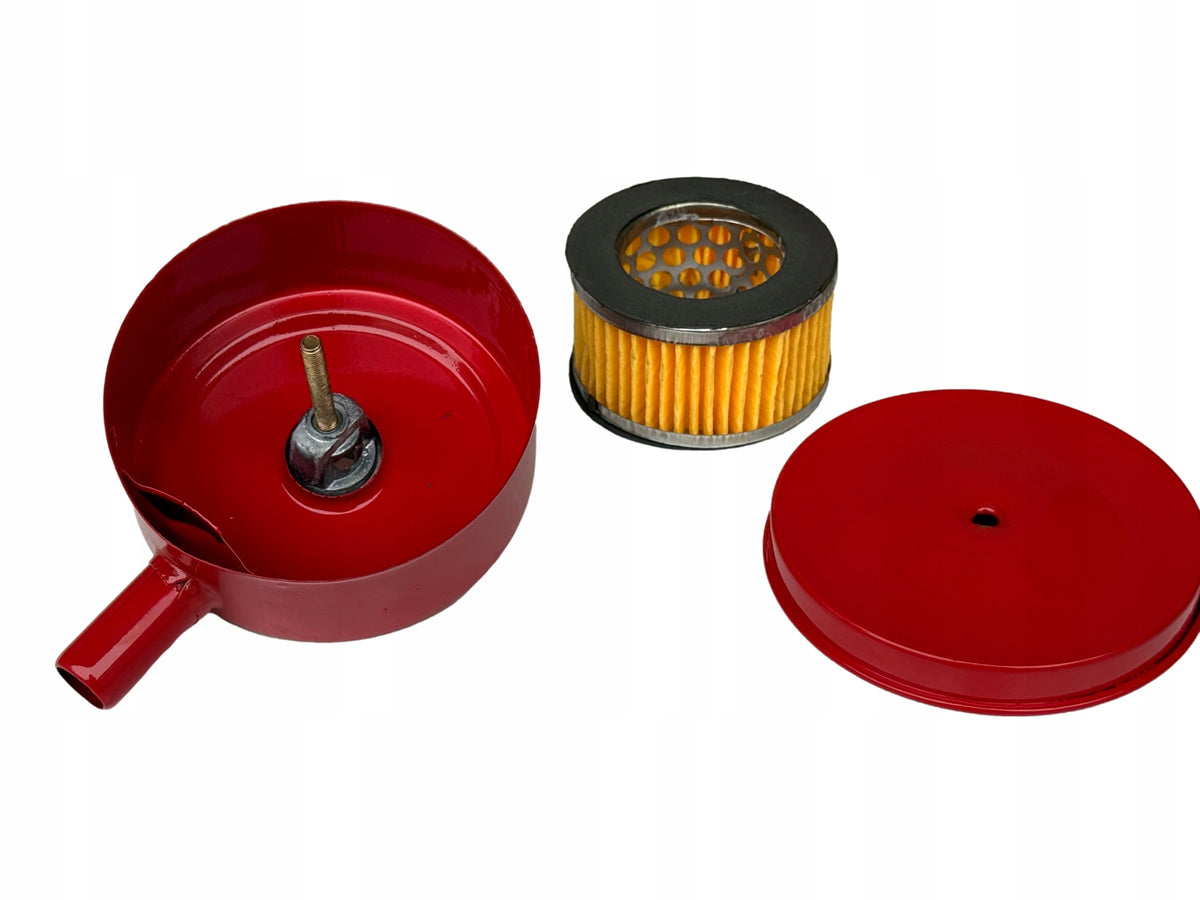

• 2 x metal air filter with hepa cartridge
• 1 vent
• 1 infusion stopper
• oil

Piston diameter 90mm

Grey cast iron is characterized by high abrasion resistance with good damping properties

The purpose of honing is to "spray" the surface of the finish so that it can stick to the oil film - scratches must be at the right angle to each other to keep the oil on the surface

This method of mounting the head allowed to increase the pressure to 10 bar

• Metal filters with hepa cartridge included

• spacing of fixing screws: 26 x 14 cm
