Gaisa kompresors 10 bar, eļļas ejošs, 915 l/min

Trumpai apie prekę

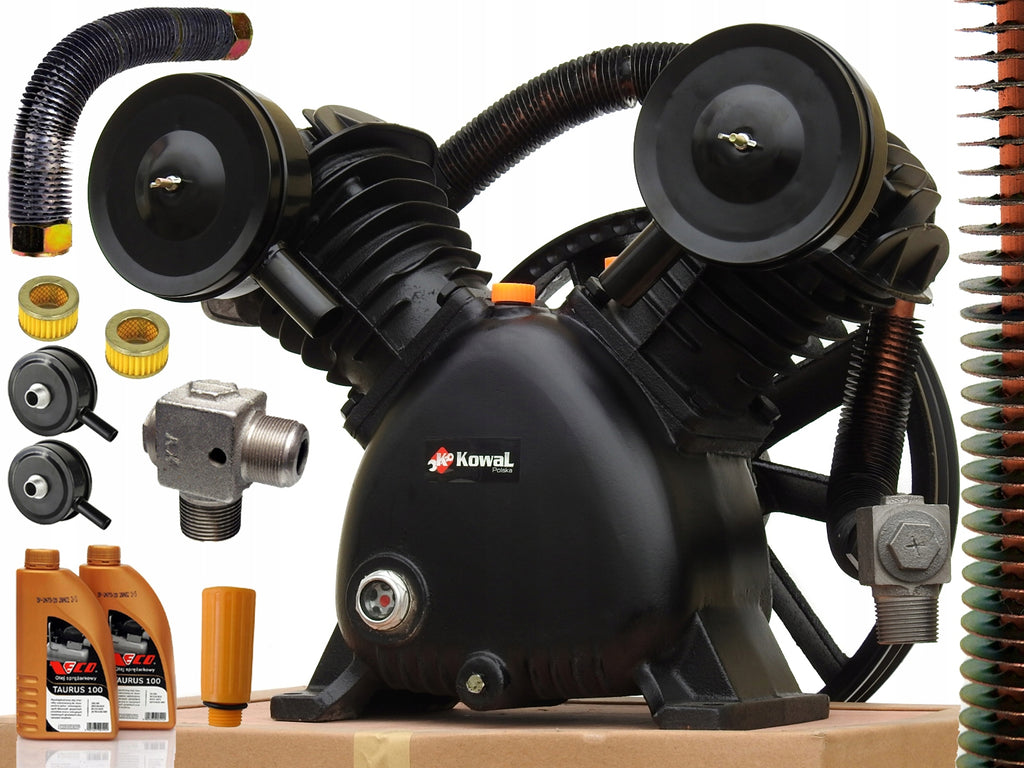

Prekė: Oro kompresorius 10 bar, alyvos tepimo, 915 l/min. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: V2090++ 10 Bar +zawór
• Galia: 4 kW
• Įtampa: 400 V

• enlarged valve seats for faster airflow
• New, improved pump 2090 with 5 screws in the head !
• original version on forged connecting rods
• Raised head heat sink
• metal air filter housings !
• increased compression ratio to 10 BAR
• steel, inter-valve head gasket is used
• oil lubrication, splash lubrication
• 3 ring pistons with a diameter of 90 mm

**** Free add 2 Liters of oil, check valve and Pipe****

The compressor is air-cooled and oil-lubricated. Designed for painting, pumping, sandblasting, blowing and for all kinds of work with other pneumatic devices.

• max suction capacity: 920 L-min
• max working capacity: 600 L-min
• required compressor rated speed: 820-1000 r/min
• Required engine power: 3 - 4 kw
• Suggested cylinder capacity: 100 to 500 L
• max working pressure: 10 bar
• Oil bowl capacity: approx. 2 Liters
• Weight: about 30 kg
• Piston diameter: 2 x 90 mm
• pulley diameter: 36 cm
• Drive: 2 x 17 mm V-belt
• spacing of fixing screws: 26 x 14 cm
• direction of rotation: left (looking from the side of the wheel)
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each startup. If necessary, supplement its condition.

As one of the few companies in Europe, we offer compressors with a modern spacing of head fixing screws.

This allows the compressor to run much longer without damaging the gasket. The central screw screwed through the head into the valve plate additionally supports and presses the gasket crossbar in the intervalve chamber!

In addition, there are reinforced head pins.

The competition has on sale compressors with head attachment for 4 screws in such cases, after heating the head, the gasket blows out.

• forged connecting rods
• 5 screw head pressure
• metal intervalve seal
• oil cooler in compressor body
• reinforced cast paws
• metal air filters with hepa cartridges
• free add oil to replenish the oil box

• The compressor is equipped with iron cylinders with increased ribbed (significantly better heat dissipation, an important technical aspect if the compressor is to be used in demanding and long-lasting activities)
• enlarged piston stroke - result in increased efficiency of up to max 920 l/min!!
• large, enlarged pulley (36 cm), acting as a fan

• better heat flow (heat dissipation) from piston to cylinder which has an even better effect on compressor life
• Seal, i.e. preventing oil from entering the oil chamber into the cylinder!!

• BRAND blacksmith - 10 YEARS OF EXPERIENCE IN THE PNEUMATICS INDUSTRY, THOUSANDS OF SATISFIED CUSTOMERS
• CERTIFIED PRODUCT WITH UNINFLATED PARAMETERS
• CERTAINTY OF PROFESSIONAL ADVICE ON PURCHASE AND SERVICE
• WE HAVE OUR OWN SERVICE (AVAILABILITY OF ALL PARTS TO OUR PRODUCTS DURING WARRANTY AND POST-WARRANTY TIME)
• ONLY WITH US THIS CLASS PRODUCT AT SUCH A LOW PRICE WHICH WILL BE USED IN ALL CONDITIONS IN WHICH IT WILL WORK!
