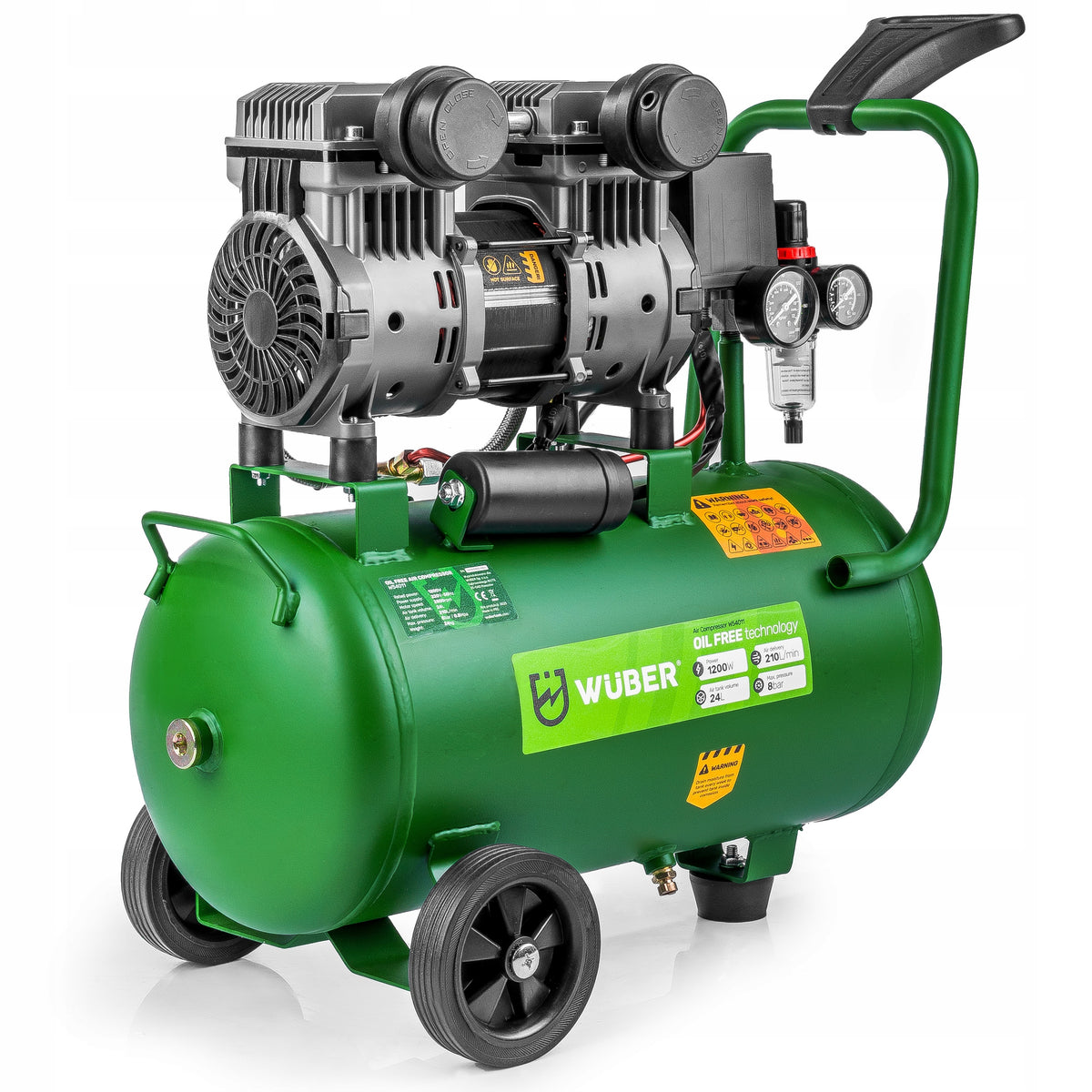

Gaisa kompresors 24 l, 1200 W, 8 bar, bez eļļas, divu cilindru

Trumpai apie prekę

Prekė: Oro kompresorius 24 l, 1200 W, 8 bar, bealyvis, dviejų cilindrų. Kategorija: Kompresoriai.

• Gamintojas: Wuber
• Modelis: 45122WBR
• Galia: 1.2 kW
• Įtampa: 230 V

High-quality workmanship ► Power 1200W ► Maximum RPM 2800 ► Capacity 210 L/min ► Two output valves ► Maximum pressure 8 Bar ► Tank 24 - liters ► 2 cast iron cylinders ► Cylinder diameter 63.7 mm ► 73 dB ► Optimized cooling system

⚙ Technical data:

• Producer: Wuber
• Connection: 1/4"
• Power supply: 220V / 50Hz
• Power: 1200W
• Rotation: 2 800 rpm
• Capacity 1 Bar: 300 l/min
• Capacity 4 Bar: 282 l/min
• Capacity 8 Bar: 134 l/min
• Average yield: 210l/min
• Maximum working pressure: 8 BAR
• Maximum pump operating pressure: 10 BAR
• Tank capacity: 24 liters
• Cylinders: 2 cast iron cylinders
• Cylinder diameter: 63.7 mm
• Number of output valves: 2
• Noise level: 73 dB
• Pressure reducer: Yes
• Dimensions: 51cm X 31cm X 56cm (Length X Width X Height)
• Weight: 19.80 kg

⭐ Unrivalled and reliable compressor

✅ Maximum pressure 8 BAR ► Allows versatile applications, from pumping tires to driving pneumatic tools, ensuring versatility in the workshop or home

✅ Capacity 210 l/min ► High air throughput guarantees smooth operation even under continuous use, minimizing downtime

✅ 2800 rpm rotation and 550W power ► Optimal engine parameters combine energy efficiency with efficiency, reducing operating costs while maintaining power

✅ 24L tank ► Sufficient for intensive home or semi-professional tasks, reducing the frequency of compressor finishing

✅ Pressure reducer with dehydrator ► Allows for precise pressure regulation and moisture removal

✅ Air filter ► Protects the compressor against dust and contaminants, extending its service life. Its quick and simple tool-free replacement makes it easy to maintain

✅ Low noise (73 dB) ► Allows relatively quiet indoor operation without discomfort to the user

⚡ Robust and efficient compressor ideal for any workshop

✅ Oil-free technology ► Clean air eliminates the risk of oil pollution, ideal for applications requiring clean air

✅ Robust head ► Provides stable operation thanks to durable overload-resistant construction

✅ Two cast iron cylinders ► Provide long and operational-free operation for a long time, without performance drops

✅ Weight 19 kg ► Thanks to its compact dimensions, relatively low weight and transport wheels, the compressor is easy to transport and store

✅ Two valves and 1/4" connection ► Universal solution compatible with most pneumatic tools

✅ High-quality workmanship ► The compressor is made of high-quality materials, and in combination with accurate welds creates a durable and damage-resistant whole

✅ Complete set ► Ready to use immediately after unpacking, with the necessary accessories included

⭐ BET ON PROVEN EQUIPMENT FROM THE RENOWNED BRAND WUBER ⭐

⭐ Why should you choose our equipment?

✔ Our compressors have been made with high quality materials and using proven technological solutions,

Thanks to this, they are the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door - we will do everything for you!

✅ Performance and Pressure – Real Parameters

The device delivers efficiency of 210 l/min at 2800 rpm, which is fully sufficient for home and semi-professional applications

The maximum operating pressure is 8 BAR, and the pump can reach up to 10 BAR, which gives an additional power supply

These values are real and confirmed by tests – unlike the competition, which often provides inflated data, e.g. 590 l/min, while the real output is underestimated twice or three times

✅ Confirmed by tests!

During our laboratory tests, we used the standard formula to measure compressor performance:

• Q = n × Vs × N,

• Where Q means compressor capacity (expressed in air volume per minute), n – number of cylinders, Vs – cylinder stroke volume, and N – engine speed

This method, based on precise design parameters and controlled environmental conditions, allows for accurate determination of the theoretical performance of the device

For home users who do not have access to specialized equipment, we recommend a simplified formula:

• X × Y / Z

• Where X is the tank capacity (in liters), Y – maximum pressure (in bars), and Z – tank filling time (in minutes)

By dividing the product of capacity and pressure over time, you can easily estimate the actual performance of the compressor using only the basic data available, e.g. in the instruction manual or measured with household tools such as a pressure gauge or stopwatch

Capacity 1 Bar: 300 l/min

Capacity 4 bar: 282 l/min

Capacity 8 Bar: 134 l/min

Counted average yield: 210l/min

• ✔ Both methods, although differing in precision, allow effective assessment of compressor operation depending on the needs and available resources

⚡ Durability and Efficient Operation

The compressor is made from high-quality materials, ensuring its durability and reliability.

The 24-liter tank is made of thick, corrosion-resistant steel, guaranteeing longevity even in demanding conditions.

Two cast iron cylinders with a diameter of 63.7 mm are rare in this class of equipment. Their precise construction minimizes friction, reduces wear, and ensures stable operation at a working pressure of 8 BAR.

✅ Why is our compressor the best choice?

­

⭐ Certified tank with precision welds:

• ✔ The bottle was manufactured using advanced welding techniques, guaranteeing high strength and longer service life

­

⭐ Efficient motor:

• ✔ Increased power of the drive unit eliminates the risk of overheating, even during prolonged use

­

⭐ Optimized cooling system:

• ✔ Fan with 30% more efficiency reduces operating temperature, prolonging the life of the device

­

⭐ High quality crankcase:

• ✔ Additional ventilation openings improve air circulation, increasing compressor efficiency

­

⭐ Dual Piston System:

• ✔ Two pumps made of durable materials ensure maintenance-free operation without compromising on quality

­

⭐ Improved head design:

• ✔ Extensive ribbed more efficiently dissipates heat, increasing the stability of operation

⭐ Compressor Head – Heart Device

The heart of the compressor is a high-quality head, equipped with two cast iron cylinders with a diameter of 63.7 mm, which ensure high performance and durability

Iron, unlike aluminum or plastic used by many brands, is a material resistant to high temperatures and wear, which makes the head retain its properties even under intensive use

The head has been optimized for cooling, an effective heat dissipation system and a back spacing prevents overheating, which is a common problem in competitive models with insufficient cooling

✅ Safe Air Filter

The air filter is responsible for capturing particulate matter, such as dust, dust or minor contaminants, that could enter the compressor

Without effective filtration, particles could damage cylinders, accelerate mechanical wear or contaminate the air flow at the output

Thanks to the precise operation of the filter, the compressor works reliably, and its service life is significantly extended.

Importantly, filter maintenance is simple, replacement of the cartridge, recommended every 6-12 months depending on the intensity of use and working conditions

✔ Replacement does not require any tools!

• Simply unscrew the housing, remove the old filter, and put on a new one.

This is a small effort that guarantees clean air and optimal performance of the compressor for a long time!

⚡ Applications: Versatility in Action

The compressor can be used in a wide range of applications, m.in :

• ✅ Spray painting ► ideal for painting work thanks to clean air

• ✅ Cleaning ► effectively removes dust and dirt from surfaces

• ✅ Air Tools ► Powers impact wrenches, drills, etc.

• ✅ Inflating ► tires, mattresses or balls

• ✅ Food and medical industry ► oil-free design ensures sterility

⭐ Pressure reducer – precision and functionality

The pressure reducer is an important element of the compressor, which is used to regulate the output pressure in the range from 0 to 8 Bar, adapting them to the needs of a specific task, e.g. painting (2 to 4 BAR) or working with pneumatic tools (6 to 8 BAR)

In combination with a dehydrator, as in this model, provides dry and properly compressed air

✔ Operation is intuitive:

With the knob, the (right rotation) or reduction (left rotation) pressure increases, and the built-in pressure gauge allows you to control the set value on an ongoing basis

✅ Two Valves = Greater versatility

The compressor is equipped with two output valves, which allows simultaneous connection of two pneumatic tools

Thanks to this, the user can work with greater flexibility, for example, paint and pump tires at the same time, without having to change hoses

This practical solution increases work efficiency and saves time!

⭐ Mobility and Convenience

With a weight of only 19 kg and compact dimensions, the compressor is easy to move and store

• ► ✅ Wheels and rubber pad not only provide stability, but also absorb vibrations, further reducing noise

• ► ✅ Pressure reducer with dehydrator allows for precise pressure adjustment and moisture elimination – crucial in spray painting

• ► ✅ Air filter protects the interior of the device from dust and dirt, which extends its service life

These are practical solutions that facilitate everyday use

⚡ Noise Level – Comfort of Work

Another advantage of our compressor is low noise, only 73 dB

This is the value measured under standard conditions, which makes the compressor relatively quiet in its class

❌ For comparison competitive models often generate noise at the level of 80-90 dB, with the declared 50-60 dB which can be cumbersome at home or in a small workshop

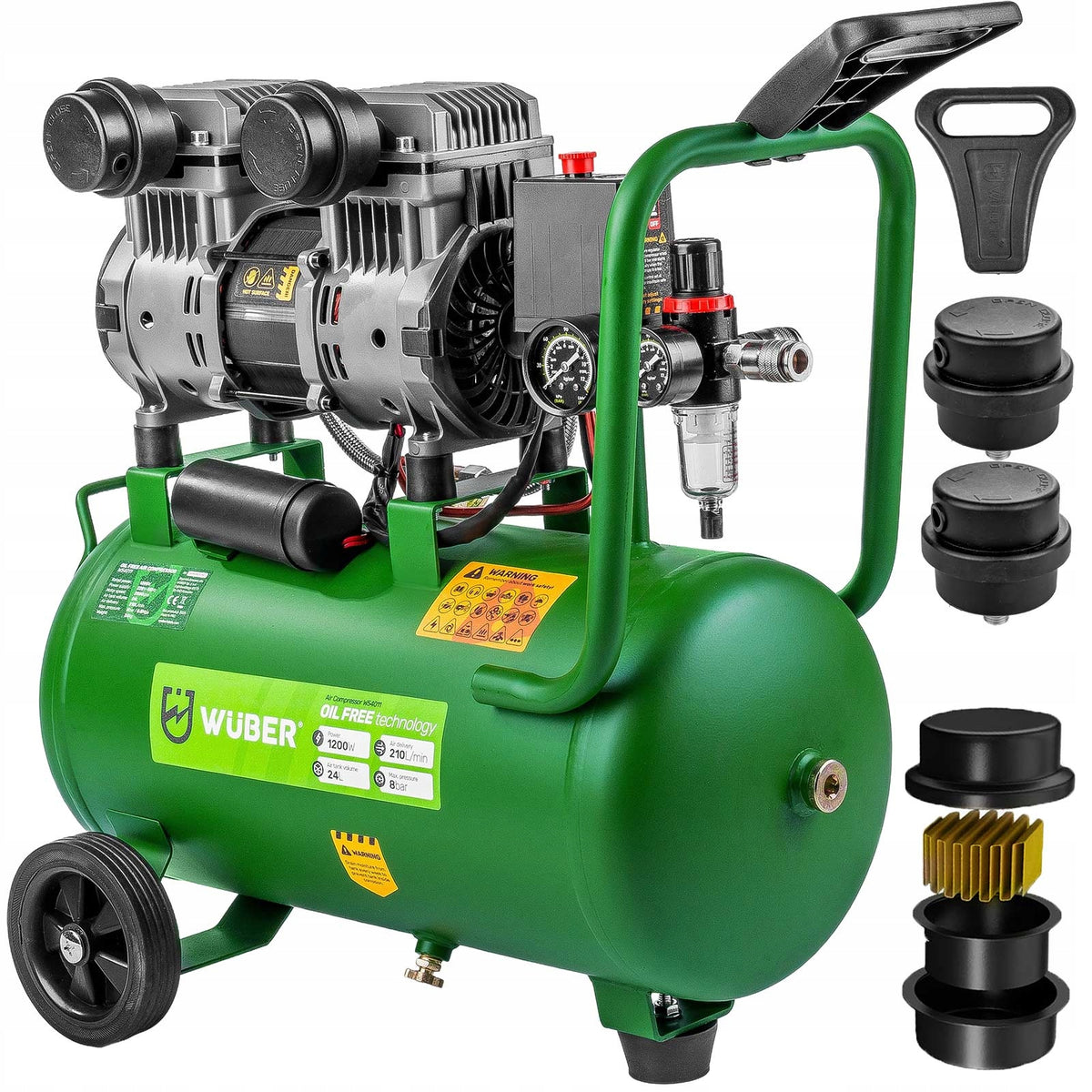

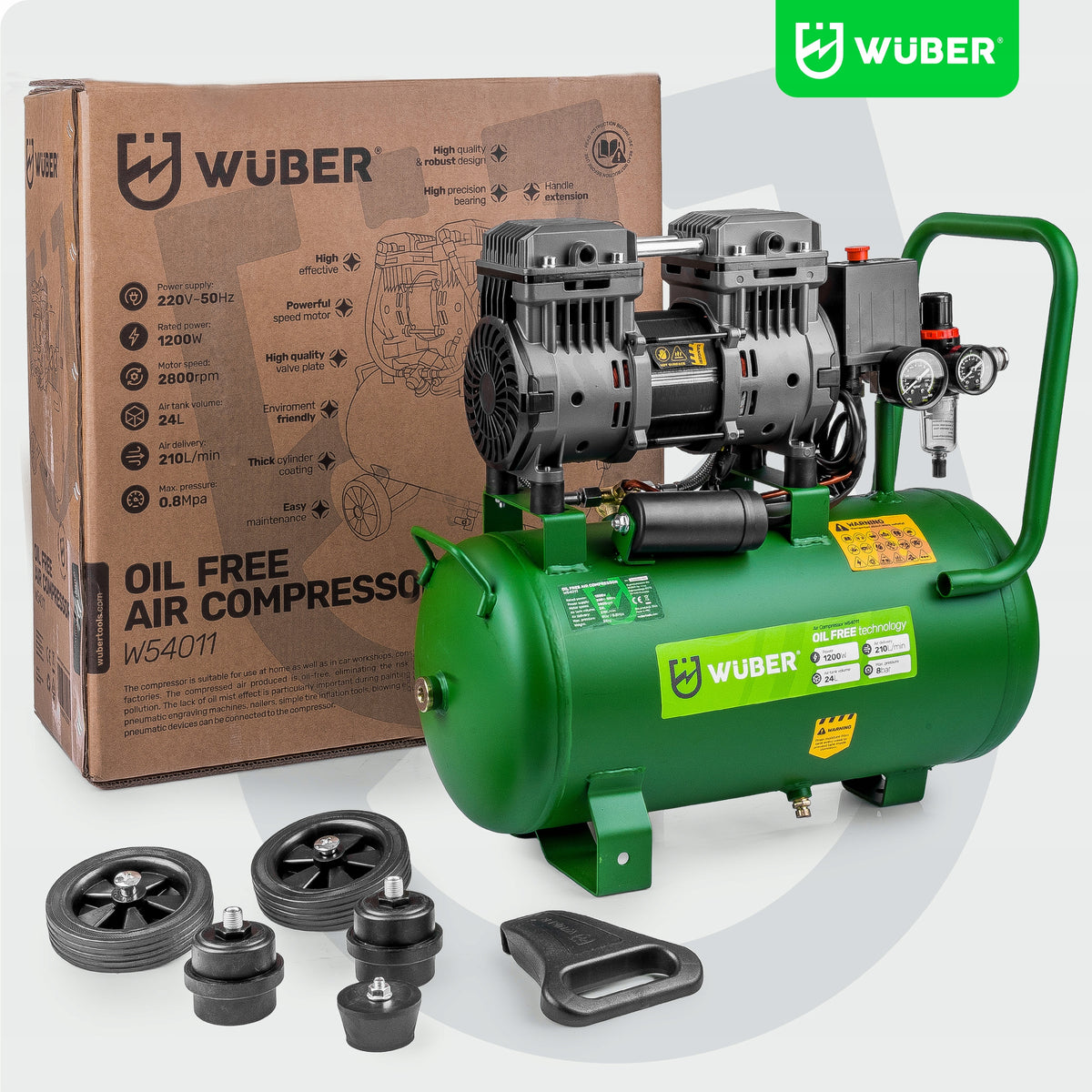

The set includes:

• ► Oil-free compressor 24L Wuber

• ► Two air filters

• ► Rubber pad

• ► Handle

• ► Reducer + separator

• ► Operating instructions

• ► Original manufacturer packaging

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Manufacturer code	45122WBR
Parametry	Type	oil-free compressor
Parametry	Engine power	1.64 KM
Parametry	Power	1.2 kW
Parametry	Theoretical output	210 l/min
Parametry	Effective capacity	210 l/min
Parametry	Maximum pressure	8 bar
Parametry	Tank capacity	24 l
Parametry	Device weight	19.9 kg
Parametry	Tank system	horizontal
Parametry	Power supply	mains
Parametry	Supply voltage	230 V
Parametry	Product weight with unit packaging	21.7 kg
Parametry	EAN (GTIN)	5906436762060
Parametry	Model	45122WBR
Parametry	Batteries included	no
