Gaisa kompresors 300 l, 1500 l/min, 3V, ar separatoru un pneimatisko komplektu

Trumpai apie prekę

Prekė: Oro kompresorius 300 l, 1500 l/min, 3V, su separatoriumi ir pneumatiniu rinkiniu. Kategorija: Kompresoriai.

• Gamintojas: Tagred
• Modelis: TA311BTA104
• Galia: 9.5 kW
• Įtampa: 400 V

New! The compressor is equipped with a hose retractor!

• New, strong, better.
• High tightness and welding accuracy.
• It has 3 pistons
• Full UDT documentation(sent upon customer request)
• A product for professionals that will perfectly "find" e.g. in every garage, home workshop, farm.
• It is ideal for most pneumatic devices - for pumping, cleaning, blowing, painting surfaces.
• Ergonomic - has a pressure reducer equipped with an innovative mechanism for adjusting the lower and upper pressure, 2 large metal pressure gauge located on the compressor in a position that facilitates reading parameters and convenient to use tap drain.
• Economical - wide ribs for better cooling.
• Mobile - The compressor has 2 large rubber wheels and additionally 2 swivel wheels!
• Our compressor is characterized by low energy consumption while maintaining high performance parameters.
• High air flow efficiency. Increased diameter and high flow avoid dirt blockage.
• It has a power box.
• Compressor oil included TAGRED FREE!!! 2x0,6L + ball valve and brass quick-connector directly screwed into the cylinder + pressure hose 10X17mm 10m with quick couplers, crimped!
• New! The compressor is equipped with a hose retractor!
• 2in1 - The compressor is equipped with an oil separator with a pressure reducer that traps water and oil in the blown air.

As a few, we use piston rods made of cast iron with an admixture of duralumin in our pumps, so that our compressors can work for a long time in extreme unfavorable conditions, i.e. Frost and very high temperatures are not able to destroy our devices, an additional advantage is the fact that the pumping set mounted on the cylinder is low-speed, which also affects relatively quiet operation.

We use plastic air housings, because we know from experience that the compressor during operation produces certain vibrations that simply cause these filters to unscrew, which is very dangerous for pumps when they draw polluted air and we can afford it thanks to a solution that does not allow pumps to heat excessively even at a pressure of 10bar

This is a more expensive solution, but thanks to this, the issue of any defect has been minimized to practically zero.

The polish compressors by Tagred are technologically advanced devices that are made of high quality materials. Other valuable advantages of our compressors are: low operating costs multitasking, precision and work culture. The low weight of the compressor makes it very ergonomic, it also has an automatic lubrication system, air filtration, pressure reducer and transport wheels.

We guarantee that while maintaining the highest standards and norms, Tagred compressors will meet your expectations.

Certified product. Has a declaration of conformity and the necessary directives, which proves the quality of the product!!!

• duralumin pistons
• 3 rings
• iron cylinders
• steel valve plates
• quiet operation
• readable oil level indicator

As the only company on the Polish market, we offer compressors with a modern spacing of head mounting screws.

The new X-type screw spacing technology allows the compressor to operate without damaging the seals. In addition, there are reinforced head pins (hardness 10,8).

The competition has on sale compressors with head attachment for 4 screws in such cases, after heating the head, the gasket blows out.

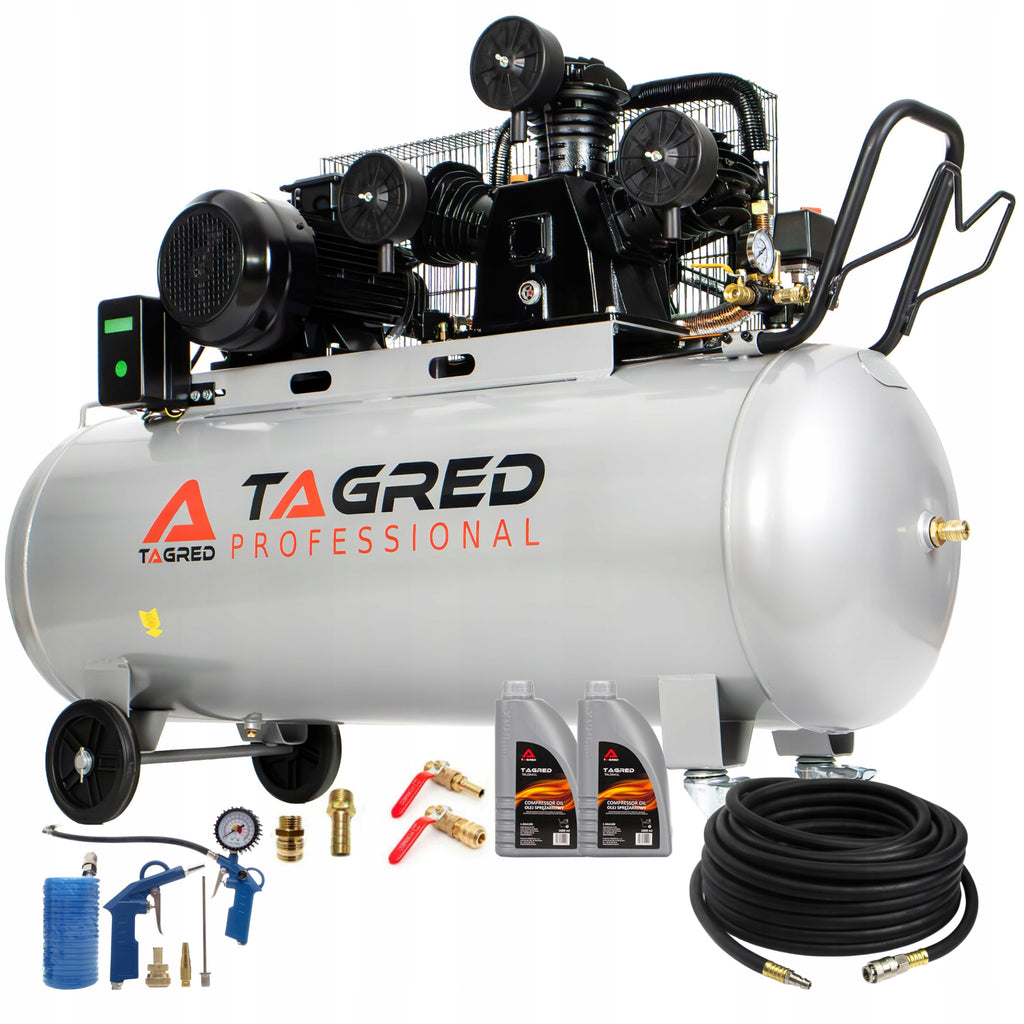

Composition of the set

• Oil compressor TA311
• Safety switch
• 2 quick couplers
• Ball valve + ball valve and brass quick-connector directly screwed into the cylinder !
• Air filters
• Free: Compressor oil TAGRED 2x1L
• Free: Pressure hose 10 M with quick couplers, crimped
• Gratis: Pneumatic set
• One pressure gauge showing pressure.
• Drain valve of accumulated water in the tank.
• Current box
• Two outputs directly from the tank
• 2 large rubber wheels and additionally 2 swivel wheels
• Full UDT documentation(sent upon customer request)
• User manual in Polish

Technical data

• Model: TA311
• Power supply from an outlet, three-phase.
• Number of pistons – 3
• Tank – 300 liters
• Supply voltage – 400V / 50 Hz
• Maximum tank pressure - 10 BAR
• Pump operating pressure - 8 BAR
• Maximum engine power – 9,5 kW – 12 hp
• Nominal engine power - 5,5 kW – 7,5 hp
• For proper and safe operation of the device, it is required to use protection in the switchgear: overcurrent switch min.C25A
• Tested actual performance on blowout at 8 Bar is 1190 L - min
• Tested actual performance on the blowout at 1 Bar is 1500 L - min
• Engine speed – 2840 rpm
• Pump speed – slow-speed type 1440 rpm
• Sound Pressure Level - 82,4 dB (A)
• Sound power level - 97 dB (A)
• Separator - YES

Kit Contents

• Inflation gun with pressure gauge
• 5m spiral hose for pneumatic tools
• Blow gun
• 3 nozzles

Technical Specifications

Model: TA104

• Allows quick connection of pneumatic devices:
• compressors
• paint guns
• jigsaws for sheet metal
• pneumatic riveting machines
• pneumatic wrenches
• drills
• polisher
• and many other devices

Rubber pneumatic hose is used to power all pneumatic tools including grinders, paint guns, pneumatic hammers, drills, etc. Due to the fact that it is not spiral, it can be wound on the drum. The biggest advantage is made of rubber, which is oil-resistant, flexible and resistant to pressure.

• This solution gives access to a large and immediate amount of air, unlimited switch or filter,
• ideally suited for blowing, pumping truck tires, or powering large pneumatic wrenches

Specifications
