Gaisa kompresors BLACKSMITH K5, 12 bar, 200 l, eļļains, virzuļa

Trumpai apie prekę

Prekė: Oro kompresorius BLACKSMITH K5, 12 bar, 200 l, alyvinis, stūmoklinis. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: KowaL k5 +wąż
• Galia: 3 kW
• Įtampa: 230 V

• + oils + filters + dehydrator + swivel wheels !

• New, improved design!
• enlarged valve seats for faster airflow
• Raised head heat sink
• enlarged diameter of the cooling turbine
• oil lubrication, spray lubrication
• 3 ring pistons with a diameter of 65 mm

• Height: approx. 100 cm
• length: approx. 130 cm
• Width: approx. 45 cm

This model has up to 4 quick-connectors! One of them is mounted directly at the cylinder, which allows for maximum airflow.

The air pump pumps air into a 12 Bar pressure cylinder. The switch (receipt) disconnects the pump when filling a tank of 10 Bar. Thanks to the use of a pump with 20% stock, the unit is not strained, which significantly translates into its service life!

• Our compressor has a cylinder with approval with a real capacity of 200 Liters !
• tank dimensions: 45 cm x 125 cm
• If you run a company under the supervision of a labour inspectorate, know that we add all documents to each compressor to be reported in UDT

His 200L cylinder punching times are:

1. from 0 to 8 bar = 4 min 10 s
2. from 0 to 10 bar = 5 min 30 s
3. from 7,5 to 10 bar = 1 min 14 s

200L oil compressor from the renowned company KowaL Polska. It is high power 3000 watt will work perfectly in any workshop. It can drive various kinds of pneumatic tools, be used for spray painting, sandblasting, wheel pumping and find other applications.

Equipped with two readable pressure gauges showing pressure.

This model dissipates heat very well and is characterized by low energy consumption while maintaining high performance parameters.

The enlarged diameter of the turbine affects the high efficiency of air flow, in addition, it prevents the blockage of impurities.

In addition, it is equipped with wheels (2 fixed + 2 swivel) for easy and trouble-free movement.

Thanks to the application of the 3-piston motor, the device is adapted to intensive work.

The compressor additionally has a SEPARATOR - it retains water and oil in the blown air.

ONE OF THE BEST COMPRESSORS ON THE MARKET IN ITS CLASS

• suction capacity max: 650 L-min
• max working capacity: 430 L-min
• pump type: slow-rotating
• pump speed: 1030 - 1230 r-min
• pressure max: 12 Bar
• working pressure: 10 Bar
• Engine power: 3000 watt ( 3kw )
• Current protection required: C20
• Oil bowl capacity: approx. 1 Liter
• tank: 200L
• number of working sockets: 4 quick couplers
• 230v/50Hz power supply
• Volume: 97 dB
• Weight: approx. 120 kg
• Piston system: W
• Number of pistons: 3
• Piston diameter: 65 mm
• pressure reducer: YES
• Dehydrator: YES
• built-in starting relaxer: YES
• induction motor: YES
• certificates: YES
• Declaration of conformity: YES
• built-in safety valve !
• equipped with 2 swivel wheels
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each start. If necessary, supplement its condition.

Our compressor as one of the few has 2 relaxers for easy start-up (start-up and end-up)

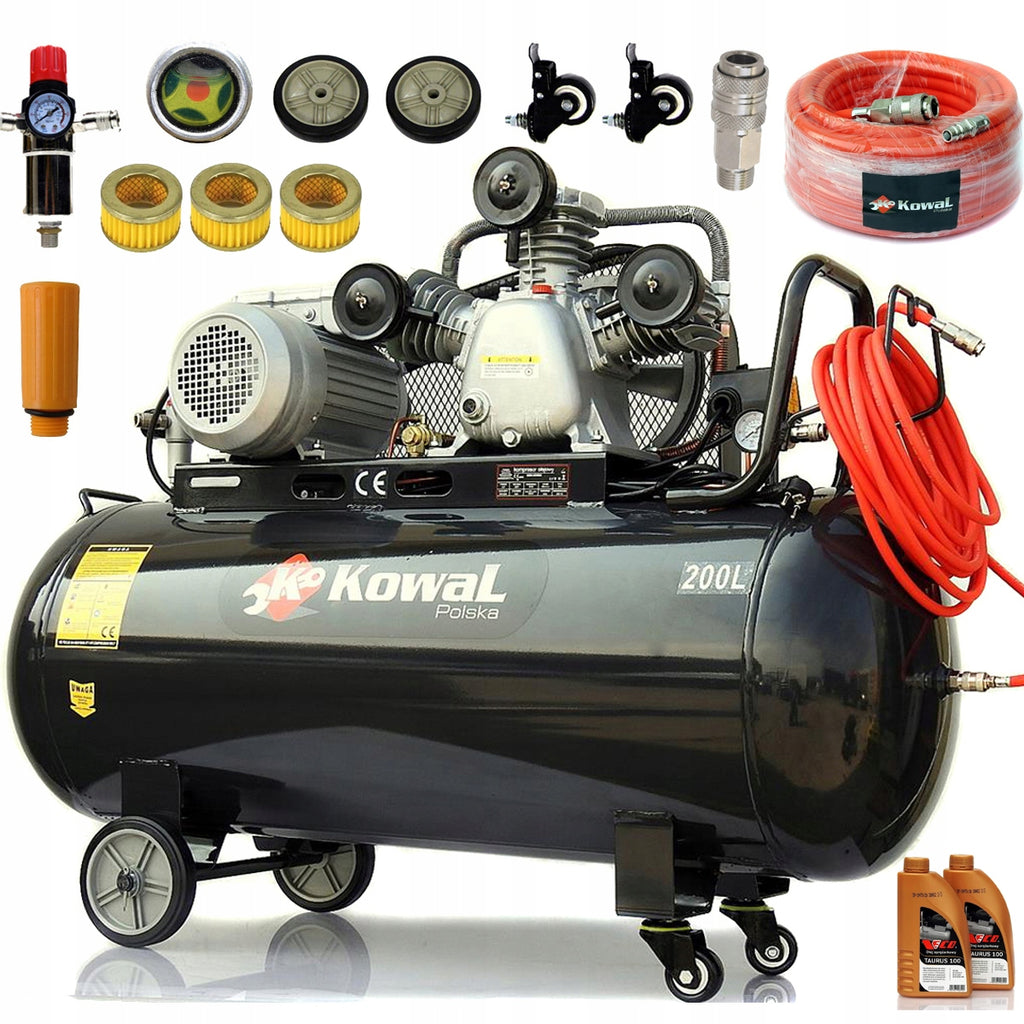

• 2 rubberized wheels
• 2 swivel wheels with brake
• built-in dehydrator with reducer
• 3 x metal air filter with hepa cartridge
• 4 quick couplers
• PL instruction
• 1 vent
• 1 infusion stopper
• 1 Liter of Ld-100 oil (in bottles or poured into a compressor)

- Increased engine power

- Copper motor winding

- Iron cylinders

- Built-in pressure reducer

- Large cooling turbine - quieter compressor operation

- Brushless motor

- Sturdy wheels allow for easy transport to the right place

- Separator

• duralumin pistons
• 3 rings
• cast iron cylinders
• steel valve plates
• Quiet operation
• increased piston stroke by about 20% compared to the previous model
• Increased efficiency from 500 to 600 L/min!
• clear oil level indicator

In addition, it is worth noting that the motor with the pump is connected by a belt transmission. This is a low-speed compressor because the number of engine revolutions is translated into about 900 pump revolutions per minute. This significantly increases the service life of the entire unit while maintaining high pump efficiency.

• enlarged cooling turbine
• induction motor - brushless
• cast iron engine body!
• The large dimensions of the motor are a confirmation of its power, the winding of the motor entirely wound with copper wire which in combination with an overload fuse makes this motor an effective and reliable element of the compressor, which affects the quality of satisfaction during use.

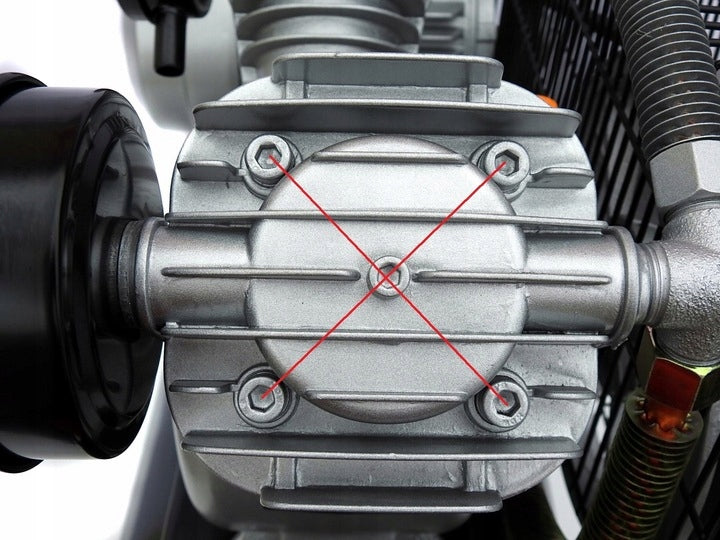

This allows the compressor to run much longer without damaging the gasket. The central screw screwed through the head into the valve plate additionally supports and presses the gasket crossbar in the intervalve chamber!

In addition, there are reinforced head pins (hardness 10,8).

The competition has on sale compressors with head attachment for 4 screws in such cases, after heating the head, the gasket blows out.

Taking into account the weight and size of the compressor, KowaL Polska used a comfortable and most importantly solid transport handle!

• welded in two places (up/down) at the cylinder tube. Unlike other brands where the handle is welded only from the top at the cylinder
• perfectly centered and balanced handle
• handle made of high carbon steel
• does not tremble or make noise during operation
• No need to constantly tighten the screws!
• does not limit access to the switch and quick-connector
• is guided high and manoeuvring does not require excessive bending of the operator!
• and most importantly, it does not protrude behind the front outline of the cylinder, so it does not increase the volume of the entire compressor

• Thanks to this solution, you have access to a large and immediate amount of air, unlimited switch or filter.
• It is ideal for blowing, pumping truck tires, or powering large pneumatic wrenches
• the ideal solution for powering the most demanding pneumatic wrenches. Large unlimited airflow 10 atmospheres!!

• Hose diameter: 8 x 13 mm
• length 10 m
• made of PVC + silicone
• Internal reinforcement: YES
• 2 cuffed quick-connectors
• Operating pressure 12 Bar

ONLY WITH US!! AN ESSENTIAL ELEMENT IN PAINTING WORKS!

Each compressor in the set has a separator with a dehydrator.

This element captures all impurities from the exhaust air (water, oil, solids).

It has a capacious reservoir and a manual valve for condensate-pollution drain.

New, aesthetic colors! Powder coated cylinder!

• BRAND KowaL - 10 YEARS OF EXPERIENCE IN THE PNEUMATICS INDUSTRY, THOUSANDS OF SATISFIED CUSTOMERS
• CERTIFIED PRODUCT WITH UNINFLATED PARAMETERS
• CERTAINTY OF PROFESSIONAL ADVICE ON PURCHASE AND SERVICE
• WE HAVE OUR OWN SERVICE (AVAILABILITY OF ALL PARTS TO OUR PRODUCTS DURING WARRANTY AND POST-WARRANTY TIME)
• ONLY WITH US THIS CLASS PRODUCT AT SUCH A LOW PRICE WHICH WILL BE USED IN ALL CONDITIONS IN WHICH IT WILL WORK!
