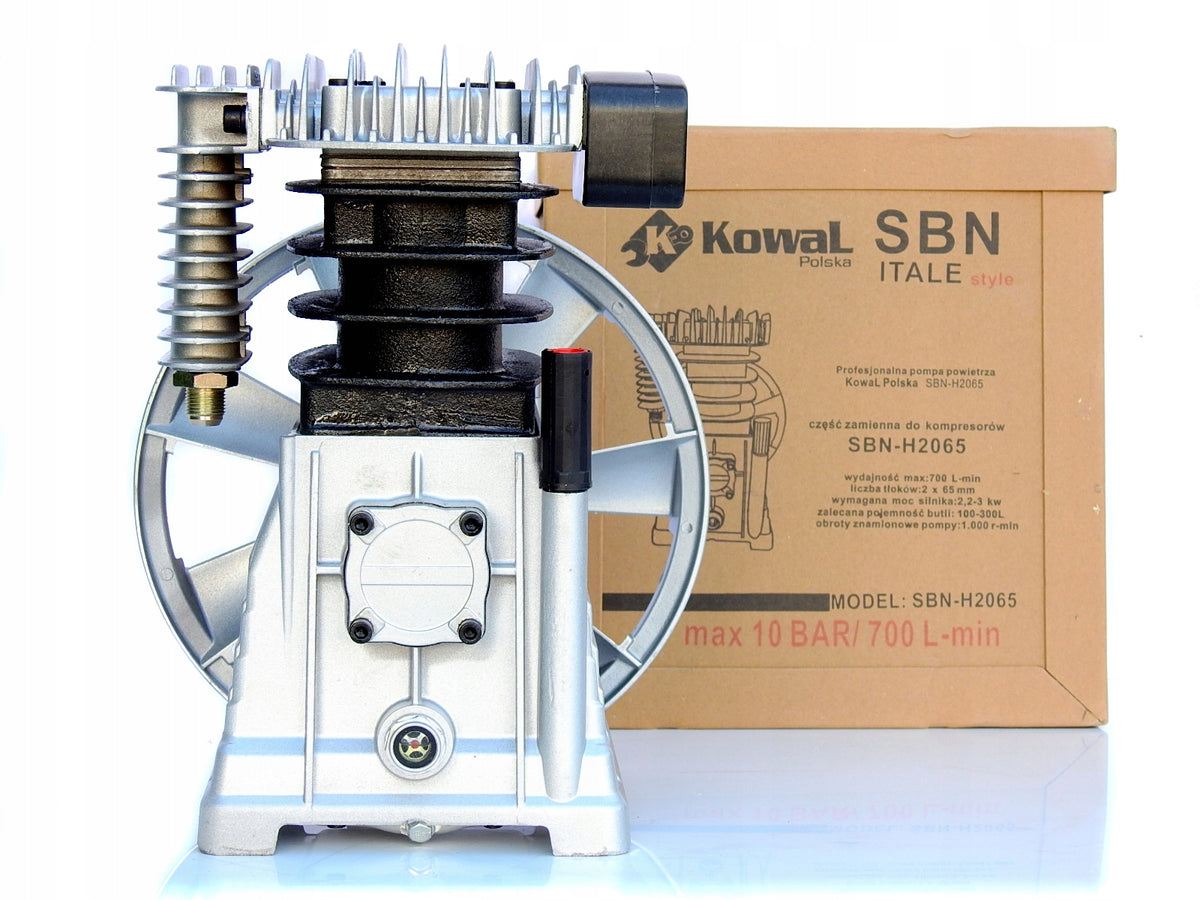

Gaisa kompresors SBN, 10 bar, 700 l/min, eļļas bāzes

Trumpai apie prekę

Prekė: Oro kompresorius SBN, 10 bar, 700 l/min, alyvos pagrindu. Kategorija: Kompresoriai.

• Gamintojas: Kowal Polska
• Modelis: SBN-H2065 10 Bar
• Galia: 3 kW

• Complete compressor with oil, vent, air filter, wheel and side oil cooler

• New, improved design!
• enlarged pulley, up to 31 cm
• side exhaust air cooler
• enlarged valve seats for faster airflow
• Raised head heat sink
• increased piston stroke
• air outlet pipe with aluminium heat sink, ribbed

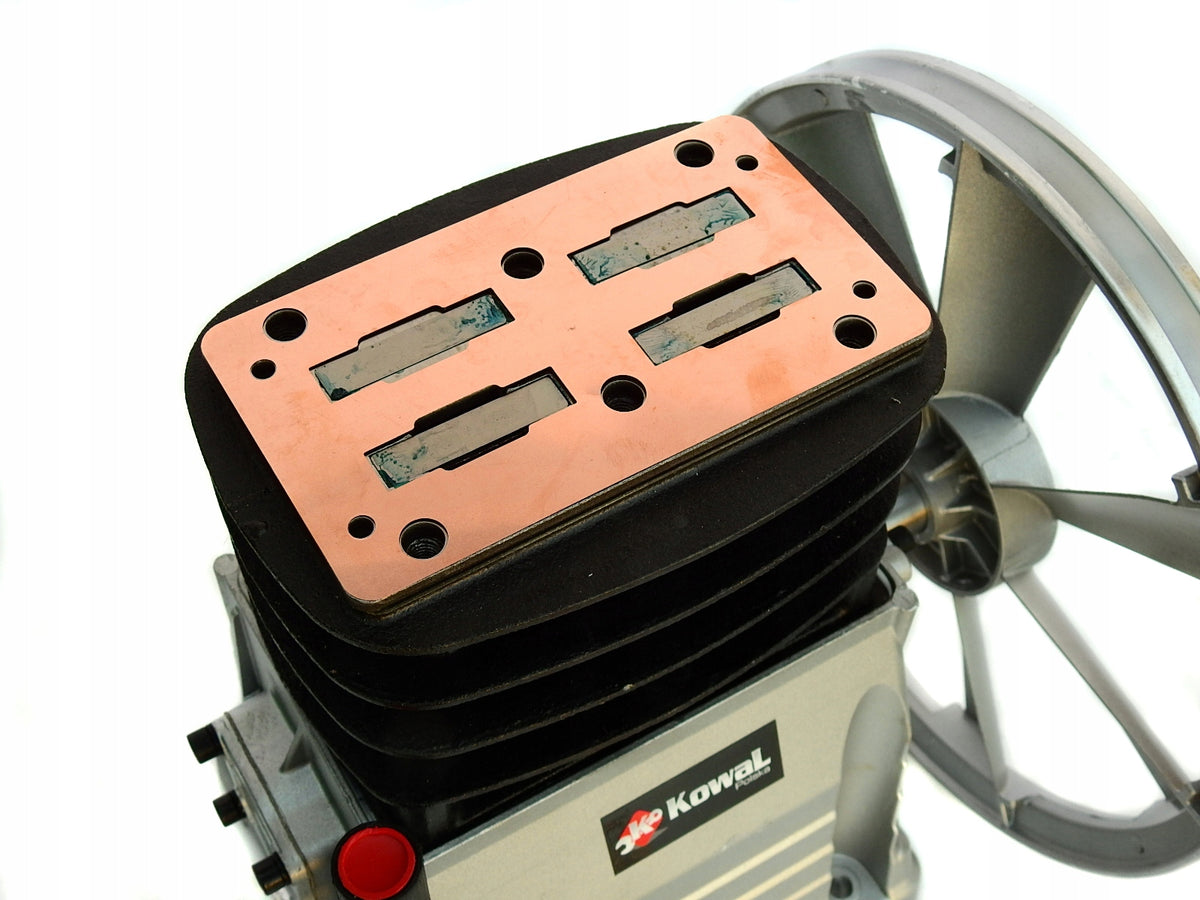

• copper gasket under the head !
• increased compression ratio to 10 BAR

• max suction capacity: 700 L-min
• max working capacity: 350 L-min
• required min engine power: 2,2 - 3 kw
• Suggested cylinder capacity: 100 to 300 L
• required compressor rated speed: 800-1200 r/min
• max working pressure: 10 bar
• Piston diameter: 2 x 65 mm
• pulley diameter: 31 cm
• Drive: 1 x 13 mm V-belt
• spacing of fixing screws: 13,5 x 14 cm
• direction of rotation: left (looking from the side of the wheel)
• oil used: compressor LD-100
• 1 replacement after 5 hours, then every 50 hours
• lubrication: splash
• Cylinders: cast iron
• correct oil level: covered 3/4 slide
• Check the oil level before each start. If necessary, supplement its condition.

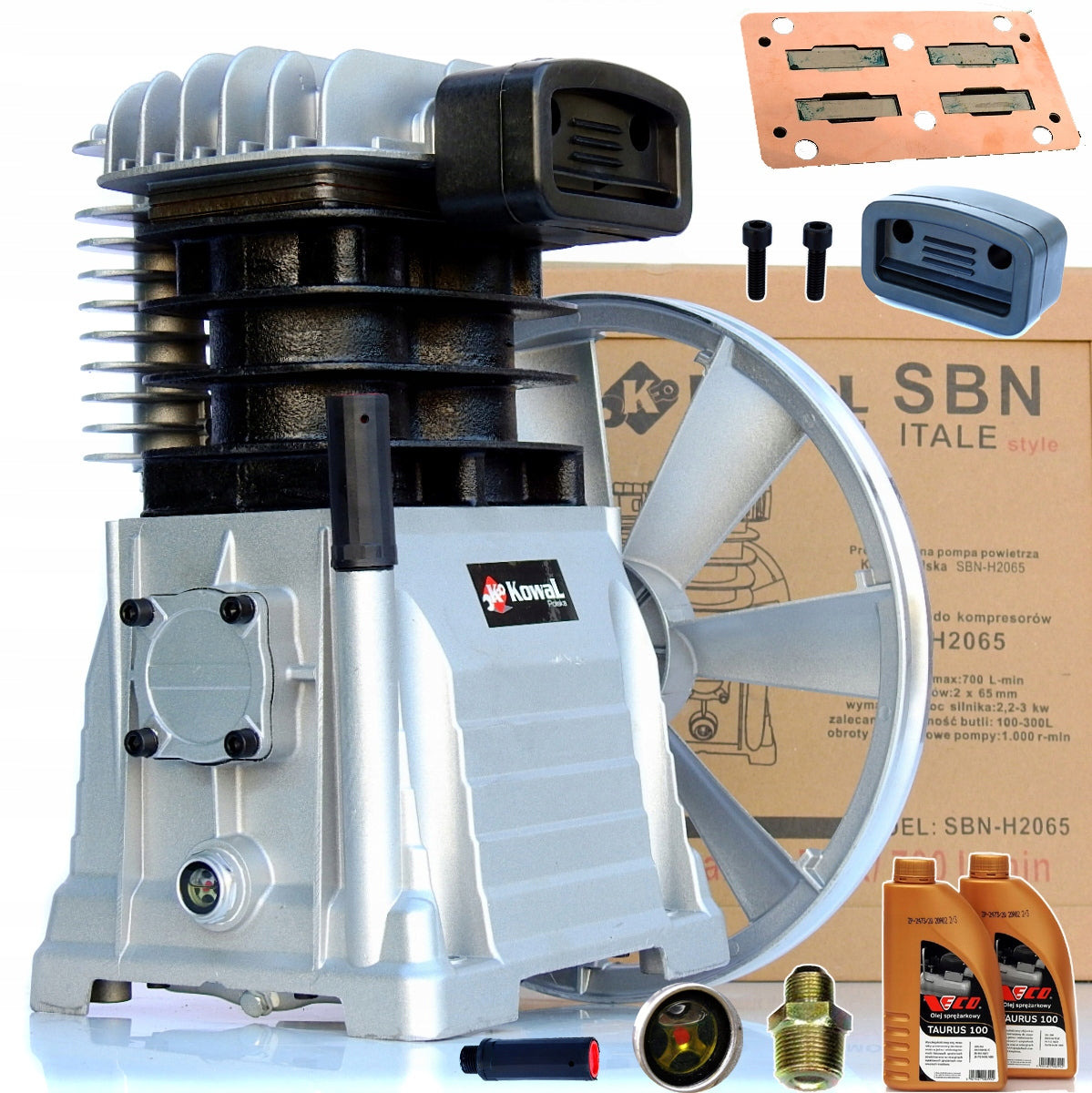

• 2 piston compressor (2 x 65 mm)
• AIR FILTER
• 2 mounting screws
• vent
• pulley 31 cm
• side oil cooler
• compressor and tube outlet heat sink fitting
• 1 Liter of Ld-100 oil (in bottles or poured into a compressor)
