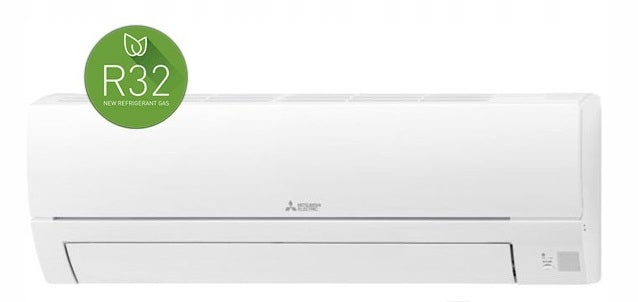

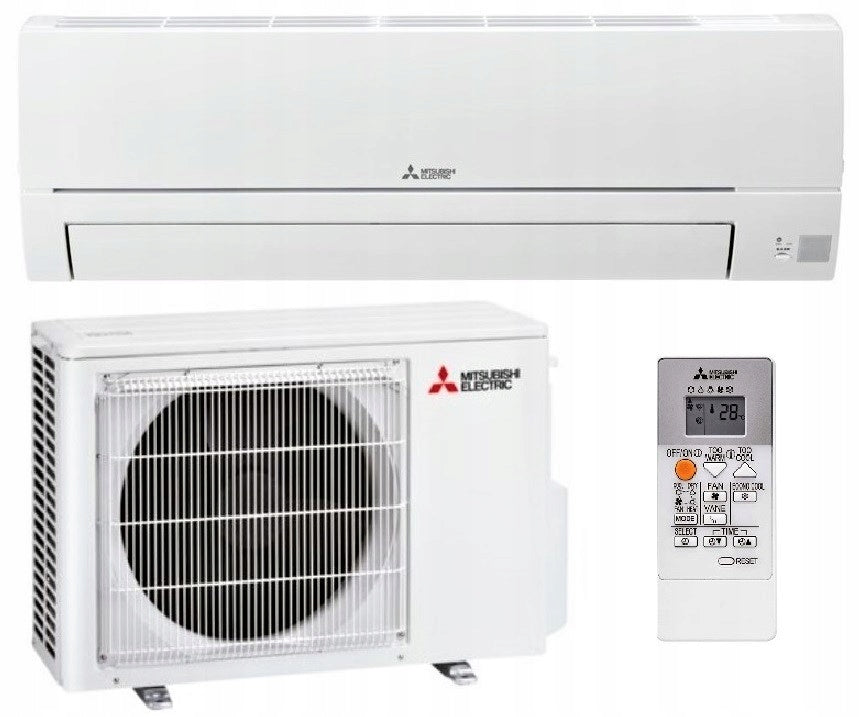

Oro kondicionierius MITSUBISHI MSZ-HR50VF, 5 kW

Trumpai apie prekę

Prekė: Oro kondicionierius MITSUBISHI MSZ-HR50VF, 5 kW. Kategorija: Oro kondicionieriai.

• Gamintojas: Mitsubishi
• Modelis: MSZ-HR50VF-E1

Specifications of the MSZ- HR50VF MUZ-HR50VF 5 kW

• Cooling area up to 60 m2
• Producer: Mitsubishi
• Series/Model: Economy
• Internal unit designation : MSZ-HR50VF
• External unit designation : MUZ-HR50VF
• Type: Wall-Mounted
• Set Contents: Set (in. + external. )
• Version: Single-Split
• Energy class cooling / heating A++ / A+
• Length of installation mb. (maximum): 20mb.
• Difference in mb levels. (maximum): 12mb.
• Cooling : Yes Operating temperature range: -10 ~+46°C
• Temperature control range 16 - 30 °C
• Refrigerant: R32
• Heating: Yes
• Dehumidification: Yes
• Circulation / Fan: Yes
• Automatic restart: Yes

BASIC FEATURES AND FUNCTIONS

ENERGY SAVING

Revolutionary inverter technology ensures superior performance, quiet operation and reduced electricity consumption.

EASY AND QUICK INSTALLATION

The air conditioners are designed to be installed quickly and efficiently, regardless of the conditions.

LOUVER SETTINGS MEMORY

Every time you turn it on, the air conditioner remembers the last settings of the blinds and restores them when you turn them back on.

QUIET OPERATION ONE. INTERNAL

Unique angled fan blades and technology eliminate unnecessary noise and allow for smooth operation at the lowest noise level.

TIMER

Thanks to this function, it is possible to program the time of automatic switching on and off of the air conditioner.

AUTOMATIC RESTART

In the event of a power outage, the air conditioner remembers the last setting and automatically restores it when the power is resumed.

Wi-Fi READY

The air conditioner can be controlled using the optional MelCloud Wi-Fi module.

TECHNICAL PARAMETERS:

✓ Refrigeration power average 5,0kW (min 1,3kW - max 5,0kW )

✓ Heating power average 5,4kW ( min 1,4kW - 6,5kW )

✓ Electrical power consumption during cooling medium – 1210W

✓ Electric power consumption during heating medium – 975W

✓ Energy class at cooling A++, at heating A+

✓ Efficiency factor during cooling SEER - 6,5

✓ Efficiency factor during heating SCOP – 4,3

✓ Operating temperature range from -10°C to +46°C

✓ Internal unit sound pressure level (cooling) – 28/36/40/45 dB(A)

✓ Internal unit sound pressure level (heating) – 27/34/41/47 dB(A)

✓ Sound pressure level of outdoor unit max – 51dB(A)

✓ Diameter of copper (freon) pipes – 1/4 inch (6,35mm) and 3/8 inch (9,52mm)

✓ Maximum length of freon installation – 20m

✓ Maximum level difference between units – 12m

✓ Power supply 230V

✓ Factor R32

✓ Factory amount of agent in the device up to 5mb (0,800 kg)

✓ Dimensions of the internal unit (mm) – width. 838/ is. 280/ d. 228

✓ Dimensions of outdoor unit (mm) – width. 800/ is. 550/ d. 285

✓ Weight of indoor unit 9kg/ outdoor unit 35kg

Saving energy

Mitsubishi Electric inverter technologies are adapted to ensure automatic selection of workloads depending on demand. This reduces excessive electricity consumption and thus realizes the energy class A++ for cooling mode and A+ for heating mode.

Refrigerant R32

The small amount of refrigerant for the HR series and the properties of R32, which has a low greenhouse effect potential compared to the previously used refrigerant R410A, contributes to the prevention of global warming.

Easy control

The intuitive remote control and wall unit features provide easy control and comfort.

Minimalistic design

The rounded surface of the front panel provides a minimalist, friendly look to the unit. The small width allows for installation in smaller, narrower spaces.

Extremely quiet

"Silent operation" mode, provides 21dBA level operation for indoor units of HR25/35 models. This unique feature makes the HR series the perfect solution for any situation.

Class A+/A++ based on seasonality

The economy of operation is a big advantage of Mitsubishi Electric air conditioners. Thanks to the careful design of all components and the use of modern technologies, energy efficiency reaches high levels even in the cold season.

MSZ-HR achieves SEER and SCOP (seasonal performance index) values, allowing to achieve values above A++/A+ class for the entire range.

Compact outdoor units

Internal and external units of the entire product range are distinguished by their compact dimensions. This allows them to be installed also in rooms with a small amount of free space.

Purchase without assembly:

In the case of purchase of goods without assembly service by our company, in accordance with the Act of 15 May 2015 on substances that deplete the ozone layer and on certain greenhouse gases (Journal of Laws U. item 881 and 2016 item 1579 and 1948), amended on 12 July 2017 (OJ U. item 1951) after purchase, the customer will be obliged to complete the statement together with the F-Gas installer certificate number.

Specifications
