Oro kondicionierius ROTENSO ELIS 7kW, X serija, su WiFi

Trumpai apie prekę

Prekė: Oro kondicionierius ROTENSO ELIS 7kW, X serija, su WiFi. Kategorija: Oro kondicionieriai.

• Gamintojas: Rotenso
• Modelis: E70X/Z/MS257/3MB/K

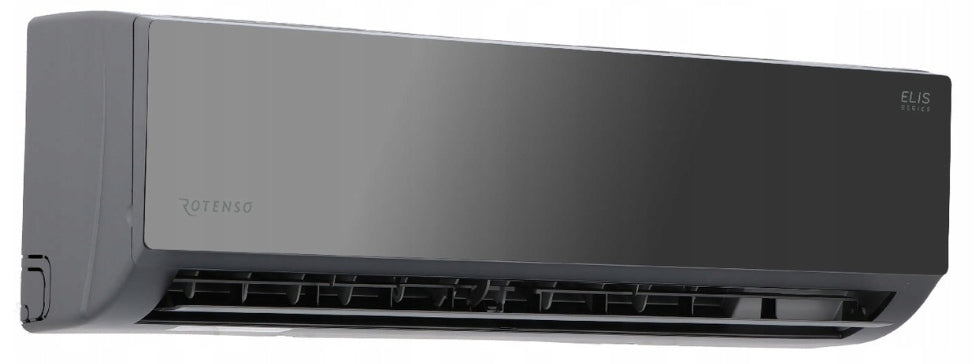

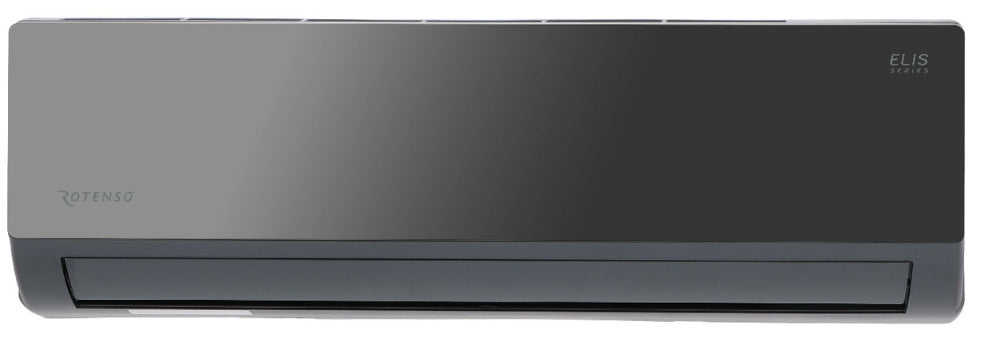

Wall air conditioner ROTENSO Elis 7 kW R32

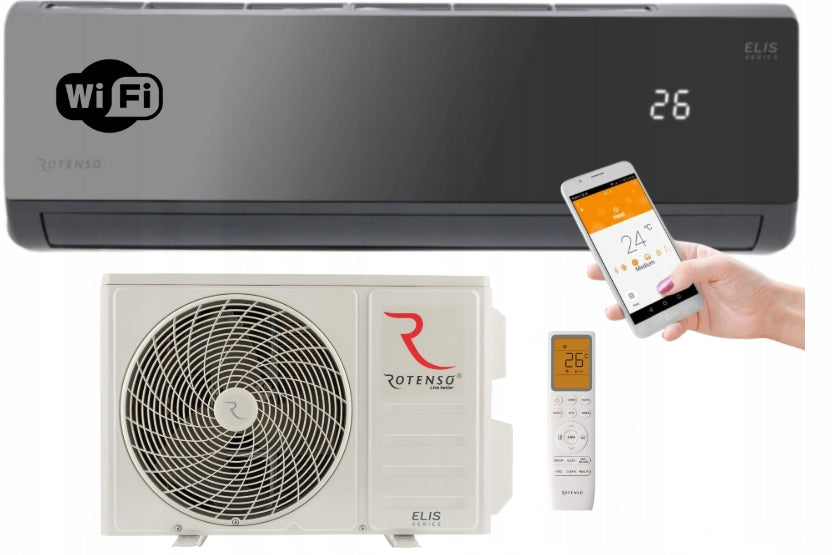

The set includes:

- E70Xi indoor unit

- E70Xo outdoor unit

- wireless remote control

Air conditioner with a compact design with modern rounding of the front panel, enriched with delicate silver finishes.

Elis is an excellent choice for those looking for a modern form for a fashionable interior in loft, industrial or glamour style. Minimalist, timeless design, graphite housing and front panel imitating a sheet of dark glass emphasize the prestigious character of the device, which also perfectly harmonizes with the dark colors of the walls. The air conditioner has a compact, compact housing similar to a cuboid.

GRAPHITE STYLE

LUXURY FRONT PANEL

Graphite panel imitating a sheet of dark glass emphasizes the prestigious character of the device. Elis represents a minimalist, timeless design. The air conditioner blends perfectly with modern interiors in apartments and offices.

AIR SUPPLY 4D

Built-in actuators allow you to control the operation of vertical and horizontal blinds using a remote control or wall controller. This guarantees the highest comfort of use and ensures efficient air distribution in the room.

They effectively protect the air conditioner against corrosion and bacterial growth on the lamellas of the internal and external units.

Modern chiller, operating in energy class A++ in cooling mode, A+ in heating mode.

Operating range from -15'C to +53'C in cooling mode, -20'C to +30'C in heating mode

The air conditioner can be controlled using a tablet or smartphone both inside and outside the home.

The PureR Stage healthy air system consists of as many as 9 stages of air purification and filtration, thanks to which it neutralizes most harmful bacteria, viruses, mites and fungi from the environment so that you can breathe clean and healthy air.

Specification

Model

Elis Silver 7,0 kW

Rotenso series

Elis

Generation

X

Efficiency / Cooling / Nominal (W)

7040

Efficiency / Cooling / Min-Max (W)

1500-7800

Power Consumption / Cooling / Nominal (W)

2166

Power Consumption / Cooling / Min-Max (W)

390-2800

Operating Current / Cooling / Nominal (A)

9.4

Operating Current / Cooling / Min-Max (A)

1,7-12,2

Efficiency / Heating / Nominal (W)

7200

Efficiency / Heating / Min-Max (W)

1500-7900

Power Consumption / Heating / Nominal (W)

2112

Power Consumption / Heating / Min-Max (W)

390-3000

Operating Current / Heating / Nominal (A)

9.2

Operating Current / Heating / Min-Max (A)

1,7-13,0

Type of reverse heat pump

air-to-air

Cooling load (kW)

7

SEER (W/W)

6.5

Energy efficiency class - cooling

A++

Annual energy consumption - cooling (kWh/a)

377

Heat load (Tbiv -7°C) (kW)

4.9

SCOP (W/W)

4

Energy efficiency class - heating

A+

Annual energy consumption - heating (kWh/a)

1715

Dehumidification (l/h)

1.8

Maximum energy consumption (W)

3000

Maximum operating current (A)

13

External unit

EO70Xo

Product code EAN j. external.

5905567614392

Fan Speed / (H. Wed. No. ) (rpm)

930 / 830 / 690 / 570 / 450

Maximum airflow (m³/h)

3000

Sound pressure level (dB(A))

57

Sound power level (dB(A))

67

Net dimensions / (S×G×W) (mm)

845 × 336 × 693

Gross dimensions / (S×G×W) (mm)

960 × 400 × 732

Mounting spacing / (S×G) ((mm))

586 × 347

Net weight / Gross weight (kg)

40,5 / 42

Refrigerant / Type

R32

Refrigerant / GWP

675

Refrigerant / Quantity (up to 5 mb) (kg)

1.14

Refrigerant / Quantity (up to 5 mb) (TCO2eq)

0.77

Additional factor over 5 mb (g/m)

12

Pipe connections / Liquid / Gas (mm(inches))

Φ6,35 / Φ12,7 (1/4"" / 1/2"")

Maximum installation length (m)

25

Maximum Level Difference (m)

10

Compressor type

Rotational DC

Type of power supply for outdoor unit (V-Hz, Ø)

220-240~50, 1f

Security (A)

B20

Power cords: outdoor unit (il. × mm²) L < 20m

3 × 2,5

Control and power cables: outdoor unit. - internal. (il. × mm²)

4 × 1

Control and power cables: Hiro unit - internal.

-

Range of work in the room / (Cooling/Heating) (°C)

16~32 / 0~30

Outdoor working range / (Cooling/Heating) (°C)

-15~53 / -20~30

Declared performance under heating conditions / (average season) (kW)

4,5

Power supply under heating conditions / (average season) (kW)

0,4

In connection with the amendment to the Act Journal of Laws 2017 item.

- in the case of purchase for the company, a statement that the device will be installed by a company with an F-Gas certificate or a resale clause as a commercial commodity

- in the case of a person, a statement that the device will be installed by a person holding an F-Gas certificate (company or personal)

A statement can be downloaded in the "Additional information" tab of -Poradnik.pdf.

ALWAYS CHECK, THE CONDITION OF THE SHIPMENT IN THE PRESENCE OF THE COURIER, IF NECESSARY, WRITE DOWN THE DAMAGE REPORT, WILL BE THE BASIS FOR THE COMPLAINT.

The condition of the 5-year warranty is installation by a qualified Installer documented by an entry in the warranty card.

The guarantor is the company / installer installing the device, having the necessary permissions and certificates of the manufacturer, in the event of a failure, the installer finds a fault and reports to the service. Detailed warranty conditions of the "Warranties" tab
